#include <IfcMaterialPropertiesAutoImpl.h>

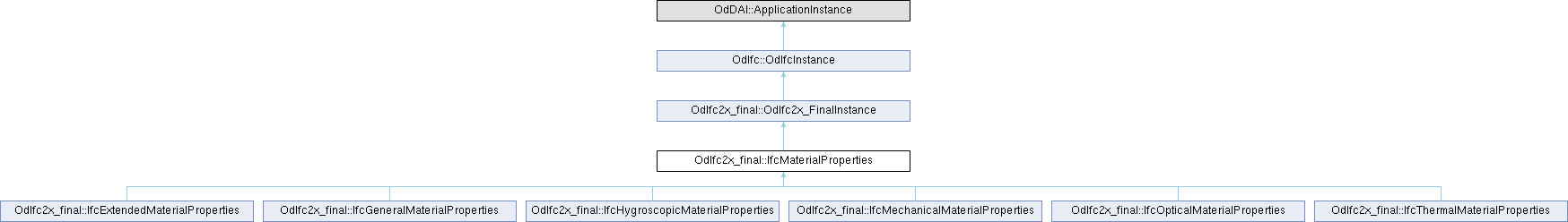

Inheritance diagram for OdIfc2x_final::IfcMaterialProperties:

Public Member Functions
const OdDAIObjectId &	getMaterial () const

void	setMaterial (const OdDAIObjectId &Material)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Material

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcMaterialProperties assigns a set of material properties to associated material definitions. The set can be identified by a Name and a Description. The IfcProperty (instantiable subtypes) is used to express the individual material properties by name, description, value and unit.

Definition at line 47 of file Ifc2x_Final/IfcMaterialPropertiesAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcMaterialProperties::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc2x_final::IfcExtendedMaterialProperties, OdIfc2x_final::IfcGeneralMaterialProperties, OdIfc2x_final::IfcHygroscopicMaterialProperties, OdIfc2x_final::IfcMechanicalMaterialProperties, OdIfc2x_final::IfcOpticalMaterialProperties, and OdIfc2x_final::IfcThermalMaterialProperties.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcMaterialProperties::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcExtendedMaterialProperties, OdIfc2x_final::IfcGeneralMaterialProperties, OdIfc2x_final::IfcHygroscopicMaterialProperties, OdIfc2x_final::IfcMechanicalMaterialProperties, OdIfc2x_final::IfcOpticalMaterialProperties, and OdIfc2x_final::IfcThermalMaterialProperties.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcMaterialProperties::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc2x_final::IfcExtendedMaterialProperties, OdIfc2x_final::IfcGeneralMaterialProperties, OdIfc2x_final::IfcHygroscopicMaterialProperties, OdIfc2x_final::IfcMechanicalMaterialProperties, OdIfc2x_final::IfcOpticalMaterialProperties, and OdIfc2x_final::IfcThermalMaterialProperties.

◆ getMaterial()

const OdDAIObjectId & OdIfc2x_final::IfcMaterialProperties::getMaterial ( ) const

Returns the value of Material attribute. This attribute represents reference to the material definition to which the set of properties is assigned.

Returns: Returns the value of Material attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcMaterialProperties::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x_final::IfcExtendedMaterialProperties, OdIfc2x_final::IfcGeneralMaterialProperties, OdIfc2x_final::IfcHygroscopicMaterialProperties, OdIfc2x_final::IfcMechanicalMaterialProperties, OdIfc2x_final::IfcOpticalMaterialProperties, and OdIfc2x_final::IfcThermalMaterialProperties.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcMaterialProperties::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcExtendedMaterialProperties, OdIfc2x_final::IfcGeneralMaterialProperties, OdIfc2x_final::IfcHygroscopicMaterialProperties, OdIfc2x_final::IfcMechanicalMaterialProperties, OdIfc2x_final::IfcOpticalMaterialProperties, and OdIfc2x_final::IfcThermalMaterialProperties.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcMaterialProperties::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x_final::IfcExtendedMaterialProperties, OdIfc2x_final::IfcGeneralMaterialProperties, OdIfc2x_final::IfcHygroscopicMaterialProperties, OdIfc2x_final::IfcMechanicalMaterialProperties, OdIfc2x_final::IfcOpticalMaterialProperties, and OdIfc2x_final::IfcThermalMaterialProperties.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcMaterialProperties::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcExtendedMaterialProperties, OdIfc2x_final::IfcGeneralMaterialProperties, OdIfc2x_final::IfcHygroscopicMaterialProperties, OdIfc2x_final::IfcMechanicalMaterialProperties, OdIfc2x_final::IfcOpticalMaterialProperties, and OdIfc2x_final::IfcThermalMaterialProperties.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcMaterialProperties::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcExtendedMaterialProperties, OdIfc2x_final::IfcGeneralMaterialProperties, OdIfc2x_final::IfcHygroscopicMaterialProperties, OdIfc2x_final::IfcMechanicalMaterialProperties, OdIfc2x_final::IfcOpticalMaterialProperties, and OdIfc2x_final::IfcThermalMaterialProperties.

◆ setMaterial()

void OdIfc2x_final::IfcMaterialProperties::setMaterial ( const OdDAIObjectId & Material )

Sets the value of Material attribute. This attribute represents reference to the material definition to which the set of properties is assigned.

Parameters

Material [in] Material to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcMaterialProperties::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcExtendedMaterialProperties, OdIfc2x_final::IfcGeneralMaterialProperties, OdIfc2x_final::IfcHygroscopicMaterialProperties, OdIfc2x_final::IfcMechanicalMaterialProperties, OdIfc2x_final::IfcOpticalMaterialProperties, and OdIfc2x_final::IfcThermalMaterialProperties.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcMaterialProperties::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcExtendedMaterialProperties, OdIfc2x_final::IfcGeneralMaterialProperties, OdIfc2x_final::IfcHygroscopicMaterialProperties, OdIfc2x_final::IfcMechanicalMaterialProperties, OdIfc2x_final::IfcOpticalMaterialProperties, and OdIfc2x_final::IfcThermalMaterialProperties.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcMaterialProperties::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcExtendedMaterialProperties, OdIfc2x_final::IfcGeneralMaterialProperties, OdIfc2x_final::IfcHygroscopicMaterialProperties, OdIfc2x_final::IfcMechanicalMaterialProperties, OdIfc2x_final::IfcOpticalMaterialProperties, and OdIfc2x_final::IfcThermalMaterialProperties.
