AcDbRadialDimensionLarge Class Reference

#include <AcDbRadialDimensionLarge.h>

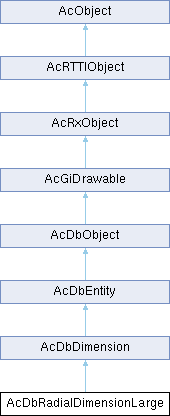

Inheritance diagram for AcDbRadialDimensionLarge:

Public Member Functions
	AcDbRadialDimensionLarge (AcGePoint3d const &, AcGePoint3d const &, AcGePoint3d const &, AcGePoint3d const &, double, wchar_t const *=NULL, AcDbObjectId=AcDbObjectId::kNull)
	AcDbRadialDimensionLarge (void)
AcGePoint3d	center (void) const
AcGePoint3d	chordPoint (void) const
AcGePoint3d	jogPoint (void) const
AcGePoint3d	overrideCenter (void) const
double	extArcEndAngle (void) const
double	extArcStartAngle (void) const
double	jogAngle (void) const
Acad::ErrorStatus	setCenter (AcGePoint3d const &)
Acad::ErrorStatus	setChordPoint (AcGePoint3d const &)
Acad::ErrorStatus	setExtArcEndAngle (double)
Acad::ErrorStatus	setExtArcStartAngle (double)
Acad::ErrorStatus	setJogAngle (double)
Acad::ErrorStatus	setJogPoint (AcGePoint3d const &)
Acad::ErrorStatus	setJogPointPP (AcGePoint3d const &)
Acad::ErrorStatus	setOverrideCenter (AcGePoint3d const &)
Acad::ErrorStatus	setOverrideCenterPP (AcGePoint3d const &)
Acad::ErrorStatus	setTextPositionPP (AcGePoint3d const &)
virtual	~AcDbRadialDimensionLarge (void)
virtual Acad::ErrorStatus	getClassID (_GUID *) const
Public Member Functions inherited from AcDbDimension
	AcDbDimension (void)
bool	getArrowFirstIsFlipped (void) const
bool	getArrowSecondIsFlipped (void) const
bool	inspection (void) const
bool	isDynamicDimension (void) const
bool	isHorizontalRefTextRotation (void) const
AcDbObjectId	dimBlockId (void) const
AcDbObjectId	dimExt1Linetype (void) const
AcDbObjectId	dimExt2Linetype (void) const
AcDbObjectId	dimLineLinetype (void) const
AcDbObjectId	dimensionStyle (void) const
AcGeMatrix3d	blockTransform (void) const
AcGePoint3d	dimBlockPosition (void) const
AcGePoint3d	textPosition (void) const
AcGeVector3d	normal (void) const
double	elevation (void) const
double	horizontalRotation (void) const
double	textLineSpacingFactor (void) const
double	textRotation (void) const
AcDb::LineSpacingStyle	textLineSpacingStyle (void) const
AcDbMText::AttachmentPoint	textAttachment (void) const
Acad::ErrorStatus	fieldFromMText (AcDbMText *)
Acad::ErrorStatus	fieldToMText (AcDbMText *)
Acad::ErrorStatus	formatMeasurement (wchar_t *, double, wchar_t *)
Acad::ErrorStatus	generateLayout (void)
Acad::ErrorStatus	getDimstyleData (AcDbDimStyleTableRecord *&) const
Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, AcDbFullSubentPath const &, AcGePoint3d const &, AcGePoint3d const &, AcGeMatrix3d const &, AcArray< AcGePoint3d, AcArrayMemCopyReallocator< AcGePoint3d > > &, AcGeIntArray &) const
Acad::ErrorStatus	measurement (double &)
Acad::ErrorStatus	recomputeDimBlock (bool=true)
Acad::ErrorStatus	removeTextField (void)
Acad::ErrorStatus	setArrowFirstIsFlipped (bool)
Acad::ErrorStatus	setArrowSecondIsFlipped (bool)
Acad::ErrorStatus	setDimBlockId (AcDbObjectId const &)
Acad::ErrorStatus	setDimBlockPosition (AcGePoint3d const &)
Acad::ErrorStatus	setDimExt1Linetype (AcDbObjectId)
Acad::ErrorStatus	setDimExt2Linetype (AcDbObjectId)
Acad::ErrorStatus	setDimLineLinetype (AcDbObjectId)
Acad::ErrorStatus	setDimensionStyle (AcDbObjectId)
Acad::ErrorStatus	setDimensionText (wchar_t const *)
Acad::ErrorStatus	setDimstyleData (AcDbDimStyleTableRecord *)
Acad::ErrorStatus	setDimstyleData (AcDbObjectId)
Acad::ErrorStatus	setDynamicDimension (bool)
Acad::ErrorStatus	setElevation (double)
Acad::ErrorStatus	setHorizontalRefTextRotation (bool)
Acad::ErrorStatus	setHorizontalRotation (double)
Acad::ErrorStatus	setInspection (bool)
Acad::ErrorStatus	setInspectionFrame (int)
Acad::ErrorStatus	setInspectionLabel (wchar_t const *)
Acad::ErrorStatus	setInspectionRate (wchar_t const *)
Acad::ErrorStatus	setNormal (AcGeVector3d const &)
Acad::ErrorStatus	setTextAttachment (AcDbMText::AttachmentPoint)
Acad::ErrorStatus	setTextLineSpacingFactor (double)
Acad::ErrorStatus	setTextLineSpacingStyle (AcDb::LineSpacingStyle)
Acad::ErrorStatus	setTextPosition (AcGePoint3d const &)
Acad::ErrorStatus	setTextRotation (double)
Acad::ErrorStatus	useDefaultTextPosition (void)
Acad::ErrorStatus	useSetTextPosition (void)
int	inspectionFrame (void) const
int	isUsingDefaultTextPosition (void) const
virtual	~AcDbDimension (void)
virtual bool	castShadows (void) const
virtual bool	dimfxlenOn (void) const
virtual double	dimfxlen (void) const
virtual Acad::ErrorStatus	setDimfxlen (double)
virtual Acad::ErrorStatus	setDimfxlenOn (bool)
virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeMatrix3d const &, AcArray< AcGePoint3d, AcArrayMemCopyReallocator< AcGePoint3d > > &, AcGeIntArray &) const
virtual Acad::ErrorStatus	getPlane (AcGePlane &, AcDb::Planarity &) const
virtual Acad::ErrorStatus	setDimblk (wchar_t const *)
virtual Acad::ErrorStatus	setDimblk1 (wchar_t const *)
virtual Acad::ErrorStatus	setDimblk2 (wchar_t const *)
virtual Acad::ErrorStatus	setDimldrblk (wchar_t const *)
virtual void	erased (AcDbObject *, int)
virtual void	objectClosed (AcDbObjectId const)
virtual void	setCastShadows (bool)
virtual void	setReceiveShadows (bool)
wchar_t *	dimensionText (void) const
wchar_t const *	inspectionLabel (void) const
wchar_t const *	inspectionRate (void) const
virtual Acad::ErrorStatus	dwgInFields (AcDbDwgFiler *)
virtual Acad::ErrorStatus	dwgOutFields (AcDbDwgFiler *) const
virtual Acad::ErrorStatus	dxfInFields (AcDbDxfFiler *)
virtual Acad::ErrorStatus	dxfOutFields (AcDbDxfFiler *) const
virtual Acad::ErrorStatus	subExplode (AcDbVoidPtrArray &) const
virtual Acad::ErrorStatus	subTransformBy (AcGeMatrix3d const &)
virtual Acad::ErrorStatus	subClose (void)
virtual Acad::ErrorStatus	subGetTransformedCopy (AcGeMatrix3d const &param_1, AcDbEntity *&param_2) const
Public Member Functions inherited from AcDbEntity
	ACRX_DECLARE_MEMBERS (AcDbEntity)
AcCmColor	color (void) const
AcCmEntityColor	entityColor (void) const
AcCmTransparency	transparency (void) const
AcDbObjectId	blockId (void) const
AcDbObjectId	layerId (void) const
AcDbObjectId	linetypeId (void) const
AcDbObjectId	materialId (void) const
double	linetypeScale (void) const
AcDb::LineWeight	lineWeight (void) const
AcDb::PlotStyleNameType	getPlotStyleNameId (AcDbObjectId &) const
AcDb::Visibility	visibility (void) const
Acad::ErrorStatus	boundingBoxIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const
Acad::ErrorStatus	boundingBoxIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePlane const &, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const
Acad::ErrorStatus	draw (void)
Acad::ErrorStatus	setPropertiesFrom (AcDbEntity const *, int=1)
unsigned short	colorIndex (void) const
virtual bool	hideMeForDragging (void) const
virtual bool	receiveShadows (void) const
virtual AcDbEntity *	subentPtr (AcDbFullSubentPath const &) const
virtual AcGiDrawable *	drawable (void)
virtual AcGsNode *	gsNode (void) const
virtual AcDb::CollisionType	collisionType (void) const
virtual Acad::ErrorStatus	addSubentPaths (AcDbFullSubentPathArray const &)
virtual Acad::ErrorStatus	applyPartialUndo (AcDbDwgFiler *, AcRxClass *)
virtual Acad::ErrorStatus	audit (AcDbAuditInfo *)
virtual Acad::ErrorStatus	deleteSubentPaths (AcDbFullSubentPathArray const &)
virtual Acad::ErrorStatus	explode (AcDbVoidPtrArray &) const
virtual Acad::ErrorStatus	copyFrom (AcRxObject const *)
virtual Acad::ErrorStatus	getCompoundObjectTransform (AcGeMatrix3d &) const
virtual Acad::ErrorStatus	getGeomExtents (AcDbExtents &) const
virtual Acad::ErrorStatus	getGripEntityUCS (void const *, AcGeVector3d &, AcGePoint3d &, AcGeVector3d &) const
virtual Acad::ErrorStatus	getGripPoints (AcDbGripDataPtrArray &, const double, const int, AcGeVector3d const &, const int) const
virtual Acad::ErrorStatus	getGripPoints (AcGePoint3dArray &, AcGeIntArray &, AcGeIntArray &) const
virtual Acad::ErrorStatus	getGripPointsAtSubentPath (AcDbFullSubentPath const &, AcDbGripDataPtrArray &, double, int, AcGeVector3d const &, int) const
virtual Acad::ErrorStatus	getGsMarkersAtSubentPath (AcDbFullSubentPath const &, AcArray< Adesk::GsMarker, AcArrayMemCopyReallocator< Adesk::GsMarker > > &) const
virtual Acad::ErrorStatus	getMaterialMapper (AcGiMapper &) const
virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeFastTransform const &, AcGePoint3dArray &, AcGeIntArray &) const
virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeFastTransform const &, AcGePoint3dArray &, AcGeIntArray &, AcGeMatrix3d const &) const
virtual Acad::ErrorStatus	getOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, AcGePoint3d const &, AcGePoint3d const &, AcGeMatrix3d const &, AcGePoint3dArray &, AcGeIntArray &, AcGeMatrix3d const &) const
virtual Acad::ErrorStatus	getStretchPoints (AcGePoint3dArray &) const
virtual Acad::ErrorStatus	getSubentClassId (AcDbFullSubentPath const &, _GUID *) const
virtual Acad::ErrorStatus	getSubentPathGeomExtents (AcDbFullSubentPath const &, AcDbExtents &) const
virtual Acad::ErrorStatus	getSubentPathsAtGsMarker (unsigned long, Adesk::GsMarker, AcGePoint3d const &, AcGeFastTransform const &, int &, AcDbFullSubentPath *&, int=0, AcDbObjectId *=nullptr) const
virtual Acad::ErrorStatus	getSubentPathsAtGsMarker (AcDb::SubentType, Adesk::GsMarker, AcGePoint3d const &, AcGeMatrix3d const &, int &, AcDbFullSubentPath *&, int=0, AcDbObjectId *=NULL) const
virtual Acad::ErrorStatus	getTransformedCopy (AcGeMatrix3d const &, AcDbEntity *&) const
virtual Acad::ErrorStatus	highlight (AcDbFullSubentPath const &=::kNullSubent, Adesk::Boolean=0) const
virtual Acad::ErrorStatus	intersectWith (AcDbEntity const *, AcDb::Intersect, AcGePoint3dArray &, Adesk::GsMarker=0, Adesk::GsMarker=0) const
virtual Acad::ErrorStatus	intersectWith (AcDbEntity const *, AcDb::Intersect, AcGePlane const &, AcGePoint3dArray &, Adesk::GsMarker=0, Adesk::GsMarker=0) const
virtual Acad::ErrorStatus	moveGripPointsAt (AcGeIntArray const &, AcGeVector3d const &)
virtual Acad::ErrorStatus	moveGripPointsAt (AcDbVoidPtrArray const &, AcGeVector3d const &, const int)
virtual Acad::ErrorStatus	moveGripPointsAtSubentPaths (AcDbFullSubentPathArray const &, AcDbVoidPtrArray const &, AcGeVector3d const &, int)
virtual Acad::ErrorStatus	moveStretchPointsAt (AcGeIntArray const &, AcGeVector3d const &)
virtual Acad::ErrorStatus	setColor (AcCmColor const &, Adesk::Boolean=1)
virtual Acad::ErrorStatus	setColorIndex (unsigned short, Adesk::Boolean=1)
virtual Acad::ErrorStatus	setLayer (AcDbObjectId, Adesk::Boolean=true, bool=false)
virtual Acad::ErrorStatus	setLayer (wchar_t const *, Adesk::Boolean=true, bool=false)
virtual Acad::ErrorStatus	setLineWeight (AcDb::LineWeight, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setLinetype (AcDbObjectId, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setLinetype (wchar_t const *, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setLinetypeScale (double, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setMaterial (AcDbObjectId, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setMaterial (wchar_t const *, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setMaterialMapper (AcGiMapper const &, Adesk::Boolean=true)
virtual Acad::ErrorStatus	setPlotStyleName (AcDb::PlotStyleNameType, AcDbObjectId=AcDbObjectId::kNull, Adesk::Boolean=1)
virtual Acad::ErrorStatus	setPlotStyleName (wchar_t const *, Adesk::Boolean=1)
virtual Acad::ErrorStatus	setTransparency (AcCmTransparency const &, Adesk::Boolean=1)
virtual Acad::ErrorStatus	setVisibility (AcDb::Visibility, Adesk::Boolean=1)
virtual Acad::ErrorStatus	transformBy (AcGeFastTransform const &)
virtual Acad::ErrorStatus	transformBy (AcGeMatrix3d const &)
virtual Acad::ErrorStatus	transformSubentPathsBy (AcDbFullSubentPathArray const &, AcGeMatrix3d const &)
virtual Acad::ErrorStatus	unhighlight (AcDbFullSubentPath const &=::kNullSubent, const Adesk::Boolean=0) const
virtual Adesk::Boolean	cloneMeForDragging (void)
virtual Adesk::Boolean	worldDraw (AcGiWorldDraw *)
virtual unsigned long	setAttributes (AcGiDrawableTraits *)
virtual void	dragStatus (AcDb::DragStat)
virtual void	getEcs (AcGeMatrix3d &) const
virtual void	gripStatus (AcDb::GripStat)
virtual void	list (void) const
virtual void	saveAs (AcGiWorldDraw *, AcDb::SaveType)
virtual void	setGsNode (AcGsNode *)
virtual void	subSetDatabaseDefaults (AcDbDatabase *)
virtual void	subentGripStatus (AcDb::GripStat, AcDbFullSubentPath const &)
virtual void	viewportDraw (AcGiViewportDraw *)
void	recordGraphicsModified (int=1)
void	setDatabaseDefaults (AcDbDatabase *)
void	setDatabaseDefaults (void)
wchar_t *	layer (void) const
wchar_t *	linetype (void) const
wchar_t *	material (void) const
wchar_t *	plotStyleName (void) const
virtual Acad::ErrorStatus	subGetOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, const AcGePoint3d &, const AcGePoint3d &, const AcGeMatrix3d &, AcGePoint3dArray &, AcDbIntArray &) const
virtual Acad::ErrorStatus	subGetOsnapPoints (AcDb::OsnapMode, Adesk::GsMarker, const AcGePoint3d &, const AcGePoint3d &, const AcGeMatrix3d &, AcGePoint3dArray &, AcDbIntArray &, const AcGeMatrix3d &) const
virtual Acad::ErrorStatus	subGetGripPoints (AcGePoint3dArray &, AcDbIntArray &, AcDbIntArray &) const
virtual Acad::ErrorStatus	subGetGripPoints (AcDbGripDataPtrArray &, const double, const int, const AcGeVector3d &, const int) const
virtual Acad::ErrorStatus	subMoveGripPointsAt (const AcDbIntArray &, const AcGeVector3d &)
virtual Acad::ErrorStatus	subMoveGripPointsAt (const AcDbVoidPtrArray &, const AcGeVector3d &, const int)
virtual Acad::ErrorStatus	subGetStretchPoints (AcGePoint3dArray &) const
virtual Acad::ErrorStatus	subMoveStretchPointsAt (AcDbIntArray const &, AcGeVector3d const &)
virtual Acad::ErrorStatus	subGetGripPointsAtSubentPath (class AcDbFullSubentPath const &, class AcArray< class AcDbGripData *, class AcArrayMemCopyReallocator< class AcDbGripData * > > &, double, int, class AcGeVector3d const &, int) const
virtual Acad::ErrorStatus	subMoveGripPointsAtSubentPaths (AcDbFullSubentPathArray const &, class AcArray< void *, class AcArrayMemCopyReallocator< void * > > const &, class AcGeVector3d const &, int)
virtual Adesk::Boolean	isPlanar (void) const
virtual Acad::ErrorStatus	subGetClassID (CLSID *pClsid) const
virtual bool	bounds (AcDbExtents &) const
virtual Acad::ErrorStatus	setVisualStyle (AcDbObjectId, AcDbEntity::VisualStyleType=kFullVisualStyle, int=true)
virtual bool	isContentSnappable (void) const
virtual Acad::ErrorStatus	subSetVisibility (AcDb::Visibility, int)
virtual Acad::ErrorStatus	subGetGeomExtents (AcDbExtents &) const
virtual AcDb::Visibility	subVisibility (void) const
virtual Acad::ErrorStatus	subIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePlane const &, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const
virtual Acad::ErrorStatus	subIntersectWith (AcDbEntity const *, AcDb::Intersect, AcGePoint3dArray &, Adesk::GsMarker, Adesk::GsMarker) const
virtual Acad::ErrorStatus	subGetSubentPathsAtGsMarker (AcDb::SubentType, Adesk::GsMarker, AcGePoint3d const &, AcGeMatrix3d const &, int &, AcDbFullSubentPath *&, int=0, AcDbObjectId *=0) const
virtual Acad::ErrorStatus	subHighlight (AcDbFullSubentPath const &=kNullSubent, Adesk::Boolean const =0) const
virtual Acad::ErrorStatus	subUnhighlight (AcDbFullSubentPath const &=kNullSubent, Adesk::Boolean const =0) const
virtual void	subList (void) const
virtual Acad::ErrorStatus	subGetGsMarkersAtSubentPath (AcDbFullSubentPath const &, AcArray< Adesk::GsMarker, AcArrayMemCopyReallocator< Adesk::GsMarker > > &) const
virtual Acad::ErrorStatus	setColor (const AcCmColor &, bool, AcDbDatabase *)
Acad::ErrorStatus	plotStyleName (AcString &) const
Acad::ErrorStatus	layer (AcString &) const
Acad::ErrorStatus	linetype (AcString &) const
Acad::ErrorStatus	material (AcString &) const
AcDbObjectId	visualStyleId (VisualStyleType=kFullVisualStyle) const
virtual	~AcDbEntity (void)
Public Member Functions inherited from AcDbObject
	ACRX_DECLARE_MEMBERS (AcDbObject)
bool	hasFields (void) const
bool	hasPersistentReactor (AcDbObjectId) const
bool	hasSaveVersionOverride (void)
bool	isUndoRecordingDisabled (void) const
AcDbVoidPtrArray const *	reactors (void) const
AcDbDatabase *	database (void) const
AcDbDwgFiler *	undoFiler (void)
AcDbObjectId	extensionDictionary (void) const
AcDbObjectId	getFieldDictionary (void) const
AcDbObjectId	objectId (void) const
AcDbObjectId	ownerId (void) const
Acad::ErrorStatus	cancel (void)
Acad::ErrorStatus	close (void)
Acad::ErrorStatus	closeAndPage (int=0)
Acad::ErrorStatus	createExtensionDictionary (void)
Acad::ErrorStatus	downgradeOpen (void)
Acad::ErrorStatus	downgradeToNotify (Adesk::Boolean)
Acad::ErrorStatus	dwgIn (AcDbDwgFiler *)
Acad::ErrorStatus	dwgOut (AcDbDwgFiler *) const
Acad::ErrorStatus	dxfIn (AcDbDxfFiler *)
Acad::ErrorStatus	dxfOut (AcDbDxfFiler *, Adesk::Boolean, unsigned char *) const
Acad::ErrorStatus	erase (Adesk::Boolean=true)
Acad::ErrorStatus	getBinaryData (wchar_t const *, long &, char *&) const
Acad::ErrorStatus	getField (wchar_t const *, AcDbField *&, AcDb::OpenMode) const
Acad::ErrorStatus	getField (wchar_t const *, AcDbObjectId &) const
Acad::ErrorStatus	getFieldDictionary (AcDbDictionary *&, AcDb::OpenMode) const
Acad::ErrorStatus	getObjectBirthVersion (AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)
Acad::ErrorStatus	handOverTo (AcDbObject *, Adesk::Boolean=1, Adesk::Boolean=1)
Acad::ErrorStatus	releaseExtensionDictionary (void)
Acad::ErrorStatus	setBinaryData (wchar_t const *, long, char const *)
Acad::ErrorStatus	swapIdWith (AcDbObjectId, Adesk::Boolean=0, Adesk::Boolean=0)
Acad::ErrorStatus	upgradeFromNotify (Adesk::Boolean &)
Acad::ErrorStatus	upgradeOpen (void)
Acad::ErrorStatus	xDataTransformBy (AcGeMatrix3d const &)
Adesk::Boolean	isAProxy (void) const
Adesk::Boolean	isAcDbObjectIdsInFlux (void) const
Adesk::Boolean	isCancelling (void) const
Adesk::Boolean	isEraseStatusToggled (void) const
Adesk::Boolean	isErased (void) const
Adesk::Boolean	isModified (void) const
Adesk::Boolean	isModifiedGraphics (void) const
Adesk::Boolean	isModifiedXData (void) const
Adesk::Boolean	isNewObject (void) const
Adesk::Boolean	isNotifyEnabled (void) const
Adesk::Boolean	isNotifying (void) const
Adesk::Boolean	isReadEnabled (void) const
Adesk::Boolean	isReallyClosing (void) const
Adesk::Boolean	isTransactionResident (void) const
Adesk::Boolean	isUndoing (void) const
Adesk::Boolean	isWriteEnabled (void) const
virtual	~AcDbObject (void)
virtual AcDbObjectId	id (void) const
virtual AcRxObject *	clone (void) const
virtual AcDb::DuplicateRecordCloning	mergeStyle (void) const
virtual Acad::ErrorStatus	decomposeForSave (AcDb::AcDbDwgVersion, AcDbObject *&, AcDbObjectId &, int &)
virtual Acad::ErrorStatus	deepClone (AcDbObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Acad::ErrorStatus	getObjectSaveVersion (AcDbDwgFiler const *, AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)
virtual Acad::ErrorStatus	getObjectSaveVersion (AcDbDxfFiler const *, AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)
virtual Acad::ErrorStatus	removeField (AcDbObjectId)
virtual Acad::ErrorStatus	removeField (wchar_t const *)
virtual Acad::ErrorStatus	removeField (wchar_t const *, AcDbObjectId &)
virtual Acad::ErrorStatus	removePersistentReactor (AcDbObjectId)
virtual Acad::ErrorStatus	setField (wchar_t const *, AcDbField *, AcDbObjectId &)
virtual Acad::ErrorStatus	setOwnerId (AcDbObjectId)
virtual Acad::ErrorStatus	setXData (resbuf const *)
virtual Acad::ErrorStatus	subCancel (void)
virtual Acad::ErrorStatus	subErase (Adesk::Boolean)
virtual Acad::ErrorStatus	subHandOverTo (AcDbObject *)
virtual Acad::ErrorStatus	subOpen (AcDb::OpenMode)
virtual Acad::ErrorStatus	subSwapIdWith (AcDbObjectId, Adesk::Boolean=0, Adesk::Boolean=0)
virtual Acad::ErrorStatus	swapReferences (AcDbIdMapping const &)
virtual Acad::ErrorStatus	wblockClone (AcRxObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Adesk::UInt32	subSetAttributes (AcGiDrawableTraits *pTraits)
virtual void	subViewportDraw (AcGiViewportDraw *)
virtual Adesk::Boolean	isPersistent (void) const
virtual resbuf *	xData (wchar_t const *=NULL) const
virtual void	addPersistentReactor (AcDbObjectId)
virtual void	cancelled (AcDbObject const *)
virtual void	copied (AcDbObject const *, AcDbObject const *)
virtual void	erased (AcDbObject const *, Adesk::Boolean)
virtual void	goodbye (AcDbObject const *)
virtual void	modified (AcDbObject const *)
virtual void	modifiedGraphics (AcDbEntity const *)
virtual void	modifiedXData (AcDbObject const *)
virtual void	modifyUndone (AcDbObject const *)
virtual void	openedForModify (AcDbObject const *)
virtual void	reappended (AcDbObject const *)
virtual void	recvPropagateModify (AcDbObject const *)
virtual void	subObjModified (AcDbObject const *, AcDbObject const *)
virtual void	unappended (AcDbObject const *)
virtual void	xmitPropagateModify (void) const
void	addReactor (AcDbObjectReactor *) const
void	assertNotifyEnabled (void) const
void	assertReadEnabled (void) const
void	assertWriteEnabled (Adesk::Boolean=1, Adesk::Boolean=1)
void	disableUndoRecording (Adesk::Boolean)
void	getAcDbHandle (AcDbHandle &) const
void	removeReactor (AcDbObjectReactor *) const
void	setAcDbObjectIdsInFlux (void)
void	setHasSaveVersionOverride (bool)
virtual Adesk::Boolean	subWorldDraw (AcGiWorldDraw *)
virtual Acad::ErrorStatus	subDeepClone (AcDbObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Acad::ErrorStatus	subWblockClone (AcRxObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Acad::ErrorStatus	subGetClassID (_GUID *) const
Public Member Functions inherited from AcGiDrawable
	ACRX_DECLARE_MEMBERS (AcGiDrawable)
virtual Adesk::UInt32	subViewportDrawLogicalFlags (AcGiViewportDraw *)
virtual unsigned long	viewportDrawLogicalFlags (AcGiViewportDraw *)
virtual void	setDrawStream (AcGiDrawStream *)
virtual AcGiDrawStream *	drawStream (void) const
virtual	~AcGiDrawable (void)
Public Member Functions inherited from AcRxObject
virtual AcRxObject *	queryX (AcRxClass const *) const
AcRxObject *	x (AcRxClass const *) const
virtual AcRxClass *	isA (void) const
virtual AcRx::Ordering	comparedTo (AcRxObject const *) const
virtual int	isEqualTo (AcRxObject const *) const
bool	isKindOf (const AcRxClass *pOtherClass) const
virtual	~AcRxObject (void)
Public Member Functions inherited from AcRTTIObject
	AcRTTIObject ()
virtual	~AcRTTIObject ()
Public Member Functions inherited from AcObject
	AcObject ()
	AcObject (const AcObject &source)
virtual	~AcObject ()
void *	data () const

Protected Member Functions
	AcDbRadialDimensionLarge (AcDbSystemInternals *)
Protected Member Functions inherited from AcDbDimension
	AcDbDimension (AcDbSystemInternals *)
virtual Acad::ErrorStatus	subGetCompoundObjectTransform (AcGeMatrix3d &) const
Protected Member Functions inherited from AcDbEntity
	AcDbEntity (AcDbSystemInternals *)
	AcDbEntity (void)
virtual bool	subIsContentSnappable (void) const
virtual Adesk::Boolean	subCloneMeForDragging (void)
virtual bool	subHideMeForDragging (void) const
virtual Acad::ErrorStatus	subGetSubentClassId (AcDbFullSubentPath const &, _GUID *) const
virtual Acad::ErrorStatus	subAddSubentPaths (AcDbFullSubentPathArray const &)
virtual Acad::ErrorStatus	subDeleteSubentPaths (AcDbFullSubentPathArray const &)
virtual Acad::ErrorStatus	subTransformSubentPathsBy (AcDbFullSubentPathArray const &, AcGeMatrix3d const &)
virtual Acad::ErrorStatus	subGetSubentPathGeomExtents (AcDbFullSubentPath const &, class AcDbExtents &) const
virtual AcDbEntity *	subSubentPtr (AcDbFullSubentPath const &) const
virtual void	subGripStatus (const AcDb::GripStat)
virtual void	subSubentGripStatus (AcDb::GripStat, AcDbFullSubentPath const &)
virtual Acad::ErrorStatus	subGetGripEntityUCS (void const *, AcGeVector3d &, AcGePoint3d &, AcGeVector3d &) const
virtual Acad::ErrorStatus	subPushHighlight (AcDbFullSubentPath const &, AcGiHighlightStyle)
virtual Acad::ErrorStatus	subPopHighlight (AcDbFullSubentPath const &)
virtual AcGiHighlightStyle	subHighlightState (AcDbFullSubentPath const &)
Protected Member Functions inherited from AcDbObject
	AcDbObject (AcDbSystemInternals *)
	AcDbObject (void)
Protected Member Functions inherited from AcRxObject
	AcRxObject (void)
virtual AcRxObject *	subQueryX (AcRxClass const *) const

Additional Inherited Members
Public Types inherited from AcDbEntity
enum	VisualStyleType { kFullVisualStyle , kFaceVisualStyle , kEdgeVisualStyle }
Public Types inherited from AcGiDrawable
enum	DrawableType {   kGeometry = 0 , kDistantLight = 1 , kPointLight = 2 , kSpotLight = 3 ,   kAmbientLight , kSolidBackground , kGradientBackground , kImageBackground ,   kGroundPlaneBackground , kViewport , kWebLight , kSkyBackground }
enum	SetAttributesFlags {   kDrawableNone = 0 , kDrawableIsAnEntity = 1 , kDrawableUsesNesting = 2 , kDrawableIsCompoundObject = 4 ,   kDrawableViewIndependentViewportDraw = 8 , kDrawableIsInvisible = 16 , kDrawableHasAttributes = 32 , kDrawableRegenTypeDependentGeometry = 64 ,   kDrawableIsDimension = (kDrawableIsAnEntity + kDrawableIsCompoundObject + 128) , kDrawableRegenDraw = 256 , kDrawableViewDependentViewportDraw = 2048 }
Static Public Member Functions inherited from AcRxObject
static AcRxClass *__cdecl	desc (void)
static AcRxObject *__cdecl	cast (AcRxObject const *)
Protected Attributes inherited from AcDbObject
AcDbObjectImpl *	m_pImpl
Protected Attributes inherited from AcObject
void *	m_pData

Detailed Description

Definition at line 27 of file AcDbRadialDimensionLarge.h.

Constructor & Destructor Documentation

AcDbRadialDimensionLarge() [1/3]

AcDbRadialDimensionLarge::AcDbRadialDimensionLarge	(	AcGePoint3d const &	,
		AcGePoint3d const &	,
		AcGePoint3d const &	,
		AcGePoint3d const &	,
		double	,
		wchar_t const *	= NULL,
		AcDbObjectId	= AcDbObjectId::kNull )

AcDbRadialDimensionLarge() [2/3]

AcDbRadialDimensionLarge::AcDbRadialDimensionLarge

(

void

)

~AcDbRadialDimensionLarge()

virtual AcDbRadialDimensionLarge::~AcDbRadialDimensionLarge ( void )

virtual

AcDbRadialDimensionLarge() [3/3]

AcDbRadialDimensionLarge::AcDbRadialDimensionLarge ( AcDbSystemInternals * )

protected

Member Function Documentation

center()

AcGePoint3d AcDbRadialDimensionLarge::center

(

void

)

const

chordPoint()

AcGePoint3d AcDbRadialDimensionLarge::chordPoint

(

void

)

const

extArcEndAngle()

double AcDbRadialDimensionLarge::extArcEndAngle

(

void

)

const

extArcStartAngle()

double AcDbRadialDimensionLarge::extArcStartAngle

(

void

)

const

getClassID()

virtual Acad::ErrorStatus AcDbRadialDimensionLarge::getClassID ( _GUID * ) const

virtual

Reimplemented from AcDbEntity.

jogAngle()

double AcDbRadialDimensionLarge::jogAngle

(

void

)

const

jogPoint()

AcGePoint3d AcDbRadialDimensionLarge::jogPoint

(

void

)

const

overrideCenter()

AcGePoint3d AcDbRadialDimensionLarge::overrideCenter

(

void

)

const

setCenter()

Acad::ErrorStatus AcDbRadialDimensionLarge::setCenter

(

AcGePoint3d const &

)

setChordPoint()

Acad::ErrorStatus AcDbRadialDimensionLarge::setChordPoint

(

AcGePoint3d const &

)

setExtArcEndAngle()

Acad::ErrorStatus AcDbRadialDimensionLarge::setExtArcEndAngle

(

double

)

setExtArcStartAngle()

Acad::ErrorStatus AcDbRadialDimensionLarge::setExtArcStartAngle

(

double

)

setJogAngle()

Acad::ErrorStatus AcDbRadialDimensionLarge::setJogAngle

(

double

)

setJogPoint()

Acad::ErrorStatus AcDbRadialDimensionLarge::setJogPoint

(

AcGePoint3d const &

)

setJogPointPP()

Acad::ErrorStatus AcDbRadialDimensionLarge::setJogPointPP

(

AcGePoint3d const &

)

setOverrideCenter()

Acad::ErrorStatus AcDbRadialDimensionLarge::setOverrideCenter

(

AcGePoint3d const &

)

setOverrideCenterPP()

Acad::ErrorStatus AcDbRadialDimensionLarge::setOverrideCenterPP

(

AcGePoint3d const &

)

setTextPositionPP()

Acad::ErrorStatus AcDbRadialDimensionLarge::setTextPositionPP

(

AcGePoint3d const &

)

---

The documentation for this class was generated from the following file:

• AcDbRadialDimensionLarge.h
