AcGeLinearEnt2d Class Reference

#include <AcGeLinearEnt2d.h>

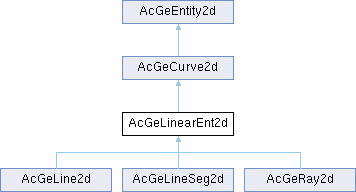

Inheritance diagram for AcGeLinearEnt2d:

Public Member Functions
	~AcGeLinearEnt2d (void)
AcGeLinearEnt2d &	operator= (AcGeLinearEnt2d const &)
AcGePoint2d	pointOnLine (void) const
AcGeVector2d	direction (void) const
Frx::Boolean	intersectWith (AcGeLinearEnt2d const &, AcGePoint2d &, AcGeTol const &=AcGeContext::gTol) const
Frx::Boolean	isColinearTo (AcGeLinearEnt2d const &, AcGeTol const &=AcGeContext::gTol) const
Frx::Boolean	isParallelTo (AcGeLinearEnt2d const &, AcGeTol const &=AcGeContext::gTol) const
Frx::Boolean	isPerpendicularTo (AcGeLinearEnt2d const &, AcGeTol const &=AcGeContext::gTol) const
Frx::Boolean	overlap (AcGeLinearEnt2d const &, AcGeLinearEnt2d *&, AcGeTol const &=AcGeContext::gTol) const
void	getLine (AcGeLine2d &) const
void	getPerpLine (AcGePoint2d const &, AcGeLine2d &) const
Public Member Functions inherited from AcGeCurve2d
	~AcGeCurve2d (void)
AcGeBoundBlock2d	boundBlock (AcGeInterval const &) const
AcGeBoundBlock2d	boundBlock (void) const
AcGeBoundBlock2d	orthoBoundBlock (AcGeInterval const &) const
AcGeBoundBlock2d	orthoBoundBlock (void) const
AcGeCurve2d &	operator= (AcGeCurve2d const &)
AcGeCurve2d &	reverseParam (void)
AcGeCurve2d &	setInterval (void)
AcGePoint2d	closestPointTo (AcGeCurve2d const &, AcGePoint2d &, AcGeTol const &=AcGeContext::gTol) const
AcGePoint2d	closestPointTo (AcGePoint2d const &, AcGeTol const &=AcGeContext::gTol) const
AcGePoint2d	evalPoint (double) const
AcGePoint2d	evalPoint (double, int, AcArray< AcGeVector2d, AcArrayMemCopyReallocator< AcGeVector2d > > &) const
double	distanceTo (AcGeCurve2d const &, AcGeTol const &=AcGeContext::gTol) const
double	distanceTo (AcGePoint2d const &, AcGeTol const &=AcGeContext::gTol) const
double	length (double, double, double=AcGeContext::gTol.equalPoint()) const
double	paramAtLength (double, double, Frx::Boolean=Frx::kTrue, double=AcGeContext::gTol.equalPoint()) const
double	paramOf (AcGePoint2d const &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	area (double, double, double &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	explode (AcDbVoidPtrArray &, AcGeIntArray &, AcGeInterval const *) const
Adesk::Boolean	getNormalPoint (AcGePoint2d const &, AcGePointOnCurve2d &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	hasEndPoint (AcGePoint2d &) const
Adesk::Boolean	hasStartPoint (AcGePoint2d &) const
Adesk::Boolean	isClosed (AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isDegenerate (AcGeEntity2d *&, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isDegenerate (AcGe::EntityId &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isLinear (AcGeLine2d &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isOn (AcGePoint2d const &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isOn (AcGePoint2d const &, double &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isOn (double, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isPeriodic (double &) const
Adesk::Boolean	setInterval (AcGeInterval const &)
void	getClosestPointTo (AcGeCurve2d const &, AcGePointOnCurve2d &, AcGePointOnCurve2d &, AcGeTol const &=AcGeContext::gTol) const
void	getClosestPointTo (AcGePoint2d const &, AcGePointOnCurve2d &, AcGeTol const &=AcGeContext::gTol) const
void	getInterval (AcGeInterval &) const
void	getInterval (AcGeInterval &, AcGePoint2d &, AcGePoint2d &) const
void	getLocalClosestPoints (AcGeCurve2d const &, AcGePointOnCurve2d &, AcGePointOnCurve2d &, AcGeInterval const *, AcGeInterval const *, AcGeTol const &=AcGeContext::gTol) const
void	getLocalClosestPoints (AcGePoint2d const &, AcGePointOnCurve2d &, AcGeInterval const *, AcGeTol const &=AcGeContext::gTol) const
void	getSamplePoints (double, double, double, AcGePoint2dArray &, AcGeDoubleArray &) const
void	getSamplePoints (int, AcGePoint2dArray &) const
void	getSplitCurves (double, AcGeCurve2d *&, AcGeCurve2d *&) const
void	getTrimmedOffset (double, AcDbVoidPtrArray &, AcGe::OffsetCrvExtType, AcGeTol const &=AcGeContext::gTol) const
Public Member Functions inherited from AcGeEntity2d
	~AcGeEntity2d (void)
AcGeEntity2d &	mirror (AcGeLine2d const &)
AcGeEntity2d &	operator= (AcGeEntity2d const &)
AcGeEntity2d &	rotateBy (double, AcGePoint2d const &)
AcGeEntity2d &	scaleBy (double, AcGePoint2d const &)
AcGeEntity2d &	transformBy (AcGeMatrix2d const &)
AcGeEntity2d &	translateBy (AcGeVector2d const &)
AcGeEntity2d *	copy (void) const
AcGe::EntityId	type (void) const
Frx::Boolean	isEqualTo (AcGeEntity2d const &, AcGeTol const &=AcGeContext::gTol) const
Frx::Boolean	isKindOf (AcGe::EntityId) const
Adesk::Boolean	isOn (AcGePoint2d const &, AcGeTol const &=AcGeContext::gTol) const
Frx::Boolean	operator!= (AcGeEntity2d const &) const
Frx::Boolean	operator== (AcGeEntity2d const &) const

Protected Member Functions
	AcGeLinearEnt2d (AcGeLinearEnt2d const &)
	AcGeLinearEnt2d (void)
Protected Member Functions inherited from AcGeCurve2d
	AcGeCurve2d (AcGeCurve2d const &)
	AcGeCurve2d (void)
Protected Member Functions inherited from AcGeEntity2d
	AcGeEntity2d (AcGeEntity2d const &)
	AcGeEntity2d (AcGeImpEntity3d &, int)
	AcGeEntity2d (AcGeImpEntity3d *)
	AcGeEntity2d (void)
AcGeEntity2d *	newEntity2d (AcGeImpEntity3d *) const
void	connectTo (AcGeEntity2dImpl *)

Friends
class	DefValueProducer

Additional Inherited Members
Protected Attributes inherited from AcGeEntity2d
AcGeEntity2dImpl *	m_pImpl

Detailed Description

Definition at line 24 of file AcGeLinearEnt2d.h.

Constructor & Destructor Documentation

~AcGeLinearEnt2d()

AcGeLinearEnt2d::~AcGeLinearEnt2d

(

void

)

AcGeLinearEnt2d() [1/2]

AcGeLinearEnt2d::AcGeLinearEnt2d ( AcGeLinearEnt2d const & )

protected

AcGeLinearEnt2d() [2/2]

AcGeLinearEnt2d::AcGeLinearEnt2d ( void )

protected

Member Function Documentation

direction()

AcGeVector2d AcGeLinearEnt2d::direction

(

void

)

const

getLine()

void AcGeLinearEnt2d::getLine

(

AcGeLine2d &

)

const

getPerpLine()

void AcGeLinearEnt2d::getPerpLine	(	AcGePoint2d const &	,
		AcGeLine2d &	) const

intersectWith()

Frx::Boolean AcGeLinearEnt2d::intersectWith	(	AcGeLinearEnt2d const &	,
		AcGePoint2d &	,
		AcGeTol const &	= AcGeContext::gTol ) const

isColinearTo()

Frx::Boolean AcGeLinearEnt2d::isColinearTo	(	AcGeLinearEnt2d const &	,
		AcGeTol const &	= AcGeContext::gTol ) const

isParallelTo()

Frx::Boolean AcGeLinearEnt2d::isParallelTo	(	AcGeLinearEnt2d const &	,
		AcGeTol const &	= AcGeContext::gTol ) const

isPerpendicularTo()

Frx::Boolean AcGeLinearEnt2d::isPerpendicularTo	(	AcGeLinearEnt2d const &	,
		AcGeTol const &	= AcGeContext::gTol ) const

operator=()

AcGeLinearEnt2d & AcGeLinearEnt2d::operator=

(

AcGeLinearEnt2d const &

)

overlap()

Frx::Boolean AcGeLinearEnt2d::overlap	(	AcGeLinearEnt2d const &	,
		AcGeLinearEnt2d *&	,
		AcGeTol const &	= AcGeContext::gTol ) const

pointOnLine()

AcGePoint2d AcGeLinearEnt2d::pointOnLine

(

void

)

const

Friends And Related Symbol Documentation

DefValueProducer

friend class DefValueProducer

friend

Definition at line 26 of file AcGeLinearEnt2d.h.

---

The documentation for this class was generated from the following file:

• AcGeLinearEnt2d.h
