#include <IfcEnergyConversionDeviceAutoImpl.h>

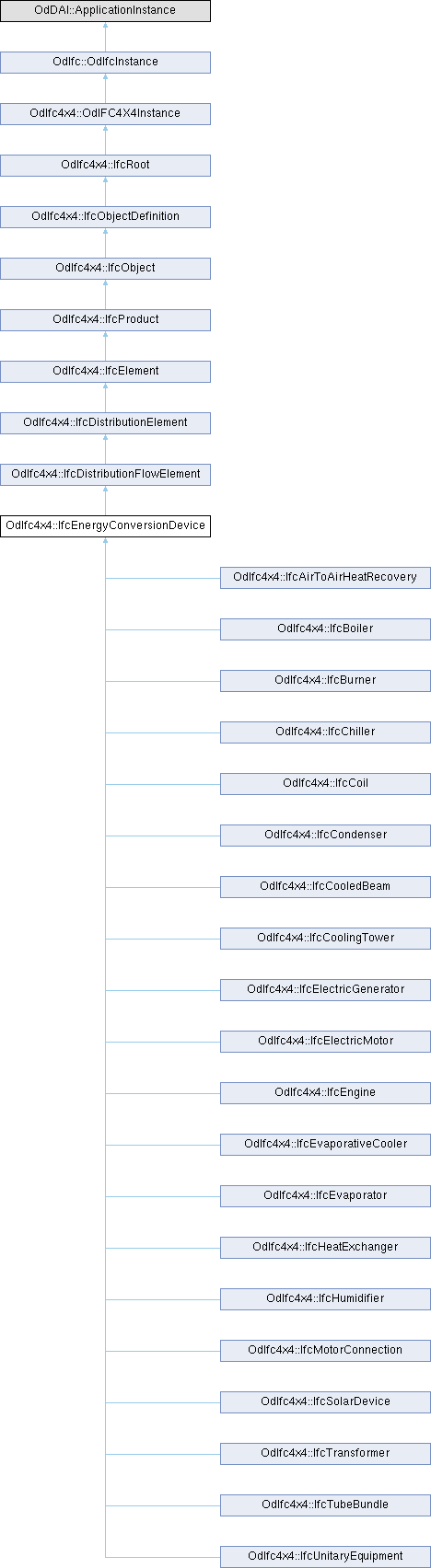

Inheritance diagram for OdIfc4x4::IfcEnergyConversionDevice:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc4x4::IfcDistributionFlowElement
void	getInvHasControlElements (OdDAIObjectIds &HasControlElements) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcDistributionElement
void	getInvHasPorts (OdDAIObjectIds &HasPorts) const

Public Member Functions inherited from OdIfc4x4::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

void	getInvHasSurfaceFeatures (OdDAIObjectIds &HasSurfaceFeatures) const

	IfcElement ()

Public Member Functions inherited from OdIfc4x4::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc4x4::IfcDistributionFlowElement
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Protected Attributes inherited from OdIfc4x4::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4x4::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

The distribution flow element IfcEnergyConversionDevice defines the occurrence of a device used to perform energy conversion or heat transfer and typically participates in a flow distribution system. Its type is defined by IfcEnergyConversionDeviceType or its subtypes.

Object Typing - This concept can be applied to the following resources: IfcEnergyConversionDeviceType
Property Sets for Objects - This concept can be applied to the following resources: Pset_ElementSize

Definition at line 50 of file IFC4X4/IfcEnergyConversionDeviceAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcEnergyConversionDevice::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcDistributionFlowElement.

Reimplemented in OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBurner, OdIfc4x4::IfcChiller, OdIfc4x4::IfcCoil, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTubeBundle, and OdIfc4x4::IfcUnitaryEquipment.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcEnergyConversionDevice::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcDistributionFlowElement.

Reimplemented in OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBurner, OdIfc4x4::IfcChiller, OdIfc4x4::IfcCoil, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTubeBundle, and OdIfc4x4::IfcUnitaryEquipment.

◆ isKindOf()

virtual bool OdIfc4x4::IfcEnergyConversionDevice::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcDistributionFlowElement.

Reimplemented in OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBurner, OdIfc4x4::IfcChiller, OdIfc4x4::IfcCoil, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTubeBundle, and OdIfc4x4::IfcUnitaryEquipment.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcEnergyConversionDevice::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcDistributionFlowElement.

Reimplemented in OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBurner, OdIfc4x4::IfcChiller, OdIfc4x4::IfcCoil, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTubeBundle, and OdIfc4x4::IfcUnitaryEquipment.

The documentation for this class was generated from the following file:

IFC4X4/IfcEnergyConversionDeviceAutoImpl.h
