OdIfc4x4::IfcProduct Class Reference

#include <IfcProductAutoImpl.h>

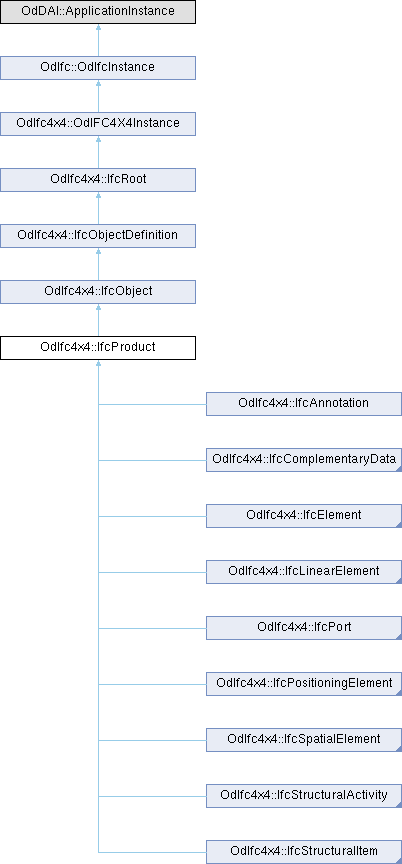

Inheritance diagram for OdIfc4x4::IfcProduct:

Public Member Functions
const OdDAIObjectId &	getObjectPlacement () const
void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)
const OdDAIObjectId &	getRepresentation () const
void	setRepresentation (const OdDAIObjectId &Representation)
void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const
void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const
void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual void	setInverseCounterParts () override
virtual OdDAI::Entity *	getInstanceType () const override
virtual OdRxValue	getAttr (const char *attrName) const override
virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc4x4::IfcObject
const OdAnsiString &	getObjectType () const
void	setObjectType (const OdAnsiString &ObjectType)
void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const
void	getInvDeclares (OdDAIObjectIds &Declares) const
void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const
void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const
	IfcObject ()
Public Member Functions inherited from OdIfc4x4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const
void	getInvNests (OdDAIObjectIds &Nests) const
void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const
void	getInvHasContext (OdDAIObjectIds &HasContext) const
void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const
void	getInvDecomposes (OdDAIObjectIds &Decomposes) const
void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const
Public Member Functions inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const
void	setGlobalId (OdDAI::CompressedGUID GlobalId)
const OdDAIObjectId &	getOwnerHistory () const
void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)
const OdAnsiString &	getName () const
void	setName (const OdAnsiString &Name)
const OdAnsiString &	getDescription () const
void	setDescription (const OdAnsiString &Description)
	IfcRoot ()
Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_ObjectPlacement
OdDAIObjectId	m_Representation
Protected Attributes inherited from OdIfc4x4::IfcObject
OdAnsiString	m_ObjectType
Protected Attributes inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId
OdDAIObjectId	m_OwnerHistory
OdAnsiString	m_Name
OdAnsiString	m_Description
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Friends
class	IfcRelAssignsToProduct
class	IfcRelPositions
class	IfcRelReferencedInSpatialStructure

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcProduct is an abstract representation of any object that relates to a geometric or spatial context. An IfcProduct occurs at a specific location in space if it has a geometric representation assigned. It can be placed relatively to other products, but ultimately relative to the project coordinate system. The ObjectPlacement attribute establishes the coordinate system in which all points and directions used by the geometric representation items under Representation are founded. The Representation is provided by an IfcProductDefinitionShape being either a geometric shape representation, or a topology representation (with or without underlying geometry of the topological items).

Products include manufactured, supplied or created objects (referred to as elements) for incorporation into an AEC/FM project. This also includes objects that are created indirectly by other products, as spaces are defined by bounding elements. Products are defined by their properties and representations.

Any instance of IfcProduct defines a particular occurrence of a product, the common type information, that relates to many similar (or identical) occurrences of IfcProduct, is handled by the IfcTypeProduct (and its subtypes), assigned to one or many occurrences of IfcProduct by using the objectified relationship IfcRelDefinesByType. The IfcTypeProduct can provide, in addition to common properties, also a common geometric representation for all occurrences.

Definition at line 57 of file IFC4X4/IfcProductAutoImpl.h.

Member Function Documentation

comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcProduct::comparedToEarlyImpl ( const OdDAI::ApplicationInstance * pOther, OdRx::Ordering & ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns

true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses: Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentHorizontal, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAlignmentVertical, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBuiltElement, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCivilElement, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcComplementaryData, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDeepFoundation, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksElement, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcElementComponent, OdIfc4x4::IfcEnergyConversionDevice, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExcavation, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcExternalSpatialStructureElement, OdIfc4x4::IfcFacility, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElement, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowController, OdIfc4x4::IfcFlowFitting, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFlowMovingDevice, OdIfc4x4::IfcFlowSegment, OdIfc4x4::IfcFlowStorageDevice, OdIfc4x4::IfcFlowTerminal, OdIfc4x4::IfcFlowTreatmentDevice, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurnishingElement, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeomodel, OdIfc4x4::IfcGeoScienceElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeoslice, OdIfc4x4::IfcGeotechnicalAssembly, OdIfc4x4::IfcGeotechnicalElement, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLinearElement, OdIfc4x4::IfcLinearPositioningElement, OdIfc4x4::IfcLinearZone, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcObservation, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveMemberVarying, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralLinearAction, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPlanarAction, OdIfc4x4::IfcStructuralPointAction, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralPointReaction, OdIfc4x4::IfcStructuralReaction, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceConnection, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceMemberVarying, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportationDevice, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWallStandardCase, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcProduct::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName

[in] Name of an attribute to query.

Returns

OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcProduct::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef

[in] Attribute definition to query.

Returns

OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcProduct::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentHorizontal, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAlignmentVertical, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBuiltElement, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCivilElement, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcComplementaryData, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDeepFoundation, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksElement, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcElementComponent, OdIfc4x4::IfcEnergyConversionDevice, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExcavation, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcExternalSpatialStructureElement, OdIfc4x4::IfcFacility, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElement, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowController, OdIfc4x4::IfcFlowFitting, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFlowMovingDevice, OdIfc4x4::IfcFlowSegment, OdIfc4x4::IfcFlowStorageDevice, OdIfc4x4::IfcFlowTerminal, OdIfc4x4::IfcFlowTreatmentDevice, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurnishingElement, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeomodel, OdIfc4x4::IfcGeoScienceElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeoslice, OdIfc4x4::IfcGeotechnicalAssembly, OdIfc4x4::IfcGeotechnicalElement, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLinearElement, OdIfc4x4::IfcLinearPositioningElement, OdIfc4x4::IfcLinearZone, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcObservation, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveMemberVarying, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralLinearAction, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPlanarAction, OdIfc4x4::IfcStructuralPointAction, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralPointReaction, OdIfc4x4::IfcStructuralReaction, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceConnection, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceMemberVarying, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportationDevice, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWallStandardCase, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

getInvPositionedRelativeTo()

void OdIfc4x4::IfcProduct::getInvPositionedRelativeTo

(

OdDAIObjectIds &

PositionedRelativeTo

)

const

Retrieves objects relative to which the product is positioned.

Parameters

PositionedRelativeTo

[out] Receives an array of Data Access Interface (DAI) identifiers that represent objects relative to which the product is positioned.

getInvReferencedBy()

void OdIfc4x4::IfcProduct::getInvReferencedBy

(

OdDAIObjectIds &

ReferencedBy

)

const

Retrieves relationships, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product.

Parameters

ReferencedBy

[out] Receives a reference to the IfcRelAssignsToProduct relationship.

getInvReferencedInStructures()

void OdIfc4x4::IfcProduct::getInvReferencedInStructures

(

OdDAIObjectIds &

ReferencedInStructures

)

const

Retrieves objects in which this product is referenced.

Parameters

PositionedRelativeTo

[out] Receives an array of Data Access Interface (DAI) identifiers that represent objects in which this product is referenced.

getObjectPlacement()

const OdDAIObjectId & OdIfc4x4::IfcProduct::getObjectPlacement

(

)

const

Returns placement of the product in space. The placement can be: Absolute (relative to the world coordinate system) Relative (relative to the object placement of another product) Constraint (e.g. relative to grid axes)

Returns

Identifier of the product placement that includes the axis placement information to determine the transformation for the object coordinate system.

getRepresentation()

const OdDAIObjectId & OdIfc4x4::IfcProduct::getRepresentation

(

)

const

Returns the representations of the product. Representation can either be an IfcProductRepresentation entity or as a special case of shape representations - IfcProductDefinitionShape entity. The geometric representation of any IfcProduct is provided by the IfcProductDefinitionShape allowing multiple geometric representations.

Returns

Identifier of the product representation.

inFields()

virtual OdResult OdIfc4x4::IfcProduct::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler

[in] Pointer to a filer from which to read the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

isKindOf()

virtual bool OdIfc4x4::IfcProduct::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentHorizontal, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAlignmentVertical, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBuiltElement, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCivilElement, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcComplementaryData, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDeepFoundation, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksElement, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcElementComponent, OdIfc4x4::IfcEnergyConversionDevice, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExcavation, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcExternalSpatialStructureElement, OdIfc4x4::IfcFacility, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElement, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowController, OdIfc4x4::IfcFlowFitting, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFlowMovingDevice, OdIfc4x4::IfcFlowSegment, OdIfc4x4::IfcFlowStorageDevice, OdIfc4x4::IfcFlowTerminal, OdIfc4x4::IfcFlowTreatmentDevice, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurnishingElement, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeomodel, OdIfc4x4::IfcGeoScienceElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeoslice, OdIfc4x4::IfcGeotechnicalAssembly, OdIfc4x4::IfcGeotechnicalElement, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLinearElement, OdIfc4x4::IfcLinearPositioningElement, OdIfc4x4::IfcLinearZone, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcObservation, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveMemberVarying, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralLinearAction, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPlanarAction, OdIfc4x4::IfcStructuralPointAction, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralPointReaction, OdIfc4x4::IfcStructuralReaction, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceConnection, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceMemberVarying, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportationDevice, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWallStandardCase, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

outFields()

virtual OdResult OdIfc4x4::IfcProduct::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler

[in] Pointer to a filer to which to write the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

putAttr() [1/2]

virtual bool OdIfc4x4::IfcProduct::putAttr ( const char * explicitAttrName, const OdRxValue & val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns

true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

putAttr() [2/2]

virtual bool OdIfc4x4::IfcProduct::putAttr ( const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue & val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns

true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

setInverseCounterParts()

virtual void OdIfc4x4::IfcProduct::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

Reimplemented in OdIfc4x4::IfcGrid.

setObjectPlacement()

void OdIfc4x4::IfcProduct::setObjectPlacement

(

const OdDAIObjectId &

ObjectPlacement

)

Sets placement of the product in space.

Parameters

Representation

[in] Identifier of the product placement that includes the axis placement information to determine the transformation for the object coordinate system.

setRepresentation()

void OdIfc4x4::IfcProduct::setRepresentation

(

const OdDAIObjectId &

Representation

)

Specifies the representations of the product. The geometric representation of any IfcProduct is provided by the IfcProductDefinitionShape allowing multiple geometric representations.

Parameters

Representation

[in] Identifier of the product representation.

testAttr() [1/2]

virtual bool OdIfc4x4::IfcProduct::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName

[in] Explicit name of the attribute to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

testAttr() [2/2]

virtual bool OdIfc4x4::IfcProduct::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef

[in] Attribute definition to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcProduct::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentHorizontal, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAlignmentVertical, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBuiltElement, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCivilElement, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcComplementaryData, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDeepFoundation, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksElement, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcElementComponent, OdIfc4x4::IfcEnergyConversionDevice, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExcavation, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcExternalSpatialStructureElement, OdIfc4x4::IfcFacility, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElement, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowController, OdIfc4x4::IfcFlowFitting, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFlowMovingDevice, OdIfc4x4::IfcFlowSegment, OdIfc4x4::IfcFlowStorageDevice, OdIfc4x4::IfcFlowTerminal, OdIfc4x4::IfcFlowTreatmentDevice, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurnishingElement, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeomodel, OdIfc4x4::IfcGeoScienceElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeoslice, OdIfc4x4::IfcGeotechnicalAssembly, OdIfc4x4::IfcGeotechnicalElement, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLinearElement, OdIfc4x4::IfcLinearPositioningElement, OdIfc4x4::IfcLinearZone, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcObservation, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveMemberVarying, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralLinearAction, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPlanarAction, OdIfc4x4::IfcStructuralPointAction, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralPointReaction, OdIfc4x4::IfcStructuralReaction, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceConnection, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceMemberVarying, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportationDevice, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWallStandardCase, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

unsetAttr() [1/2]

virtual void OdIfc4x4::IfcProduct::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName

[in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

unsetAttr() [2/2]

virtual void OdIfc4x4::IfcProduct::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef

[in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x4::IfcObject.

Reimplemented in OdIfc4x4::IfcActuator, OdIfc4x4::IfcAirTerminal, OdIfc4x4::IfcAirTerminalBox, OdIfc4x4::IfcAirToAirHeatRecovery, OdIfc4x4::IfcAlarm, OdIfc4x4::IfcAlignment, OdIfc4x4::IfcAlignmentCant, OdIfc4x4::IfcAlignmentSegment, OdIfc4x4::IfcAnnotation, OdIfc4x4::IfcArchElement, OdIfc4x4::IfcAudioVisualAppliance, OdIfc4x4::IfcBeam, OdIfc4x4::IfcBearing, OdIfc4x4::IfcBoiler, OdIfc4x4::IfcBorehole, OdIfc4x4::IfcBridge, OdIfc4x4::IfcBridgePart, OdIfc4x4::IfcBuilding, OdIfc4x4::IfcBuildingElementPart, OdIfc4x4::IfcBuildingElementProxy, OdIfc4x4::IfcBuildingStorey, OdIfc4x4::IfcBurner, OdIfc4x4::IfcCableCarrierFitting, OdIfc4x4::IfcCableCarrierSegment, OdIfc4x4::IfcCableFitting, OdIfc4x4::IfcCableSegment, OdIfc4x4::IfcCaissonFoundation, OdIfc4x4::IfcChiller, OdIfc4x4::IfcChimney, OdIfc4x4::IfcCoil, OdIfc4x4::IfcColumn, OdIfc4x4::IfcCommunicationsAppliance, OdIfc4x4::IfcCompressor, OdIfc4x4::IfcCondenser, OdIfc4x4::IfcController, OdIfc4x4::IfcConveyorSegment, OdIfc4x4::IfcCooledBeam, OdIfc4x4::IfcCoolingTower, OdIfc4x4::IfcCourse, OdIfc4x4::IfcCovering, OdIfc4x4::IfcCurtainWall, OdIfc4x4::IfcDamper, OdIfc4x4::IfcDiscreteAccessory, OdIfc4x4::IfcDistributionBoard, OdIfc4x4::IfcDistributionChamberElement, OdIfc4x4::IfcDistributionControlElement, OdIfc4x4::IfcDistributionElement, OdIfc4x4::IfcDistributionFlowElement, OdIfc4x4::IfcDistributionPort, OdIfc4x4::IfcDoor, OdIfc4x4::IfcDuctFitting, OdIfc4x4::IfcDuctSegment, OdIfc4x4::IfcDuctSilencer, OdIfc4x4::IfcEarthingElement, OdIfc4x4::IfcEarthworksCut, OdIfc4x4::IfcEarthworksFill, OdIfc4x4::IfcElectricAppliance, OdIfc4x4::IfcElectricDistributionBoard, OdIfc4x4::IfcElectricFlowStorageDevice, OdIfc4x4::IfcElectricFlowTreatmentDevice, OdIfc4x4::IfcElectricGenerator, OdIfc4x4::IfcElectricMotor, OdIfc4x4::IfcElectricTimeControl, OdIfc4x4::IfcElement, OdIfc4x4::IfcElementAssembly, OdIfc4x4::IfcEngine, OdIfc4x4::IfcEvaporativeCooler, OdIfc4x4::IfcEvaporator, OdIfc4x4::IfcExternalSpatialElement, OdIfc4x4::IfcFacilityPart, OdIfc4x4::IfcFacilityPartCommon, OdIfc4x4::IfcFan, OdIfc4x4::IfcFastener, OdIfc4x4::IfcFeatureElementAddition, OdIfc4x4::IfcFeatureElementSubtraction, OdIfc4x4::IfcFillElement, OdIfc4x4::IfcFilter, OdIfc4x4::IfcFireSuppressionTerminal, OdIfc4x4::IfcFlowInstrument, OdIfc4x4::IfcFlowMeter, OdIfc4x4::IfcFooting, OdIfc4x4::IfcFurniture, OdIfc4x4::IfcGeographicElement, OdIfc4x4::IfcGeoScienceFeature, OdIfc4x4::IfcGeoScienceModel, OdIfc4x4::IfcGeoScienceObservation, OdIfc4x4::IfcGeotechnicalStratum, OdIfc4x4::IfcGrid, OdIfc4x4::IfcGroundReinforcementElement, OdIfc4x4::IfcHeatExchanger, OdIfc4x4::IfcHumidifier, OdIfc4x4::IfcImpactProtectionDevice, OdIfc4x4::IfcImprovedGround, OdIfc4x4::IfcIntegerVoxelData, OdIfc4x4::IfcInterceptor, OdIfc4x4::IfcJunctionBox, OdIfc4x4::IfcKerb, OdIfc4x4::IfcLabelVoxelData, OdIfc4x4::IfcLamp, OdIfc4x4::IfcLightFixture, OdIfc4x4::IfcLiquidTerminal, OdIfc4x4::IfcLogicalVoxelData, OdIfc4x4::IfcMarineFacility, OdIfc4x4::IfcMarinePart, OdIfc4x4::IfcMechanicalFastener, OdIfc4x4::IfcMedicalDevice, OdIfc4x4::IfcMember, OdIfc4x4::IfcMobileTelecommunicationsAppliance, OdIfc4x4::IfcMooringDevice, OdIfc4x4::IfcMotorConnection, OdIfc4x4::IfcNavigationElement, OdIfc4x4::IfcOpeningElement, OdIfc4x4::IfcOutlet, OdIfc4x4::IfcPavement, OdIfc4x4::IfcPile, OdIfc4x4::IfcPipeFitting, OdIfc4x4::IfcPipeSegment, OdIfc4x4::IfcPlate, OdIfc4x4::IfcPort, OdIfc4x4::IfcPositioningElement, OdIfc4x4::IfcProjectionElement, OdIfc4x4::IfcProtectiveDevice, OdIfc4x4::IfcProtectiveDeviceTrippingUnit, OdIfc4x4::IfcPump, OdIfc4x4::IfcRail, OdIfc4x4::IfcRailing, OdIfc4x4::IfcRailway, OdIfc4x4::IfcRailwayPart, OdIfc4x4::IfcRamp, OdIfc4x4::IfcRampFlight, OdIfc4x4::IfcRealVoxelData, OdIfc4x4::IfcReferent, OdIfc4x4::IfcReinforcingBar, OdIfc4x4::IfcReinforcingElement, OdIfc4x4::IfcReinforcingMesh, OdIfc4x4::IfcRoad, OdIfc4x4::IfcRoadPart, OdIfc4x4::IfcRoof, OdIfc4x4::IfcSanitaryTerminal, OdIfc4x4::IfcSensor, OdIfc4x4::IfcShadingDevice, OdIfc4x4::IfcSign, OdIfc4x4::IfcSignal, OdIfc4x4::IfcSite, OdIfc4x4::IfcSlab, OdIfc4x4::IfcSolarDevice, OdIfc4x4::IfcSpace, OdIfc4x4::IfcSpaceHeater, OdIfc4x4::IfcSpatialElement, OdIfc4x4::IfcSpatialStructureElement, OdIfc4x4::IfcSpatialZone, OdIfc4x4::IfcStackTerminal, OdIfc4x4::IfcStair, OdIfc4x4::IfcStairFlight, OdIfc4x4::IfcStructuralAction, OdIfc4x4::IfcStructuralActivity, OdIfc4x4::IfcStructuralConnection, OdIfc4x4::IfcStructuralCurveAction, OdIfc4x4::IfcStructuralCurveConnection, OdIfc4x4::IfcStructuralCurveMember, OdIfc4x4::IfcStructuralCurveReaction, OdIfc4x4::IfcStructuralItem, OdIfc4x4::IfcStructuralMember, OdIfc4x4::IfcStructuralPointConnection, OdIfc4x4::IfcStructuralSurfaceAction, OdIfc4x4::IfcStructuralSurfaceMember, OdIfc4x4::IfcStructuralSurfaceReaction, OdIfc4x4::IfcSurfaceFeature, OdIfc4x4::IfcSwitchingDevice, OdIfc4x4::IfcSystemFurnitureElement, OdIfc4x4::IfcTank, OdIfc4x4::IfcTendon, OdIfc4x4::IfcTendonAnchor, OdIfc4x4::IfcTendonConduit, OdIfc4x4::IfcTrackElement, OdIfc4x4::IfcTransformer, OdIfc4x4::IfcTransportElement, OdIfc4x4::IfcTubeBundle, OdIfc4x4::IfcTunnel, OdIfc4x4::IfcTunnelPart, OdIfc4x4::IfcTunnelTypicalSection, OdIfc4x4::IfcUndergroundExcavation, OdIfc4x4::IfcUnitaryControlElement, OdIfc4x4::IfcUnitaryEquipment, OdIfc4x4::IfcValve, OdIfc4x4::IfcVectorVoxelData, OdIfc4x4::IfcVehicle, OdIfc4x4::IfcVibrationDamper, OdIfc4x4::IfcVibrationIsolator, OdIfc4x4::IfcVirtualElement, OdIfc4x4::IfcVoidingFeature, OdIfc4x4::IfcVoxelData, OdIfc4x4::IfcWall, OdIfc4x4::IfcWasteTerminal, and OdIfc4x4::IfcWindow.

Friends And Related Symbol Documentation

IfcRelAssignsToProduct

friend class IfcRelAssignsToProduct

friend

Definition at line 254 of file IFC4X4/IfcProductAutoImpl.h.

IfcRelPositions

friend class IfcRelPositions

friend

Definition at line 255 of file IFC4X4/IfcProductAutoImpl.h.

IfcRelReferencedInSpatialStructure

friend class IfcRelReferencedInSpatialStructure

friend

Definition at line 256 of file IFC4X4/IfcProductAutoImpl.h.

Member Data Documentation

m_ObjectPlacement

OdDAIObjectId OdIfc4x4::IfcProduct::m_ObjectPlacement

protected

Definition at line 250 of file IFC4X4/IfcProductAutoImpl.h.

m_Representation

OdDAIObjectId OdIfc4x4::IfcProduct::m_Representation

protected

Definition at line 251 of file IFC4X4/IfcProductAutoImpl.h.

---

The documentation for this class was generated from the following file:

• IFC4X4/IfcProductAutoImpl.h
