#include <IfcSurfaceCurveAutoImpl.h>

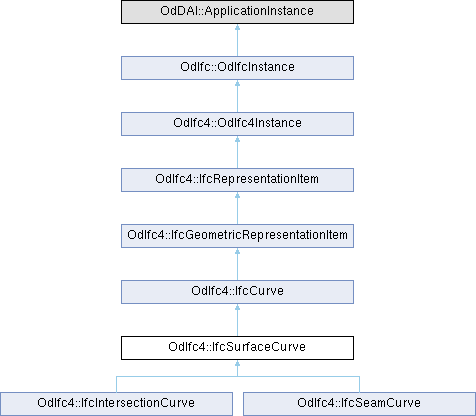

Inheritance diagram for OdIfc4::IfcSurfaceCurve:

Public Member Functions
const OdDAIObjectId &	getCurve3D () const

void	setCurve3D (const OdDAIObjectId &Curve3D)

void	getAssociatedGeometry (OdDAIObjectIds &AssociatedGeometry) const

OdDAI::ListOfOdDAIObjectId &	associatedGeometry ()

IfcPreferredSurfaceCurveRepresentation	getMasterRepresentation () const

void	setMasterRepresentation (IfcPreferredSurfaceCurveRepresentation MasterRepresentation)

	IfcSurfaceCurve ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Curve3D

OdDAI::ListOfOdDAIObjectId	m_AssociatedGeometry

OdDAI::Enum	m_MasterRepresentation

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcSurfaceCurve is a 3-dimensional curve that has additional representations provided by one or two pcurves.

Definition at line 40 of file Ifc4/IfcSurfaceCurveAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcSurfaceCurve()

OdIfc4::IfcSurfaceCurve::IfcSurfaceCurve ( )

Default constructor for the IfcSurfaceCurve class.

Member Function Documentation

◆ associatedGeometry()

OdDAI::ListOfOdDAIObjectId & OdIfc4::IfcSurfaceCurve::associatedGeometry ( )

Returns the value of AssociatedGeometry attribute. This attribute represents a list of one or two pcurves which define the surface or surfaces associated with the surface curve. Two elements in this list indicate that the curve has two surface associations which need not be two distinct surfaces. As a pcurve, it also associates a basis curve in the parameter space of this surface as an alternative representation of the surface curve.

Returns: Returns the value of AssociatedGeometry attribute.

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcSurfaceCurve::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcCurve.

Reimplemented in OdIfc4::IfcIntersectionCurve, and OdIfc4::IfcSeamCurve.

◆ getAssociatedGeometry()

void OdIfc4::IfcSurfaceCurve::getAssociatedGeometry ( OdDAIObjectIds & AssociatedGeometry ) const

Gets the value of AssociatedGeometry attribute. This attribute represents a list of one or two pcurves which define the surface or surfaces associated with the surface curve. Two elements in this list indicate that the curve has two surface associations which need not be two distinct surfaces. As a pcurve, it also associates a basis curve in the parameter space of this surface as an alternative representation of the surface curve.

Parameters

AssociatedGeometry [out] Receives the associated geometry.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcSurfaceCurve::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcSurfaceCurve::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcRepresentationItem.

◆ getCurve3D()

const OdDAIObjectId & OdIfc4::IfcSurfaceCurve::getCurve3D ( ) const

Returns the value of Curve3D attribute. This attribute represents the curve which is the three-dimensional representation of the surface curve.

Returns: Returns the value of Curve3D attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcSurfaceCurve::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcCurve.

Reimplemented in OdIfc4::IfcIntersectionCurve, and OdIfc4::IfcSeamCurve.

◆ getMasterRepresentation()

IfcPreferredSurfaceCurveRepresentation OdIfc4::IfcSurfaceCurve::getMasterRepresentation ( ) const

Returns the value of MasterRepresentation attribute. This attribute represents the MasterRepresentation defines the curve used to determine the unique parametrization of the IfcSurfaceCurve. The MasterRepresentation attribute takes one of the values Curve3D, PCurve_S1 or PCurve_S2 to indicate a preference for the 3D curve, or the first or second pcurve, in the associated geometry list, respectively. Multiple representations provide the ability to communicate data in more than one form, even though the data is expected to be geometrically identical.

Returns: Returns the value of MasterRepresentation attribute.

◆ inFields()

virtual OdResult OdIfc4::IfcSurfaceCurve::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcRepresentationItem.

◆ isKindOf()

virtual bool OdIfc4::IfcSurfaceCurve::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcCurve.

Reimplemented in OdIfc4::IfcIntersectionCurve, and OdIfc4::IfcSeamCurve.

◆ outFields()

virtual OdResult OdIfc4::IfcSurfaceCurve::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcRepresentationItem.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcSurfaceCurve::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcSurfaceCurve::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcRepresentationItem.

◆ setCurve3D()

void OdIfc4::IfcSurfaceCurve::setCurve3D ( const OdDAIObjectId & Curve3D )

Sets the value of Curve3D attribute. This attribute represents the curve which is the three-dimensional representation of the surface curve.

Parameters

Curve3D [in] Curve3D to set.

◆ setMasterRepresentation()

void OdIfc4::IfcSurfaceCurve::setMasterRepresentation ( IfcPreferredSurfaceCurveRepresentation MasterRepresentation )

Sets the value of MasterRepresentation attribute. This attribute represents the MasterRepresentation defines the curve used to determine the unique parametrization of the IfcSurfaceCurve. The MasterRepresentation attribute takes one of the values Curve3D, PCurve_S1 or PCurve_S2 to indicate a preference for the 3D curve, or the first or second pcurve, in the associated geometry list, respectively. Multiple representations provide the ability to communicate data in more than one form, even though the data is expected to be geometrically identical.

Parameters

MasterRepresentation [in] MasterRepresentation attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcSurfaceCurve::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcRepresentationItem.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcSurfaceCurve::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcRepresentationItem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcSurfaceCurve::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcCurve.

Reimplemented in OdIfc4::IfcIntersectionCurve, and OdIfc4::IfcSeamCurve.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcSurfaceCurve::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcRepresentationItem.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcSurfaceCurve::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcRepresentationItem.

Member Data Documentation

◆ m_AssociatedGeometry

OdDAI::ListOfOdDAIObjectId OdIfc4::IfcSurfaceCurve::m_AssociatedGeometry

protected

Definition at line 239 of file Ifc4/IfcSurfaceCurveAutoImpl.h.

◆ m_Curve3D

OdDAIObjectId OdIfc4::IfcSurfaceCurve::m_Curve3D

protected

Definition at line 238 of file Ifc4/IfcSurfaceCurveAutoImpl.h.

◆ m_MasterRepresentation

OdDAI::Enum OdIfc4::IfcSurfaceCurve::m_MasterRepresentation

protected

Definition at line 240 of file Ifc4/IfcSurfaceCurveAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcSurfaceCurveAutoImpl.h
