#include <IfcRepresentationItemAutoImpl.h>

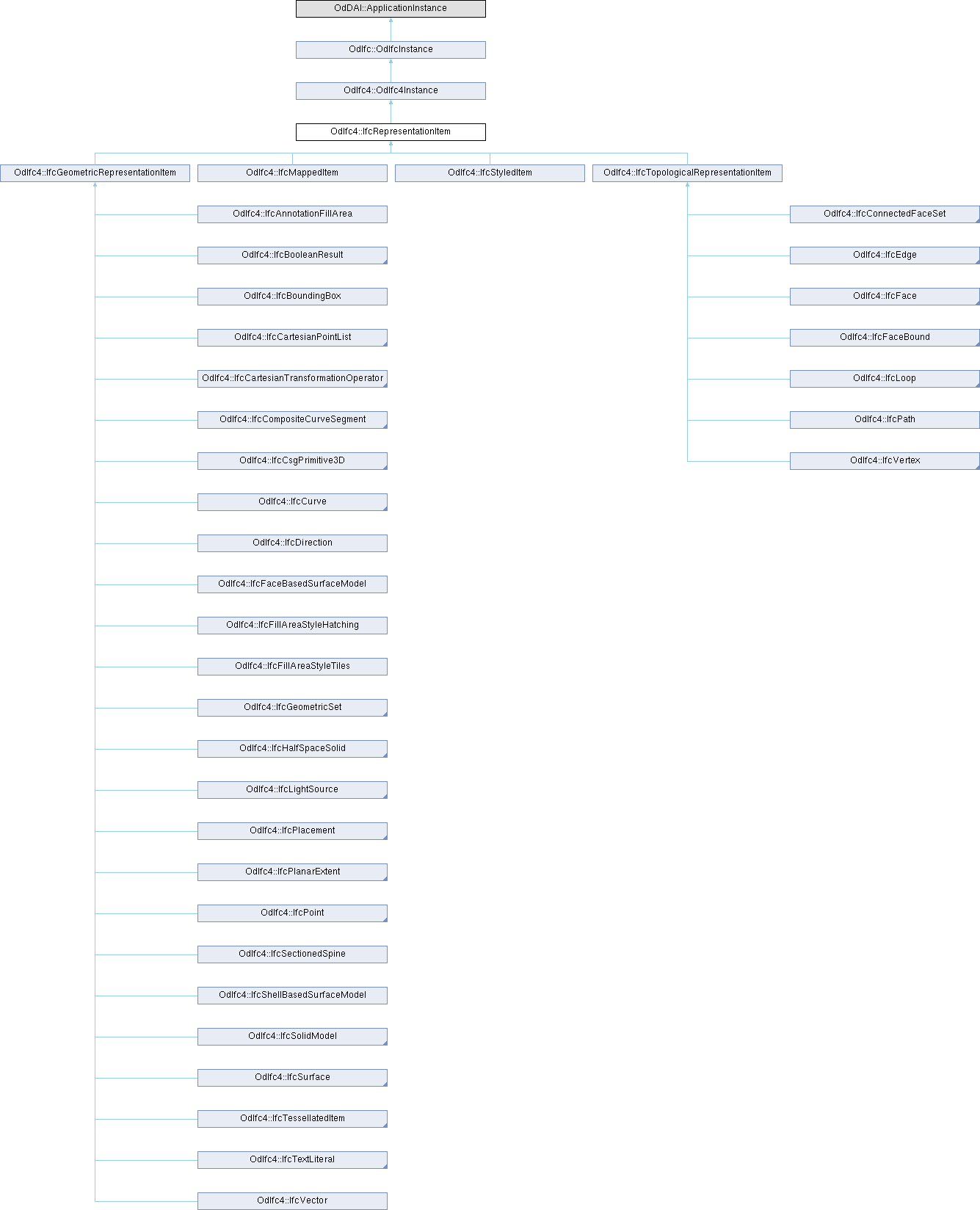

Inheritance diagram for OdIfc4::IfcRepresentationItem:

Public Member Functions
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val)

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Friends
class	IfcPresentationLayerAssignment

class	IfcStyledItem

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

The IfcRepresentationItem is used within an IfcRepresentation (directly or indirectly through other IfcRepresentationItem's) to represent an IfcProductRepresentation. Most commonly these IfcRepresentationItem's are geometric or topological representation items, that can have presentation style information assigned.

The image below shows an instance diagram explaining the use of IfcStyledItem and IfcPresentationLayerWithStyle to apply presentation styles.

The image below shows in instance diagram explaining the override of IfcPresentationLayerWithStyle by IfcStyledItem to apply presentation styles.

\changes

IFC4 changes: Inverse attribute LayerAssignments renamed to LayerAssignment Type of the inverse attribute LayerAssignments changed from "SET OF [0:?] IfcPresentationLayerAssignment FOR AssignedItems" to "SET OF [0:1] IfcPresentationLayerAssignment FOR AssignedItems"

Definition at line 61 of file Ifc4/IfcRepresentationItemAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcRepresentationItem::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented in OdIfc4::IfcAdvancedBrep, OdIfc4::IfcAdvancedBrepWithVoids, OdIfc4::IfcAdvancedFace, OdIfc4::IfcAnnotationFillArea, OdIfc4::IfcAxis1Placement, OdIfc4::IfcAxis2Placement2D, OdIfc4::IfcAxis2Placement3D, OdIfc4::IfcBlock, OdIfc4::IfcBooleanClippingResult, OdIfc4::IfcBooleanResult, OdIfc4::IfcBoundaryCurve, OdIfc4::IfcBoundedCurve, OdIfc4::IfcBoundedSurface, OdIfc4::IfcBoundingBox, OdIfc4::IfcBoxedHalfSpace, OdIfc4::IfcBSplineCurve, OdIfc4::IfcBSplineCurveWithKnots, OdIfc4::IfcBSplineSurface, OdIfc4::IfcBSplineSurfaceWithKnots, OdIfc4::IfcCartesianPoint, OdIfc4::IfcCartesianPointList2D, OdIfc4::IfcCartesianPointList3D, OdIfc4::IfcCartesianPointList, OdIfc4::IfcCartesianTransformationOperator2D, OdIfc4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4::IfcCartesianTransformationOperator3D, OdIfc4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4::IfcCartesianTransformationOperator, OdIfc4::IfcCircle, OdIfc4::IfcClosedShell, OdIfc4::IfcCompositeCurve, OdIfc4::IfcCompositeCurveOnSurface, OdIfc4::IfcCompositeCurveSegment, OdIfc4::IfcConic, OdIfc4::IfcConnectedFaceSet, OdIfc4::IfcCsgPrimitive3D, OdIfc4::IfcCsgSolid, OdIfc4::IfcCurve, OdIfc4::IfcCurveBoundedPlane, OdIfc4::IfcCurveBoundedSurface, OdIfc4::IfcCylindricalSurface, OdIfc4::IfcDirection, OdIfc4::IfcEdge, OdIfc4::IfcEdgeCurve, OdIfc4::IfcEdgeLoop, OdIfc4::IfcElementarySurface, OdIfc4::IfcEllipse, OdIfc4::IfcExtrudedAreaSolid, OdIfc4::IfcExtrudedAreaSolidTapered, OdIfc4::IfcFace, OdIfc4::IfcFaceBasedSurfaceModel, OdIfc4::IfcFaceBound, OdIfc4::IfcFaceOuterBound, OdIfc4::IfcFaceSurface, OdIfc4::IfcFacetedBrep, OdIfc4::IfcFacetedBrepWithVoids, OdIfc4::IfcFillAreaStyleHatching, OdIfc4::IfcFillAreaStyleTiles, OdIfc4::IfcFixedReferenceSweptAreaSolid, OdIfc4::IfcGeometricCurveSet, OdIfc4::IfcGeometricRepresentationItem, OdIfc4::IfcGeometricSet, OdIfc4::IfcHalfSpaceSolid, OdIfc4::IfcIndexedPolyCurve, OdIfc4::IfcIndexedPolygonalFace, OdIfc4::IfcIndexedPolygonalFaceWithVoids, OdIfc4::IfcIntersectionCurve, OdIfc4::IfcLightSource, OdIfc4::IfcLightSourceAmbient, OdIfc4::IfcLightSourceDirectional, OdIfc4::IfcLightSourceGoniometric, OdIfc4::IfcLightSourcePositional, OdIfc4::IfcLightSourceSpot, OdIfc4::IfcLine, OdIfc4::IfcLoop, OdIfc4::IfcManifoldSolidBrep, OdIfc4::IfcMappedItem, OdIfc4::IfcOffsetCurve2D, OdIfc4::IfcOffsetCurve3D, OdIfc4::IfcOpenShell, OdIfc4::IfcOrientedEdge, OdIfc4::IfcOuterBoundaryCurve, OdIfc4::IfcPath, OdIfc4::IfcPcurve, OdIfc4::IfcPlacement, OdIfc4::IfcPlanarBox, OdIfc4::IfcPlanarExtent, OdIfc4::IfcPlane, OdIfc4::IfcPoint, OdIfc4::IfcPointOnCurve, OdIfc4::IfcPointOnSurface, OdIfc4::IfcPolygonalBoundedHalfSpace, OdIfc4::IfcPolygonalFaceSet, OdIfc4::IfcPolyline, OdIfc4::IfcPolyLoop, OdIfc4::IfcRationalBSplineCurveWithKnots, OdIfc4::IfcRationalBSplineSurfaceWithKnots, OdIfc4::IfcRectangularPyramid, OdIfc4::IfcRectangularTrimmedSurface, OdIfc4::IfcReparametrisedCompositeCurveSegment, OdIfc4::IfcRevolvedAreaSolid, OdIfc4::IfcRevolvedAreaSolidTapered, OdIfc4::IfcRightCircularCone, OdIfc4::IfcRightCircularCylinder, OdIfc4::IfcSeamCurve, OdIfc4::IfcSectionedSpine, OdIfc4::IfcShellBasedSurfaceModel, OdIfc4::IfcSolidModel, OdIfc4::IfcSphere, OdIfc4::IfcSphericalSurface, OdIfc4::IfcStyledItem, OdIfc4::IfcSubedge, OdIfc4::IfcSurface, OdIfc4::IfcSurfaceCurve, OdIfc4::IfcSurfaceCurveSweptAreaSolid, OdIfc4::IfcSurfaceOfLinearExtrusion, OdIfc4::IfcSurfaceOfRevolution, OdIfc4::IfcSweptAreaSolid, OdIfc4::IfcSweptDiskSolid, OdIfc4::IfcSweptDiskSolidPolygonal, OdIfc4::IfcSweptSurface, OdIfc4::IfcTessellatedFaceSet, OdIfc4::IfcTessellatedItem, OdIfc4::IfcTextLiteral, OdIfc4::IfcTextLiteralWithExtent, OdIfc4::IfcTopologicalRepresentationItem, OdIfc4::IfcToroidalSurface, OdIfc4::IfcTriangulatedFaceSet, OdIfc4::IfcTrimmedCurve, OdIfc4::IfcVector, OdIfc4::IfcVertex, OdIfc4::IfcVertexLoop, and OdIfc4::IfcVertexPoint.

◆ getAttr()

virtual OdRxValue OdIfc4::IfcRepresentationItem::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcAdvancedBrepWithVoids, OdIfc4::IfcAnnotationFillArea, OdIfc4::IfcAxis1Placement, OdIfc4::IfcAxis2Placement2D, OdIfc4::IfcAxis2Placement3D, OdIfc4::IfcBlock, OdIfc4::IfcBooleanResult, OdIfc4::IfcBoundingBox, OdIfc4::IfcBoxedHalfSpace, OdIfc4::IfcBSplineCurve, OdIfc4::IfcBSplineCurveWithKnots, OdIfc4::IfcBSplineSurface, OdIfc4::IfcBSplineSurfaceWithKnots, OdIfc4::IfcCartesianPoint, OdIfc4::IfcCartesianPointList2D, OdIfc4::IfcCartesianPointList3D, OdIfc4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4::IfcCartesianTransformationOperator3D, OdIfc4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4::IfcCartesianTransformationOperator, OdIfc4::IfcCircle, OdIfc4::IfcCompositeCurve, OdIfc4::IfcCompositeCurveSegment, OdIfc4::IfcConic, OdIfc4::IfcConnectedFaceSet, OdIfc4::IfcCsgPrimitive3D, OdIfc4::IfcCsgSolid, OdIfc4::IfcCurveBoundedPlane, OdIfc4::IfcCurveBoundedSurface, OdIfc4::IfcCylindricalSurface, OdIfc4::IfcDirection, OdIfc4::IfcEdge, OdIfc4::IfcEdgeCurve, OdIfc4::IfcEdgeLoop, OdIfc4::IfcElementarySurface, OdIfc4::IfcEllipse, OdIfc4::IfcExtrudedAreaSolid, OdIfc4::IfcExtrudedAreaSolidTapered, OdIfc4::IfcFace, OdIfc4::IfcFaceBasedSurfaceModel, OdIfc4::IfcFaceBound, OdIfc4::IfcFaceSurface, OdIfc4::IfcFacetedBrepWithVoids, OdIfc4::IfcFillAreaStyleHatching, OdIfc4::IfcFillAreaStyleTiles, OdIfc4::IfcFixedReferenceSweptAreaSolid, OdIfc4::IfcGeometricSet, OdIfc4::IfcHalfSpaceSolid, OdIfc4::IfcIndexedPolyCurve, OdIfc4::IfcIndexedPolygonalFace, OdIfc4::IfcIndexedPolygonalFaceWithVoids, OdIfc4::IfcLightSource, OdIfc4::IfcLightSourceDirectional, OdIfc4::IfcLightSourceGoniometric, OdIfc4::IfcLightSourcePositional, OdIfc4::IfcLightSourceSpot, OdIfc4::IfcLine, OdIfc4::IfcManifoldSolidBrep, OdIfc4::IfcMappedItem, OdIfc4::IfcOffsetCurve2D, OdIfc4::IfcOffsetCurve3D, OdIfc4::IfcOrientedEdge, OdIfc4::IfcPath, OdIfc4::IfcPcurve, OdIfc4::IfcPlacement, OdIfc4::IfcPlanarBox, OdIfc4::IfcPlanarExtent, OdIfc4::IfcPointOnCurve, OdIfc4::IfcPointOnSurface, OdIfc4::IfcPolygonalBoundedHalfSpace, OdIfc4::IfcPolygonalFaceSet, OdIfc4::IfcPolyline, OdIfc4::IfcPolyLoop, OdIfc4::IfcRationalBSplineCurveWithKnots, OdIfc4::IfcRationalBSplineSurfaceWithKnots, OdIfc4::IfcRectangularPyramid, OdIfc4::IfcRectangularTrimmedSurface, OdIfc4::IfcReparametrisedCompositeCurveSegment, OdIfc4::IfcRevolvedAreaSolid, OdIfc4::IfcRevolvedAreaSolidTapered, OdIfc4::IfcRightCircularCone, OdIfc4::IfcRightCircularCylinder, OdIfc4::IfcSectionedSpine, OdIfc4::IfcShellBasedSurfaceModel, OdIfc4::IfcSphere, OdIfc4::IfcSphericalSurface, OdIfc4::IfcStyledItem, OdIfc4::IfcSubedge, OdIfc4::IfcSurfaceCurve, OdIfc4::IfcSurfaceCurveSweptAreaSolid, OdIfc4::IfcSurfaceOfLinearExtrusion, OdIfc4::IfcSurfaceOfRevolution, OdIfc4::IfcSweptAreaSolid, OdIfc4::IfcSweptDiskSolid, OdIfc4::IfcSweptDiskSolidPolygonal, OdIfc4::IfcSweptSurface, OdIfc4::IfcTessellatedFaceSet, OdIfc4::IfcTextLiteral, OdIfc4::IfcTextLiteralWithExtent, OdIfc4::IfcToroidalSurface, OdIfc4::IfcTriangulatedFaceSet, OdIfc4::IfcTrimmedCurve, OdIfc4::IfcVector, OdIfc4::IfcVertexLoop, and OdIfc4::IfcVertexPoint.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcRepresentationItem::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc4::IfcAdvancedBrep, OdIfc4::IfcAdvancedBrepWithVoids, OdIfc4::IfcAdvancedFace, OdIfc4::IfcAnnotationFillArea, OdIfc4::IfcAxis1Placement, OdIfc4::IfcAxis2Placement2D, OdIfc4::IfcAxis2Placement3D, OdIfc4::IfcBlock, OdIfc4::IfcBooleanClippingResult, OdIfc4::IfcBooleanResult, OdIfc4::IfcBoundaryCurve, OdIfc4::IfcBoundedCurve, OdIfc4::IfcBoundedSurface, OdIfc4::IfcBoundingBox, OdIfc4::IfcBoxedHalfSpace, OdIfc4::IfcBSplineCurve, OdIfc4::IfcBSplineCurveWithKnots, OdIfc4::IfcBSplineSurface, OdIfc4::IfcBSplineSurfaceWithKnots, OdIfc4::IfcCartesianPoint, OdIfc4::IfcCartesianPointList2D, OdIfc4::IfcCartesianPointList3D, OdIfc4::IfcCartesianPointList, OdIfc4::IfcCartesianTransformationOperator2D, OdIfc4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4::IfcCartesianTransformationOperator3D, OdIfc4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4::IfcCartesianTransformationOperator, OdIfc4::IfcCircle, OdIfc4::IfcClosedShell, OdIfc4::IfcCompositeCurve, OdIfc4::IfcCompositeCurveOnSurface, OdIfc4::IfcCompositeCurveSegment, OdIfc4::IfcConic, OdIfc4::IfcConnectedFaceSet, OdIfc4::IfcCsgPrimitive3D, OdIfc4::IfcCsgSolid, OdIfc4::IfcCurve, OdIfc4::IfcCurveBoundedPlane, OdIfc4::IfcCurveBoundedSurface, OdIfc4::IfcCylindricalSurface, OdIfc4::IfcDirection, OdIfc4::IfcEdge, OdIfc4::IfcEdgeCurve, OdIfc4::IfcEdgeLoop, OdIfc4::IfcElementarySurface, OdIfc4::IfcEllipse, OdIfc4::IfcExtrudedAreaSolid, OdIfc4::IfcExtrudedAreaSolidTapered, OdIfc4::IfcFace, OdIfc4::IfcFaceBasedSurfaceModel, OdIfc4::IfcFaceBound, OdIfc4::IfcFaceOuterBound, OdIfc4::IfcFaceSurface, OdIfc4::IfcFacetedBrep, OdIfc4::IfcFacetedBrepWithVoids, OdIfc4::IfcFillAreaStyleHatching, OdIfc4::IfcFillAreaStyleTiles, OdIfc4::IfcFixedReferenceSweptAreaSolid, OdIfc4::IfcGeometricCurveSet, OdIfc4::IfcGeometricRepresentationItem, OdIfc4::IfcGeometricSet, OdIfc4::IfcHalfSpaceSolid, OdIfc4::IfcIndexedPolyCurve, OdIfc4::IfcIndexedPolygonalFace, OdIfc4::IfcIndexedPolygonalFaceWithVoids, OdIfc4::IfcIntersectionCurve, OdIfc4::IfcLightSource, OdIfc4::IfcLightSourceAmbient, OdIfc4::IfcLightSourceDirectional, OdIfc4::IfcLightSourceGoniometric, OdIfc4::IfcLightSourcePositional, OdIfc4::IfcLightSourceSpot, OdIfc4::IfcLine, OdIfc4::IfcLoop, OdIfc4::IfcManifoldSolidBrep, OdIfc4::IfcMappedItem, OdIfc4::IfcOffsetCurve2D, OdIfc4::IfcOffsetCurve3D, OdIfc4::IfcOpenShell, OdIfc4::IfcOrientedEdge, OdIfc4::IfcOuterBoundaryCurve, OdIfc4::IfcPath, OdIfc4::IfcPcurve, OdIfc4::IfcPlacement, OdIfc4::IfcPlanarBox, OdIfc4::IfcPlanarExtent, OdIfc4::IfcPlane, OdIfc4::IfcPoint, OdIfc4::IfcPointOnCurve, OdIfc4::IfcPointOnSurface, OdIfc4::IfcPolygonalBoundedHalfSpace, OdIfc4::IfcPolygonalFaceSet, OdIfc4::IfcPolyline, OdIfc4::IfcPolyLoop, OdIfc4::IfcRationalBSplineCurveWithKnots, OdIfc4::IfcRationalBSplineSurfaceWithKnots, OdIfc4::IfcRectangularPyramid, OdIfc4::IfcRectangularTrimmedSurface, OdIfc4::IfcReparametrisedCompositeCurveSegment, OdIfc4::IfcRevolvedAreaSolid, OdIfc4::IfcRevolvedAreaSolidTapered, OdIfc4::IfcRightCircularCone, OdIfc4::IfcRightCircularCylinder, OdIfc4::IfcSeamCurve, OdIfc4::IfcSectionedSpine, OdIfc4::IfcShellBasedSurfaceModel, OdIfc4::IfcSolidModel, OdIfc4::IfcSphere, OdIfc4::IfcSphericalSurface, OdIfc4::IfcStyledItem, OdIfc4::IfcSubedge, OdIfc4::IfcSurface, OdIfc4::IfcSurfaceCurve, OdIfc4::IfcSurfaceCurveSweptAreaSolid, OdIfc4::IfcSurfaceOfLinearExtrusion, OdIfc4::IfcSurfaceOfRevolution, OdIfc4::IfcSweptAreaSolid, OdIfc4::IfcSweptDiskSolid, OdIfc4::IfcSweptDiskSolidPolygonal, OdIfc4::IfcSweptSurface, OdIfc4::IfcTessellatedFaceSet, OdIfc4::IfcTessellatedItem, OdIfc4::IfcTextLiteral, OdIfc4::IfcTextLiteralWithExtent, OdIfc4::IfcTopologicalRepresentationItem, OdIfc4::IfcToroidalSurface, OdIfc4::IfcTriangulatedFaceSet, OdIfc4::IfcTrimmedCurve, OdIfc4::IfcVector, OdIfc4::IfcVertex, OdIfc4::IfcVertexLoop, and OdIfc4::IfcVertexPoint.

◆ getInvLayerAssignment()

void OdIfc4::IfcRepresentationItem::getInvLayerAssignment ( OdDAIObjectIds & LayerAssignment ) const

Returns the value of LayerAssignment attribute. This attribute represents assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items.

Parameters

LayerAssignment [out] Receives the value of LayerAssignment attribute.

◆ getInvStyledByItem()

void OdIfc4::IfcRepresentationItem::getInvStyledByItem ( OdDAIObjectIds & StyledByItem ) const

Returns the value of StyledByItem attribute. This attribute represents reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including color and thickness to a geometric curve.

Parameters

StyledByItem [out] Receives the value of StyledByItem attribute.

◆ inFields()

virtual OdResult OdIfc4::IfcRepresentationItem::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4::IfcAdvancedBrepWithVoids, OdIfc4::IfcAnnotationFillArea, OdIfc4::IfcAxis1Placement, OdIfc4::IfcAxis2Placement2D, OdIfc4::IfcAxis2Placement3D, OdIfc4::IfcBlock, OdIfc4::IfcBooleanResult, OdIfc4::IfcBoundingBox, OdIfc4::IfcBoxedHalfSpace, OdIfc4::IfcBSplineCurve, OdIfc4::IfcBSplineCurveWithKnots, OdIfc4::IfcBSplineSurface, OdIfc4::IfcBSplineSurfaceWithKnots, OdIfc4::IfcCartesianPoint, OdIfc4::IfcCartesianPointList2D, OdIfc4::IfcCartesianPointList3D, OdIfc4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4::IfcCartesianTransformationOperator3D, OdIfc4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4::IfcCartesianTransformationOperator, OdIfc4::IfcCircle, OdIfc4::IfcCompositeCurve, OdIfc4::IfcCompositeCurveSegment, OdIfc4::IfcConic, OdIfc4::IfcConnectedFaceSet, OdIfc4::IfcCsgPrimitive3D, OdIfc4::IfcCsgSolid, OdIfc4::IfcCurveBoundedPlane, OdIfc4::IfcCurveBoundedSurface, OdIfc4::IfcCylindricalSurface, OdIfc4::IfcDirection, OdIfc4::IfcEdge, OdIfc4::IfcEdgeCurve, OdIfc4::IfcEdgeLoop, OdIfc4::IfcElementarySurface, OdIfc4::IfcEllipse, OdIfc4::IfcExtrudedAreaSolid, OdIfc4::IfcExtrudedAreaSolidTapered, OdIfc4::IfcFace, OdIfc4::IfcFaceBasedSurfaceModel, OdIfc4::IfcFaceBound, OdIfc4::IfcFaceSurface, OdIfc4::IfcFacetedBrepWithVoids, OdIfc4::IfcFillAreaStyleHatching, OdIfc4::IfcFillAreaStyleTiles, OdIfc4::IfcFixedReferenceSweptAreaSolid, OdIfc4::IfcGeometricSet, OdIfc4::IfcHalfSpaceSolid, OdIfc4::IfcIndexedPolyCurve, OdIfc4::IfcIndexedPolygonalFace, OdIfc4::IfcIndexedPolygonalFaceWithVoids, OdIfc4::IfcLightSource, OdIfc4::IfcLightSourceDirectional, OdIfc4::IfcLightSourceGoniometric, OdIfc4::IfcLightSourcePositional, OdIfc4::IfcLightSourceSpot, OdIfc4::IfcLine, OdIfc4::IfcManifoldSolidBrep, OdIfc4::IfcMappedItem, OdIfc4::IfcOffsetCurve2D, OdIfc4::IfcOffsetCurve3D, OdIfc4::IfcOrientedEdge, OdIfc4::IfcPath, OdIfc4::IfcPcurve, OdIfc4::IfcPlacement, OdIfc4::IfcPlanarBox, OdIfc4::IfcPlanarExtent, OdIfc4::IfcPointOnCurve, OdIfc4::IfcPointOnSurface, OdIfc4::IfcPolygonalBoundedHalfSpace, OdIfc4::IfcPolygonalFaceSet, OdIfc4::IfcPolyline, OdIfc4::IfcPolyLoop, OdIfc4::IfcRationalBSplineCurveWithKnots, OdIfc4::IfcRationalBSplineSurfaceWithKnots, OdIfc4::IfcRectangularPyramid, OdIfc4::IfcRectangularTrimmedSurface, OdIfc4::IfcReparametrisedCompositeCurveSegment, OdIfc4::IfcRevolvedAreaSolid, OdIfc4::IfcRevolvedAreaSolidTapered, OdIfc4::IfcRightCircularCone, OdIfc4::IfcRightCircularCylinder, OdIfc4::IfcSectionedSpine, OdIfc4::IfcShellBasedSurfaceModel, OdIfc4::IfcSphere, OdIfc4::IfcSphericalSurface, OdIfc4::IfcStyledItem, OdIfc4::IfcSubedge, OdIfc4::IfcSurfaceCurve, OdIfc4::IfcSurfaceCurveSweptAreaSolid, OdIfc4::IfcSurfaceOfLinearExtrusion, OdIfc4::IfcSurfaceOfRevolution, OdIfc4::IfcSweptAreaSolid, OdIfc4::IfcSweptDiskSolid, OdIfc4::IfcSweptDiskSolidPolygonal, OdIfc4::IfcSweptSurface, OdIfc4::IfcTessellatedFaceSet, OdIfc4::IfcTextLiteral, OdIfc4::IfcTextLiteralWithExtent, OdIfc4::IfcToroidalSurface, OdIfc4::IfcTriangulatedFaceSet, OdIfc4::IfcTrimmedCurve, OdIfc4::IfcVector, OdIfc4::IfcVertexLoop, and OdIfc4::IfcVertexPoint.

◆ isKindOf()

virtual bool OdIfc4::IfcRepresentationItem::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcAdvancedBrep, OdIfc4::IfcAdvancedBrepWithVoids, OdIfc4::IfcAdvancedFace, OdIfc4::IfcAnnotationFillArea, OdIfc4::IfcAxis1Placement, OdIfc4::IfcAxis2Placement2D, OdIfc4::IfcAxis2Placement3D, OdIfc4::IfcBlock, OdIfc4::IfcBooleanClippingResult, OdIfc4::IfcBooleanResult, OdIfc4::IfcBoundaryCurve, OdIfc4::IfcBoundedCurve, OdIfc4::IfcBoundedSurface, OdIfc4::IfcBoundingBox, OdIfc4::IfcBoxedHalfSpace, OdIfc4::IfcBSplineCurve, OdIfc4::IfcBSplineCurveWithKnots, OdIfc4::IfcBSplineSurface, OdIfc4::IfcBSplineSurfaceWithKnots, OdIfc4::IfcCartesianPoint, OdIfc4::IfcCartesianPointList2D, OdIfc4::IfcCartesianPointList3D, OdIfc4::IfcCartesianPointList, OdIfc4::IfcCartesianTransformationOperator2D, OdIfc4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4::IfcCartesianTransformationOperator3D, OdIfc4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4::IfcCartesianTransformationOperator, OdIfc4::IfcCircle, OdIfc4::IfcClosedShell, OdIfc4::IfcCompositeCurve, OdIfc4::IfcCompositeCurveOnSurface, OdIfc4::IfcCompositeCurveSegment, OdIfc4::IfcConic, OdIfc4::IfcConnectedFaceSet, OdIfc4::IfcCsgPrimitive3D, OdIfc4::IfcCsgSolid, OdIfc4::IfcCurve, OdIfc4::IfcCurveBoundedPlane, OdIfc4::IfcCurveBoundedSurface, OdIfc4::IfcCylindricalSurface, OdIfc4::IfcDirection, OdIfc4::IfcEdge, OdIfc4::IfcEdgeCurve, OdIfc4::IfcEdgeLoop, OdIfc4::IfcElementarySurface, OdIfc4::IfcEllipse, OdIfc4::IfcExtrudedAreaSolid, OdIfc4::IfcExtrudedAreaSolidTapered, OdIfc4::IfcFace, OdIfc4::IfcFaceBasedSurfaceModel, OdIfc4::IfcFaceBound, OdIfc4::IfcFaceOuterBound, OdIfc4::IfcFaceSurface, OdIfc4::IfcFacetedBrep, OdIfc4::IfcFacetedBrepWithVoids, OdIfc4::IfcFillAreaStyleHatching, OdIfc4::IfcFillAreaStyleTiles, OdIfc4::IfcFixedReferenceSweptAreaSolid, OdIfc4::IfcGeometricCurveSet, OdIfc4::IfcGeometricRepresentationItem, OdIfc4::IfcGeometricSet, OdIfc4::IfcHalfSpaceSolid, OdIfc4::IfcIndexedPolyCurve, OdIfc4::IfcIndexedPolygonalFace, OdIfc4::IfcIndexedPolygonalFaceWithVoids, OdIfc4::IfcIntersectionCurve, OdIfc4::IfcLightSource, OdIfc4::IfcLightSourceAmbient, OdIfc4::IfcLightSourceDirectional, OdIfc4::IfcLightSourceGoniometric, OdIfc4::IfcLightSourcePositional, OdIfc4::IfcLightSourceSpot, OdIfc4::IfcLine, OdIfc4::IfcLoop, OdIfc4::IfcManifoldSolidBrep, OdIfc4::IfcMappedItem, OdIfc4::IfcOffsetCurve2D, OdIfc4::IfcOffsetCurve3D, OdIfc4::IfcOpenShell, OdIfc4::IfcOrientedEdge, OdIfc4::IfcOuterBoundaryCurve, OdIfc4::IfcPath, OdIfc4::IfcPcurve, OdIfc4::IfcPlacement, OdIfc4::IfcPlanarBox, OdIfc4::IfcPlanarExtent, OdIfc4::IfcPlane, OdIfc4::IfcPoint, OdIfc4::IfcPointOnCurve, OdIfc4::IfcPointOnSurface, OdIfc4::IfcPolygonalBoundedHalfSpace, OdIfc4::IfcPolygonalFaceSet, OdIfc4::IfcPolyline, OdIfc4::IfcPolyLoop, OdIfc4::IfcRationalBSplineCurveWithKnots, OdIfc4::IfcRationalBSplineSurfaceWithKnots, OdIfc4::IfcRectangularPyramid, OdIfc4::IfcRectangularTrimmedSurface, OdIfc4::IfcReparametrisedCompositeCurveSegment, OdIfc4::IfcRevolvedAreaSolid, OdIfc4::IfcRevolvedAreaSolidTapered, OdIfc4::IfcRightCircularCone, OdIfc4::IfcRightCircularCylinder, OdIfc4::IfcSeamCurve, OdIfc4::IfcSectionedSpine, OdIfc4::IfcShellBasedSurfaceModel, OdIfc4::IfcSolidModel, OdIfc4::IfcSphere, OdIfc4::IfcSphericalSurface, OdIfc4::IfcStyledItem, OdIfc4::IfcSubedge, OdIfc4::IfcSurface, OdIfc4::IfcSurfaceCurve, OdIfc4::IfcSurfaceCurveSweptAreaSolid, OdIfc4::IfcSurfaceOfLinearExtrusion, OdIfc4::IfcSurfaceOfRevolution, OdIfc4::IfcSweptAreaSolid, OdIfc4::IfcSweptDiskSolid, OdIfc4::IfcSweptDiskSolidPolygonal, OdIfc4::IfcSweptSurface, OdIfc4::IfcTessellatedFaceSet, OdIfc4::IfcTessellatedItem, OdIfc4::IfcTextLiteral, OdIfc4::IfcTextLiteralWithExtent, OdIfc4::IfcTopologicalRepresentationItem, OdIfc4::IfcToroidalSurface, OdIfc4::IfcTriangulatedFaceSet, OdIfc4::IfcTrimmedCurve, OdIfc4::IfcVector, OdIfc4::IfcVertex, OdIfc4::IfcVertexLoop, and OdIfc4::IfcVertexPoint.

◆ outFields()

virtual OdResult OdIfc4::IfcRepresentationItem::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4::IfcAdvancedBrepWithVoids, OdIfc4::IfcAnnotationFillArea, OdIfc4::IfcAxis1Placement, OdIfc4::IfcAxis2Placement2D, OdIfc4::IfcAxis2Placement3D, OdIfc4::IfcBlock, OdIfc4::IfcBooleanResult, OdIfc4::IfcBoundingBox, OdIfc4::IfcBoxedHalfSpace, OdIfc4::IfcBSplineCurve, OdIfc4::IfcBSplineCurveWithKnots, OdIfc4::IfcBSplineSurface, OdIfc4::IfcBSplineSurfaceWithKnots, OdIfc4::IfcCartesianPoint, OdIfc4::IfcCartesianPointList2D, OdIfc4::IfcCartesianPointList3D, OdIfc4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4::IfcCartesianTransformationOperator3D, OdIfc4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4::IfcCartesianTransformationOperator, OdIfc4::IfcCircle, OdIfc4::IfcCompositeCurve, OdIfc4::IfcCompositeCurveSegment, OdIfc4::IfcConic, OdIfc4::IfcConnectedFaceSet, OdIfc4::IfcCsgPrimitive3D, OdIfc4::IfcCsgSolid, OdIfc4::IfcCurveBoundedPlane, OdIfc4::IfcCurveBoundedSurface, OdIfc4::IfcCylindricalSurface, OdIfc4::IfcDirection, OdIfc4::IfcEdge, OdIfc4::IfcEdgeCurve, OdIfc4::IfcEdgeLoop, OdIfc4::IfcElementarySurface, OdIfc4::IfcEllipse, OdIfc4::IfcExtrudedAreaSolid, OdIfc4::IfcExtrudedAreaSolidTapered, OdIfc4::IfcFace, OdIfc4::IfcFaceBasedSurfaceModel, OdIfc4::IfcFaceBound, OdIfc4::IfcFaceSurface, OdIfc4::IfcFacetedBrepWithVoids, OdIfc4::IfcFillAreaStyleHatching, OdIfc4::IfcFillAreaStyleTiles, OdIfc4::IfcFixedReferenceSweptAreaSolid, OdIfc4::IfcGeometricSet, OdIfc4::IfcHalfSpaceSolid, OdIfc4::IfcIndexedPolyCurve, OdIfc4::IfcIndexedPolygonalFace, OdIfc4::IfcIndexedPolygonalFaceWithVoids, OdIfc4::IfcLightSource, OdIfc4::IfcLightSourceDirectional, OdIfc4::IfcLightSourceGoniometric, OdIfc4::IfcLightSourcePositional, OdIfc4::IfcLightSourceSpot, OdIfc4::IfcLine, OdIfc4::IfcManifoldSolidBrep, OdIfc4::IfcMappedItem, OdIfc4::IfcOffsetCurve2D, OdIfc4::IfcOffsetCurve3D, OdIfc4::IfcOrientedEdge, OdIfc4::IfcPath, OdIfc4::IfcPcurve, OdIfc4::IfcPlacement, OdIfc4::IfcPlanarBox, OdIfc4::IfcPlanarExtent, OdIfc4::IfcPointOnCurve, OdIfc4::IfcPointOnSurface, OdIfc4::IfcPolygonalBoundedHalfSpace, OdIfc4::IfcPolygonalFaceSet, OdIfc4::IfcPolyline, OdIfc4::IfcPolyLoop, OdIfc4::IfcRationalBSplineCurveWithKnots, OdIfc4::IfcRationalBSplineSurfaceWithKnots, OdIfc4::IfcRectangularPyramid, OdIfc4::IfcRectangularTrimmedSurface, OdIfc4::IfcReparametrisedCompositeCurveSegment, OdIfc4::IfcRevolvedAreaSolid, OdIfc4::IfcRevolvedAreaSolidTapered, OdIfc4::IfcRightCircularCone, OdIfc4::IfcRightCircularCylinder, OdIfc4::IfcSectionedSpine, OdIfc4::IfcShellBasedSurfaceModel, OdIfc4::IfcSphere, OdIfc4::IfcSphericalSurface, OdIfc4::IfcStyledItem, OdIfc4::IfcSubedge, OdIfc4::IfcSurfaceCurve, OdIfc4::IfcSurfaceCurveSweptAreaSolid, OdIfc4::IfcSurfaceOfLinearExtrusion, OdIfc4::IfcSurfaceOfRevolution, OdIfc4::IfcSweptAreaSolid, OdIfc4::IfcSweptDiskSolid, OdIfc4::IfcSweptDiskSolidPolygonal, OdIfc4::IfcSweptSurface, OdIfc4::IfcTessellatedFaceSet, OdIfc4::IfcTextLiteral, OdIfc4::IfcTextLiteralWithExtent, OdIfc4::IfcToroidalSurface, OdIfc4::IfcTriangulatedFaceSet, OdIfc4::IfcTrimmedCurve, OdIfc4::IfcVector, OdIfc4::IfcVertexLoop, and OdIfc4::IfcVertexPoint.

◆ putAttr()

virtual bool OdIfc4::IfcRepresentationItem::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcAdvancedBrepWithVoids, OdIfc4::IfcAnnotationFillArea, OdIfc4::IfcAxis1Placement, OdIfc4::IfcAxis2Placement2D, OdIfc4::IfcAxis2Placement3D, OdIfc4::IfcBlock, OdIfc4::IfcBooleanResult, OdIfc4::IfcBoundingBox, OdIfc4::IfcBoxedHalfSpace, OdIfc4::IfcBSplineCurve, OdIfc4::IfcBSplineCurveWithKnots, OdIfc4::IfcBSplineSurface, OdIfc4::IfcBSplineSurfaceWithKnots, OdIfc4::IfcCartesianPoint, OdIfc4::IfcCartesianPointList2D, OdIfc4::IfcCartesianPointList3D, OdIfc4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4::IfcCartesianTransformationOperator3D, OdIfc4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4::IfcCartesianTransformationOperator, OdIfc4::IfcCircle, OdIfc4::IfcCompositeCurve, OdIfc4::IfcCompositeCurveSegment, OdIfc4::IfcConic, OdIfc4::IfcConnectedFaceSet, OdIfc4::IfcCsgPrimitive3D, OdIfc4::IfcCsgSolid, OdIfc4::IfcCurveBoundedPlane, OdIfc4::IfcCurveBoundedSurface, OdIfc4::IfcCylindricalSurface, OdIfc4::IfcDirection, OdIfc4::IfcEdge, OdIfc4::IfcEdgeCurve, OdIfc4::IfcEdgeLoop, OdIfc4::IfcElementarySurface, OdIfc4::IfcEllipse, OdIfc4::IfcExtrudedAreaSolid, OdIfc4::IfcExtrudedAreaSolidTapered, OdIfc4::IfcFace, OdIfc4::IfcFaceBasedSurfaceModel, OdIfc4::IfcFaceBound, OdIfc4::IfcFaceSurface, OdIfc4::IfcFacetedBrepWithVoids, OdIfc4::IfcFillAreaStyleHatching, OdIfc4::IfcFillAreaStyleTiles, OdIfc4::IfcFixedReferenceSweptAreaSolid, OdIfc4::IfcGeometricSet, OdIfc4::IfcHalfSpaceSolid, OdIfc4::IfcIndexedPolyCurve, OdIfc4::IfcIndexedPolygonalFace, OdIfc4::IfcIndexedPolygonalFaceWithVoids, OdIfc4::IfcLightSource, OdIfc4::IfcLightSourceDirectional, OdIfc4::IfcLightSourceGoniometric, OdIfc4::IfcLightSourcePositional, OdIfc4::IfcLightSourceSpot, OdIfc4::IfcLine, OdIfc4::IfcManifoldSolidBrep, OdIfc4::IfcMappedItem, OdIfc4::IfcOffsetCurve2D, OdIfc4::IfcOffsetCurve3D, OdIfc4::IfcOrientedEdge, OdIfc4::IfcPath, OdIfc4::IfcPcurve, OdIfc4::IfcPlacement, OdIfc4::IfcPlanarBox, OdIfc4::IfcPlanarExtent, OdIfc4::IfcPointOnCurve, OdIfc4::IfcPointOnSurface, OdIfc4::IfcPolygonalBoundedHalfSpace, OdIfc4::IfcPolygonalFaceSet, OdIfc4::IfcPolyline, OdIfc4::IfcPolyLoop, OdIfc4::IfcRationalBSplineCurveWithKnots, OdIfc4::IfcRationalBSplineSurfaceWithKnots, OdIfc4::IfcRectangularPyramid, OdIfc4::IfcRectangularTrimmedSurface, OdIfc4::IfcReparametrisedCompositeCurveSegment, OdIfc4::IfcRevolvedAreaSolid, OdIfc4::IfcRevolvedAreaSolidTapered, OdIfc4::IfcRightCircularCone, OdIfc4::IfcRightCircularCylinder, OdIfc4::IfcSectionedSpine, OdIfc4::IfcShellBasedSurfaceModel, OdIfc4::IfcSphere, OdIfc4::IfcSphericalSurface, OdIfc4::IfcStyledItem, OdIfc4::IfcSubedge, OdIfc4::IfcSurfaceCurve, OdIfc4::IfcSurfaceCurveSweptAreaSolid, OdIfc4::IfcSurfaceOfLinearExtrusion, OdIfc4::IfcSurfaceOfRevolution, OdIfc4::IfcSweptAreaSolid, OdIfc4::IfcSweptDiskSolid, OdIfc4::IfcSweptDiskSolidPolygonal, OdIfc4::IfcSweptSurface, OdIfc4::IfcTessellatedFaceSet, OdIfc4::IfcTextLiteral, OdIfc4::IfcTextLiteralWithExtent, OdIfc4::IfcToroidalSurface, OdIfc4::IfcTriangulatedFaceSet, OdIfc4::IfcTrimmedCurve, OdIfc4::IfcVector, OdIfc4::IfcVertexLoop, and OdIfc4::IfcVertexPoint.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcRepresentationItem::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcAdvancedBrepWithVoids, OdIfc4::IfcAnnotationFillArea, OdIfc4::IfcAxis1Placement, OdIfc4::IfcAxis2Placement2D, OdIfc4::IfcAxis2Placement3D, OdIfc4::IfcBlock, OdIfc4::IfcBooleanResult, OdIfc4::IfcBoundingBox, OdIfc4::IfcBoxedHalfSpace, OdIfc4::IfcBSplineCurve, OdIfc4::IfcBSplineCurveWithKnots, OdIfc4::IfcBSplineSurface, OdIfc4::IfcBSplineSurfaceWithKnots, OdIfc4::IfcCartesianPoint, OdIfc4::IfcCartesianPointList2D, OdIfc4::IfcCartesianPointList3D, OdIfc4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4::IfcCartesianTransformationOperator3D, OdIfc4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4::IfcCartesianTransformationOperator, OdIfc4::IfcCircle, OdIfc4::IfcCompositeCurve, OdIfc4::IfcCompositeCurveSegment, OdIfc4::IfcConic, OdIfc4::IfcConnectedFaceSet, OdIfc4::IfcCsgPrimitive3D, OdIfc4::IfcCsgSolid, OdIfc4::IfcCurveBoundedPlane, OdIfc4::IfcCurveBoundedSurface, OdIfc4::IfcCylindricalSurface, OdIfc4::IfcDirection, OdIfc4::IfcEdge, OdIfc4::IfcEdgeCurve, OdIfc4::IfcEdgeLoop, OdIfc4::IfcElementarySurface, OdIfc4::IfcEllipse, OdIfc4::IfcExtrudedAreaSolid, OdIfc4::IfcExtrudedAreaSolidTapered, OdIfc4::IfcFace, OdIfc4::IfcFaceBasedSurfaceModel, OdIfc4::IfcFaceBound, OdIfc4::IfcFaceSurface, OdIfc4::IfcFacetedBrepWithVoids, OdIfc4::IfcFillAreaStyleHatching, OdIfc4::IfcFillAreaStyleTiles, OdIfc4::IfcFixedReferenceSweptAreaSolid, OdIfc4::IfcGeometricSet, OdIfc4::IfcHalfSpaceSolid, OdIfc4::IfcIndexedPolyCurve, OdIfc4::IfcIndexedPolygonalFace, OdIfc4::IfcIndexedPolygonalFaceWithVoids, OdIfc4::IfcLightSource, OdIfc4::IfcLightSourceDirectional, OdIfc4::IfcLightSourceGoniometric, OdIfc4::IfcLightSourcePositional, OdIfc4::IfcLightSourceSpot, OdIfc4::IfcLine, OdIfc4::IfcManifoldSolidBrep, OdIfc4::IfcMappedItem, OdIfc4::IfcOffsetCurve2D, OdIfc4::IfcOffsetCurve3D, OdIfc4::IfcOrientedEdge, OdIfc4::IfcPath, OdIfc4::IfcPcurve, OdIfc4::IfcPlacement, OdIfc4::IfcPlanarBox, OdIfc4::IfcPlanarExtent, OdIfc4::IfcPointOnCurve, OdIfc4::IfcPointOnSurface, OdIfc4::IfcPolygonalBoundedHalfSpace, OdIfc4::IfcPolygonalFaceSet, OdIfc4::IfcPolyline, OdIfc4::IfcPolyLoop, OdIfc4::IfcRationalBSplineCurveWithKnots, OdIfc4::IfcRationalBSplineSurfaceWithKnots, OdIfc4::IfcRectangularPyramid, OdIfc4::IfcRectangularTrimmedSurface, OdIfc4::IfcReparametrisedCompositeCurveSegment, OdIfc4::IfcRevolvedAreaSolid, OdIfc4::IfcRevolvedAreaSolidTapered, OdIfc4::IfcRightCircularCone, OdIfc4::IfcRightCircularCylinder, OdIfc4::IfcSectionedSpine, OdIfc4::IfcShellBasedSurfaceModel, OdIfc4::IfcSphere, OdIfc4::IfcSphericalSurface, OdIfc4::IfcStyledItem, OdIfc4::IfcSubedge, OdIfc4::IfcSurfaceCurve, OdIfc4::IfcSurfaceCurveSweptAreaSolid, OdIfc4::IfcSurfaceOfLinearExtrusion, OdIfc4::IfcSurfaceOfRevolution, OdIfc4::IfcSweptAreaSolid, OdIfc4::IfcSweptDiskSolid, OdIfc4::IfcSweptDiskSolidPolygonal, OdIfc4::IfcSweptSurface, OdIfc4::IfcTessellatedFaceSet, OdIfc4::IfcTextLiteral, OdIfc4::IfcTextLiteralWithExtent, OdIfc4::IfcToroidalSurface, OdIfc4::IfcTriangulatedFaceSet, OdIfc4::IfcTrimmedCurve, OdIfc4::IfcVector, OdIfc4::IfcVertexLoop, and OdIfc4::IfcVertexPoint.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcRepresentationItem::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcAdvancedBrepWithVoids, OdIfc4::IfcAnnotationFillArea, OdIfc4::IfcAxis1Placement, OdIfc4::IfcAxis2Placement2D, OdIfc4::IfcAxis2Placement3D, OdIfc4::IfcBlock, OdIfc4::IfcBooleanResult, OdIfc4::IfcBoundingBox, OdIfc4::IfcBoxedHalfSpace, OdIfc4::IfcBSplineCurve, OdIfc4::IfcBSplineCurveWithKnots, OdIfc4::IfcBSplineSurface, OdIfc4::IfcBSplineSurfaceWithKnots, OdIfc4::IfcCartesianPoint, OdIfc4::IfcCartesianPointList2D, OdIfc4::IfcCartesianPointList3D, OdIfc4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4::IfcCartesianTransformationOperator3D, OdIfc4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4::IfcCartesianTransformationOperator, OdIfc4::IfcCircle, OdIfc4::IfcCompositeCurve, OdIfc4::IfcCompositeCurveSegment, OdIfc4::IfcConic, OdIfc4::IfcConnectedFaceSet, OdIfc4::IfcCsgPrimitive3D, OdIfc4::IfcCsgSolid, OdIfc4::IfcCurveBoundedPlane, OdIfc4::IfcCurveBoundedSurface, OdIfc4::IfcCylindricalSurface, OdIfc4::IfcDirection, OdIfc4::IfcEdge, OdIfc4::IfcEdgeCurve, OdIfc4::IfcEdgeLoop, OdIfc4::IfcElementarySurface, OdIfc4::IfcEllipse, OdIfc4::IfcExtrudedAreaSolid, OdIfc4::IfcExtrudedAreaSolidTapered, OdIfc4::IfcFace, OdIfc4::IfcFaceBasedSurfaceModel, OdIfc4::IfcFaceBound, OdIfc4::IfcFaceSurface, OdIfc4::IfcFacetedBrepWithVoids, OdIfc4::IfcFillAreaStyleHatching, OdIfc4::IfcFillAreaStyleTiles, OdIfc4::IfcFixedReferenceSweptAreaSolid, OdIfc4::IfcGeometricSet, OdIfc4::IfcHalfSpaceSolid, OdIfc4::IfcIndexedPolyCurve, OdIfc4::IfcIndexedPolygonalFace, OdIfc4::IfcIndexedPolygonalFaceWithVoids, OdIfc4::IfcLightSource, OdIfc4::IfcLightSourceDirectional, OdIfc4::IfcLightSourceGoniometric, OdIfc4::IfcLightSourcePositional, OdIfc4::IfcLightSourceSpot, OdIfc4::IfcLine, OdIfc4::IfcManifoldSolidBrep, OdIfc4::IfcMappedItem, OdIfc4::IfcOffsetCurve2D, OdIfc4::IfcOffsetCurve3D, OdIfc4::IfcOrientedEdge, OdIfc4::IfcPath, OdIfc4::IfcPcurve, OdIfc4::IfcPlacement, OdIfc4::IfcPlanarBox, OdIfc4::IfcPlanarExtent, OdIfc4::IfcPointOnCurve, OdIfc4::IfcPointOnSurface, OdIfc4::IfcPolygonalBoundedHalfSpace, OdIfc4::IfcPolygonalFaceSet, OdIfc4::IfcPolyline, OdIfc4::IfcPolyLoop, OdIfc4::IfcRationalBSplineCurveWithKnots, OdIfc4::IfcRationalBSplineSurfaceWithKnots, OdIfc4::IfcRectangularPyramid, OdIfc4::IfcRectangularTrimmedSurface, OdIfc4::IfcReparametrisedCompositeCurveSegment, OdIfc4::IfcRevolvedAreaSolid, OdIfc4::IfcRevolvedAreaSolidTapered, OdIfc4::IfcRightCircularCone, OdIfc4::IfcRightCircularCylinder, OdIfc4::IfcSectionedSpine, OdIfc4::IfcShellBasedSurfaceModel, OdIfc4::IfcSphere, OdIfc4::IfcSphericalSurface, OdIfc4::IfcStyledItem, OdIfc4::IfcSubedge, OdIfc4::IfcSurfaceCurve, OdIfc4::IfcSurfaceCurveSweptAreaSolid, OdIfc4::IfcSurfaceOfLinearExtrusion, OdIfc4::IfcSurfaceOfRevolution, OdIfc4::IfcSweptAreaSolid, OdIfc4::IfcSweptDiskSolid, OdIfc4::IfcSweptDiskSolidPolygonal, OdIfc4::IfcSweptSurface, OdIfc4::IfcTessellatedFaceSet, OdIfc4::IfcTextLiteral, OdIfc4::IfcTextLiteralWithExtent, OdIfc4::IfcToroidalSurface, OdIfc4::IfcTriangulatedFaceSet, OdIfc4::IfcTrimmedCurve, OdIfc4::IfcVector, OdIfc4::IfcVertexLoop, and OdIfc4::IfcVertexPoint.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcRepresentationItem::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcAdvancedBrep, OdIfc4::IfcAdvancedBrepWithVoids, OdIfc4::IfcAdvancedFace, OdIfc4::IfcAnnotationFillArea, OdIfc4::IfcAxis1Placement, OdIfc4::IfcAxis2Placement2D, OdIfc4::IfcAxis2Placement3D, OdIfc4::IfcBlock, OdIfc4::IfcBooleanClippingResult, OdIfc4::IfcBooleanResult, OdIfc4::IfcBoundaryCurve, OdIfc4::IfcBoundedCurve, OdIfc4::IfcBoundedSurface, OdIfc4::IfcBoundingBox, OdIfc4::IfcBoxedHalfSpace, OdIfc4::IfcBSplineCurve, OdIfc4::IfcBSplineCurveWithKnots, OdIfc4::IfcBSplineSurface, OdIfc4::IfcBSplineSurfaceWithKnots, OdIfc4::IfcCartesianPoint, OdIfc4::IfcCartesianPointList2D, OdIfc4::IfcCartesianPointList3D, OdIfc4::IfcCartesianPointList, OdIfc4::IfcCartesianTransformationOperator2D, OdIfc4::IfcCartesianTransformationOperator2DnonUniform, OdIfc4::IfcCartesianTransformationOperator3D, OdIfc4::IfcCartesianTransformationOperator3DnonUniform, OdIfc4::IfcCartesianTransformationOperator, OdIfc4::IfcCircle, OdIfc4::IfcClosedShell, OdIfc4::IfcCompositeCurve, OdIfc4::IfcCompositeCurveOnSurface, OdIfc4::IfcCompositeCurveSegment, OdIfc4::IfcConic, OdIfc4::IfcConnectedFaceSet, OdIfc4::IfcCsgPrimitive3D, OdIfc4::IfcCsgSolid, OdIfc4::IfcCurve, OdIfc4::IfcCurveBoundedPlane, OdIfc4::IfcCurveBoundedSurface, OdIfc4::IfcCylindricalSurface, OdIfc4::IfcDirection, OdIfc4::IfcEdge, OdIfc4::IfcEdgeCurve, OdIfc4::IfcEdgeLoop, OdIfc4::IfcElementarySurface, OdIfc4::IfcEllipse, OdIfc4::IfcExtrudedAreaSolid, OdIfc4::IfcExtrudedAreaSolidTapered, OdIfc4::IfcFace, OdIfc4::IfcFaceBasedSurfaceModel, OdIfc4::IfcFaceBound, OdIfc4::IfcFaceOuterBound, OdIfc4::IfcFaceSurface, OdIfc4::IfcFacetedBrep, OdIfc4::IfcFacetedBrepWithVoids, OdIfc4::IfcFillAreaStyleHatching, OdIfc4::IfcFillAreaStyleTiles, OdIfc4::IfcFixedReferenceSweptAreaSolid, OdIfc4::IfcGeometricCurveSet, OdIfc4::IfcGeometricRepresentationItem, OdIfc4::IfcGeometricSet, OdIfc4::IfcHalfSpaceSolid, OdIfc4::IfcIndexedPolyCurve, OdIfc4::IfcIndexedPolygonalFace, OdIfc4::IfcIndexedPolygonalFaceWithVoids, OdIfc4::IfcIntersectionCurve, OdIfc4::IfcLightSource, OdIfc4::IfcLightSourceAmbient, OdIfc4::IfcLightSourceDirectional, OdIfc4::IfcLightSourceGoniometric, OdIfc4::IfcLightSourcePositional, OdIfc4::IfcLightSourceSpot, OdIfc4::IfcLine, OdIfc4::IfcLoop, OdIfc4::IfcManifoldSolidBrep, OdIfc4::IfcMappedItem, OdIfc4::IfcOffsetCurve2D, OdIfc4::IfcOffsetCurve3D, OdIfc4::IfcOpenShell, OdIfc4::IfcOrientedEdge, OdIfc4::IfcOuterBoundaryCurve, OdIfc4::IfcPath, OdIfc4::IfcPcurve, OdIfc4::IfcPlacement, OdIfc4::IfcPlanarBox, OdIfc4::IfcPlanarExtent, OdIfc4::IfcPlane, OdIfc4::IfcPoint, OdIfc4::IfcPointOnCurve, OdIfc4::IfcPointOnSurface, OdIfc4::IfcPolygonalBoundedHalfSpace, OdIfc4::IfcPolygonalFaceSet, OdIfc4::IfcPolyline, OdIfc4::IfcPolyLoop, OdIfc4::IfcRationalBSplineCurveWithKnots, OdIfc4::IfcRationalBSplineSurfaceWithKnots, OdIfc4::IfcRectangularPyramid, OdIfc4::IfcRectangularTrimmedSurface, OdIfc4::IfcReparametrisedCompositeCurveSegment, OdIfc4::IfcRevolvedAreaSolid, OdIfc4::IfcRevolvedAreaSolidTapered, OdIfc4::IfcRightCircularCone, OdIfc4::IfcRightCircularCylinder, OdIfc4::IfcSeamCurve, OdIfc4::IfcSectionedSpine, OdIfc4::IfcShellBasedSurfaceModel, OdIfc4::IfcSolidModel, OdIfc4::IfcSphere, OdIfc4::IfcSphericalSurface, OdIfc4::IfcStyledItem, OdIfc4::IfcSubedge, OdIfc4::IfcSurface, OdIfc4::IfcSurfaceCurve, OdIfc4::IfcSurfaceCurveSweptAreaSolid, OdIfc4::IfcSurfaceOfLinearExtrusion, OdIfc4::IfcSurfaceOfRevolution, OdIfc4::IfcSweptAreaSolid, OdIfc4::IfcSweptDiskSolid, OdIfc4::IfcSweptDiskSolidPolygonal, OdIfc4::IfcSweptSurface, OdIfc4::IfcTessellatedFaceSet, OdIfc4::IfcTessellatedItem, OdIfc4::IfcTextLiteral, OdIfc4::IfcTextLiteralWithExtent, OdIfc4::IfcTopologicalRepresentationItem, OdIfc4::IfcToroidalSurface, OdIfc4::IfcTriangulatedFaceSet, OdIfc4::IfcTrimmedCurve, OdIfc4::IfcVector, OdIfc4::IfcVertex, OdIfc4::IfcVertexLoop, and OdIfc4::IfcVertexPoint.
