#include <IfcPropertySetAutoImpl.h>

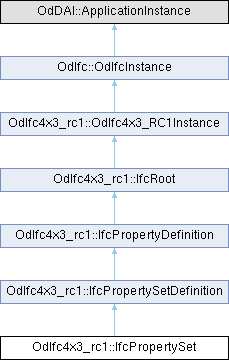

Inheritance diagram for OdIfc4x3_rc1::IfcPropertySet:

Public Member Functions
void	getHasProperties (OdDAIObjectIds &HasProperties) const

OdDAI::SetOfOdDAIObjectId &	hasProperties ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_rc1::IfcPropertySetDefinition
void	getInvDefinesType (OdDAIObjectIds &DefinesType) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvDefinesOccurrence (OdDAIObjectIds &DefinesOccurrence) const

Public Member Functions inherited from OdIfc4x3_rc1::IfcPropertyDefinition
void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x3_rc1::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x3_rc1::OdIfc4x3_RC1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::SetOfOdDAIObjectId	m_HasProperties

Protected Attributes inherited from OdIfc4x3_rc1::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc4x3_rc1::IfcPropertySetDefinition
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Detailed Description

The IfcPropertySet contains properties within a property tree. These properties are interpreted according to their name attribute.
Property sets applicable to certain objects are listed in the object specification. The specification supposes usage of the naming convention "Pset_Xxx". Such naming convention is applied to the property sets that are defined as part of this specification and be used as the value of the Name attribute.

IfcPropertySet can be assigned to object occurrences and object types. An IfcPropertySet assigned to an object type is shared among all occurrences of the same object type.

Property sets are related to other objects by using the relationship object that refers to the corresponding object: Occurrence Object: IfcRelDefinesByProperties using the inverse attribute DefinesOccurrence. Type Object: using a direct link by inverse attribute DefinesType. Underlying template: IfcRelDefinesByTemplate using the inverse attribute IsDefinedBy. External reference: subtypes of IfcRelAssociates are used to provide a link to a classification system, or external library providing further reference to the property set. Accessible by inverse attribute HasAssociations.

\changes

IFC4 changes: All statically defined property set entities are no longer subtypes of IfcPropertySet.

Definition at line 60 of file Ifc4x3_RC1/IfcPropertySetAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_rc1::IfcPropertySet::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x3_rc1::IfcPropertySet::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_rc1::IfcPropertyDefinition.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x3_rc1::IfcPropertySet::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

◆ getHasProperties()

void OdIfc4x3_rc1::IfcPropertySet::getHasProperties ( OdDAIObjectIds & HasProperties ) const

Retrieves the contained set of properties.

Parameters

HasProperties [out] Receives an array of Data Access Interface (DAI) identifiers that represent properties in the property set.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_rc1::IfcPropertySet::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

◆ hasProperties()

OdDAI::SetOfOdDAIObjectId & OdIfc4x3_rc1::IfcPropertySet::hasProperties ( )

Retrieves the contained set of properties.

Returns: An array of Data Access Interface (DAI) identifiers that represent properties in the property set.

◆ inFields()

virtual OdResult OdIfc4x3_rc1::IfcPropertySet::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

◆ isKindOf()

virtual bool OdIfc4x3_rc1::IfcPropertySet::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

◆ outFields()

virtual OdResult OdIfc4x3_rc1::IfcPropertySet::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

◆ putAttr() [1/2]

virtual bool OdIfc4x3_rc1::IfcPropertySet::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcPropertyDefinition.

◆ putAttr() [2/2]

virtual bool OdIfc4x3_rc1::IfcPropertySet::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

◆ setInverseCounterParts()

virtual void OdIfc4x3_rc1::IfcPropertySet::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

◆ testAttr() [1/2]

virtual bool OdIfc4x3_rc1::IfcPropertySet::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

◆ testAttr() [2/2]

virtual bool OdIfc4x3_rc1::IfcPropertySet::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_rc1::IfcPropertySet::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

◆ unsetAttr() [1/2]

virtual void OdIfc4x3_rc1::IfcPropertySet::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

◆ unsetAttr() [2/2]

virtual void OdIfc4x3_rc1::IfcPropertySet::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x3_rc1::IfcPropertySetDefinition.

Member Data Documentation

◆ m_HasProperties

OdDAI::SetOfOdDAIObjectId OdIfc4x3_rc1::IfcPropertySet::m_HasProperties

protected

Definition at line 216 of file Ifc4x3_RC1/IfcPropertySetAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x3_RC1/IfcPropertySetAutoImpl.h
