OdIfc::OdIfcSegment Class Reference

#include <IfcSegment.h>

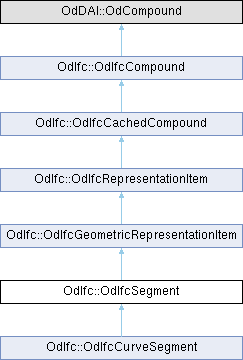

Inheritance diagram for OdIfc::OdIfcSegment:

Public Member Functions
void	compose () ODRX_OVERRIDE
virtual OdGeCurve3d *	getGeCurveCopy ()
virtual const OdGeCurve3d *	getGeCurve ()=0
bool	is3dSeg () const
virtual bool	isSameSense () const =0
bool	draw (OdGiWorldDraw *pWd) const =0
Public Member Functions inherited from OdIfc::OdIfcGeometricRepresentationItem
virtual OdDAI::OdBodyVariant	bodyContainer () const
Public Member Functions inherited from OdIfc::OdIfcRepresentationItem
virtual	~OdIfcRepresentationItem ()
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *pTraits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdResult	transformBy (const OdGeMatrix3d &transform)
Public Member Functions inherited from OdIfc::OdIfcCachedCompound
	OdIfcCachedCompound ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
Public Member Functions inherited from OdIfc::OdIfcCompound
void	compose () override
OdIfcEntityType	type ()
OdRxValue	getAttr (const OdIfcAttribute attrDef) const
virtual OdRxValue	getAttr (const OdAnsiString &attrName) const
OdIfcModel *	owningModel () const
bool	isKindOf (OdIfcEntityType type) const
bool	isInstanceOf (OdIfcEntityType entityType) const
const OdAnsiString &	typeName ()
OdIfcFile *	owningIfcFile () const
OdStepFile *	owningStepFile () const override
virtual bool	isPersistent () const
virtual OdDbStub *	id () const
virtual OdDbStub *	ownerId () const
virtual void	xmitPropagateModify ()

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcCompound
static const OdIfcInstance *	earlyAccess (const OdIfcCompound *compound)
Protected Member Functions inherited from OdIfc::OdIfcRepresentationItem
void	updateTraitsAuxData (OdGiWorldDraw *wd) const
void	resetTraitsAuxData (OdGiWorldDraw *wd) const
OdResult	setAttributes (OdGiWorldDraw *pWd) const
Protected Attributes inherited from OdIfc::OdIfcCachedCompound
OdGsCache *	m_pGsNode
Protected Attributes inherited from OdIfc::OdIfcCompound
OdIfcInstance *	m_pEntInst

Detailed Description

A base class that implements storing and handling geometrical data about a definition of an IfcSegment.

Definition at line 45 of file IfcSegment.h.

Member Function Documentation

compose()

void OdIfc::OdIfcSegment::compose ( )

virtual

Composes geometry for the curve segment object.

Reimplemented from OdIfc::OdIfcRepresentationItem.

draw()

bool OdIfc::OdIfcSegment::draw ( OdGiWorldDraw * pWd ) const

pure virtual

Draws the segment to the <exref target="https://docs.opendesign.com/tv_api_cpp/OdGiWorldDraw.html">OdGiWorldDraw interface</exref>.

Parameters

pWd	[in] A raw pointer to the object for the entity-level vectorization.

Returns

true if the segment was successfully drawn; otherwise, the method returns false.

Reimplemented from OdIfc::OdIfcRepresentationItem.

Implemented in OdIfc::OdIfcCurveSegment.

getGeCurve()

virtual const OdGeCurve3d * OdIfc::OdIfcSegment::getGeCurve ( )

pure virtual

Retrieves the underlying Ge curve object in read-only mode.

Returns

A constant raw pointer to the underlying Ge curve represented with an <exref target="https://docs.opendesign.com/tkernel_api_cpp/OdGeCurve3d.html">OdGeCurve3d</exref> object.

Implemented in OdIfc::OdIfcCurveSegment.

getGeCurveCopy()

virtual OdGeCurve3d * OdIfc::OdIfcSegment::getGeCurveCopy ( )

virtual

Returns a copy of the underlying Ge curve.

Returns

A raw pointer to the <exref target="https://docs.opendesign.com/tkernel_api_cpp/OdGeCurve3d.html">OdGeCurve3d</exref> object that represents the copy of the underlaying Ge curve.

Reimplemented in OdIfc::OdIfcCurveSegment.

is3dSeg()

bool OdIfc::OdIfcSegment::is3dSeg

(

)

const

Retrieves the current value of the 3D segment flag. 3D segment flag determines whether the segment object is a 3D segment (if the flag value equals true) or not (in this case the flag value equals false).

Returns

true if the segment object is a 3D segment; otherwise, the method returns false.

isSameSense()

virtual bool OdIfc::OdIfcSegment::isSameSense ( ) const

pure virtual

Returns the current value of the same sense flag.

Returns

true if the same sense flag is on; otherwise the method returns false.

Implemented in OdIfc::OdIfcCurveSegment.

---

The documentation for this class was generated from the following file:

• IfcSegment.h
