OdIfc::OdIfcRepresentationItem Class Reference

#include <IfcRepresentationItem.h>

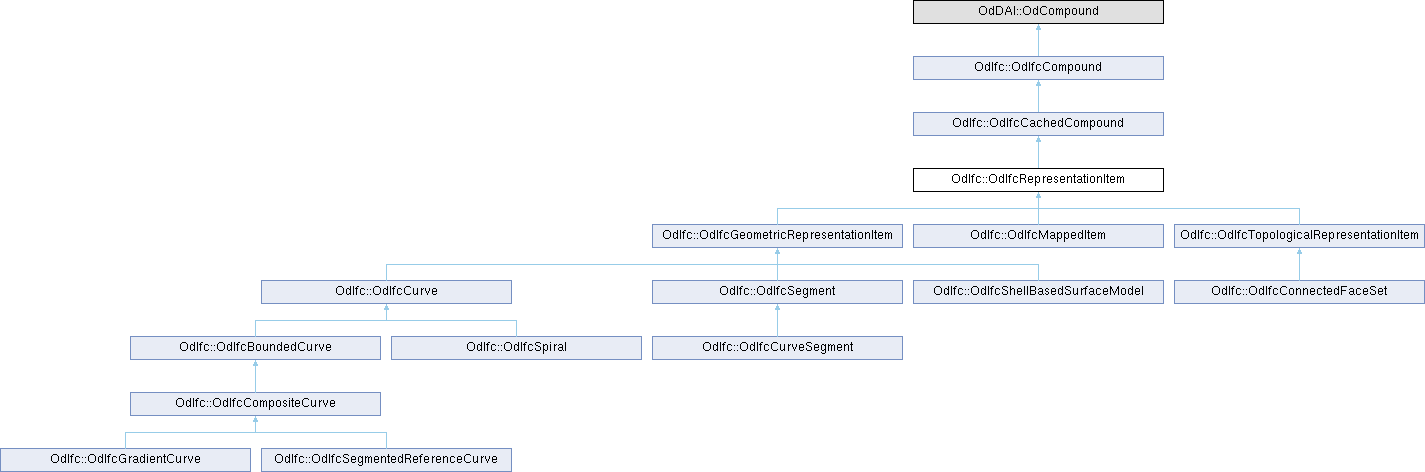

Inheritance diagram for OdIfc::OdIfcRepresentationItem:

Public Member Functions
virtual	~OdIfcRepresentationItem ()
virtual void	compose ()
virtual bool	draw (OdGiWorldDraw *pWd) const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *pTraits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdResult	transformBy (const OdGeMatrix3d &transform)
Public Member Functions inherited from OdIfc::OdIfcCachedCompound
	OdIfcCachedCompound ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
Public Member Functions inherited from OdIfc::OdIfcCompound
void	compose () override
OdIfcEntityType	type ()
OdRxValue	getAttr (const OdIfcAttribute attrDef) const
virtual OdRxValue	getAttr (const OdAnsiString &attrName) const
OdIfcModel *	owningModel () const
bool	isKindOf (OdIfcEntityType type) const
bool	isInstanceOf (OdIfcEntityType entityType) const
const OdAnsiString &	typeName ()
OdIfcFile *	owningIfcFile () const
OdStepFile *	owningStepFile () const override
virtual bool	isPersistent () const
virtual OdDbStub *	id () const
virtual OdDbStub *	ownerId () const
virtual void	xmitPropagateModify ()

Protected Member Functions
void	updateTraitsAuxData (OdGiWorldDraw *wd) const
void	resetTraitsAuxData (OdGiWorldDraw *wd) const
OdResult	setAttributes (OdGiWorldDraw *pWd) const

Friends
class	OdIfcShapeRepresentation

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcCompound
static const OdIfcInstance *	earlyAccess (const OdIfcCompound *compound)
Protected Attributes inherited from OdIfc::OdIfcCachedCompound
OdGsCache *	m_pGsNode
Protected Attributes inherited from OdIfc::OdIfcCompound
OdIfcInstance *	m_pEntInst

Detailed Description

The class that implements work with a representation items for IFC SDK.

Definition at line 43 of file IfcRepresentationItem.h.

Constructor & Destructor Documentation

~OdIfcRepresentationItem()

virtual OdIfc::OdIfcRepresentationItem::~OdIfcRepresentationItem ( )

virtual

Destroys the representation item object.

Member Function Documentation

compose()

virtual void OdIfc::OdIfcRepresentationItem::compose ( )

virtual

Composes the representation item object.

Reimplemented in OdIfc::OdIfcCompositeCurve, OdIfc::OdIfcConnectedFaceSet, OdIfc::OdIfcCurveSegment, OdIfc::OdIfcGradientCurve, OdIfc::OdIfcMappedItem, OdIfc::OdIfcSegment, OdIfc::OdIfcSegmentedReferenceCurve, and OdIfc::OdIfcShellBasedSurfaceModel.

draw()

virtual bool OdIfc::OdIfcRepresentationItem::draw ( OdGiWorldDraw * pWd ) const

virtual

Draws the representation item to the <exref target="https://docs.opendesign.com/tv_api_cpp/OdGiWorldDraw.html">OdGiWorldDraw interface</exref>.

Parameters

pWd	[in] A raw pointer to the object for the entity-level vectorization.

Returns

true if the representation item was successfully drawn; otherwise, the method returns false.

Reimplemented in OdIfc::OdIfcCompositeCurve, OdIfc::OdIfcConnectedFaceSet, OdIfc::OdIfcCurveSegment, OdIfc::OdIfcMappedItem, OdIfc::OdIfcSegment, and OdIfc::OdIfcShellBasedSurfaceModel.

resetTraitsAuxData()

void OdIfc::OdIfcRepresentationItem::resetTraitsAuxData ( OdGiWorldDraw * wd ) const

protected

setAttributes()

OdResult OdIfc::OdIfcRepresentationItem::setAttributes ( OdGiWorldDraw * pWd ) const

protected

subSetAttributes()

virtual OdUInt32 OdIfc::OdIfcRepresentationItem::subSetAttributes ( OdGiDrawableTraits * pTraits ) const

virtual

Sets the values of the representation item's sub-entity traits.

Parameters

pTraits

[out] A raw pointer to the traits to be filled and returned to a calling subroutine.

Returns

The result of the value setting.

subWorldDraw()

virtual bool OdIfc::OdIfcRepresentationItem::subWorldDraw ( OdGiWorldDraw * wd ) const

virtual

Draws graphical representation of the item that is independent on any view port contexts.

Parameters

wd	[in] A raw pointer to the object that encapsulates parameters of view port independent vectorization.

Returns

true if the drawing was successful; otherwise, the method returns false.

transformBy()

virtual OdResult OdIfc::OdIfcRepresentationItem::transformBy ( const OdGeMatrix3d & transform )

virtual

Transforms the representation item by a specified transformation matrix.

Parameters

transform

[in] A transformation matrix object.

Returns

eOk if the transformation operation succeeds; otherwise, the method returns an appropriate error code.

Reimplemented in OdIfc::OdIfcConnectedFaceSet, OdIfc::OdIfcCurve, OdIfc::OdIfcMappedItem, and OdIfc::OdIfcShellBasedSurfaceModel.

updateTraitsAuxData()

void OdIfc::OdIfcRepresentationItem::updateTraitsAuxData ( OdGiWorldDraw * wd ) const

protected

Friends And Related Symbol Documentation

OdIfcShapeRepresentation

friend class OdIfcShapeRepresentation

friend

Definition at line 94 of file IfcRepresentationItem.h.

---

The documentation for this class was generated from the following file:

• IfcRepresentationItem.h
