#include <IfcResourceAutoImpl.h>

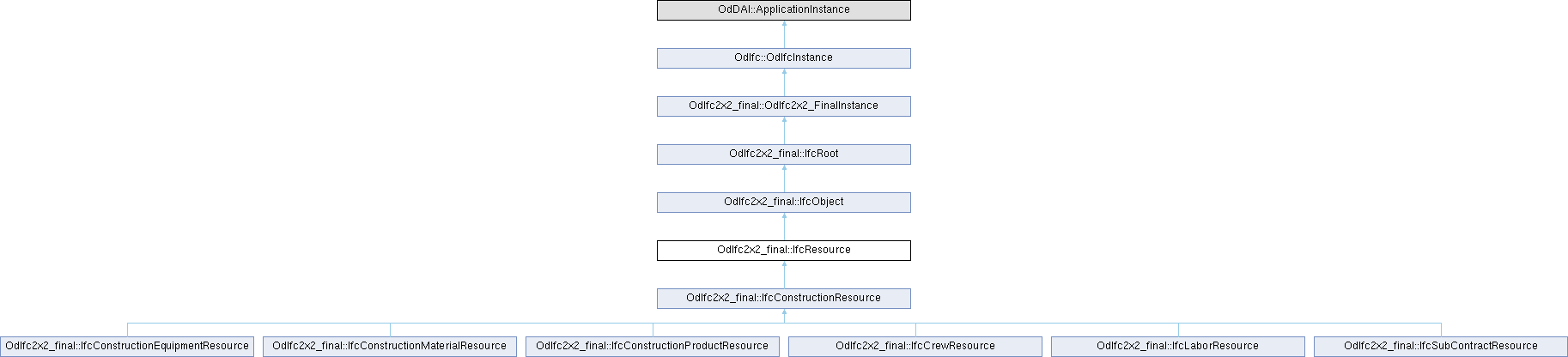

Inheritance diagram for OdIfc2x2_final::IfcResource:

Public Member Functions
void	getInvResourceOf (OdDAIObjectIds &ResourceOf) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Member Functions
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Friends
class	IfcRelAssignsToResource

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc2x2_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcResource contains the information needed to represent the costs, schedule, and other impacts from the use of a thing in a process. It is not intended to use IfcResource to model the general properties of the things themselves, while an optional linkage from IfcResource to the things to be used can be specified (specifically, the relationship from subtypes of IfcResource to IfcProduct through the IfcRelAssignsToResource relationship).

There are two basic intended uses of IfcResource. First, if the attributes of the thing are not needed for the purpose of the use of IfcResource, or the types of things are not explicitly modeled in IFC yet, then the linkage between the resource and the thing doesn't have to be instantiated in the system. That is, the attributes of IfcResource (or its subtypes) alone are sufficient to represent the use of the thing as a resource for the purpose of the project.

If the attributes of the thing are needed for the use of IfcResource objects, and they are modeled explicitly as objects, then the IfcResource instances can be linked to the instances of the type of the things being referenced. Things that might be used as resources and that are already modeled in the IFC include physical products, people and organizations, and materials. The relationship object IfcRelAssignsToResource is provided for this approach. The inherited attribute ObjectType is used as a textual code that identifies the resource type.

Remarks: This definition cannot be instantiated

Definition at line 61 of file Ifc2x2_Final/IfcResourceAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcObject::getAttr ( const char * attrName ) const

overrideprotectedvirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcSubContractResource.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcResource::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcConstructionMaterialResource, OdIfc2x2_final::IfcConstructionResource, OdIfc2x2_final::IfcLaborResource, and OdIfc2x2_final::IfcSubContractResource.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcResource::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcConstructionEquipmentResource, OdIfc2x2_final::IfcConstructionMaterialResource, OdIfc2x2_final::IfcConstructionProductResource, OdIfc2x2_final::IfcConstructionResource, OdIfc2x2_final::IfcCrewResource, OdIfc2x2_final::IfcLaborResource, and OdIfc2x2_final::IfcSubContractResource.

◆ getInvResourceOf()

void OdIfc2x2_final::IfcResource::getInvResourceOf ( OdDAIObjectIds & ResourceOf ) const

Returns the value of ResourceOf attribute. This attribute represents set of relationships to other objects, e.g. products, processes, controls, resources or actors, for which this resource object is a resource.

Parameters

ResourceOf [out] Receives the value of ResourceOf attribute.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcResource::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcConstructionMaterialResource, OdIfc2x2_final::IfcConstructionResource, OdIfc2x2_final::IfcLaborResource, and OdIfc2x2_final::IfcSubContractResource.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcResource::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcConstructionEquipmentResource, OdIfc2x2_final::IfcConstructionMaterialResource, OdIfc2x2_final::IfcConstructionProductResource, OdIfc2x2_final::IfcConstructionResource, OdIfc2x2_final::IfcCrewResource, OdIfc2x2_final::IfcLaborResource, and OdIfc2x2_final::IfcSubContractResource.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcResource::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcConstructionMaterialResource, OdIfc2x2_final::IfcConstructionResource, OdIfc2x2_final::IfcLaborResource, and OdIfc2x2_final::IfcSubContractResource.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcObject::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overrideprotectedvirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcSubContractResource.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcResource::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcConstructionMaterialResource, OdIfc2x2_final::IfcConstructionResource, OdIfc2x2_final::IfcLaborResource, and OdIfc2x2_final::IfcSubContractResource.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcResource::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcConstructionMaterialResource, OdIfc2x2_final::IfcConstructionResource, OdIfc2x2_final::IfcLaborResource, and OdIfc2x2_final::IfcSubContractResource.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcResource::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcConstructionMaterialResource, OdIfc2x2_final::IfcConstructionResource, OdIfc2x2_final::IfcLaborResource, and OdIfc2x2_final::IfcSubContractResource.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcResource::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcObject.

Reimplemented in OdIfc2x2_final::IfcConstructionEquipmentResource, OdIfc2x2_final::IfcConstructionMaterialResource, OdIfc2x2_final::IfcConstructionProductResource, OdIfc2x2_final::IfcConstructionResource, OdIfc2x2_final::IfcCrewResource, OdIfc2x2_final::IfcLaborResource, and OdIfc2x2_final::IfcSubContractResource.
