#include <IfcObjectAutoImpl.h>

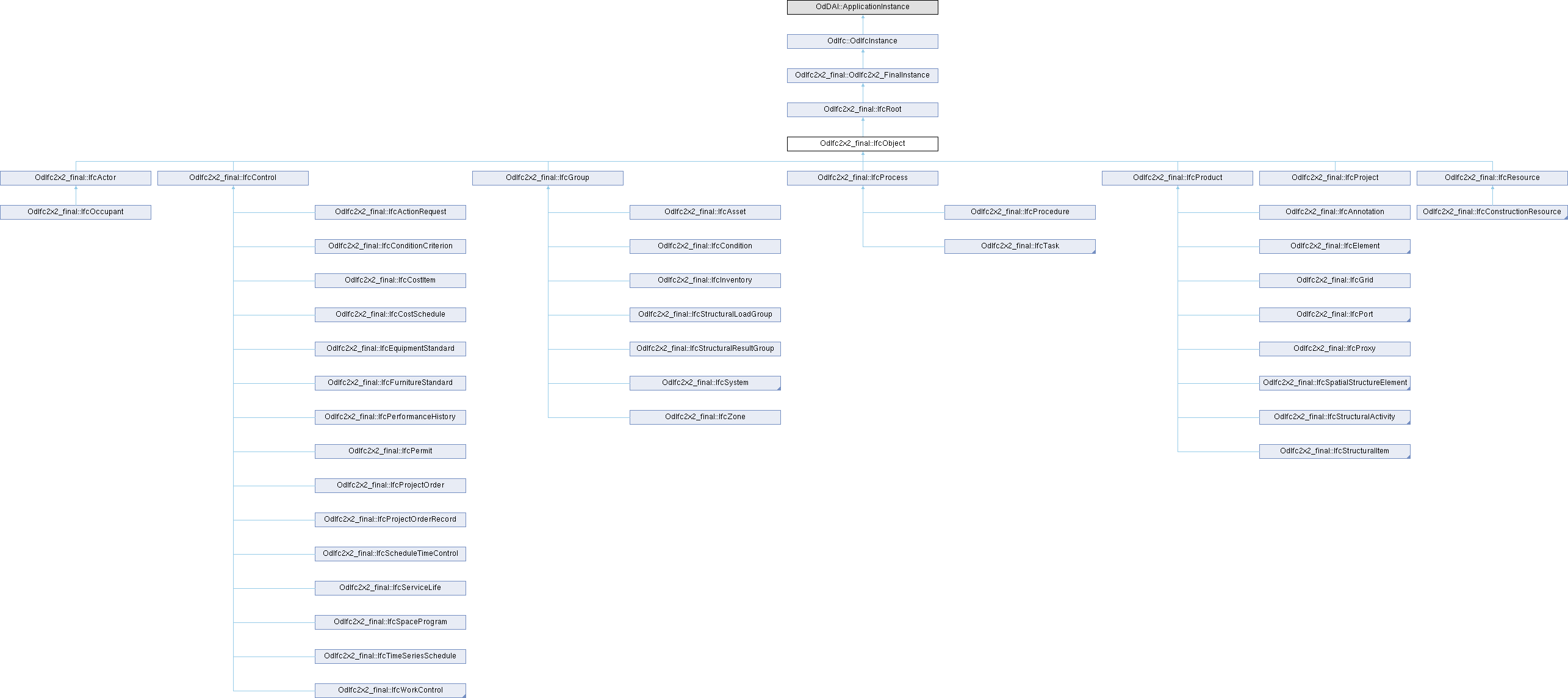

Inheritance diagram for OdIfc2x2_final::IfcObject:

Public Member Functions
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcRelDefines

class	IfcRelAssociates

class	IfcRelAssigns

class	IfcRelDecomposes

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcObject is the generalization of any semantically treated thing or process. Objects are things as they appear - i.e. occurrences.

Objects are independent pieces of information that might contain or reference other pieces of information. There are several relationships in which objects can be involved: Association to external/internal resource information - an association relationship that refers to external/internal sources of information. See supertype IfcObjectDefinition for more information. Assignment of other objects - an assignment relationship that refers to other types of objects. See supertype IfcObjectDefinition for more information. Aggregation of other objects - an aggregation relationship that establishes a whole/part relation. Objects can either be a whole, or a part, or both. See supertype IfcObjectDefinition for more information. Assignment of a type : IsTypedBy - a definition relationship IfcRelDefinesByType that uses a type definition to define the common characteristics of this occurrences, potentially including the common shape representation and common properties of all object occurrences assigned to this type. It is a specific - occurrence relationship with implied dependencies (as the occurrence properties depend on the properties of the type, but can override them). Assignment of a partial type : IsDeclaredBy, Declares - a definition relationship IfcRelDefinesByObject that uses a component of a type definition (a part of a type, called the "declaring part") to define a component of an occurrence (part of occurrence, called the "reflected part"). This is also referred to as a "deep copy". The common characteristics of all parts in the occurrence are defined by parts in the type. It is a specific - occurrence relationship with implied dependencies (as the occurrence properties depend on the properties of the type, but can override them). Assignment of property sets : IsDefinedBy - a definition relationship IfcRelDefinesByProperties that assigns property set definitions to the object occurrence.

Definition at line 58 of file Ifc2x2_Final/IfcObjectAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcObject()

OdIfc2x2_final::IfcObject::IfcObject ( )

Default constructor for the IfcObject class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcObject::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcObject::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcObject::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ getInvDecomposes()

void OdIfc2x2_final::IfcObject::getInvDecomposes ( OdDAIObjectIds & Decomposes ) const

Returns the value of Decomposes attribute. This attribute represents the references to the decomposition relationship, that allows this object to be a part of the decomposition. An object can only be part of a single decomposition (to allow hierarchical structures only).

Parameters

Decomposes [out] Receives the value of Decomposes attribute.

◆ getInvHasAssignments()

void OdIfc2x2_final::IfcObject::getInvHasAssignments ( OdDAIObjectIds & HasAssignments ) const

Returns the value of HasAssignments attribute. This attribute represents the reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.

Parameters

HasAssignments [out] Receives the value of HasAssignments attribute.

◆ getInvHasAssociations()

void OdIfc2x2_final::IfcObject::getInvHasAssociations ( OdDAIObjectIds & HasAssociations ) const

Returns the value of HasAssociations attribute. This attribute represents the reference to the relationship objects, that associates external references or other resource definitions to the object. Examples are the association to library, documentation or classification.

Parameters

HasAssociations [out] Receives the value of HasAssociations attribute.

◆ getInvIsDecomposedBy()

void OdIfc2x2_final::IfcObject::getInvIsDecomposedBy ( OdDAIObjectIds & IsDecomposedBy ) const

Returns the value of IsDecomposedBy attribute. This attribute represents the reference to the decomposition relationship, that allows this object to be the composition of other objects. An object can be decomposed by several other objects.

Parameters

IsDecomposedBy [out] Receives the value of IsDecomposedBy attribute.

◆ getInvIsDefinedBy()

void OdIfc2x2_final::IfcObject::getInvIsDefinedBy ( OdDAIObjectIds & IsDefinedBy ) const

Returns the value of IsDefinedBy attribute. This attribute represents set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.

Parameters

IsDefinedBy [out] Receives the value of IsDefinedBy attribute.

Remarks: IFC4 CHANGE: The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file-based exchange.

◆ getObjectType()

const OdAnsiString & OdIfc2x2_final::IfcObject::getObjectType ( ) const

Returns the value of ObjectType attribute. This attribute represents the type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.

Returns: Returns the value of ObjectType attribute.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcObject::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcObject::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcObject::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcObject::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcObject::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ setObjectType()

void OdIfc2x2_final::IfcObject::setObjectType ( const OdAnsiString & ObjectType )

Sets the value of ObjectType attribute. This attribute represents the type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.

Parameters

ObjectType [in] Object type to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcObject::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcObject::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcObject::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcRoot.
