#include <IfcRightCircularCylinderAutoImpl.h>

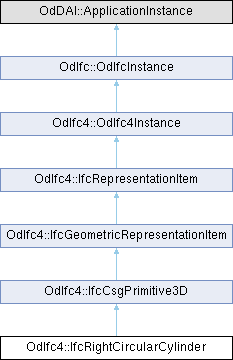

Inheritance diagram for OdIfc4::IfcRightCircularCylinder:

Public Member Functions
double	getHeight () const

void	setHeight (double Height)

double	getRadius () const

void	setRadius (double Radius)

	IfcRightCircularCylinder ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcCsgPrimitive3D
const OdDAIObjectId &	getPosition () const

void	setPosition (const OdDAIObjectId &Position)

Public Member Functions inherited from OdIfc4::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcPositiveLengthMeasure	m_Height

IfcPositiveLengthMeasure	m_Radius

Protected Attributes inherited from OdIfc4::IfcCsgPrimitive3D
OdDAIObjectId	m_Position

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcRightCircularCylinder is a Construction Solid Geometry (CSG) 3D primitive.

Details - It is a solid with a circular base and top. The cylindrical surface between if formed by points at a fixed distance from the axis of the cylinder. The inherited Position attribute defines the IfcAxisPlacement3D and provides: SELF\IfcCsgPrimitive3D.Position: The location and orientation of the axis system for the primitive. SELF\IfcCsgPrimitive3D.Position.Location: The center of the circular area being the bottom face of the cylinder. SELF\IfcCsgPrimitive3D.Position.Position[3]: The z axis provides the center axis and the height is measured from the origin along the positive direction of the z axis.

The image below illustrates geometric parameters of the cylinder. The cylinder is positioned within its own placement coordinate system. The origin is the center of the bottom circular disk, that lies in the XY plane. The center of the top circular disk is on the positive z axis at [0, 0, Height].

Texture Use Definition - On the circular side, textures are aligned facing upright with origin at the back (+Y direction) revolving counter-clockwise. Textures are stretched or repeated to the extent of the circumference according to RepeatS. Textures are stretched or repeated to the extent of the Height according to RepeatT. On the top and bottom faces, textures are aligned facing front-to-back, with the center of the circle aligned to the center of the texture.

The image below illustrates default texture mapping with a clamped texture (RepeatS=False and RepeatT=False). The image on the left shows the texture where the S axis points to the right and the T axis points up. The image on the right shows the texture applied to the geometry where the X axis points back to the right, the Y axis points back to the left, and the Z axis points up.

Definition at line 64 of file Ifc4/IfcRightCircularCylinderAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcRightCircularCylinder()

OdIfc4::IfcRightCircularCylinder::IfcRightCircularCylinder ( )

Default constructor for the IfcRightCircularCylinder class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcRightCircularCylinder::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcRightCircularCylinder::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcRightCircularCylinder::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ getHeight()

double OdIfc4::IfcRightCircularCylinder::getHeight ( ) const

Returns the value of Height attribute. This attribute represents the distance between the planar circular faces of the cylinder.

Returns: Returns the value of Height attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcRightCircularCylinder::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ getRadius()

double OdIfc4::IfcRightCircularCylinder::getRadius ( ) const

Returns the value of Radius attribute. This attribute represents the radius of the cylinder.

Returns: Returns the value of Radius attribute.

◆ inFields()

virtual OdResult OdIfc4::IfcRightCircularCylinder::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ isKindOf()

virtual bool OdIfc4::IfcRightCircularCylinder::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ outFields()

virtual OdResult OdIfc4::IfcRightCircularCylinder::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcRightCircularCylinder::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcRightCircularCylinder::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ setHeight()

void OdIfc4::IfcRightCircularCylinder::setHeight ( double Height )

Sets the value of Height attribute. This attribute represents the distance between the planar circular faces of the cylinder.

Parameters

Height [in] Height to set.

◆ setRadius()

void OdIfc4::IfcRightCircularCylinder::setRadius ( double Radius )

Sets the value of Radius attribute. This attribute represents the radius of the cylinder.

Parameters

Radius [in] Radius to set.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcRightCircularCylinder::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcRightCircularCylinder::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcRightCircularCylinder::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcRightCircularCylinder::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcRightCircularCylinder::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcCsgPrimitive3D.

Member Data Documentation

◆ m_Height

IfcPositiveLengthMeasure OdIfc4::IfcRightCircularCylinder::m_Height

protected

Definition at line 237 of file Ifc4/IfcRightCircularCylinderAutoImpl.h.

◆ m_Radius

IfcPositiveLengthMeasure OdIfc4::IfcRightCircularCylinder::m_Radius

protected

Definition at line 238 of file Ifc4/IfcRightCircularCylinderAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcRightCircularCylinderAutoImpl.h
