#include <IfcSlabAutoImpl.h>

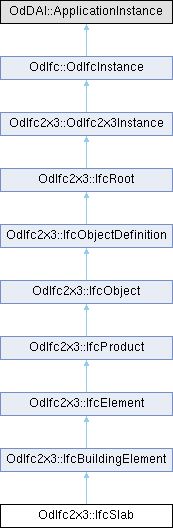

Inheritance diagram for OdIfc2x3::IfcSlab:

Public Member Functions
IfcSlabTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcSlabTypeEnum PredefinedType)

	IfcSlab ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvHasStructuralMember (OdDAIObjectIds &HasStructuralMember) const

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasPorts (OdDAIObjectIds &HasPorts) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x3::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc2x3::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x3::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_PredefinedType

Protected Attributes inherited from OdIfc2x3::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x3::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x3::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A slab is a component of the construction that can enclose a space vertically. The slab can provide the lower support (floor) or upper construction (roof slab) in any space in a building. Only the core or constructional part of this construction is considered to be a slab. The upper finish (flooring, roofing) and the lower finish (ceiling, suspended ceiling) are considered to be coverings. A special type of slab is the landing, described as a floor section to which one or more stair flights or ramp flights connect.

There are two main representations for slab occurrences: IfcSlab with IfcMaterialLayerSetUsage is used for all occurrences of slabs, that are prismatic and where the thickness parameter can be fully described by the IfcMaterialLayerSetUsage. These slabs are always represented geometrically by a 'SweptSolid' geometry (or by a 'Clipping' geometry based on 'SweptSolid'), if a 3D geometric representation is assigned IfcSlab without IfcMaterialLayerSetUsage is used for all other occurrences of slabs, particularly for slabs with changing thickness, or slabs with non planar surfaces, and slabs having only 'SweptSolid' or 'Brep' geometry, or if a more parametric representation is not intended

Body Clipping Geometry - The following constraints apply to the 'Clipping' representation: Solid: IfcExtrudedAreaSolid is required, Profile: IfcArbitraryClosedProfileDef, IfcRectangleProfileDef, IfcCircleProfileDef, IfcEllipseProfileDef is supported Extrusion: The profile can be extruded perpendicularly or non-perpendicularly to the plane of the swept profile Boolean result: The IfcBooleanClippingResult is supported, allowing for Boolean differences between the swept solid (here IfcExtrudedAreaSolid) and one or several IfcHalfSpaceSolid

The image below illustrates a 'Clipping' geometric representation with definition of a roof slab using advanced geometric representation. The profile is extruded non-perpendicular and the slab body is clipped at the eave.

Body SweptSolid Geometry - The following constraints apply to the 'SweptSolid' representation:

Solid: IfcExtrudedAreaSolid is required Profile: IfcArbitraryClosedProfileDef, IfcRectangleProfileDef, IfcCircleProfileDef, IfcEllipseProfileDef is supported Extrusion: The profile can be extruded perpendicularly or non-perpendicularly to the plane of the swept profile

For polygonal slabs, the following interpretation of dimension parameter applies: IfcArbitraryClosedProfileDef.OuterCurve: closed bounded curve interpreted as area (or foot print) of the slab.

The image below illustrates the slab body extrusion.

Element Decomposition - A slab can be decomposed into parts such as for structural framing and covering panels or topping. For efficiency, each part can reuse geometry using the mapped geometry concept. The image below illustrates how a timber construction slab decomposed into parts.

The image below illustrates section showing a slab made from precast hollow core panels.

This concept can be applied to the following resources: IfcBuildingElementPart - Parts for other elements IfcBeam - Precast hollow core planks or double tee beams in concrete construction, or joists and bearers in timber construction IfcCovering - Concrete or topping screeds IfcPlate - Used for metal decks at the base of slabs or sheathing

Element Voiding - The image below illustrates openings within an aggregated slab which are directly assigned to IfcSlab using IfcRelVoidsElement pointing to IfcOpeningElement and apply to all aggregated parts. If individual parts have cutting and other voiding features, then the decomposed parts have a separate voiding relationship IfcRelVoidsElement pointing to IfcVoidingFeature.

Material Layer Set Usage - The image below illustrates assignment of IfcMaterialLayerSetUsage and IfcMaterialLayerSet to the IfcSlabType and the IfcSlab occurrence.

It is illegal to assign an IfcMaterialLayerSetUsage to an IfcSlab. Only the subtype IfcSlabStandardCase supports this concept

Material Set - This concept can be applied to the following resources: LoadBearing Insulation
Object Typing - This concept can be applied to the following resources: IfcSlabType
Product Assignment - This concept can be applied to the following resources: IfcStructuralSurfaceMember - An idealized structural member corresponding to the slab IfcTask - A task for operating on the slab
Property Sets for Objects - Pset_ConcreteElementGeneral Pset_PrecastConcreteElementFabrication Pset_PrecastConcreteElementGeneral Pset_PrecastSlab Pset_ReinforcementBarPitchOfSlab Pset_SlabCommon Pset_TrackBase (only applies to BASESLAB) Pset_CessBetweenRails (only applies to TRACKSLAB) Pset_EmbeddedTrack (only applies to TRACKSLAB) Pset_SlabTypeTrackSlab (only applies to TRACKSLAB)
Quantity Sets - This concept can be applied to the following resources: Qto_SlabBaseQuantities
Spatial Containment - The IfcSlab, as any subtype of IfcBuildingElement, can participate alternatively in one of the two different containment relationships: the Spatial Containment (defined here) the Element Composition
Surface Geometry - The 'Surface' can be used to define a surfacic model of the building (e.g. for analytical purposes, or for reduced Level of Detail representation).

Definition at line 150 of file Ifc2x3/IfcSlabAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcSlab()

OdIfc2x3::IfcSlab::IfcSlab ( )

Default constructor for the IfcSlab class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcSlab::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcBuildingElement.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcSlab::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcSlab::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcElement.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcSlab::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcBuildingElement.

◆ getPredefinedType()

IfcSlabTypeEnum OdIfc2x3::IfcSlab::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents predefined generic type for a slab that is specified in an enumeration. There can be a property set specified specifically for the predefined types.

Returns: Returns the value of PredefinedType attribute.

Remarks: The PredefinedType is only used if no IfcSlabType is assigned, providing its own IfcSlabType.PredefinedType IFC2x CHANGE The attribute has been changed into an OPTIONAL attribute

◆ inFields()

virtual OdResult OdIfc2x3::IfcSlab::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcElement.

◆ isKindOf()

virtual bool OdIfc2x3::IfcSlab::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcBuildingElement.

◆ outFields()

virtual OdResult OdIfc2x3::IfcSlab::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcElement.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcSlab::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcElement.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcSlab::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcElement.

◆ setPredefinedType()

void OdIfc2x3::IfcSlab::setPredefinedType ( IfcSlabTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents predefined generic type for a slab that is specified in an enumeration. There can be a property set specified specifically for the predefined types.

Parameters

PredefinedType [in] Predefined type to set.

Remarks: The PredefinedType is only used if no IfcSlabType is assigned, providing its own IfcSlabType.PredefinedType IFC2x CHANGE The attribute has been changed into an OPTIONAL attribute

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcSlab::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcElement.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcSlab::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcSlab::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcBuildingElement.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcSlab::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcElement.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcSlab::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcElement.

Member Data Documentation

◆ m_PredefinedType

OdDAI::Enum OdIfc2x3::IfcSlab::m_PredefinedType

protected

Definition at line 316 of file Ifc2x3/IfcSlabAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcSlabAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcSlab()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getPredefinedType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setPredefinedType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_PredefinedType
