#include <IfcSpaceAutoImpl.h>

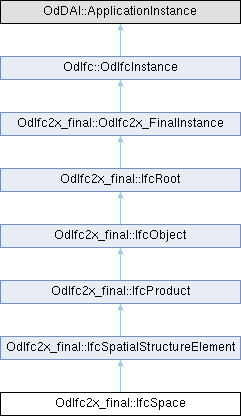

Inheritance diagram for OdIfc2x_final::IfcSpace:

Public Member Functions
IfcInternalOrExternalEnum	getInteriorOrExteriorSpace () const

void	setInteriorOrExteriorSpace (IfcInternalOrExternalEnum InteriorOrExteriorSpace)

double	getElevationWithFlooring () const

void	setElevationWithFlooring (double ElevationWithFlooring)

void	getInvBoundedBy (OdDAIObjectIds &BoundedBy) const

	IfcSpace ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcSpatialStructureElement
const OdAnsiString &	getLongName () const

void	setLongName (const OdAnsiString &LongName)

IfcElementCompositionEnum	getCompositionType () const

void	setCompositionType (IfcElementCompositionEnum CompositionType)

void	getInvContainsElements (OdDAIObjectIds &ContainsElements) const

	IfcSpatialStructureElement ()

Public Member Functions inherited from OdIfc2x_final::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

Public Member Functions inherited from OdIfc2x_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_InteriorOrExteriorSpace

double	m_ElevationWithFlooring

Protected Attributes inherited from OdIfc2x_final::IfcSpatialStructureElement
OdAnsiString	m_LongName

OdDAI::Enum	m_CompositionType

Protected Attributes inherited from OdIfc2x_final::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcRelSpaceBoundary

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A space represents an area or volume bounded actually or theoretically. Spaces are areas or volumes that provide for certain functions within a building.

A space is associated to a building storey (or in case of exterior spaces to a site). A space can span over several connected spaces. Therefore a space group provides for a collection of spaces included in a storey. A space can also be decomposed in parts, where each part defines a partial space. This is defined by the CompositionType attribute of the supertype IfcSpatialStructureElement which is interpreted as follow: COMPLEX = space group ELEMENT = space PARTIAL = partial space

The image below shows the IfcSpace as part of the spatial structure. It also serves as the spatial container for space related elements.

The next image describes the heights and elevations of the IfcSpace. Elevation of the space (top of construction slab) equals elevation of storey: provided by IfcBuildingStorey.Elevation relative to IfcBuilding.ElevationOfRefHeight Elevation of the space flooring (top of flooring on top of slab): provided by IfcSpace.ElevationWithFlooring relative to IfcBuilding.ElevationOfRefHeight Height of space (top of slab below to bottom of slab above): provided by BaseQuantity with Name="Height" Floor height of space (top of slab below to top of flooring): provided by BaseQuantity with Name="FinishFloorHeight" Net height of space (top of flooring to bottom of suspended ceiling): provided by BaseQuantity with Name="FinishCeilingHeight"

FootPrint GeomSet Geometry - The following constraints apply to the 2D representation: An IfcBoundedCurve is required, using IfcPolyline for faceted space contours or IfcCompositeCurve for space contours with arc segments. For spaces with inner boundaries, a set of IfcBoundedCurve's is used, that should be grouped into an IfcGeometricCurveSet.
Object Typing - This concept can be applied to the following resources: IfcSpaceType
Product Local Placement - The local placement for IfcSpace is defined at its supertype IfcProduct. It is defined by the IfcLocalPlacement, which defines the local coordinate system that is referenced by all geometric representations. The PlacementRelTo relationship of IfcLocalPlacement points to the local placement of the IfcSpatialStructureElement of IfcBuildingStorey type or of IfcSite type if relative placement is used. If the relative placement is not used, the absolute placement is defined within the world coordinate system.
Property Sets for Objects - This concept can be applied to the following resources: Pset_ProcessCapacity Pset_BerthCommon (only applies to BERTH) Pset_FenderDesignCriteria (only applies to BERTH) Pset_SpaceParking (only applies to PARKING)
Quantity Sets - This concept can be applied to the following resources: Qto_SpaceBaseQuantities
Spatial Composition - The Spatial Composition concept uses the inverse relationship IfcSpace.IsDecomposedBy to reference IfcSpace by IfcRelAggregates.RelatedObjects. If it refers to another instance of IfcSpace, the referenced IfcSpace needs to have a different and lower CompositionType, i.e. ELEMENT (if the other IfcSpace has COMPLEX), or PARTIAL (if the other IfcSpace has ELEMENT). This concept can be applied to the following resources: IfcProject IfcSite IfcBuilding IfcBuildingStorey IfcSpace IfcFacility IfcBridge IfcMarineFacility IfcRailway IfcRoad IfcFacilityPartCommon IfcBridgePart IfcMarinePart IfcRailwayPart IfcRoadPart
Spatial Container - If there are building elements and/or other elements directly related to the IfcSpace (like most furniture and distribution elements), they are associated with the IfcSpace by using the objectified relationship IfcRelContainedInSpatialStructure. The IfcSpace references them by its inverse relationship: IfcSpace.ContainsElements - referencing any subtype of IfcProduct (with the exception of other spatial structure element) by IfcRelContainedInSpatialStructure.RelatedElements.
Spatial Decomposition - Spatial Decomposition concept uses the IfcSpace.Decomposes inverse relationship to reference IfcSite, or IfcBuildingStorey, or IfcSpace by IfcRelAggregates.RelatingObject. If it refers to another instance of IfcSpace, the referenced IfcSpace needs to have a different and higher CompositionType, i.e. COMPLEX (if the other IfcSpace has ELEMENT), or ELEMENT (if the other IfcSpace has PARTIAL). This concept can be applied to the following resources: IfcSpace

Definition at line 129 of file Ifc2x_Final/IfcSpaceAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcSpace()

OdIfc2x_final::IfcSpace::IfcSpace ( )

Default constructor for the IfcSpace class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcSpace::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcSpace::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ getElevationWithFlooring()

double OdIfc2x_final::IfcSpace::getElevationWithFlooring ( ) const

Returns the value of ElevationWithFlooring attribute. This attribute represents level of flooring of this space; the average is taken, if the space ground surface is sloping or if there are level differences within this space.

Returns: Returns the value of ElevationWithFlooring attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcSpace::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ getInteriorOrExteriorSpace()

IfcInternalOrExternalEnum OdIfc2x_final::IfcSpace::getInteriorOrExteriorSpace ( ) const

Returns the value of InteriorOrExteriorSpace attribute. This attribute indicates whether the Space is interior (Internal), or exterior (External), i.e. part of the outer space.

Returns: Returns the value of InteriorOrExteriorSpace attribute.

◆ getInvBoundedBy()

void OdIfc2x_final::IfcSpace::getInvBoundedBy ( OdDAIObjectIds & BoundedBy ) const

Returns the value of BoundedBy attribute. This attribute represents reference to a set of IfcRelSpaceBoundary's that defines the physical or virtual delimitation of that space against physical or virtual boundaries.

Parameters

BoundedBy [out] Receives the value of BoundedBy attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcSpace::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcSpace::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcSpace::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcSpace::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcSpace::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ setElevationWithFlooring()

void OdIfc2x_final::IfcSpace::setElevationWithFlooring ( double ElevationWithFlooring )

Sets the value of ElevationWithFlooring attribute. This attribute represents level of flooring of this space; the average is taken, if the space ground surface is sloping or if there are level differences within this space.

Parameters

ElevationWithFlooring [in] Elevation with flooring to set.

◆ setInteriorOrExteriorSpace()

void OdIfc2x_final::IfcSpace::setInteriorOrExteriorSpace ( IfcInternalOrExternalEnum InteriorOrExteriorSpace )

Sets the value of InteriorOrExteriorSpace attribute. This attribute indicates whether the Space is interior (Internal), or exterior (External), i.e. part of the outer space.

Parameters

InteriorOrExteriorSpace [in] Attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcSpace::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcSpace::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcSpace::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcSpace::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcSpace::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x_final::IfcSpatialStructureElement.

Friends And Related Symbol Documentation

◆ IfcRelSpaceBoundary

friend class IfcRelSpaceBoundary

friend

Definition at line 297 of file Ifc2x_Final/IfcSpaceAutoImpl.h.

Member Data Documentation

◆ m_ElevationWithFlooring

double OdIfc2x_final::IfcSpace::m_ElevationWithFlooring

protected

Definition at line 294 of file Ifc2x_Final/IfcSpaceAutoImpl.h.

◆ m_InteriorOrExteriorSpace

OdDAI::Enum OdIfc2x_final::IfcSpace::m_InteriorOrExteriorSpace

protected

Definition at line 293 of file Ifc2x_Final/IfcSpaceAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcSpaceAutoImpl.h

Public Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcSpace()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getElevationWithFlooring()

◆ getInstanceType()

◆ getInteriorOrExteriorSpace()

◆ getInvBoundedBy()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setElevationWithFlooring()

◆ setInteriorOrExteriorSpace()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Friends And Related Symbol Documentation

◆ IfcRelSpaceBoundary

Member Data Documentation

◆ m_ElevationWithFlooring

◆ m_InteriorOrExteriorSpace
