OdIfc2x_final::IfcRoot Class Reference

#include <IfcRootAutoImpl.h>

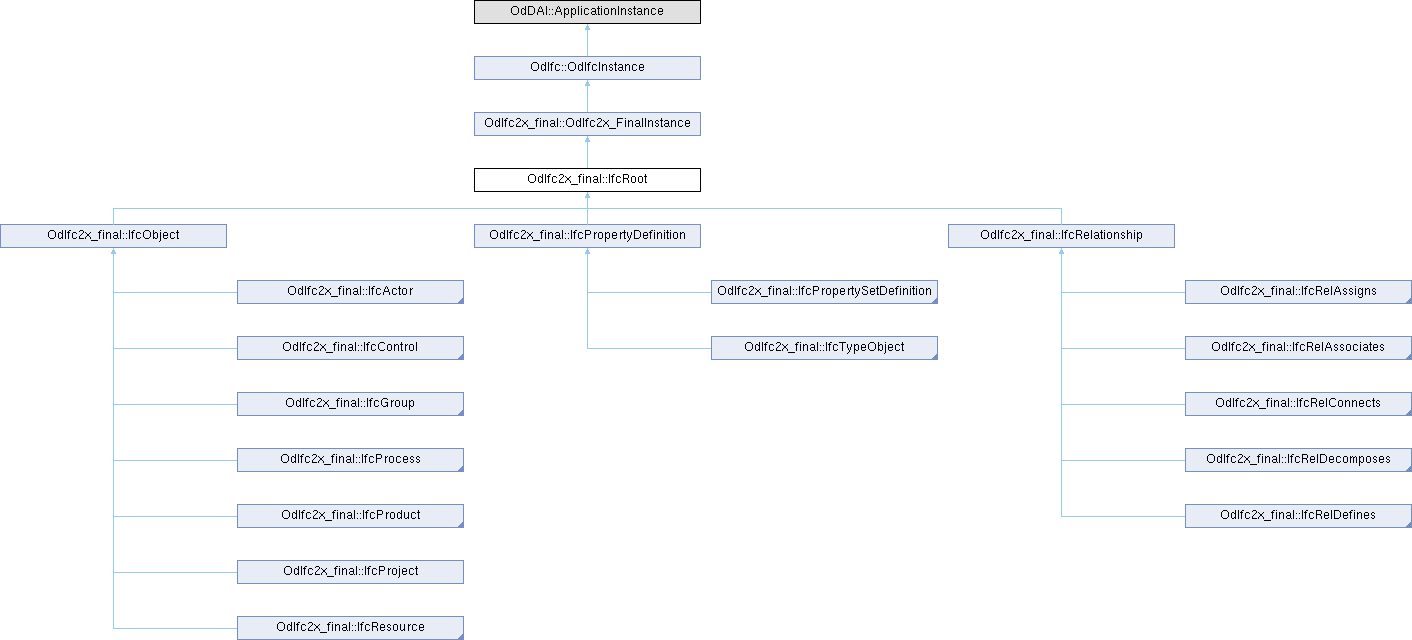

Inheritance diagram for OdIfc2x_final::IfcRoot:

Public Member Functions
OdDAI::CompressedGUID	getGlobalId () const
void	setGlobalId (OdDAI::CompressedGUID GlobalId)
const OdDAIObjectId &	getOwnerHistory () const
void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)
const OdAnsiString &	getName () const
void	setName (const OdAnsiString &Name)
const OdAnsiString &	getDescription () const
void	setDescription (const OdAnsiString &Description)
	IfcRoot ()
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual OdDAI::Entity *	getInstanceType () const override
virtual OdRxValue	getAttr (const char *attrName) const override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::CompressedGUID	m_GlobalId
OdDAIObjectId	m_OwnerHistory
OdAnsiString	m_Name
OdAnsiString	m_Description
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcRoot is the most abstract and root class for all entity definitions that roots in the kernel or in subsequent layers of the IFC specification. It is therefore the common supertype of all IFC entities, beside those defined in an IFC resource schema. All entities that are subtypes of IfcRoot can be used independently, whereas resource schema entities, that are not subtypes of IfcRoot, are not supposed to be independent entities. The IfcRoot assigns the globally unique ID, and the ownership and history information to the entity. In addition it can provide for a name and a description about the concepts.

Remarks

View definitions and implementation agreement can impose additional restrictions on the use of the OwnerHistory to handle object versioning.

Definition at line 51 of file Ifc2x_Final/IfcRootAutoImpl.h.

Constructor & Destructor Documentation

IfcRoot()

OdIfc2x_final::IfcRoot::IfcRoot

(

)

Default constructor for the IfcRoot class.

Member Function Documentation

getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcRoot::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName

[in] Name of an attribute to query.

Returns

OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcRoot::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef

[in] Attribute definition to query.

Returns

OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

getDescription()

const OdAnsiString & OdIfc2x_final::IfcRoot::getDescription

(

)

const

Returns the description of an object.

Returns

String that contains description of the object.

getGlobalId()

OdDAI::CompressedGUID OdIfc2x_final::IfcRoot::getGlobalId

(

)

const

Returns a globally unique identifier within the entire software world.

Returns

The globally unique identifier value.

getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcRoot::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBeam, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcColumn, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionEquipmentResource, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcConstructionProductResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcController, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcCrewResource, OdIfc2x_final::IfcCurtainWall, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalElement, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcEquipmentElement, OdIfc2x_final::IfcEquipmentStandard, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowController, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFlowTerminal, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcFurnishingElement, OdIfc2x_final::IfcFurniture, OdIfc2x_final::IfcFurnitureStandard, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRampFlight, OdIfc2x_final::IfcRelAggregates, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelationship, OdIfc2x_final::IfcRelConnects, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCostsObjects, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelNests, OdIfc2x_final::IfcRelOccupiesSpaces, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcStorageDevice, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcSystemFurnitureElement, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTreatmentDevice, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcUnitHeater, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWall, OdIfc2x_final::IfcWallStandardCase, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, OdIfc2x_final::IfcWorkOrder, OdIfc2x_final::IfcWorkPlan, OdIfc2x_final::IfcWorkSchedule, and OdIfc2x_final::IfcZone.

getName()

const OdAnsiString & OdIfc2x_final::IfcRoot::getName

(

)

const

Returns a name that is used by the participating software systems or users.

Returns

A strings that contains a name of the object.

getOwnerHistory()

const OdDAIObjectId & OdIfc2x_final::IfcRoot::getOwnerHistory

(

)

const

Returns the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object.

Returns

The OdDAIObjectId object that contains information about ownership of that object.

inFields()

virtual OdResult OdIfc2x_final::IfcRoot::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler

[in] Pointer to a filer from which to read the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

isKindOf()

virtual bool OdIfc2x_final::IfcRoot::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBeam, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcColumn, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionEquipmentResource, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcConstructionProductResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcController, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcCrewResource, OdIfc2x_final::IfcCurtainWall, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalElement, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcEquipmentElement, OdIfc2x_final::IfcEquipmentStandard, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowController, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFlowTerminal, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcFurnishingElement, OdIfc2x_final::IfcFurniture, OdIfc2x_final::IfcFurnitureStandard, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRampFlight, OdIfc2x_final::IfcRelAggregates, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelationship, OdIfc2x_final::IfcRelConnects, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCostsObjects, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelNests, OdIfc2x_final::IfcRelOccupiesSpaces, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcStorageDevice, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcSystemFurnitureElement, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTreatmentDevice, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcUnitHeater, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWall, OdIfc2x_final::IfcWallStandardCase, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, OdIfc2x_final::IfcWorkOrder, OdIfc2x_final::IfcWorkPlan, OdIfc2x_final::IfcWorkSchedule, and OdIfc2x_final::IfcZone.

outFields()

virtual OdResult OdIfc2x_final::IfcRoot::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler

[in] Pointer to a filer to which to write the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

putAttr() [1/2]

virtual bool OdIfc2x_final::IfcRoot::putAttr ( const char * explicitAttrName, const OdRxValue & val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns

true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

putAttr() [2/2]

virtual bool OdIfc2x_final::IfcRoot::putAttr ( const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue & val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns

true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

setDescription()

void OdIfc2x_final::IfcRoot::setDescription

(

const OdAnsiString &

Description

)

Sets the object description.

Parameters

Description

String that contains comments that describe an object.

setGlobalId()

void OdIfc2x_final::IfcRoot::setGlobalId

(

OdDAI::CompressedGUID

GlobalId

)

Assigns a globally unique identifier within the entire software world.

Parameters

GlobalId

[in] Value that represents a globally unique identifier to assign.

setName()

void OdIfc2x_final::IfcRoot::setName

(

const OdAnsiString &

Name

)

Sets the name of the object.

Parameters

Name	String that contains name of the object.

setOwnerHistory()

void OdIfc2x_final::IfcRoot::setOwnerHistory

(

const OdDAIObjectId &

OwnerHistory

)

Assigns the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object.

Parameters

OwnerHistory

[in] Ownership information.

testAttr() [1/2]

virtual bool OdIfc2x_final::IfcRoot::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName

[in] Explicit name of the attribute to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

testAttr() [2/2]

virtual bool OdIfc2x_final::IfcRoot::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef

[in] Attribute definition to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcRoot::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBeam, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcColumn, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionEquipmentResource, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcConstructionProductResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcController, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcCrewResource, OdIfc2x_final::IfcCurtainWall, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalElement, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcEquipmentElement, OdIfc2x_final::IfcEquipmentStandard, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowController, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFlowTerminal, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcFurnishingElement, OdIfc2x_final::IfcFurniture, OdIfc2x_final::IfcFurnitureStandard, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRampFlight, OdIfc2x_final::IfcRelAggregates, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelationship, OdIfc2x_final::IfcRelConnects, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCostsObjects, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelNests, OdIfc2x_final::IfcRelOccupiesSpaces, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcStorageDevice, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcSystemFurnitureElement, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTreatmentDevice, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcUnitHeater, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWall, OdIfc2x_final::IfcWallStandardCase, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, OdIfc2x_final::IfcWorkOrder, OdIfc2x_final::IfcWorkPlan, OdIfc2x_final::IfcWorkSchedule, and OdIfc2x_final::IfcZone.

unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcRoot::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName

[in] Explicit name of the attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcRoot::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef

[in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcActor, OdIfc2x_final::IfcActuator, OdIfc2x_final::IfcAirFilter, OdIfc2x_final::IfcAirTerminal, OdIfc2x_final::IfcAirTerminalBox, OdIfc2x_final::IfcApprovalUsage, OdIfc2x_final::IfcAssessory, OdIfc2x_final::IfcAsset, OdIfc2x_final::IfcBoiler, OdIfc2x_final::IfcBudget, OdIfc2x_final::IfcBuilding, OdIfc2x_final::IfcBuildingElement, OdIfc2x_final::IfcBuildingElementProxy, OdIfc2x_final::IfcBuildingStorey, OdIfc2x_final::IfcBuiltIn, OdIfc2x_final::IfcChangeOrder, OdIfc2x_final::IfcChiller, OdIfc2x_final::IfcCMDocPackage, OdIfc2x_final::IfcCoil, OdIfc2x_final::IfcCompartment, OdIfc2x_final::IfcCompressor, OdIfc2x_final::IfcConstraintUsage, OdIfc2x_final::IfcConstructionMaterialResource, OdIfc2x_final::IfcControl, OdIfc2x_final::IfcControlElement, OdIfc2x_final::IfcCoolingTower, OdIfc2x_final::IfcCost, OdIfc2x_final::IfcCostSchedule, OdIfc2x_final::IfcCovering, OdIfc2x_final::IfcDamper, OdIfc2x_final::IfcDiscreteElement, OdIfc2x_final::IfcDistributionFlowElement, OdIfc2x_final::IfcDoor, OdIfc2x_final::IfcDoorLiningProperties, OdIfc2x_final::IfcDoorPanelProperties, OdIfc2x_final::IfcDoorStyle, OdIfc2x_final::IfcElectricalAppliance, OdIfc2x_final::IfcElectricalBaseProperties, OdIfc2x_final::IfcElectricalExtendedProperties, OdIfc2x_final::IfcElectricMotor, OdIfc2x_final::IfcElement, OdIfc2x_final::IfcElementQuantity, OdIfc2x_final::IfcFan, OdIfc2x_final::IfcFlowFitting, OdIfc2x_final::IfcFlowSegment, OdIfc2x_final::IfcFluidFlowProperties, OdIfc2x_final::IfcFluidMovingDevice, OdIfc2x_final::IfcGrid, OdIfc2x_final::IfcGroup, OdIfc2x_final::IfcHeatExchanger, OdIfc2x_final::IfcHeatTransferDevice, OdIfc2x_final::IfcHydronicHeater, OdIfc2x_final::IfcInventory, OdIfc2x_final::IfcLaborResource, OdIfc2x_final::IfcLightFixture, OdIfc2x_final::IfcMaintenanceRecord, OdIfc2x_final::IfcMaintenanceWorkOrder, OdIfc2x_final::IfcManufacturerInformation, OdIfc2x_final::IfcMove, OdIfc2x_final::IfcObject, OdIfc2x_final::IfcOccupant, OdIfc2x_final::IfcOpeningElement, OdIfc2x_final::IfcOutlet, OdIfc2x_final::IfcPermeableCoveringProperties, OdIfc2x_final::IfcProcess, OdIfc2x_final::IfcProduct, OdIfc2x_final::IfcProject, OdIfc2x_final::IfcProjectOrder, OdIfc2x_final::IfcPropertyDefinition, OdIfc2x_final::IfcPropertySet, OdIfc2x_final::IfcPropertySetDefinition, OdIfc2x_final::IfcProxy, OdIfc2x_final::IfcPump, OdIfc2x_final::IfcPurchaseOrder, OdIfc2x_final::IfcRailing, OdIfc2x_final::IfcRamp, OdIfc2x_final::IfcRelAggregatesResources, OdIfc2x_final::IfcRelAssigns, OdIfc2x_final::IfcRelAssignsFMStandard, OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelAssociates, OdIfc2x_final::IfcRelAssociatesClassification, OdIfc2x_final::IfcRelAssociatesDocument, OdIfc2x_final::IfcRelAssociatesLibrary, OdIfc2x_final::IfcRelAssociatesMaterial, OdIfc2x_final::IfcRelConnectsElements, OdIfc2x_final::IfcRelConnectsPathElements, OdIfc2x_final::IfcRelConnectsPorts, OdIfc2x_final::IfcRelContainedInSpatialStructure, OdIfc2x_final::IfcRelCoversBldgElements, OdIfc2x_final::IfcRelDecomposes, OdIfc2x_final::IfcRelDefines, OdIfc2x_final::IfcRelDefinesByProperties, OdIfc2x_final::IfcRelDefinesByType, OdIfc2x_final::IfcRelFillsElement, OdIfc2x_final::IfcRelFlowControlElements, OdIfc2x_final::IfcRelInteractionRequirements, OdIfc2x_final::IfcRelMaintenanceEvent, OdIfc2x_final::IfcRelOverridesProperties, OdIfc2x_final::IfcRelSequence, OdIfc2x_final::IfcRelServicesBuildings, OdIfc2x_final::IfcRelSpaceBoundary, OdIfc2x_final::IfcRelUsesResource, OdIfc2x_final::IfcRelVoidsElement, OdIfc2x_final::IfcResource, OdIfc2x_final::IfcRoof, OdIfc2x_final::IfcSanitaryTerminal, OdIfc2x_final::IfcScheduleTimeControl, OdIfc2x_final::IfcSensor, OdIfc2x_final::IfcSite, OdIfc2x_final::IfcSlab, OdIfc2x_final::IfcSpace, OdIfc2x_final::IfcSpaceProgram, OdIfc2x_final::IfcSpaceProgramGroup, OdIfc2x_final::IfcSpaceThermalLoad, OdIfc2x_final::IfcSpatialStructureElement, OdIfc2x_final::IfcStair, OdIfc2x_final::IfcStairFlight, OdIfc2x_final::IfcSubContractResource, OdIfc2x_final::IfcSystem, OdIfc2x_final::IfcTank, OdIfc2x_final::IfcTask, OdIfc2x_final::IfcTransportElement, OdIfc2x_final::IfcTubeBundle, OdIfc2x_final::IfcTypeObject, OdIfc2x_final::IfcTypeProduct, OdIfc2x_final::IfcValve, OdIfc2x_final::IfcWindow, OdIfc2x_final::IfcWindowLiningProperties, OdIfc2x_final::IfcWindowPanelProperties, OdIfc2x_final::IfcWindowStyle, OdIfc2x_final::IfcWorkControl, and OdIfc2x_final::IfcWorkOrder.

Member Data Documentation

m_Description

OdAnsiString OdIfc2x_final::IfcRoot::m_Description

protected

Definition at line 230 of file Ifc2x_Final/IfcRootAutoImpl.h.

m_GlobalId

OdDAI::CompressedGUID OdIfc2x_final::IfcRoot::m_GlobalId

protected

Definition at line 227 of file Ifc2x_Final/IfcRootAutoImpl.h.

m_Name

OdAnsiString OdIfc2x_final::IfcRoot::m_Name

protected

Definition at line 229 of file Ifc2x_Final/IfcRootAutoImpl.h.

m_OwnerHistory

OdDAIObjectId OdIfc2x_final::IfcRoot::m_OwnerHistory

protected

Definition at line 228 of file Ifc2x_Final/IfcRootAutoImpl.h.

---

The documentation for this class was generated from the following file:

• Ifc2x_Final/IfcRootAutoImpl.h
