#include <IfcReinforcingMeshAutoImpl.h>

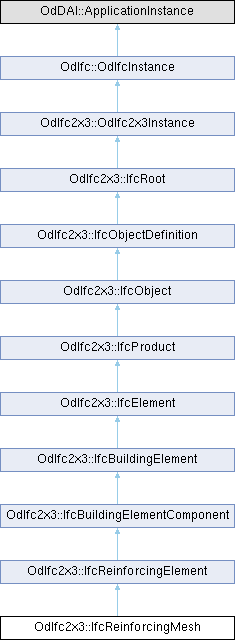

Inheritance diagram for OdIfc2x3::IfcReinforcingMesh:

Public Member Functions
double	getMeshLength () const

void	setMeshLength (double MeshLength)

double	getMeshWidth () const

void	setMeshWidth (double MeshWidth)

double	getLongitudinalBarNominalDiameter () const

void	setLongitudinalBarNominalDiameter (double LongitudinalBarNominalDiameter)

double	getTransverseBarNominalDiameter () const

void	setTransverseBarNominalDiameter (double TransverseBarNominalDiameter)

double	getLongitudinalBarCrossSectionArea () const

void	setLongitudinalBarCrossSectionArea (double LongitudinalBarCrossSectionArea)

double	getTransverseBarCrossSectionArea () const

void	setTransverseBarCrossSectionArea (double TransverseBarCrossSectionArea)

double	getLongitudinalBarSpacing () const

void	setLongitudinalBarSpacing (double LongitudinalBarSpacing)

double	getTransverseBarSpacing () const

void	setTransverseBarSpacing (double TransverseBarSpacing)

	IfcReinforcingMesh ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcReinforcingElement
const OdAnsiString &	getSteelGrade () const

void	setSteelGrade (const OdAnsiString &SteelGrade)

	IfcReinforcingElement ()

Public Member Functions inherited from OdIfc2x3::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvHasStructuralMember (OdDAIObjectIds &HasStructuralMember) const

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasPorts (OdDAIObjectIds &HasPorts) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x3::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc2x3::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x3::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcPositiveLengthMeasure	m_MeshLength

IfcPositiveLengthMeasure	m_MeshWidth

IfcPositiveLengthMeasure	m_LongitudinalBarNominalDiameter

IfcPositiveLengthMeasure	m_TransverseBarNominalDiameter

double	m_LongitudinalBarCrossSectionArea

double	m_TransverseBarCrossSectionArea

IfcPositiveLengthMeasure	m_LongitudinalBarSpacing

IfcPositiveLengthMeasure	m_TransverseBarSpacing

Protected Attributes inherited from OdIfc2x3::IfcReinforcingElement
OdAnsiString	m_SteelGrade

Protected Attributes inherited from OdIfc2x3::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x3::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x3::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A reinforcing mesh is a series of longitudinal and transverse wires or bars of various gauges, arranged at right angles to each other and welded at all points of intersection; usually used for concrete slab reinforcement. It is also known as welded wire fabric.

Mapped Geometry - The representation map could contain a representation of AdvancedSweptSolid type which holds an IfcSweptDiskSolid (including subtype IfcSweptDiskSolidPolygonal). Multiple IfcMappedItem's can be used to represent the bars within a mesh as one occurrence of IfcReinforcingMesh.
Object Typing - This concept can be applied to the following resources: IfcReinforcingMeshType

Definition at line 51 of file Ifc2x3/IfcReinforcingMeshAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcReinforcingMesh()

OdIfc2x3::IfcReinforcingMesh::IfcReinforcingMesh ( )

Default constructor for the IfcReinforcingMesh class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcReinforcingMesh::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcReinforcingMesh::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcReinforcingMesh::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcReinforcingMesh::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ getLongitudinalBarCrossSectionArea()

double OdIfc2x3::IfcReinforcingMesh::getLongitudinalBarCrossSectionArea ( ) const

Returns the value of LongitudinalBarCrossSectionArea attribute. This attribute represents the effective cross-section area of the longitudinal bars of the mesh.

Returns: Returns the value of LongitudinalBarCrossSectionArea attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ getLongitudinalBarNominalDiameter()

double OdIfc2x3::IfcReinforcingMesh::getLongitudinalBarNominalDiameter ( ) const

Returns the value of LongitudinalBarNominalDiameter attribute. This attribute represents the nominal diameter denoting the cross-section size of the longitudinal bars.

Returns: Returns the value of LongitudinalBarNominalDiameter attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ getLongitudinalBarSpacing()

double OdIfc2x3::IfcReinforcingMesh::getLongitudinalBarSpacing ( ) const

Returns the value of LongitudinalBarSpacing attribute. This attribute represents the spacing between the longitudinal bars.

Returns: Returns the value of LongitudinalBarSpacing attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ getMeshLength()

double OdIfc2x3::IfcReinforcingMesh::getMeshLength ( ) const

Returns the value of MeshLength attribute. This attribute represents the overall length of the mesh measured in its longitudinal direction.

Returns: Returns the value of MeshLength attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ getMeshWidth()

double OdIfc2x3::IfcReinforcingMesh::getMeshWidth ( ) const

Returns the value of MeshWidth attribute. This attribute represents the overall width of the mesh measured in its transversal direction.

Returns: Returns the value of MeshWidth attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ getTransverseBarCrossSectionArea()

double OdIfc2x3::IfcReinforcingMesh::getTransverseBarCrossSectionArea ( ) const

Returns the value of TransverseBarCrossSectionArea attribute. This attribute represents the effective cross-section area of the transverse bars of the mesh.

Returns: Returns the value of TransverseBarCrossSectionArea attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ getTransverseBarNominalDiameter()

double OdIfc2x3::IfcReinforcingMesh::getTransverseBarNominalDiameter ( ) const

Returns the value of TransverseBarNominalDiameter attribute. This attribute represents the nominal diameter denoting the cross-section size of the transverse bars.

Returns: Returns the value of TransverseBarNominalDiameter attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ getTransverseBarSpacing()

double OdIfc2x3::IfcReinforcingMesh::getTransverseBarSpacing ( ) const

Returns the value of TransverseBarSpacing attribute. This attribute represents the spacing between the transverse bars.

Returns: Returns the value of TransverseBarSpacing attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ inFields()

virtual OdResult OdIfc2x3::IfcReinforcingMesh::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ isKindOf()

virtual bool OdIfc2x3::IfcReinforcingMesh::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ outFields()

virtual OdResult OdIfc2x3::IfcReinforcingMesh::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcReinforcingMesh::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcReinforcingMesh::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ setLongitudinalBarCrossSectionArea()

void OdIfc2x3::IfcReinforcingMesh::setLongitudinalBarCrossSectionArea ( double LongitudinalBarCrossSectionArea )

Sets the value of LongitudinalBarCrossSectionArea attribute. This attribute represents the effective cross-section area of the longitudinal bars of the mesh.

Parameters

LongitudinalBarCrossSectionArea [in] Longitudinal bar cross-section area to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ setLongitudinalBarNominalDiameter()

void OdIfc2x3::IfcReinforcingMesh::setLongitudinalBarNominalDiameter ( double LongitudinalBarNominalDiameter )

Sets the value of LongitudinalBarNominalDiameter attribute. This attribute represents the nominal diameter denoting the cross-section size of the longitudinal bars.

Parameters

LongitudinalBarNominalDiameter [in] Longitudinal bar nominal diameter to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ setLongitudinalBarSpacing()

void OdIfc2x3::IfcReinforcingMesh::setLongitudinalBarSpacing ( double LongitudinalBarSpacing )

Sets the value of LongitudinalBarSpacing attribute. This attribute represents the spacing between the longitudinal bars.

Parameters

LongitudinalBarSpacing [in] Longitudinal bar spacing to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ setMeshLength()

void OdIfc2x3::IfcReinforcingMesh::setMeshLength ( double MeshLength )

Sets the value of MeshLength attribute. This attribute represents the overall length of the mesh measured in its longitudinal direction.

Parameters

MeshLength [in] Mesh length to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ setMeshWidth()

void OdIfc2x3::IfcReinforcingMesh::setMeshWidth ( double MeshWidth )

Sets the value of MeshWidth attribute. This attribute represents the overall width of the mesh measured in its transversal direction.

Parameters

MeshWidth [in] Mesh width to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ setTransverseBarCrossSectionArea()

void OdIfc2x3::IfcReinforcingMesh::setTransverseBarCrossSectionArea ( double TransverseBarCrossSectionArea )

Sets the value of TransverseBarCrossSectionArea attribute. This attribute represents the effective cross-section area of the transverse bars of the mesh.

Parameters

TransverseBarCrossSectionArea [in] Transverse bar cross-section area to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ setTransverseBarNominalDiameter()

void OdIfc2x3::IfcReinforcingMesh::setTransverseBarNominalDiameter ( double TransverseBarNominalDiameter )

Sets the value of TransverseBarNominalDiameter attribute. This attribute represents the nominal diameter denoting the cross-section size of the transverse bars.

Parameters

TransverseBarNominalDiameter [in] Transverse bar nominal diameter to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ setTransverseBarSpacing()

void OdIfc2x3::IfcReinforcingMesh::setTransverseBarSpacing ( double TransverseBarSpacing )

Sets the value of TransverseBarSpacing attribute. This attribute represents the spacing between the transverse bars.

Parameters

TransverseBarSpacing [in] Transverse bar spacing to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingMeshType instead.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcReinforcingMesh::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcReinforcingMesh::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcReinforcingMesh::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcReinforcingMesh::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcReinforcingMesh::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

Member Data Documentation

◆ m_LongitudinalBarCrossSectionArea

double OdIfc2x3::IfcReinforcingMesh::m_LongitudinalBarCrossSectionArea

protected

Definition at line 350 of file Ifc2x3/IfcReinforcingMeshAutoImpl.h.

◆ m_LongitudinalBarNominalDiameter

IfcPositiveLengthMeasure OdIfc2x3::IfcReinforcingMesh::m_LongitudinalBarNominalDiameter

protected

Definition at line 348 of file Ifc2x3/IfcReinforcingMeshAutoImpl.h.

◆ m_LongitudinalBarSpacing

IfcPositiveLengthMeasure OdIfc2x3::IfcReinforcingMesh::m_LongitudinalBarSpacing

protected

Definition at line 352 of file Ifc2x3/IfcReinforcingMeshAutoImpl.h.

◆ m_MeshLength

IfcPositiveLengthMeasure OdIfc2x3::IfcReinforcingMesh::m_MeshLength

protected

Definition at line 346 of file Ifc2x3/IfcReinforcingMeshAutoImpl.h.

◆ m_MeshWidth

IfcPositiveLengthMeasure OdIfc2x3::IfcReinforcingMesh::m_MeshWidth

protected

Definition at line 347 of file Ifc2x3/IfcReinforcingMeshAutoImpl.h.

◆ m_TransverseBarCrossSectionArea

double OdIfc2x3::IfcReinforcingMesh::m_TransverseBarCrossSectionArea

protected

Definition at line 351 of file Ifc2x3/IfcReinforcingMeshAutoImpl.h.

◆ m_TransverseBarNominalDiameter

IfcPositiveLengthMeasure OdIfc2x3::IfcReinforcingMesh::m_TransverseBarNominalDiameter

protected

Definition at line 349 of file Ifc2x3/IfcReinforcingMeshAutoImpl.h.

◆ m_TransverseBarSpacing

IfcPositiveLengthMeasure OdIfc2x3::IfcReinforcingMesh::m_TransverseBarSpacing

protected

Definition at line 353 of file Ifc2x3/IfcReinforcingMeshAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcReinforcingMeshAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcReinforcingMesh()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getLongitudinalBarCrossSectionArea()

◆ getLongitudinalBarNominalDiameter()

◆ getLongitudinalBarSpacing()

◆ getMeshLength()

◆ getMeshWidth()

◆ getTransverseBarCrossSectionArea()

◆ getTransverseBarNominalDiameter()

◆ getTransverseBarSpacing()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setLongitudinalBarCrossSectionArea()

◆ setLongitudinalBarNominalDiameter()

◆ setLongitudinalBarSpacing()

◆ setMeshLength()

◆ setMeshWidth()

◆ setTransverseBarCrossSectionArea()

◆ setTransverseBarNominalDiameter()

◆ setTransverseBarSpacing()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_LongitudinalBarCrossSectionArea

◆ m_LongitudinalBarNominalDiameter

◆ m_LongitudinalBarSpacing

◆ m_MeshLength

◆ m_MeshWidth

◆ m_TransverseBarCrossSectionArea

◆ m_TransverseBarNominalDiameter

◆ m_TransverseBarSpacing
