#include <IfcSweptDiskSolidAutoImpl.h>

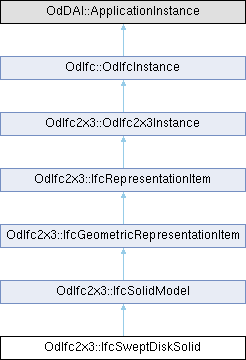

Inheritance diagram for OdIfc2x3::IfcSweptDiskSolid:

Public Member Functions
const OdDAIObjectId &	getDirectrix () const

void	setDirectrix (const OdDAIObjectId &Directrix)

double	getRadius () const

void	setRadius (double Radius)

double	getInnerRadius () const

void	setInnerRadius (double InnerRadius)

double	getStartParam () const

void	setStartParam (double StartParam)

double	getEndParam () const

void	setEndParam (double EndParam)

	IfcSweptDiskSolid ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcRepresentationItem
void	getInvLayerAssignments (OdDAIObjectIds &LayerAssignments) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Directrix

IfcPositiveLengthMeasure	m_Radius

IfcPositiveLengthMeasure	m_InnerRadius

double	m_StartParam

double	m_EndParam

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcSweptDiskSolid represents the 3D shape by a sweeping representation scheme allowing a two dimensional circularly bounded plane to sweep along a three dimensional Directrix through space.

Details - The StartParam and EndParam parameter are optional, if not provided they default to the start and end of the Directrix. Only if the Directrix is given by a bounded or closed curve, you can omit the values of StartParam and EndParam. If the transitions between consecutive segments of the Directrix are not tangent continuous, the resulting solid is created by a miter at half angle between the two segments.

The image below shows illustrates an example of swept disk solid geometry. Directrix given as IfcIndexedPolyCurve, having linear and circular arc segments, that are tangent continuous between each segments Directrix being a bounded and open curve No StartParam and EndParam are provided, start and end default to start and end of the bounded curve of the Directrix

Definition at line 55 of file Ifc2x3/IfcSweptDiskSolidAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcSweptDiskSolid()

OdIfc2x3::IfcSweptDiskSolid::IfcSweptDiskSolid ( )

Default constructor for the IfcSweptDiskSolid class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcSweptDiskSolid::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcSolidModel.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcSweptDiskSolid::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcSweptDiskSolid::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ getDirectrix()

const OdDAIObjectId & OdIfc2x3::IfcSweptDiskSolid::getDirectrix ( ) const

Returns the value of Directrix attribute. This attribute represents the curve used to define the sweeping operation. The solid is generated by sweeping a circular disk along the Directrix.

Returns: Returns the value of Directrix attribute.

◆ getEndParam()

double OdIfc2x3::IfcSweptDiskSolid::getEndParam ( ) const

Returns the value of EndParam attribute. This attribute represents the parameter value on the Directrix at which the sweeping operation ends. If no value is provided, the end of the sweeping operation is at the end of the Directrix.

Returns: Returns the value of EndParam attribute.

◆ getInnerRadius()

double OdIfc2x3::IfcSweptDiskSolid::getInnerRadius ( ) const

Returns the value of InnerRadius attribute. This is an optional attribute represents the radius of a circular hole in the centre of the disk.

Returns: Returns the value of InnerRadius attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcSweptDiskSolid::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcSolidModel.

◆ getRadius()

double OdIfc2x3::IfcSweptDiskSolid::getRadius ( ) const

Returns the value of Radius attribute. This attribute represents the Radius of the circular disk to be swept along the Directrix. Denotes the outer radius, if an InnerRadius is applied.

Returns: Returns the value of Radius attribute.

◆ getStartParam()

double OdIfc2x3::IfcSweptDiskSolid::getStartParam ( ) const

Returns the value of StartParam attribute. This attribute represents the parameter value on the Directrix at which the sweeping operation commences. If no value is provided, the start of the sweeping operation is at the start of the Directrix.

Returns: Returns the value of StartParam attribute.

◆ inFields()

virtual OdResult OdIfc2x3::IfcSweptDiskSolid::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ isKindOf()

virtual bool OdIfc2x3::IfcSweptDiskSolid::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcSolidModel.

◆ outFields()

virtual OdResult OdIfc2x3::IfcSweptDiskSolid::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcSweptDiskSolid::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcSweptDiskSolid::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ setDirectrix()

void OdIfc2x3::IfcSweptDiskSolid::setDirectrix ( const OdDAIObjectId & Directrix )

Sets the value of Directrix attribute. This attribute represents the curve used to define the sweeping operation. The solid is generated by sweeping a circular disk along the Directrix.

Parameters

Directrix [in] Directrix to set.

◆ setEndParam()

void OdIfc2x3::IfcSweptDiskSolid::setEndParam ( double EndParam )

Sets the value of EndParam attribute. This attribute represents the parameter value on the Directrix at which the sweeping operation ends. If no value is provided, the end of the sweeping operation is at the end of the Directrix.

Parameters

EndParam [in] End parameter to set.

◆ setInnerRadius()

void OdIfc2x3::IfcSweptDiskSolid::setInnerRadius ( double InnerRadius )

Sets the value of InnerRadius attribute. This is an optional attribute represents the radius of a circular hole in the centre of the disk.

Parameters

InnerRadius [in] Inner radius to set.

◆ setRadius()

void OdIfc2x3::IfcSweptDiskSolid::setRadius ( double Radius )

Sets the value of Radius attribute. This attribute represents the Radius of the circular disk to be swept along the Directrix. Denotes the outer radius, if an InnerRadius is applied.

Parameters

Radius [in] Radius to set.

◆ setStartParam()

void OdIfc2x3::IfcSweptDiskSolid::setStartParam ( double StartParam )

Sets the value of StartParam attribute. This attribute represents the parameter value on the Directrix at which the sweeping operation commences. If no value is provided, the start of the sweeping operation is at the start of the Directrix.

Parameters

StartParam [in] Start parameter to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcSweptDiskSolid::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcSweptDiskSolid::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcSweptDiskSolid::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcSolidModel.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcSweptDiskSolid::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcSweptDiskSolid::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcRepresentationItem.

Member Data Documentation

◆ m_Directrix

OdDAIObjectId OdIfc2x3::IfcSweptDiskSolid::m_Directrix

protected

Definition at line 281 of file Ifc2x3/IfcSweptDiskSolidAutoImpl.h.

◆ m_EndParam

double OdIfc2x3::IfcSweptDiskSolid::m_EndParam

protected

Definition at line 285 of file Ifc2x3/IfcSweptDiskSolidAutoImpl.h.

◆ m_InnerRadius

IfcPositiveLengthMeasure OdIfc2x3::IfcSweptDiskSolid::m_InnerRadius

protected

Definition at line 283 of file Ifc2x3/IfcSweptDiskSolidAutoImpl.h.

◆ m_Radius

IfcPositiveLengthMeasure OdIfc2x3::IfcSweptDiskSolid::m_Radius

protected

Definition at line 282 of file Ifc2x3/IfcSweptDiskSolidAutoImpl.h.

◆ m_StartParam

double OdIfc2x3::IfcSweptDiskSolid::m_StartParam

protected

Definition at line 284 of file Ifc2x3/IfcSweptDiskSolidAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcSweptDiskSolidAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcSweptDiskSolid()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getDirectrix()

◆ getEndParam()

◆ getInnerRadius()

◆ getInstanceType()

◆ getRadius()

◆ getStartParam()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setDirectrix()

◆ setEndParam()

◆ setInnerRadius()

◆ setRadius()

◆ setStartParam()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_Directrix

◆ m_EndParam

◆ m_InnerRadius

◆ m_Radius

◆ m_StartParam
