#include <GiDummyGeometry.h>

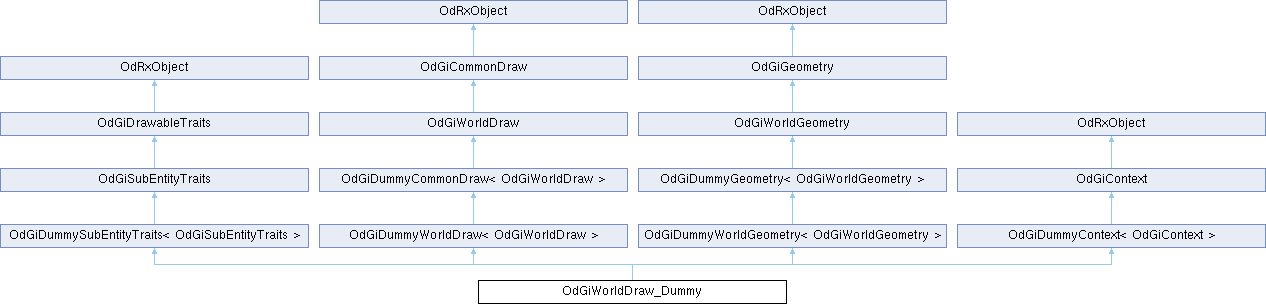

Inheritance diagram for OdGiWorldDraw_Dummy:

Public Member Functions
	ODRX_USING_HEAP_OPERATORS (OdGiDummySubEntityTraits< OdGiSubEntityTraits >)

	OdGiWorldDraw_Dummy (OdDbBaseDatabase *pDb=0)

virtual OdDbBaseDatabase *	database () const

virtual OdGiGeometry &	rawGeometry () const

virtual OdGiSubEntityTraits &	subEntityTraits () const

virtual OdGiWorldGeometry &	geometry () const

virtual OdGiContext *	context () const

void	addRef ()

void	release () ODRX_NOEXCEPT

Public Member Functions inherited from OdGiDummySubEntityTraits< OdGiSubEntityTraits >
void	setColor (OdUInt16 color)

void	setTrueColor (const OdCmEntityColor &color)

void	setLayer (OdDbStub *layerId)

void	setLineType (OdDbStub *lineTypeId)

void	setSelectionMarker (OdGsMarker selectionMarker)

void	setFillType (OdGiFillType fillType)

void	setFillPlane (const OdGeVector3d *pNormal=0)

void	setLineWeight (OdDb::LineWeight lineWeight)

void	setLineTypeScale (double lineTypeScale=1.0)

void	setThickness (double thickness)

void	setPlotStyleName (OdDb::PlotStyleNameType plotStyleNameType, OdDbStub *pPlotStyleNameId=0)

void	setMaterial (OdDbStub *materialId)

void	setMapper (const OdGiMapper *pMapper)

void	setVisualStyle (const OdDbStub *visualStyleId)

void	setTransparency (const OdCmTransparency &transparency)

void	setDrawFlags (OdUInt32 drawFlags)

void	setLockFlags (OdUInt32 lockFlags)

void	setSelectionGeom (bool bSelectionFlag)

void	setShadowFlags (OdGiSubEntityTraits::ShadowFlags shadowFlags)

void	setSectionable (bool bSectionableFlag)

void	setSelectionFlags (OdGiSubEntityTraits::SelectionFlags selectionFlags)

OdUInt16	color () const

OdCmEntityColor	trueColor () const

OdDbStub *	layer () const

OdDbStub *	lineType () const

OdGiFillType	fillType () const

bool	fillPlane (OdGeVector3d &normal)

OdDb::LineWeight	lineWeight () const

double	lineTypeScale () const

double	thickness () const

OdDb::PlotStyleNameType	plotStyleNameType () const

OdDbStub *	plotStyleNameId () const

OdDbStub *	material () const

const OdGiMapper *	mapper () const

void	addLight (const OdDbStub *)

OdCmTransparency	transparency () const

OdUInt32	drawFlags () const

OdUInt32	lockFlags () const

bool	selectionGeom () const

OdGiSubEntityTraits::ShadowFlags	shadowFlags () const

bool	sectionable () const

OdGiSubEntityTraits::SelectionFlags	selectionFlags () const

Public Member Functions inherited from OdGiSubEntityTraits
	ODRX_DECLARE_MEMBERS (OdGiSubEntityTraits)

virtual OdDbStub *	visualStyle () const

virtual void	setSecondaryTrueColor (const OdCmEntityColor &color)

virtual OdCmEntityColor	secondaryTrueColor () const

virtual void	setLineStyleModifiers (const OdGiDgLinetypeModifiers *pLSMod)

virtual const OdGiDgLinetypeModifiers *	lineStyleModifiers () const

virtual void	setFill (const OdGiFill *pFill)

virtual const OdGiFill *	fill () const

virtual void	setAuxData (const OdGiAuxiliaryDataPtr &pAuxData)

virtual OdGiAuxiliaryDataPtr	auxData () const

virtual bool	pushLineweightOverride (const OdGiLineweightOverride *pOverride)

virtual void	popLineweightOverride ()

virtual bool	pushPaletteOverride (const OdGiPalette *pOverride)

virtual void	popPaletteOverride ()

virtual OdUInt32	setupForEntity () const

Public Member Functions inherited from OdGiDrawableTraits
	ODRX_DECLARE_MEMBERS (OdGiDrawableTraits)

Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()

	OdRxObject ()

virtual	~OdRxObject ()

virtual OdRxObject *	queryX (const OdRxClass *pClass) const

virtual OdRxObject *	x (const OdRxClass *pClass) const

virtual OdRxClass *	isA () const

virtual long	numRefs () const

bool	isKindOf (const OdRxClass *pClass) const

virtual OdRxObjectPtr	clone () const

virtual void	copyFrom (const OdRxObject *pSource)

virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const

virtual bool	isEqualTo (const OdRxObject *pOther) const

Public Member Functions inherited from OdGiDummyCommonDraw< OdGiWorldDraw >
virtual OdGiRegenType	regenType () const

virtual bool	regenAbort () const

virtual bool	isDragging () const

virtual OdUInt32	numberOfIsolines () const

virtual double	deviation (const OdGiDeviationType t, const OdGePoint3d &p) const

Public Member Functions inherited from OdGiWorldDraw
	ODRX_DECLARE_MEMBERS (OdGiWorldDraw)

Public Member Functions inherited from OdGiCommonDraw
	ODRX_DECLARE_MEMBERS (OdGiCommonDraw)

virtual const OdGiPathNode *	currentGiPath () const

virtual bool	displayModelerSilhouettes () const

Public Member Functions inherited from OdGiDummyWorldGeometry< OdGiWorldGeometry >
virtual void	setExtents (const OdGePoint3d *newExtents)

virtual void	startAttributesSegment ()

Public Member Functions inherited from OdGiDummyGeometry< OdGiWorldGeometry >
void	circle (const OdGePoint3d &center, double radius, const OdGeVector3d &normal)

void	circle (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint)

void	circularArc (const OdGePoint3d &center, double radius, const OdGeVector3d &normal, const OdGeVector3d &startVector, double sweepAngle, OdGiArcType arcType=kOdGiArcSimple)

void	circularArc (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint, OdGiArcType arcType=kOdGiArcSimple)

void	polyline (OdInt32 numVertices, const OdGePoint3d vertexList, const OdGeVector3d pNormal=0, OdGsMarker baseSubEntMarker=-1)

void	polygon (OdInt32 numVertices, const OdGePoint3d *vertexList)

void	polygon (OdInt32 numVertices, const OdGePoint3d vertexList, const OdGeVector3d pNormal)

void	pline (const OdGiPolyline &polylPine, OdUInt32 fromIndex=0, OdUInt32 numSegs=0)

void	shape (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, int shapeNumber, const OdGiTextStyle *pTextStyle)

void	text (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, double height, double width, double oblique, const OdString &msg)

void	text (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, const OdChar msg, OdInt32 length, bool raw, const OdGiTextStyle pTextStyle)

void	xline (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint)

void	ray (const OdGePoint3d &basePoint, const OdGePoint3d &throughPoint)

void	nurbs (const OdGeNurbCurve3d &nurbsCurve)

void	ellipArc (const OdGeEllipArc3d &ellipArc, const OdGePoint3d *endPointsOverrides=0, OdGiArcType arcType=kOdGiArcSimple)

void	mesh (OdInt32 numRows, OdInt32 numColumns, const OdGePoint3d vertexList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData pVertexData=0)

void	shell (OdInt32 numVertices, const OdGePoint3d vertexList, OdInt32 faceListSize, const OdInt32 faceList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData *pVertexData=0)

void	worldLine (const OdGePoint3d points[2])

void	image (const OdGiImageBGRA32 &img, const OdGePoint3d &origin, const OdGeVector3d &uVec, const OdGeVector3d &vVec, OdGiRasterImage::TransparencyMode trpMode=OdGiRasterImage::kTransparency8Bit)

virtual void	edge (const OdGiEdge2dArray &edges)

void	polypoint (OdInt32 numPoints, const OdGePoint3d vertexList, const OdCmEntityColor pColors, const OdCmTransparency pTransparency, const OdGeVector3d pNormals, const OdGsMarker *pSubEntMarkers, OdInt32 nPointSize)

virtual void	polyPolygon (OdUInt32 numIndices, const OdUInt32 pNumPositions, const OdGePoint3d pPositions, const OdUInt32 pNumPoints, const OdGePoint3d pPoints, const OdCmEntityColor pOutlineColors=NULL, const OdUInt32 pOutlinePsLinetypes=NULL, const OdCmEntityColor pFillColors=NULL, const OdCmTransparency pFillTransparencies=NULL)

void	rowOfDots (OdInt32 numPoints, const OdGePoint3d &startPoint, const OdGeVector3d &dirToNextPoint)

void	pointCloud (const OdGiPointCloud &pCloud)

void	pushClipBoundary (OdGiClipBoundary *pBoundary)

void	popClipBoundary ()

void	draw (const OdGiDrawable *pDrawable)

void	pushModelTransform (const OdGeMatrix3d &xMat)

void	pushModelTransform (const OdGeVector3d &normal)

void	popModelTransform ()

OdGeMatrix3d	getModelToWorldTransform () const

OdGeMatrix3d	getWorldToModelTransform () const

bool	brep (const OdGiBrep &)

Public Member Functions inherited from OdGiWorldGeometry
	ODRX_DECLARE_MEMBERS (OdGiWorldGeometry)

Public Member Functions inherited from OdGiGeometry
	ODRX_DECLARE_MEMBERS (OdGiGeometry)

virtual const OdGiPathNode *	currentGiPath () const

virtual void	pushClipBoundary (OdGiClipBoundary pBoundary, OdGiAbstractClipBoundary pClipInfo)

ODRX_SEALED_VIRTUAL void	polypoint (OdInt32 numPoints, const OdGePoint3d vertexList, const OdCmEntityColor pColors, const OdGeVector3d pNormals=NULL, const OdGsMarker pSubEntMarkers=NULL) ODRX_FINAL

ODRX_SEALED_VIRTUAL void	polypoint (OdInt32 numPoints, const OdGePoint3d vertexList, const OdGeVector3d pNormals=NULL, const OdGsMarker *pSubEntMarkers=NULL) ODRX_FINAL

Public Member Functions inherited from OdGiDummyContext< OdGiContext >
virtual OdGiDrawablePtr	openDrawable (OdDbStub *)

Public Member Functions inherited from OdGiContext
	ODRX_DECLARE_MEMBERS (OdGiContext)

virtual OdDb::LineWeight	defaultLineWeight () const

virtual double	commonLinetypeScale () const

virtual void	getDefaultTextStyle (OdGiTextStyle &textStyle)

virtual void	drawShape (OdGiCommonDraw pDraw, OdGePoint3d &position, int shapeNumber, const OdGiTextStyle pTextStyle)

virtual void	drawShape (OdGiConveyorGeometry pDest, const OdGePoint3d &position, const OdGeVector3d &direction, const OdGeVector3d &upVector, int shapeNumber, const OdGiTextStyle pTextStyle, const OdGeVector3d *pExtrusion)

virtual void	drawText (OdGiCommonDraw pDraw, OdGePoint3d &position, const OdChar msg, OdInt32 numBytes, const OdGiTextStyle *pTextStyle, OdUInt32 flags=0)

virtual void	drawText (OdGiCommonDraw *pDraw, OdGePoint3d &position, double height, double width, double oblique, const OdString &msg)

virtual void	drawText (OdGiConveyorGeometry pDest, const OdGePoint3d &position, const OdGeVector3d &direction, const OdGeVector3d &upVector, const OdChar msg, OdInt32 numBytes, bool raw, const OdGiTextStyle pTextStyle, const OdGeVector3d pExtrusion)

virtual void	textExtentsBox (const OdGiTextStyle &textStyle, const OdChar msg, int nLength, OdUInt32 flags, OdGePoint3d &min, OdGePoint3d &max, OdGePoint3d pEndPos=0)

virtual void	shapeExtentsBox (const OdGiTextStyle &textStyle, int shapeNumber, OdGePoint3d &min, OdGePoint3d &max)

virtual unsigned int	circleZoomPercent (OdDbStub *viewportId) const

virtual bool	isPlotGeneration () const

virtual ODCOLORREF	paletteBackground () const

virtual bool	fillTtf () const

virtual OdUInt32	numberOfIsolines () const

virtual bool	fillMode () const

virtual bool	quickTextMode () const

virtual OdUInt32	textQuality () const

virtual bool	useTtfTriangleCache () const

virtual double	getAnnotationScale (OdDbStub *viewportId)

virtual ImageQuality	imageQuality () const

virtual OdUInt32	imageSelectionBehavior () const

virtual OdUInt32	fadingIntensityPercentage (FadingType fadingType) const

virtual OdUInt32	glyphSize (GlyphType glyphType) const

virtual OdUInt32	lineWeightConfiguration (LineWeightStyle styleEntry) const

virtual OdUInt32	selectionStyle (OdUInt32 nStyle, OdGiSelectionStyle &selStyle) const

virtual CoordinatesSystem	customViewportGeometryCS (CoordinatesSystem csType) const

virtual OdIntPtr	drawableFilterFunctionId (OdDbStub *viewportId) const

virtual OdUInt32	drawableFilterFunction (OdIntPtr functionId, const OdGiDrawable *pDrawable, OdUInt32 nFlags) ODRX_FINAL

virtual OdUInt32	drawableFilterFunction (OdIntPtr functionId, const OdGiPathNode *pPathNode, OdUInt32 nFlags)

virtual bool	ttfPolyDraw () const

virtual bool	regenAbort () const

virtual PStyleType	plotStyleType () const

virtual void	plotStyle (int penNumber, OdPsPlotStyleData &plotStyleData) const

virtual void	plotStyle (OdDbStub *objectId, OdPsPlotStyleData &plotStyleData) const

virtual OdDbStub *	getStubByID (OdUInt64 persistentId) const

virtual OdUInt64	getIDByStub (OdDbStub *objectId) const

virtual OdDbBaseDatabase *	getDatabaseByStub (OdDbStub *objectId) const

virtual OdDbStub *	getOwnerIDByStub (OdDbStub *objectId) const

virtual OdDbStub *	getStubByMatName (OdDbBaseDatabase *pBaseDb, const OdString &strMatName) const

virtual OdDbStub *	getStubByMaterialId (OdDbBaseDatabase *pBaseDb, const OdUInt64 &materialId) const

virtual OdUInt32	displaySilhouettes () const

bool	displayMeshSilhouettes () const

bool	displayModelerSilhouettes () const

virtual OdGiSectionGeometryManagerPtr	getSectionGeometryManager ()

virtual OdUInt32	antiAliasingMode () const

virtual bool	xrefPropertiesOverride () const

virtual bool	multiplyByBlockLinetypeScales () const

Additional Inherited Members
Public Types inherited from OdGiSubEntityTraits
enum	DrawFlags { kNoDrawFlags = 0x0000 , kDrawBackfaces = 0x0001 , kDrawHatchGroup = 0x0002 , kDrawFrontfacesOnly = 0x0004 , kDrawGradientFill = 0x0008 , kDrawSolidFill = 0x0010 , kDrawNoLineWeight = 0x0020 , kDrawNoPlotstyle = 0x0080 , kDrawContourFill = 0x08000 , kDisableLayoutCache = 0x10000 , kDrawBoundaryForClipping = 0x20000 , kDrawBoundaryForClippingDrw = 0x40000 , kClipSetIsEmpty = 0x80000 , kDrawPolygonFill = 0x100000 , kExcludeFromViewExt = 0x200000 , kDrawDgLsPolyWithoutBreaks = 0x400000 , kPolygonProcessing = 0x800000 , kDisableAutoGenerateNormals = 0x1000000 , kDisableFillModeCheck = 0x2000000 , kDrawUnderlayReference = 0x4000000 , kLineStyleScaleOverride = 0x8000000 , kDisableDisplayClipping = 0x10000000 , kRegenTypeDependent2dDraw = 0x20000000 , kInternalDrawFlags = kDisableLayoutCache \| kClipSetIsEmpty \| kRegenTypeDependent2dDraw , kDrawGeometryForExtents = 0x04000 , kFxNoFillOnSelect = 0x40000000 , kInheritableDrawFlags }

enum	LockFlags { kNoLockFlags = 0x00000000 , kLockColors = 0x00000001 , kLockLineWeight = 0x00000002 , kLockLineType = 0x00000004 , kLockLineTypeScale = 0x00000008 , kLockLayer = 0x00000010 , kLockByBlockLayer = 0x00000020 , kKeepAuxDataAndLockFlags = 0x00000040 , kInheritableLockFlags = kLockColors \| kLockLineWeight \| kLockLineType \| kLockLineTypeScale \| kLockLayer \| kKeepAuxDataAndLockFlags }

enum	ShadowFlags { kShadowsCastAndReceive = 0 , kShadowsDoesNotCast = 1 , kShadowsDoesNotReceive = 2 , kShadowsIgnore = kShadowsDoesNotCast \| kShadowsDoesNotReceive }

enum	SelectionFlags { kNoSelectionFlags = 0 , kSelectionIgnore = 1 , kHighlightingGeometry = 2 , kHiddenInHighlight = 4 , kFxSubentitySelection = 0x80 }

enum	SubEntityHints { kHint2DAttributes = 1 , kHint3DAttributes = 2 , kHintAllAttributes = kHint2DAttributes \| kHint3DAttributes , kHintSnapModeOn = 4 , kHintDefaultState = kHintAllAttributes }

Public Types inherited from OdGiContext
enum	ImageQuality { kImageQualityDraft = 0 , kImageQualityHigh = 1 }

enum	ImageSelectionFlags { kImageHighlight = (1 << 0) , kImageSelect = (1 << 1) }

enum	FadingType { kLockedLayerFade = 0 , kXrefFade = 1 , kRefEditFade = 2 }

enum	GlyphType { kLightGlyph = 0 , kCameraGlyph = 1 }

enum	LineWeightStyle { kPointLineWeight = 0 , kLineCapStyle = 1 , kLineJoinStyle = 2 }

enum	CoordinatesSystem { kWCS = 0 , kECS = 1 , kNDC = 2 , kDCS = 3 }

enum	DrawableFilterInputFlags { kNestedDrawable = 0x1000000 }

enum	DrawableFilterOutputFlags { kSkipVectorization = 1 }

enum	DrawableFilterRanges { kDrawableFilterAppRangeStart = 0x1000000 , kDrawableFilterAppRangeMask = (OdInt32)0xFF000000 }

enum	PStyleType { kPsNone = 0 , kPsByColor = 1 , kPsByName = 2 }

enum	SilhouetteType { kNoSilhouettes = 0 , kMeshSilhouettes = (1 << 0) , kModelerSilhouettes = (1 << 1) , kAllSilhouettes = kMeshSilhouettes \| kModelerSilhouettes }

Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)

static OdRxClass *	desc ()

static void	rxInit ()

static void	rxUninit ()

Detailed Description

Corresponding C++ library: TD_Gi <group OdGi_Classes>

Definition at line 3468 of file GiDummyGeometry.h.

Constructor & Destructor Documentation

◆ OdGiWorldDraw_Dummy()

OdGiWorldDraw_Dummy::OdGiWorldDraw_Dummy ( OdDbBaseDatabase * pDb = 0 )

inline

Constructor for the OdGiWorldDraw_Dummy class. Creates an object with the associated database specified by the pDb parameter.

Parameters

pDb	[in] Pointer to a database.

Definition at line 3482 of file GiDummyGeometry.h.

Member Function Documentation

◆ addRef()

void OdGiWorldDraw_Dummy::addRef ( )

inlinevirtual

Adds reference to this object. Currently not implemented.

Implements OdRxObject.

Definition at line 3530 of file GiDummyGeometry.h.

◆ context()

virtual OdGiContext * OdGiWorldDraw_Dummy::context ( ) const

inlinevirtual

Retrieves context associated with this object.

Returns: Pointer to the associated context.

Implements OdGiCommonDraw.

Definition at line 3525 of file GiDummyGeometry.h.

◆ database()

virtual OdDbBaseDatabase * OdGiWorldDraw_Dummy::database ( ) const

inlinevirtual

Retrieves a pointer to an associated database.

Returns: pointer to an associated database.

Reimplemented from OdGiDummyContext< OdGiContext >.

Definition at line 3490 of file GiDummyGeometry.h.

◆ geometry()

virtual OdGiWorldGeometry & OdGiWorldDraw_Dummy::geometry ( ) const

inlinevirtual

Retrieves a world geometry associated with this object.

Returns: reference to a world geometry as OdGiWorldGeometry instance.

Implements OdGiWorldDraw.

Definition at line 3517 of file GiDummyGeometry.h.

◆ ODRX_USING_HEAP_OPERATORS()

OdGiWorldDraw_Dummy::ODRX_USING_HEAP_OPERATORS ( OdGiDummySubEntityTraits< OdGiSubEntityTraits > )

◆ rawGeometry()

virtual OdGiGeometry & OdGiWorldDraw_Dummy::rawGeometry ( ) const

inlinevirtual

Retrieves raw geometry associated with this object.

Returns: raw geometry.

Implements OdGiCommonDraw.

Definition at line 3498 of file GiDummyGeometry.h.

◆ release()

void OdGiWorldDraw_Dummy::release ( )

inlinevirtual

Releases reference to this object. Currently not implemented.

Implements OdRxObject.

Definition at line 3535 of file GiDummyGeometry.h.

◆ subEntityTraits()

virtual OdGiSubEntityTraits & OdGiWorldDraw_Dummy::subEntityTraits ( ) const

inlinevirtual

Provides access to this object's sub-entity traits.

Returns: sub-entity traits of this object.

Remarks: This allows the modification of the vectorization attributes such as color, linetype, etc.

Implements OdGiCommonDraw.

Definition at line 3509 of file GiDummyGeometry.h.

The documentation for this class was generated from the following file:

GiDummyGeometry.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ OdGiWorldDraw_Dummy()

Member Function Documentation

◆ addRef()

◆ context()

◆ database()

◆ geometry()

◆ ODRX_USING_HEAP_OPERATORS()

◆ rawGeometry()

◆ release()

◆ subEntityTraits()
