#include <GiCommonDraw.h>

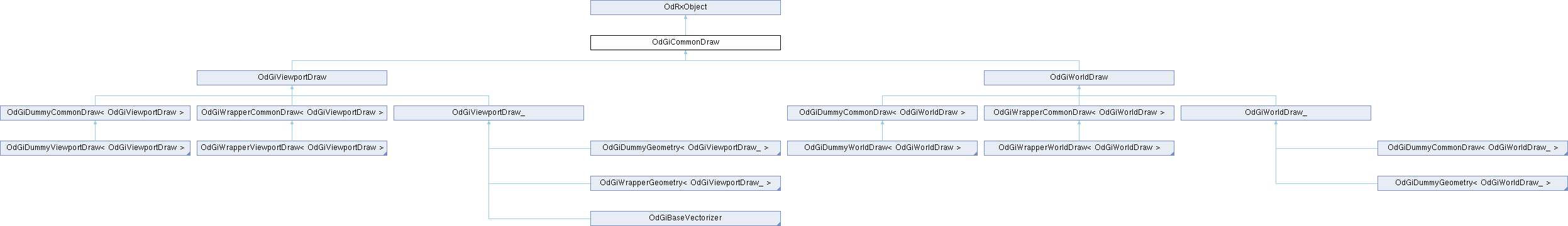

Inheritance diagram for OdGiCommonDraw:

Public Member Functions
	ODRX_DECLARE_MEMBERS (OdGiCommonDraw)

virtual OdGiRegenType	regenType () const =0

virtual bool	regenAbort () const =0

virtual OdGiSubEntityTraits &	subEntityTraits () const =0

virtual OdGiGeometry &	rawGeometry () const =0

virtual bool	isDragging () const =0

virtual double	deviation (const OdGiDeviationType deviationType, const OdGePoint3d &pointOnCurve) const =0

virtual OdUInt32	numberOfIsolines () const =0

virtual OdGiContext *	context () const =0

virtual const OdGiPathNode *	currentGiPath () const

virtual bool	displayModelerSilhouettes () const

Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()

	OdRxObject ()

virtual	~OdRxObject ()

virtual OdRxObject *	queryX (const OdRxClass *pClass) const

virtual OdRxObject *	x (const OdRxClass *pClass) const

virtual OdRxClass *	isA () const

virtual void	addRef ()=0

virtual void	release ()=0

virtual long	numRefs () const

bool	isKindOf (const OdRxClass *pClass) const

virtual OdRxObjectPtr	clone () const

virtual void	copyFrom (const OdRxObject *pSource)

virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const

virtual bool	isEqualTo (const OdRxObject *pOther) const

Additional Inherited Members
Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)

static OdRxClass *	desc ()

static void	rxInit ()

static void	rxUninit ()

Detailed Description

This class is the base class for entity-level vectorization within the ODA Platform.

See also: TD_Gi

Definition at line 786 of file GiCommonDraw.h.

Member Function Documentation

◆ context()

virtual OdGiContext * OdGiCommonDraw::context ( ) const

pure virtual

Retrieves context associated with this object.

Returns: Pointer to the associated context.

Implemented in OdGiBaseVectorizer, OdGiLayerTraitsTaker, OdGiLayerTraitsTakerView, OdGiViewportDraw_Dummy, OdGiWorldDraw_Dummy, OdGiWorldDrawImpl, OdGiWrapperCommonDraw< OdGiViewportDraw >, and OdGiWrapperCommonDraw< OdGiWorldDraw >.

◆ currentGiPath()

virtual const OdGiPathNode * OdGiCommonDraw::currentGiPath ( ) const

virtual

Retrieves the current drawable nesting graph.

Returns: current drawable nesting graph.

Reimplemented in OdGiBaseVectorizer, OdGiViewportDraw_, OdGiWorldDraw_, OdGiWrapperCommonDraw< OdGiViewportDraw >, and OdGiWrapperCommonDraw< OdGiWorldDraw >.

◆ deviation()

virtual double OdGiCommonDraw::deviation	(	const OdGiDeviationType	deviationType,
		const OdGePoint3d &	pointOnCurve ) const

pure virtual

Retrieves the recommended maximum deviation of the current vectorization for the specified point on a curve.

Parameters

deviationType	[in] Deviation type.
pointOnCurve	[in] Point on a curve.

Returns: recommended maximum difference (with respect to the current active viewport) between the actual curve or surface, and the tessellated curve or surface.

Remarks: deviationType must be one of the following:

Value kOdGiMaxDevForCircle 0
kOdGiMaxDevForCurve 1
kOdGiMaxDevForBoundary 2
kOdGiMaxDevForIsoline 3 kOdGiMaxDevForFacet 4

Remarks: This method uses circle zoom percent as appropriate.

Implemented in OdGiBaseVectorizer, OdGiBaseVectorizerImpl, OdGiDummyCommonDraw< OdGiDummyViewportGeometry< OdGiViewportDraw_ > >, OdGiDummyCommonDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > >, OdGiDummyCommonDraw< OdGiViewportDraw >, OdGiDummyCommonDraw< OdGiWorldDraw >, OdGiDummyCommonDraw< OdGiWorldDraw_ >, OdGiDummyCommonDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >, OdGiLayerTraitsTaker, OdGiLayerTraitsTakerView, OdGiWrapperCommonDraw< OdGiViewportDraw >, OdGiWrapperCommonDraw< OdGiWorldDraw >, and OdGsBaseVectorizer.

◆ displayModelerSilhouettes()

virtual bool OdGiCommonDraw::displayModelerSilhouettes ( ) const

virtual

Checks whether silhouette curves should be generated (basically should return OdDbDatabase::getDISPSILH, but the behavior could be specialized).

Returns: true if silhouette curves should be generated, false otherwise.

Reimplemented in OdGiWrapperCommonDraw< OdGiViewportDraw >, and OdGiWrapperCommonDraw< OdGiWorldDraw >.

◆ isDragging()

virtual bool OdGiCommonDraw::isDragging ( ) const

pure virtual

Checks whether this vectorization process is the result of a "drag" operation.

Returns: true if this vectorization process is the result of a "drag" operation, false otherwise.

Implemented in OdGiBaseVectorizer, OdGiDummyCommonDraw< OdGiDummyViewportGeometry< OdGiViewportDraw_ > >, OdGiDummyCommonDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > >, OdGiDummyCommonDraw< OdGiViewportDraw >, OdGiDummyCommonDraw< OdGiWorldDraw >, OdGiDummyCommonDraw< OdGiWorldDraw_ >, OdGiDummyCommonDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >, OdGiLayerTraitsTaker, OdGiWrapperCommonDraw< OdGiViewportDraw >, OdGiWrapperCommonDraw< OdGiWorldDraw >, and OdGsBaseVectorizer.

◆ numberOfIsolines()

virtual OdUInt32 OdGiCommonDraw::numberOfIsolines ( ) const

pure virtual

Retrieves the number of isolines to be drawn on surfaces during this vectorization.

Returns: number of isolines.

Remarks: Isolines are lines or curves which are used to represent the entity. For example, if an entity is a sphere and this method returns 3, the sphere should be displayed as 3 circles with a common center and planes that are perpendicular to each other.

Implemented in OdGiBaseVectorizer, OdGiDummyCommonDraw< OdGiDummyViewportGeometry< OdGiViewportDraw_ > >, OdGiDummyCommonDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > >, OdGiDummyCommonDraw< OdGiViewportDraw >, OdGiDummyCommonDraw< OdGiWorldDraw >, OdGiDummyCommonDraw< OdGiWorldDraw_ >, OdGiDummyCommonDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >, OdGiLayerTraitsTaker, OdGiLayerTraitsTakerView, OdGiWorldDrawImpl, OdGiWrapperCommonDraw< OdGiViewportDraw >, and OdGiWrapperCommonDraw< OdGiWorldDraw >.

◆ ODRX_DECLARE_MEMBERS()

OdGiCommonDraw::ODRX_DECLARE_MEMBERS ( OdGiCommonDraw )

◆ rawGeometry()

virtual OdGiGeometry & OdGiCommonDraw::rawGeometry ( ) const

pure virtual

Provides access to this object's "drawing interface."

Remarks: The "drawing interface" is a set of geometry functions used during the vectorization process.

Implemented in OdGiBaseVectorizer, OdGiLayerTraitsTaker, OdGiViewportDraw_Dummy, OdGiViewportDraw_Stub, OdGiWorldDraw_Dummy, OdGiWorldDraw_Stub, OdGiWorldDrawImpl, OdGiWrapperCommonDraw< OdGiViewportDraw >, and OdGiWrapperCommonDraw< OdGiWorldDraw >.

◆ regenAbort()

virtual bool OdGiCommonDraw::regenAbort ( ) const

pure virtual

Checks whether this vectorization process should be aborted.

Returns: true if this vectorization process should be aborted.

Implemented in OdGiBaseVectorizer, OdGiDummyCommonDraw< OdGiDummyViewportGeometry< OdGiViewportDraw_ > >, OdGiDummyCommonDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > >, OdGiDummyCommonDraw< OdGiViewportDraw >, OdGiDummyCommonDraw< OdGiWorldDraw >, OdGiDummyCommonDraw< OdGiWorldDraw_ >, OdGiDummyCommonDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >, OdGiExtCalc, OdGiLayerTraitsTaker, OdGiLayerTraitsTakerView, OdGiWrapperCommonDraw< OdGiViewportDraw >, OdGiWrapperCommonDraw< OdGiWorldDraw >, and OdGsBaseVectorizer.

◆ regenType()

virtual OdGiRegenType OdGiCommonDraw::regenType ( ) const

pure virtual

Retrieves the regeneration type of the current vectorization process.

Returns: one of the following regeneration types:

Value eOdGiRegenTypeInvalid 0 kOdGiStandardDisplay 2 kOdGiHideOrShadeCommand 3 kOdGiRenderCommand 4 kOdGiForExplode 5 kOdGiSaveWorldDrawForProxy 6 kOdGiForExtents 7

Implemented in AECGe::Harvester, OdGiBaseVectorizer, OdGiBaseVectorizerImpl, OdGiDummyCommonDraw< OdGiDummyViewportGeometry< OdGiViewportDraw_ > >, OdGiDummyCommonDraw< OdGiDummyWorldGeometry< OdGiWorldDraw_ > >, OdGiDummyCommonDraw< OdGiViewportDraw >, OdGiDummyCommonDraw< OdGiWorldDraw >, OdGiDummyCommonDraw< OdGiWorldDraw_ >, OdGiDummyCommonDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >, OdGiExtCalc, OdGiLayerTraitsTaker, OdGiLayerTraitsTakerView, OdGiWrapperCommonDraw< OdGiViewportDraw >, and OdGiWrapperCommonDraw< OdGiWorldDraw >.

◆ subEntityTraits()

virtual OdGiSubEntityTraits & OdGiCommonDraw::subEntityTraits ( ) const

pure virtual

Provides access to this object's subentity traits.

Returns: sub-entity traits.

Remarks: This allows the modification of the vectorization attributes such as color, linetype, etc.

Implemented in OdGiBaseVectorizer, OdGiLayerTraitsTaker, OdGiViewportDraw_Dummy, OdGiViewportDraw_Stub, OdGiWorldDraw_Dummy, OdGiWorldDraw_Stub, OdGiWorldDrawImpl, OdGiWrapperCommonDraw< OdGiViewportDraw >, and OdGiWrapperCommonDraw< OdGiWorldDraw >.

The documentation for this class was generated from the following file:

GiCommonDraw.h
