#include <IfcRelDefinesAutoImpl.h>

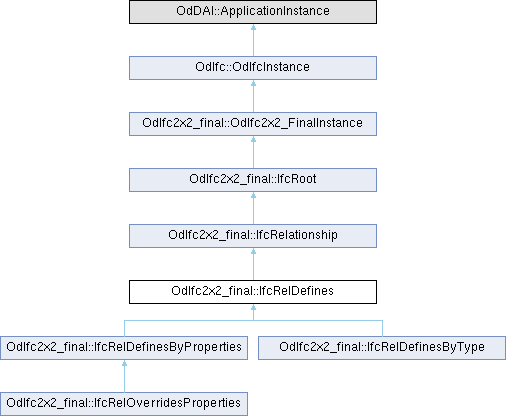

Inheritance diagram for OdIfc2x2_final::IfcRelDefines:

Public Member Functions
void	getRelatedObjects (OdDAIObjectIds &RelatedObjects) const

OdDAI::SetOfOdDAIObjectId &	relatedObjects ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::SetOfOdDAIObjectId	m_RelatedObjects

Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

This class represents a generic and abstract relationship which subtypes are used to: Assign a object type to an object occurrence. Assign a property set to an object instance. Assign a property set template to a property set.

Remarks: EXAMPLE: Several instances of windows within the IFC project model can be of the same (catalogue or manufacturer) type. Thereby they share the same properties. This relationship is established by the subtype IfcRelDefinesByType of IfcRelDefines relationship assigning an IfcWindowStyle to multiple IfcWindow occurrences. EXAMPLE: The (same) property set, e.g. Pset_ProductManufacturerInfo, keeping the manufacturer name, label and production year of a product, can be assigned to one, or many instances of furnishing. This relationship is established by the subtype IfcRelDefinesByProperties of IfcRelDefines relationship assigning an IfcPropertySet to one or more instances of IfcFurnishingElement.

Definition at line 52 of file Ifc2x2_Final/IfcRelDefinesAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcRelDefines::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcRoot.

Reimplemented in OdIfc2x2_final::IfcRelDefinesByProperties, OdIfc2x2_final::IfcRelDefinesByType, and OdIfc2x2_final::IfcRelOverridesProperties.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcRelDefines::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcRoot.

Reimplemented in OdIfc2x2_final::IfcRelDefinesByProperties, OdIfc2x2_final::IfcRelDefinesByType, and OdIfc2x2_final::IfcRelOverridesProperties.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcRelDefines::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcRelationship.

Reimplemented in OdIfc2x2_final::IfcRelDefinesByProperties, OdIfc2x2_final::IfcRelDefinesByType, and OdIfc2x2_final::IfcRelOverridesProperties.

◆ getRelatedObjects()

void OdIfc2x2_final::IfcRelDefines::getRelatedObjects ( OdDAIObjectIds & RelatedObjects ) const

Returns the value of RelatedObjects attribute. This attribute represents objects that are part of the relationship.

Parameters

RelatedObjects [out] Receives the related objects.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcRelDefines::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcRoot.

Reimplemented in OdIfc2x2_final::IfcRelDefinesByProperties, OdIfc2x2_final::IfcRelDefinesByType, and OdIfc2x2_final::IfcRelOverridesProperties.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcRelDefines::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRelationship.

Reimplemented in OdIfc2x2_final::IfcRelDefinesByProperties, OdIfc2x2_final::IfcRelDefinesByType, and OdIfc2x2_final::IfcRelOverridesProperties.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcRelDefines::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcRoot.

Reimplemented in OdIfc2x2_final::IfcRelDefinesByProperties, OdIfc2x2_final::IfcRelDefinesByType, and OdIfc2x2_final::IfcRelOverridesProperties.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcRelDefines::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRoot.

Reimplemented in OdIfc2x2_final::IfcRelDefinesByProperties, OdIfc2x2_final::IfcRelDefinesByType, and OdIfc2x2_final::IfcRelOverridesProperties.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcRelDefines::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRoot.

Reimplemented in OdIfc2x2_final::IfcRelDefinesByProperties, OdIfc2x2_final::IfcRelDefinesByType, and OdIfc2x2_final::IfcRelOverridesProperties.

◆ relatedObjects()

OdDAI::SetOfOdDAIObjectId & OdIfc2x2_final::IfcRelDefines::relatedObjects ( )

Returns the value of RelatedObjects attribute. This attribute represents objects that are part of the relationship.

Returns: Returns the value of RelatedObjects attribute.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcRelDefines::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRoot.

Reimplemented in OdIfc2x2_final::IfcRelDefinesByProperties, OdIfc2x2_final::IfcRelDefinesByType, and OdIfc2x2_final::IfcRelOverridesProperties.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcRelDefines::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRoot.

Reimplemented in OdIfc2x2_final::IfcRelDefinesByProperties, OdIfc2x2_final::IfcRelDefinesByType, and OdIfc2x2_final::IfcRelOverridesProperties.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcRelDefines::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcRelationship.

Reimplemented in OdIfc2x2_final::IfcRelDefinesByProperties, OdIfc2x2_final::IfcRelDefinesByType, and OdIfc2x2_final::IfcRelOverridesProperties.
