#include <IfcWindowLiningPropertiesAutoImpl.h>

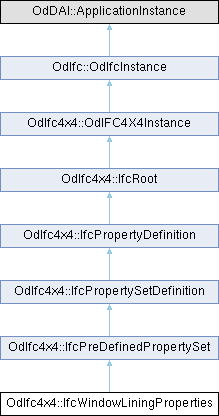

Inheritance diagram for OdIfc4x4::IfcWindowLiningProperties:

Public Member Functions
double	getLiningDepth () const

void	setLiningDepth (double LiningDepth)

double	getLiningThickness () const

void	setLiningThickness (double LiningThickness)

double	getTransomThickness () const

void	setTransomThickness (double TransomThickness)

double	getMullionThickness () const

void	setMullionThickness (double MullionThickness)

double	getFirstTransomOffset () const

void	setFirstTransomOffset (double FirstTransomOffset)

double	getSecondTransomOffset () const

void	setSecondTransomOffset (double SecondTransomOffset)

double	getFirstMullionOffset () const

void	setFirstMullionOffset (double FirstMullionOffset)

double	getSecondMullionOffset () const

void	setSecondMullionOffset (double SecondMullionOffset)

const OdDAIObjectId &	getShapeAspectStyle () const

void	setShapeAspectStyle (const OdDAIObjectId &ShapeAspectStyle)

double	getLiningOffset () const

void	setLiningOffset (double LiningOffset)

double	getLiningToPanelOffsetX () const

void	setLiningToPanelOffsetX (double LiningToPanelOffsetX)

double	getLiningToPanelOffsetY () const

void	setLiningToPanelOffsetY (double LiningToPanelOffsetY)

	IfcWindowLiningProperties ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcPropertySetDefinition
void	getInvDefinesType (OdDAIObjectIds &DefinesType) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvDefinesOccurrence (OdDAIObjectIds &DefinesOccurrence) const

Public Member Functions inherited from OdIfc4x4::IfcPropertyDefinition
void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcPositiveLengthMeasure	m_LiningDepth

IfcNonNegativeLengthMeasure	m_LiningThickness

IfcNonNegativeLengthMeasure	m_TransomThickness

IfcNonNegativeLengthMeasure	m_MullionThickness

IfcNormalisedRatioMeasure	m_FirstTransomOffset

IfcNormalisedRatioMeasure	m_SecondTransomOffset

IfcNormalisedRatioMeasure	m_FirstMullionOffset

IfcNormalisedRatioMeasure	m_SecondMullionOffset

OdDAIObjectId	m_ShapeAspectStyle

double	m_LiningOffset

double	m_LiningToPanelOffsetX

double	m_LiningToPanelOffsetY

Protected Attributes inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The window lining is the outer frame which enables the window to be fixed in position. The window lining is used to hold the window panels or other casements. The parameter of the IfcWindowLiningProperties define the geometrically relevant parameter of the lining.

The IfcWindowLiningProperties are included in the set of properties of IfcWindowStyle.HasPropertySets. More information about the window lining can be included in the same set of the IfcWindowType using another IfcPropertySet for dynamic extensions.

The IfcWindowLiningProperties does not hold a geometric representation. However it defines parameters which can be used to create the shape of the window type (which is inserted by the IfcWindow into the spatial context of the project). The parameters at the IfcWindowLiningProperties define a standard window lining, including (if given) a mullion and a transom (for horizontal and vertical splits). The outer boundary of the lining is determined by the 'Profile' shape representation assigned to the IfcWindow, which inserts the IfcWindowType.

Window Lining Properties -

The lining is applied to all faces of the opening reveal. The parameters are: LiningDepth LiningThickness LiningOffset LiningToPanelOffsetX LiningToPanelOffsetY

The inner side is defined as the direction of the window panel opening operation.

<IMAGE ifcwindowliningproperties-fig05>

If the OperationType of the window style is DoublePanelVertical (shown) TriplePanelBottom TriplePanelTop TriplePanelLeft TriplePanelRight the following additional parameters apply: MullionThickness FirstMullionOffset measured as offset to the Z axis (in XZ plane) as a normalized ratio measure

<IMAGE ifcwindowliningproperties-fig01>

If the OperationType of the window type is: DoublePanelHorizontal TriplePanelBottom TriplePanelTop TriplePanelLeft TriplePanelRight the following additional parameters apply: TransomThickness FirstTransomOffset measured as offset to the X axis (in XZ plane) as a normalized ratio measure

<IMAGE ifcwindowliningproperties-fig02>

If the OperationType of the window type is: TriplePanelVertical the following additional parameter applies: SecondMullionOffset measured as offset to the Z axis (in XZ plane) as a normalized ratio measure

<IMAGE ifcwindowliningproperties-fig03>

If the OperationType of the window type is: TriplePanelHorizontal the following additional parameter applies: SecondTransomOffset measured as offset to the X axis (in XZ plane) as a normalized ratio measure

<IMAGE ifcwindowliningproperties-fig04>

\changes

IFC4 changes: The following attributes have been added LiningOffset, LiningToPanelOffsetX, LiningToPanelOffsetY. The attribute ShapeAspectStyle is deprecated and shall no longer be used. Supertype changed to new IfcPreDefinedPropertySet.

Definition at line 108 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcWindowLiningProperties()

OdIfc4x4::IfcWindowLiningProperties::IfcWindowLiningProperties ( )

Default constructor for the IfcWindowLiningProperties class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcWindowLiningProperties::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcPreDefinedPropertySet.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcWindowLiningProperties::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcWindowLiningProperties::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ getFirstMullionOffset()

double OdIfc4x4::IfcWindowLiningProperties::getFirstMullionOffset ( ) const

Returns the value of FirstMullionOffset attribute. This attribute represents offset of the mullion centerline, measured along the x-axis of the window placement co-ordinate system. An offset value = 0.5 indicates that the mullion is positioned in the middle of the window.

Returns: Returns the value of FirstMullionOffset attribute.

◆ getFirstTransomOffset()

double OdIfc4x4::IfcWindowLiningProperties::getFirstTransomOffset ( ) const

Returns the value of FirstTransomOffset attribute. This attribute represents offset of the transom centerline, measured along the z-axis of the window placement co-ordinate system. An offset value = 0.5 indicates that the transom is positioned in the middle of the window.

Returns: Returns the value of FirstTransomOffset attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcWindowLiningProperties::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcPreDefinedPropertySet.

◆ getLiningDepth()

double OdIfc4x4::IfcWindowLiningProperties::getLiningDepth ( ) const

Returns the value of LiningDepth attribute. This attribute represents depth of the window lining (dimension measured perpendicular to window elevation plane).

Returns: Returns the value of LiningDepth attribute.

◆ getLiningOffset()

double OdIfc4x4::IfcWindowLiningProperties::getLiningOffset ( ) const

Returns the value of LiningOffset attribute. This attribute represents offset of the window lining. The offset is given as distance along the y axis of the local placement (perpendicular to the window plane).

Returns: Returns the value of LiningOffset attribute.

Remarks: IFC4 CHANGE: New attribute added at the end of the entity definition.

◆ getLiningThickness()

double OdIfc4x4::IfcWindowLiningProperties::getLiningThickness ( ) const

Returns the value of LiningThickness attribute. This attribute represents thickness of the window lining as explained in the figure above. If LiningThickness value is 0. (zero) it denotes a window without a lining (all other lining parameters will be set to "unset" in this case). If the LiningThickness is unset it denotes that the value is not available.

Returns: Returns the value of LiningThickness attribute.

Remarks: IFC4 CHANGE: Data type modified to be IfcNonNegativeLengthMeasure.

◆ getLiningToPanelOffsetX()

double OdIfc4x4::IfcWindowLiningProperties::getLiningToPanelOffsetX ( ) const

Returns the value of LiningToPanelOffsetX attribute. This attribute represents offset between the lining and the window panel measured along the x-axis of the local placement. Should be smaller or equal to the LiningThickness.

Returns: Returns the value of LiningToPanelOffsetX attribute.

Remarks: IFC4 CHANGE: New attribute added at the end of the entity definition.

◆ getLiningToPanelOffsetY()

double OdIfc4x4::IfcWindowLiningProperties::getLiningToPanelOffsetY ( ) const

Returns the value of LiningToPanelOffsetY attribute. This attribute represents offset between the lining and the window panel measured along the y-axis of the local placement. Should be smaller or equal to the IfcWindowPanelProperties.PanelThickness.

Returns: Returns the value of LiningToPanelOffsetY attribute.

Remarks: IFC4 CHANGE: New attribute added at the end of the entity definition.

◆ getMullionThickness()

double OdIfc4x4::IfcWindowLiningProperties::getMullionThickness ( ) const

Returns the value of MullionThickness attribute. This attribute represents thickness of the mullion (vertical separator of window panels within a window), measured parallel to the window elevation plane. The mullion is part of the lining and the mullion depth is assumed to be identical to the lining depth. If the MullionThickness is set to zero (and the MullionOffset set to a positive length), then the window is divided horizontally without a physical divider.

Returns: Returns the value of MullionThickness attribute.

Remarks: IFC4 CHANGE: Data type changed to IfcNonNegativeLengthMeasure.

◆ getSecondMullionOffset()

double OdIfc4x4::IfcWindowLiningProperties::getSecondMullionOffset ( ) const

Returns the value of SecondMullionOffset attribute. This attribute represents offset of the mullion centerline for the second mullion, measured along the x-axis of the window placement co-ordinate system. An offset value = 0.666 indicates that the second mullion is positioned at two/third of the window.

Returns: Returns the value of SecondMullionOffset attribute.

◆ getSecondTransomOffset()

double OdIfc4x4::IfcWindowLiningProperties::getSecondTransomOffset ( ) const

Returns the value of SecondTransomOffset attribute. This attribute represents offset of the transom centerline for the second transom, measured along the x-axis of the window placement co-ordinate system. An offset value = 0.666 indicates that the second transom is positioned at two/third of the window.

Returns: Returns the value of SecondTransomOffset attribute.

◆ getShapeAspectStyle()

const OdDAIObjectId & OdIfc4x4::IfcWindowLiningProperties::getShapeAspectStyle ( ) const

Returns the value of ShapeAspectStyle attribute. This attribute represents optional link to a shape aspect definition, which points to the part of the geometric representation of the window style, which is used to represent the lining.

Returns: Returns the value of ShapeAspectStyle attribute.

Remarks: IFC4 CHANGE: The attribute is deprecated and shall no longer be used.

◆ getTransomThickness()

double OdIfc4x4::IfcWindowLiningProperties::getTransomThickness ( ) const

Returns the value of TransomThickness attribute. This attribute represents thickness of the transom (horizontal separator of window panels within a window), measured parallel to the window elevation plane. The transom is part of the lining and the transom depth is assumed to be identical to the lining depth. If the TransomThickness is set to zero (and the TransomOffset set to a positive length), then the window is divided vertically without a physical divider.

Returns: Returns the value of TransomThickness attribute.

Remarks: IFC4 CHANGE: Data type changed to IfcNonNegativeLengthMeasure.

◆ inFields()

virtual OdResult OdIfc4x4::IfcWindowLiningProperties::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ isKindOf()

virtual bool OdIfc4x4::IfcWindowLiningProperties::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcPreDefinedPropertySet.

◆ outFields()

virtual OdResult OdIfc4x4::IfcWindowLiningProperties::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcWindowLiningProperties::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcWindowLiningProperties::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ setFirstMullionOffset()

void OdIfc4x4::IfcWindowLiningProperties::setFirstMullionOffset ( double FirstMullionOffset )

Sets the value of FirstMullionOffset attribute. This attribute represents offset of the mullion centerline, measured along the x-axis of the window placement co-ordinate system. An offset value = 0.5 indicates that the mullion is positioned in the middle of the window.

Parameters

FirstMullionOffset [in] First mullion offset to set.

◆ setFirstTransomOffset()

void OdIfc4x4::IfcWindowLiningProperties::setFirstTransomOffset ( double FirstTransomOffset )

Sets the value of FirstTransomOffset attribute. This attribute represents offset of the transom centerline, measured along the z-axis of the window placement co-ordinate system. An offset value = 0.5 indicates that the transom is positioned in the middle of the window.

Parameters

FirstTransomOffset [in] First transom offset to set.

◆ setLiningDepth()

void OdIfc4x4::IfcWindowLiningProperties::setLiningDepth ( double LiningDepth )

Sets the value of LiningDepth attribute. This attribute represents depth of the window lining (dimension measured perpendicular to window elevation plane).

Parameters

LiningDepth [in] Lining depth to set.

◆ setLiningOffset()

void OdIfc4x4::IfcWindowLiningProperties::setLiningOffset ( double LiningOffset )

Sets the value of LiningOffset attribute. This attribute represents offset of the window lining. The offset is given as distance along the y axis of the local placement (perpendicular to the window plane).

Parameters

LiningOffset [in] Lining offset to set.

Remarks: IFC4 CHANGE: New attribute added at the end of the entity definition.

◆ setLiningThickness()

void OdIfc4x4::IfcWindowLiningProperties::setLiningThickness ( double LiningThickness )

Sets the value of LiningThickness attribute. This attribute represents thickness of the window lining as explained in the figure above. If LiningThickness value is 0. (zero) it denotes a window without a lining (all other lining parameters will be set to "unset" in this case). If the LiningThickness is unset it denotes that the value is not available.

Parameters

LiningThickness [in] Lining thickness to set.

Remarks: IFC4 CHANGE: Data type modified to be IfcNonNegativeLengthMeasure.

◆ setLiningToPanelOffsetX()

void OdIfc4x4::IfcWindowLiningProperties::setLiningToPanelOffsetX ( double LiningToPanelOffsetX )

Sets the value of LiningToPanelOffsetX attribute. This attribute represents offset between the lining and the window panel measured along the x-axis of the local placement. Should be smaller or equal to the LiningThickness.

Parameters

LiningToPanelOffsetX [in] LiningToPanelOffsetX to set.

Remarks: IFC4 CHANGE: New attribute added at the end of the entity definition.

◆ setLiningToPanelOffsetY()

void OdIfc4x4::IfcWindowLiningProperties::setLiningToPanelOffsetY ( double LiningToPanelOffsetY )

Sets the value of LiningToPanelOffsetY attribute. This attribute represents offset between the lining and the window panel measured along the y-axis of the local placement. Should be smaller or equal to the IfcWindowPanelProperties.PanelThickness.

Parameters

LiningToPanelOffsetY [in] LiningToPanelOffsetY to set.

Remarks: IFC4 CHANGE: New attribute added at the end of the entity definition.

◆ setMullionThickness()

void OdIfc4x4::IfcWindowLiningProperties::setMullionThickness ( double MullionThickness )

Sets the value of MullionThickness attribute. This attribute represents thickness of the mullion (vertical separator of window panels within a window), measured parallel to the window elevation plane. The mullion is part of the lining and the mullion depth is assumed to be identical to the lining depth. If the MullionThickness is set to zero (and the MullionOffset set to a positive length), then the window is divided horizontally without a physical divider.

Parameters

MullionThickness [in] Mullion thickness to set.

Remarks: IFC4 CHANGE: Data type changed to IfcNonNegativeLengthMeasure.

◆ setSecondMullionOffset()

void OdIfc4x4::IfcWindowLiningProperties::setSecondMullionOffset ( double SecondMullionOffset )

Sets the value of SecondMullionOffset attribute. This attribute represents offset of the mullion centerline for the second mullion, measured along the x-axis of the window placement co-ordinate system. An offset value = 0.666 indicates that the second mullion is positioned at two/third of the window.

Parameters

SecondMullionOffset [in] Second mullion offset to set.

◆ setSecondTransomOffset()

void OdIfc4x4::IfcWindowLiningProperties::setSecondTransomOffset ( double SecondTransomOffset )

Sets the value of SecondTransomOffset attribute. This attribute represents offset of the transom centerline for the second transom, measured along the x-axis of the window placement co-ordinate system. An offset value = 0.666 indicates that the second transom is positioned at two/third of the window.

Parameters

SecondTransomOffset [in] Second transom offset to set.

◆ setShapeAspectStyle()

void OdIfc4x4::IfcWindowLiningProperties::setShapeAspectStyle ( const OdDAIObjectId & ShapeAspectStyle )

Sets the value of ShapeAspectStyle attribute. This attribute represents optional link to a shape aspect definition, which points to the part of the geometric representation of the window style, which is used to represent the lining.

Parameters

ShapeAspectStyle [in] Shape aspect style to set.

Remarks: IFC4 CHANGE: The attribute is deprecated and shall no longer be used.

◆ setTransomThickness()

void OdIfc4x4::IfcWindowLiningProperties::setTransomThickness ( double TransomThickness )

Sets the value of TransomThickness attribute. This attribute represents thickness of the transom (horizontal separator of window panels within a window), measured parallel to the window elevation plane. The transom is part of the lining and the transom depth is assumed to be identical to the lining depth. If the TransomThickness is set to zero (and the TransomOffset set to a positive length), then the window is divided vertically without a physical divider.

Parameters

TransomThickness [in] Transom thickness to set.

Remarks: IFC4 CHANGE: Data type changed to IfcNonNegativeLengthMeasure.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcWindowLiningProperties::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcWindowLiningProperties::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcWindowLiningProperties::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcPreDefinedPropertySet.

◆ unsetAttr() [1/2]

virtual void OdIfc4x4::IfcWindowLiningProperties::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ unsetAttr() [2/2]

virtual void OdIfc4x4::IfcWindowLiningProperties::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

Member Data Documentation

◆ m_FirstMullionOffset

IfcNormalisedRatioMeasure OdIfc4x4::IfcWindowLiningProperties::m_FirstMullionOffset

protected

Definition at line 503 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

◆ m_FirstTransomOffset

IfcNormalisedRatioMeasure OdIfc4x4::IfcWindowLiningProperties::m_FirstTransomOffset

protected

Definition at line 501 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

◆ m_LiningDepth

IfcPositiveLengthMeasure OdIfc4x4::IfcWindowLiningProperties::m_LiningDepth

protected

Definition at line 497 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

◆ m_LiningOffset

double OdIfc4x4::IfcWindowLiningProperties::m_LiningOffset

protected

Definition at line 506 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

◆ m_LiningThickness

IfcNonNegativeLengthMeasure OdIfc4x4::IfcWindowLiningProperties::m_LiningThickness

protected

Definition at line 498 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

◆ m_LiningToPanelOffsetX

double OdIfc4x4::IfcWindowLiningProperties::m_LiningToPanelOffsetX

protected

Definition at line 507 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

◆ m_LiningToPanelOffsetY

double OdIfc4x4::IfcWindowLiningProperties::m_LiningToPanelOffsetY

protected

Definition at line 508 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

◆ m_MullionThickness

IfcNonNegativeLengthMeasure OdIfc4x4::IfcWindowLiningProperties::m_MullionThickness

protected

Definition at line 500 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

◆ m_SecondMullionOffset

IfcNormalisedRatioMeasure OdIfc4x4::IfcWindowLiningProperties::m_SecondMullionOffset

protected

Definition at line 504 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

◆ m_SecondTransomOffset

IfcNormalisedRatioMeasure OdIfc4x4::IfcWindowLiningProperties::m_SecondTransomOffset

protected

Definition at line 502 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

◆ m_ShapeAspectStyle

OdDAIObjectId OdIfc4x4::IfcWindowLiningProperties::m_ShapeAspectStyle

protected

Definition at line 505 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

◆ m_TransomThickness

IfcNonNegativeLengthMeasure OdIfc4x4::IfcWindowLiningProperties::m_TransomThickness

protected

Definition at line 499 of file IFC4X4/IfcWindowLiningPropertiesAutoImpl.h.

The documentation for this class was generated from the following file:

IFC4X4/IfcWindowLiningPropertiesAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcWindowLiningProperties()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getFirstMullionOffset()

◆ getFirstTransomOffset()

◆ getInstanceType()

◆ getLiningDepth()

◆ getLiningOffset()

◆ getLiningThickness()

◆ getLiningToPanelOffsetX()

◆ getLiningToPanelOffsetY()

◆ getMullionThickness()

◆ getSecondMullionOffset()

◆ getSecondTransomOffset()

◆ getShapeAspectStyle()

◆ getTransomThickness()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setFirstMullionOffset()

◆ setFirstTransomOffset()

◆ setLiningDepth()

◆ setLiningOffset()

◆ setLiningThickness()

◆ setLiningToPanelOffsetX()

◆ setLiningToPanelOffsetY()

◆ setMullionThickness()

◆ setSecondMullionOffset()

◆ setSecondTransomOffset()

◆ setShapeAspectStyle()

◆ setTransomThickness()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_FirstMullionOffset

◆ m_FirstTransomOffset

◆ m_LiningDepth

◆ m_LiningOffset

◆ m_LiningThickness

◆ m_LiningToPanelOffsetX

◆ m_LiningToPanelOffsetY

◆ m_MullionThickness

◆ m_SecondMullionOffset

◆ m_SecondTransomOffset

◆ m_ShapeAspectStyle

◆ m_TransomThickness
