#include <IfcWindowAutoImpl.h>

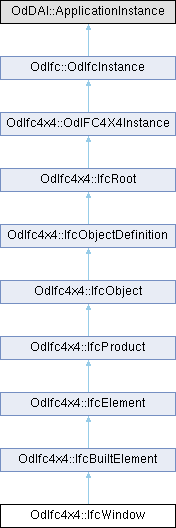

Inheritance diagram for OdIfc4x4::IfcWindow:

Public Member Functions
double	getOverallHeight () const

void	setOverallHeight (double OverallHeight)

double	getOverallWidth () const

void	setOverallWidth (double OverallWidth)

IfcWindowTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcWindowTypeEnum PredefinedType)

IfcWindowTypePartitioningEnum	getPartitioningType () const

void	setPartitioningType (IfcWindowTypePartitioningEnum PartitioningType)

const OdAnsiString &	getUserDefinedPartitioningType () const

void	setUserDefinedPartitioningType (const OdAnsiString &UserDefinedPartitioningType)

	IfcWindow ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

void	getInvHasSurfaceFeatures (OdDAIObjectIds &HasSurfaceFeatures) const

	IfcElement ()

Public Member Functions inherited from OdIfc4x4::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcPositiveLengthMeasure	m_OverallHeight

IfcPositiveLengthMeasure	m_OverallWidth

OdDAI::Enum	m_PredefinedType

OdDAI::Enum	m_PartitioningType

OdAnsiString	m_UserDefinedPartitioningType

Protected Attributes inherited from OdIfc4x4::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4x4::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The window is a building element that is predominately used to provide natural light and fresh air. It includes vertical opening but also horizontal opening such as skylights or light domes. It includes constructions with swinging, pivoting, sliding, or revolving panels and fixed panels. A window consists of a lining and one or several panels. A window can:

be a "free standing" window, contained in an IfcSpatialElement such as an IfcBuildingStorey. fill an opening, typically in a wall. The window will then have a FillsVoids attribute which uses the IfcRelFillsElement relationship to relate the IfcWindow with the IfcOpeningElement; be part of an element assembly, typically an IfcCurtainWall. The window will then have a Decomposes attribute which uses the the IfcRelAggregates relationship to relate the window with the assembly of elements;

The IfcWindowType specifies parameters which are common to all of its occurrences of IfcWindow: the partitioning type (single panel, double panel, triple panel, more panels) the operation type (swing, tilt and turn, pivot revolve, fixed casement, etc.) the window panel hinge side (by using two different styles for right and left opening windows) the particular attributes for the lining by the IfcWindowLiningProperties the particular attributes for the panels by the IfcWindowPanelProperties

Material Set - This concept can be applied to the following resources: Lining - Indicates that the material constituent applies to the window lining Framing - Indicates that the material constituent applies to the windows panels(s); if not provided, the 'Lining' material information applies to panel(s) as well Glazing - Indicates that the material constituent applies to the glazing part
Material Single - If a single IfcMaterial is referenced, it applies to the lining and framing of the window.
Object Typing - The PlacementRelTo relationship of IfcLocalPlacement points to the local placement of the same element (if specified), in which the IfcWindow is used as a filling (normally an IfcOpeningElement), as provided by the IfcRelFillsElement relationship If the IfcWindow is not inserted into an IfcOpeningElement, then the PlacementRelTo relationship of IfcLocalPlacement points (if specified) to the local placement of the same IfcSpatialStructureElement that is used in the ContainedInStructure inverse attribute or to a referenced spatial structure element at a higher level If the relative placement is not used, the absolute placement is defined within the world coordinate system
Profile 3D Geometry - The window profile is represented by a three-dimensional closed curve lying in the xz plane. The profile is used to apply the parameters of a parametric door representation. The following attribute values for the IfcShapeRepresentation holding this geometric representation are used: RepresentationIdentifier : 'Profile' RepresentationType : 'Curve3D', only a single closed curve is contained in the set of IfcShapeRepresentation.Items

A 'Profile' representation has to be provided if: A parametric representation is applied to the window AND One of two options: the window is 'free standing' the opening into which the window is inserted is not extruded horizontally (i.e. where the opening profile does not match the window profile)

Property Sets for Objects - This concept can be applied to the following resources: Pset_DoorWindowGlazingType Pset_WindowCommon
Quantity Sets - This concept can be applied to the following resources: Qto_WindowBaseQuantities
Spatial Containment - The IfcWindow, as any subtype of IfcBuildingElement, can participate alternatively in one of the two different containment relationships: the Spatial Containment (defined here) the Element Composition

The IfcWindow can also be connected to the IfcOpeningElement in which it is placed as a filler. In this case, the spatial containment relationship is provided, see image below.

Window Attributes - The parameters that defines the shape of the IfcWindow, are specified at the IfcWindowType and the property sets, which are included in the IfcWindowType. The IfcWindow only defines the local placement which determines the opening direction of the window.

The overall layout and its symbolic presentation of the IfcWindow is determined by its IfcWindowType.PartitioningType. The type determines the number and position of window panels. Depending on the type, the appropriate instances of IfcWindowLiningProperties and IfcWindowPanelProperties are attached in the list of HasPropertySets.

\changes

IFC4X3_RC1 changes: Supertype changed from "IfcBuildingElement" to "IfcBuiltElement"

Definition at line 120 of file IFC4X4/IfcWindowAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcWindow()

OdIfc4x4::IfcWindow::IfcWindow ( )

Default constructor for the IfcWindow class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcWindow::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcBuiltElement.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcWindow::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcWindow::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcElement.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcWindow::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcBuiltElement.

◆ getOverallHeight()

double OdIfc4x4::IfcWindow::getOverallHeight ( ) const

Returns the value of OverallHeight attribute. This attribute represents overall measure of the height, it reflects the Z Dimension of a bounding box, enclosing the window opening. If omitted, the OverallHeight should be taken from the geometric representation of the IfcOpening in which the window is inserted.

Returns: Returns the value of OverallHeight attribute.

Remarks: The body of the window might be taller then the window opening (for example in cases where the window lining includes a casing). In these cases the OverallHeight is still specified as the window opening height, and not as the total height of the window lining.

◆ getOverallWidth()

double OdIfc4x4::IfcWindow::getOverallWidth ( ) const

Returns the value of OverallWidth attribute. This attribute represents overall measure of the width, it reflects the X Dimension of a bounding box, enclosing the window opening. If omitted, the OverallWidth should be taken from the geometric representation of the IfcOpening in which the window is inserted.

Returns: Returns the value of OverallWidth attribute.

Remarks: The body of the window might be wider then the window opening (for example in cases where the window lining includes a casing). In these cases the OverallWidth is still specified as the window opening width, and not as the total width of the window lining.

◆ getPartitioningType()

IfcWindowTypePartitioningEnum OdIfc4x4::IfcWindow::getPartitioningType ( ) const

Returns the value of PartitioningType attribute. This attribute represents type defining the general layout of the window in terms of the partitioning of panels.

Returns: Returns the value of PartitioningType attribute.

Remarks: The PartitioningType is only used if no type object IfcWindowType is assigned, providing its own IfcWindowType.PartitioningType.

◆ getPredefinedType()

IfcWindowTypeEnum OdIfc4x4::IfcWindow::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents predefined generic type for a window that is specified in an enumeration. There can be a property set specified specifically for the predefined types.

Returns: Returns the value of PredefinedType attribute.

Remarks: The PredefinedType is only used if no IfcWindowType is assigned, providing its own IfcWindowType.PredefinedType.

◆ getUserDefinedPartitioningType()

const OdAnsiString & OdIfc4x4::IfcWindow::getUserDefinedPartitioningType ( ) const

Returns the value of UserDefinedPartitioningType attribute. This attribute represents designator for the user defined partitioning type, is only provided if the value of PartitioningType is set to USERDEFINED.

Returns: Returns the value of UserDefinedPartitioningType attribute.

◆ inFields()

virtual OdResult OdIfc4x4::IfcWindow::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcElement.

◆ isKindOf()

virtual bool OdIfc4x4::IfcWindow::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcBuiltElement.

◆ outFields()

virtual OdResult OdIfc4x4::IfcWindow::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcElement.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcWindow::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcElement.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcWindow::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcElement.

◆ setOverallHeight()

void OdIfc4x4::IfcWindow::setOverallHeight ( double OverallHeight )

Sets the value of OverallHeight attribute. This attribute represents overall measure of the height, it reflects the Z Dimension of a bounding box, enclosing the window opening. If omitted, the OverallHeight should be taken from the geometric representation of the IfcOpening in which the window is inserted.

Parameters

OverallHeight [in] Overall height to set.

Remarks: The body of the window might be taller then the window opening (for example in cases where the window lining includes a casing). In these cases the OverallHeight is still specified as the window opening height, and not as the total height of the window lining.

◆ setOverallWidth()

void OdIfc4x4::IfcWindow::setOverallWidth ( double OverallWidth )

Sets the value of OverallWidth attribute. This attribute represents overall measure of the width, it reflects the X Dimension of a bounding box, enclosing the window opening. If omitted, the OverallWidth should be taken from the geometric representation of the IfcOpening in which the window is inserted.

Parameters

OverallWidth [in] Overall width to set.

Remarks: The body of the window might be wider then the window opening (for example in cases where the window lining includes a casing). In these cases the OverallWidth is still specified as the window opening width, and not as the total width of the window lining.

◆ setPartitioningType()

void OdIfc4x4::IfcWindow::setPartitioningType ( IfcWindowTypePartitioningEnum PartitioningType )

Sets the value of PartitioningType attribute. This attribute represents type defining the general layout of the window in terms of the partitioning of panels.

Parameters

PartitioningType [in] Partitioning type to set.

Remarks: The PartitioningType is only used if no type object IfcWindowType is assigned, providing its own IfcWindowType.PartitioningType.

◆ setPredefinedType()

void OdIfc4x4::IfcWindow::setPredefinedType ( IfcWindowTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents predefined generic type for a window that is specified in an enumeration. There can be a property set specified specifically for the predefined types.

Parameters

PredefinedType [in] Predefined type to set.

Remarks: The PredefinedType is only used if no IfcWindowType is assigned, providing its own IfcWindowType.PredefinedType.

◆ setUserDefinedPartitioningType()

void OdIfc4x4::IfcWindow::setUserDefinedPartitioningType ( const OdAnsiString & UserDefinedPartitioningType )

Sets the value of UserDefinedPartitioningType attribute. This attribute represents designator for the user defined partitioning type, is only provided if the value of PartitioningType is set to USERDEFINED.

Parameters

UserDefinedPartitioningType [in] User-defined partitioning type to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcWindow::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcElement.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcWindow::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcWindow::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcBuiltElement.

◆ unsetAttr() [1/2]

virtual void OdIfc4x4::IfcWindow::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x4::IfcElement.

◆ unsetAttr() [2/2]

virtual void OdIfc4x4::IfcWindow::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x4::IfcElement.

Member Data Documentation

◆ m_OverallHeight

IfcPositiveLengthMeasure OdIfc4x4::IfcWindow::m_OverallHeight

protected

Definition at line 366 of file IFC4X4/IfcWindowAutoImpl.h.

◆ m_OverallWidth

IfcPositiveLengthMeasure OdIfc4x4::IfcWindow::m_OverallWidth

protected

Definition at line 367 of file IFC4X4/IfcWindowAutoImpl.h.

◆ m_PartitioningType

OdDAI::Enum OdIfc4x4::IfcWindow::m_PartitioningType

protected

Definition at line 369 of file IFC4X4/IfcWindowAutoImpl.h.

◆ m_PredefinedType

OdDAI::Enum OdIfc4x4::IfcWindow::m_PredefinedType

protected

Definition at line 368 of file IFC4X4/IfcWindowAutoImpl.h.

◆ m_UserDefinedPartitioningType

OdAnsiString OdIfc4x4::IfcWindow::m_UserDefinedPartitioningType

protected

Definition at line 370 of file IFC4X4/IfcWindowAutoImpl.h.

The documentation for this class was generated from the following file:

IFC4X4/IfcWindowAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcWindow()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getOverallHeight()

◆ getOverallWidth()

◆ getPartitioningType()

◆ getPredefinedType()

◆ getUserDefinedPartitioningType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setOverallHeight()

◆ setOverallWidth()

◆ setPartitioningType()

◆ setPredefinedType()

◆ setUserDefinedPartitioningType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_OverallHeight

◆ m_OverallWidth

◆ m_PartitioningType

◆ m_PredefinedType

◆ m_UserDefinedPartitioningType
