#include <IfcPointOnSurfaceAutoImpl.h>

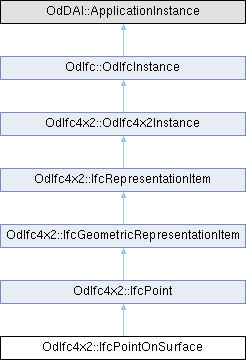

Inheritance diagram for OdIfc4x2::IfcPointOnSurface:

Public Member Functions
const OdDAIObjectId &	getBasisSurface () const

void	setBasisSurface (const OdDAIObjectId &BasisSurface)

double	getPointParameterU () const

void	setPointParameterU (double PointParameterU)

double	getPointParameterV () const

void	setPointParameterV (double PointParameterV)

	IfcPointOnSurface ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_BasisSurface

double	m_PointParameterU

double	m_PointParameterV

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcPointOnSurface is a point defined by two parameter value of its defining surface. The point is determined by evaluating the surface at a particular pair of parameter values.

Definition at line 42 of file Ifc4x2/IfcPointOnSurfaceAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcPointOnSurface()

OdIfc4x2::IfcPointOnSurface::IfcPointOnSurface ( )

Default constructor for the IfcPointOnSurface class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcPointOnSurface::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcPointOnSurface::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ getBasisSurface()

const OdDAIObjectId & OdIfc4x2::IfcPointOnSurface::getBasisSurface ( ) const

Returns the value of BasisSurface attribute. This attribute represents the surface to which the parameter values relate.

Returns: Returns the value of BasisSurface attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcPointOnSurface::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcPoint.

◆ getPointParameterU()

double OdIfc4x2::IfcPointOnSurface::getPointParameterU ( ) const

Returns the value of PointParameterU attribute. This attribute represents the first parameter value of the point location.

Returns: Returns the value of PointParameterU attribute.

◆ getPointParameterV()

double OdIfc4x2::IfcPointOnSurface::getPointParameterV ( ) const

Returns the value of PointParameterV attribute. This attribute represents the second parameter value of the point location.

Returns: Returns the value of PointParameterV attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcPointOnSurface::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ isKindOf()

virtual bool OdIfc4x2::IfcPointOnSurface::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcPoint.

◆ outFields()

virtual OdResult OdIfc4x2::IfcPointOnSurface::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcPointOnSurface::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcPointOnSurface::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ setBasisSurface()

void OdIfc4x2::IfcPointOnSurface::setBasisSurface ( const OdDAIObjectId & BasisSurface )

Sets the value of BasisSurface attribute. This attribute represents the surface to which the parameter values relate.

Parameters

BasisSurface [in] Basis surface to set.

◆ setPointParameterU()

void OdIfc4x2::IfcPointOnSurface::setPointParameterU ( double PointParameterU )

Sets the value of PointParameterU attribute. This attribute represents the first parameter value of the point location.

Parameters

PointParameterU [in] PointParameterU attribute to set.

◆ setPointParameterV()

void OdIfc4x2::IfcPointOnSurface::setPointParameterV ( double PointParameterV )

Sets the value of PointParameterV attribute. This attribute represents the second parameter value of the point location.

Parameters

PointParameterV [in] PointParameterV attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcPointOnSurface::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcPointOnSurface::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcPointOnSurface::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcPoint.

◆ unsetAttr() [1/2]

virtual void OdIfc4x2::IfcPointOnSurface::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ unsetAttr() [2/2]

virtual void OdIfc4x2::IfcPointOnSurface::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

Member Data Documentation

◆ m_BasisSurface

OdDAIObjectId OdIfc4x2::IfcPointOnSurface::m_BasisSurface

protected

Definition at line 211 of file Ifc4x2/IfcPointOnSurfaceAutoImpl.h.

◆ m_PointParameterU

double OdIfc4x2::IfcPointOnSurface::m_PointParameterU

protected

Definition at line 212 of file Ifc4x2/IfcPointOnSurfaceAutoImpl.h.

◆ m_PointParameterV

double OdIfc4x2::IfcPointOnSurface::m_PointParameterV

protected

Definition at line 213 of file Ifc4x2/IfcPointOnSurfaceAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x2/IfcPointOnSurfaceAutoImpl.h
