OdIfc4x2::IfcRepresentationItem Class Reference

#include <IfcRepresentationItemAutoImpl.h>

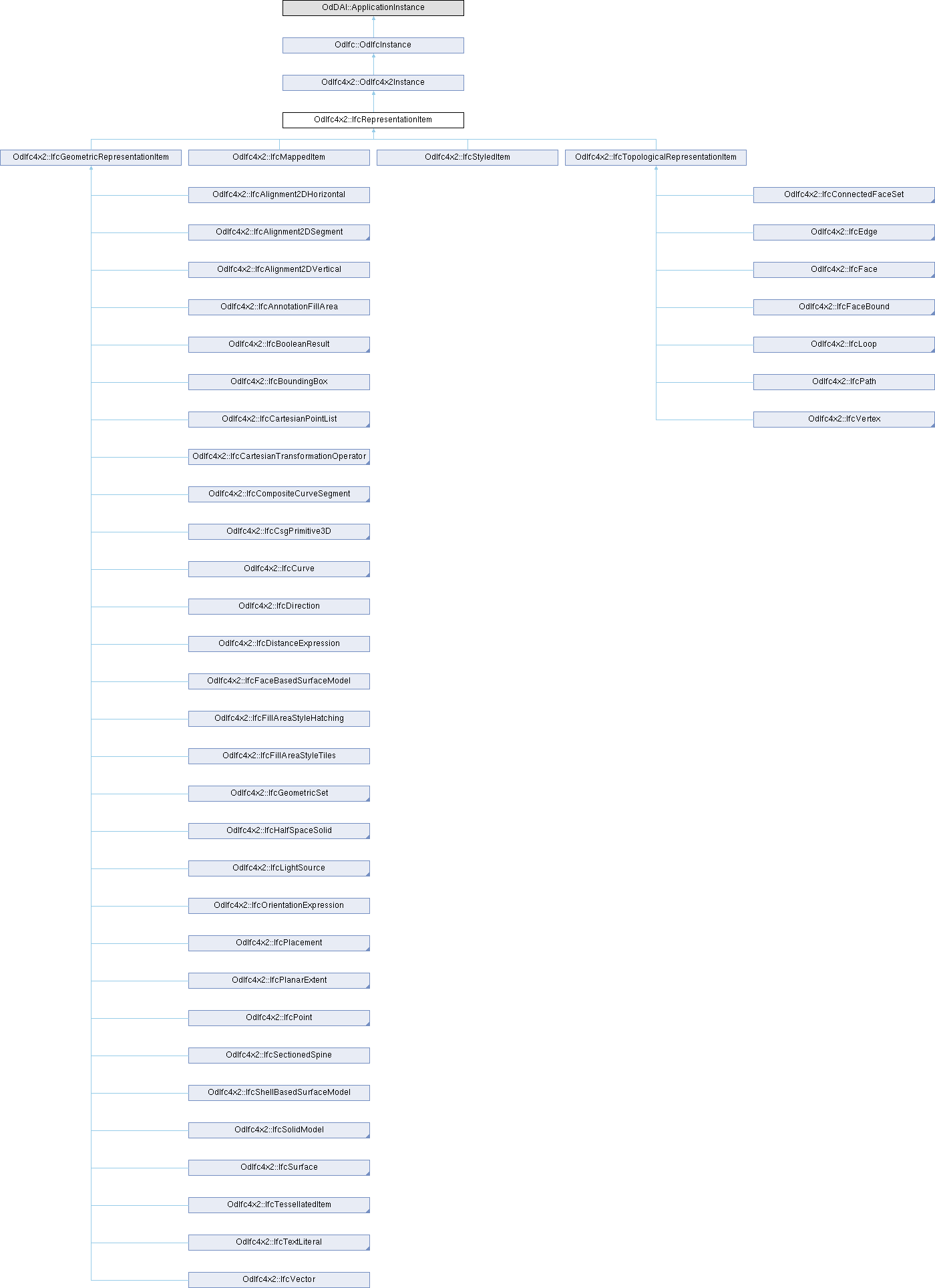

Inheritance diagram for OdIfc4x2::IfcRepresentationItem:

Public Member Functions
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const
void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual OdDAI::Entity *	getInstanceType () const override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val)
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Friends
class	IfcPresentationLayerAssignment
class	IfcStyledItem

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Detailed Description

The IfcRepresentationItem is used within an IfcRepresentation (directly or indirectly through other IfcRepresentationItem's) to represent an IfcProductRepresentation. Most commonly these IfcRepresentationItem's are geometric or topological representation items, that can have presentation style information assigned.

The image below shows an instance diagram explaining the use of IfcStyledItem and IfcPresentationLayerWithStyle to apply presentation styles.

<IMAGE ifcrepresentationitem_style-1>

The image below shows in instance diagram explaining the override of IfcPresentationLayerWithStyle by IfcStyledItem to apply presentation styles.

<IMAGE ifcrepresentationitem_style-2>

\changes

IFC4 changes: Inverse attribute LayerAssignments renamed to LayerAssignment Type of the inverse attribute LayerAssignments changed from "SET OF [0:?] IfcPresentationLayerAssignment FOR AssignedItems" to "SET OF [0:1] IfcPresentationLayerAssignment FOR AssignedItems"

Definition at line 61 of file Ifc4x2/IfcRepresentationItemAutoImpl.h.

Member Function Documentation

getAttr()

virtual OdRxValue OdIfc4x2::IfcRepresentationItem::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef

[in] Attribute definition to query.

Returns

OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcAdvancedBrepWithVoids, OdIfc4x2::IfcAlignment2DHorizontal, OdIfc4x2::IfcAlignment2DHorizontalSegment, OdIfc4x2::IfcAlignment2DSegment, OdIfc4x2::IfcAlignment2DVerSegCircularArc, OdIfc4x2::IfcAlignment2DVerSegParabolicArc, OdIfc4x2::IfcAlignment2DVertical, OdIfc4x2::IfcAlignment2DVerticalSegment, OdIfc4x2::IfcAlignmentCurve, OdIfc4x2::IfcAnnotationFillArea, OdIfc4x2::IfcAxis1Placement, OdIfc4x2::IfcAxis2Placement2D, OdIfc4x2::IfcAxis2Placement3D, OdIfc4x2::IfcBlock, OdIfc4x2::IfcBooleanResult, OdIfc4x2::IfcBoundedCurve, OdIfc4x2::IfcBoundingBox, OdIfc4x2::IfcBoxedHalfSpace, OdIfc4x2::IfcBSplineCurve, OdIfc4x2::IfcBSplineCurveWithKnots, OdIfc4x2::IfcBSplineSurface, OdIfc4x2::IfcBSplineSurfaceWithKnots, OdIfc4x2::IfcCartesianPoint, OdIfc4x2::IfcCartesianPointList2D, OdIfc4x2::IfcCartesianPointList3D, OdIfc4x2::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator3D, OdIfc4x2::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator, OdIfc4x2::IfcCircle, OdIfc4x2::IfcCircularArcSegment2D, OdIfc4x2::IfcCompositeCurve, OdIfc4x2::IfcCompositeCurveSegment, OdIfc4x2::IfcConic, OdIfc4x2::IfcConnectedFaceSet, OdIfc4x2::IfcCsgPrimitive3D, OdIfc4x2::IfcCsgSolid, OdIfc4x2::IfcCurveBoundedPlane, OdIfc4x2::IfcCurveBoundedSurface, OdIfc4x2::IfcCurveSegment2D, OdIfc4x2::IfcCylindricalSurface, OdIfc4x2::IfcDirection, OdIfc4x2::IfcDistanceExpression, OdIfc4x2::IfcEdge, OdIfc4x2::IfcEdgeCurve, OdIfc4x2::IfcEdgeLoop, OdIfc4x2::IfcElementarySurface, OdIfc4x2::IfcEllipse, OdIfc4x2::IfcExtrudedAreaSolid, OdIfc4x2::IfcExtrudedAreaSolidTapered, OdIfc4x2::IfcFace, OdIfc4x2::IfcFaceBasedSurfaceModel, OdIfc4x2::IfcFaceBound, OdIfc4x2::IfcFaceSurface, OdIfc4x2::IfcFacetedBrepWithVoids, OdIfc4x2::IfcFillAreaStyleHatching, OdIfc4x2::IfcFillAreaStyleTiles, OdIfc4x2::IfcFixedReferenceSweptAreaSolid, OdIfc4x2::IfcGeometricSet, OdIfc4x2::IfcHalfSpaceSolid, OdIfc4x2::IfcIndexedPolyCurve, OdIfc4x2::IfcIndexedPolygonalFace, OdIfc4x2::IfcIndexedPolygonalFaceWithVoids, OdIfc4x2::IfcLightSource, OdIfc4x2::IfcLightSourceDirectional, OdIfc4x2::IfcLightSourceGoniometric, OdIfc4x2::IfcLightSourcePositional, OdIfc4x2::IfcLightSourceSpot, OdIfc4x2::IfcLine, OdIfc4x2::IfcManifoldSolidBrep, OdIfc4x2::IfcMappedItem, OdIfc4x2::IfcOffsetCurve2D, OdIfc4x2::IfcOffsetCurve3D, OdIfc4x2::IfcOffsetCurve, OdIfc4x2::IfcOffsetCurveByDistances, OdIfc4x2::IfcOrientationExpression, OdIfc4x2::IfcOrientedEdge, OdIfc4x2::IfcPath, OdIfc4x2::IfcPcurve, OdIfc4x2::IfcPlacement, OdIfc4x2::IfcPlanarBox, OdIfc4x2::IfcPlanarExtent, OdIfc4x2::IfcPointOnCurve, OdIfc4x2::IfcPointOnSurface, OdIfc4x2::IfcPolygonalBoundedHalfSpace, OdIfc4x2::IfcPolygonalFaceSet, OdIfc4x2::IfcPolyline, OdIfc4x2::IfcPolyLoop, OdIfc4x2::IfcRationalBSplineCurveWithKnots, OdIfc4x2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x2::IfcRectangularPyramid, OdIfc4x2::IfcRectangularTrimmedSurface, OdIfc4x2::IfcReparametrisedCompositeCurveSegment, OdIfc4x2::IfcRevolvedAreaSolid, OdIfc4x2::IfcRevolvedAreaSolidTapered, OdIfc4x2::IfcRightCircularCone, OdIfc4x2::IfcRightCircularCylinder, OdIfc4x2::IfcSectionedSolid, OdIfc4x2::IfcSectionedSolidHorizontal, OdIfc4x2::IfcSectionedSpine, OdIfc4x2::IfcShellBasedSurfaceModel, OdIfc4x2::IfcSphere, OdIfc4x2::IfcSphericalSurface, OdIfc4x2::IfcStyledItem, OdIfc4x2::IfcSubedge, OdIfc4x2::IfcSurfaceCurve, OdIfc4x2::IfcSurfaceCurveSweptAreaSolid, OdIfc4x2::IfcSurfaceOfLinearExtrusion, OdIfc4x2::IfcSurfaceOfRevolution, OdIfc4x2::IfcSweptAreaSolid, OdIfc4x2::IfcSweptDiskSolid, OdIfc4x2::IfcSweptDiskSolidPolygonal, OdIfc4x2::IfcSweptSurface, OdIfc4x2::IfcTessellatedFaceSet, OdIfc4x2::IfcTextLiteral, OdIfc4x2::IfcTextLiteralWithExtent, OdIfc4x2::IfcToroidalSurface, OdIfc4x2::IfcTransitionCurveSegment2D, OdIfc4x2::IfcTriangulatedFaceSet, OdIfc4x2::IfcTriangulatedIrregularNetwork, OdIfc4x2::IfcTrimmedCurve, OdIfc4x2::IfcVector, OdIfc4x2::IfcVertexLoop, and OdIfc4x2::IfcVertexPoint.

getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcRepresentationItem::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc4x2::IfcAdvancedBrep, OdIfc4x2::IfcAdvancedBrepWithVoids, OdIfc4x2::IfcAdvancedFace, OdIfc4x2::IfcAlignment2DHorizontal, OdIfc4x2::IfcAlignment2DHorizontalSegment, OdIfc4x2::IfcAlignment2DSegment, OdIfc4x2::IfcAlignment2DVerSegCircularArc, OdIfc4x2::IfcAlignment2DVerSegLine, OdIfc4x2::IfcAlignment2DVerSegParabolicArc, OdIfc4x2::IfcAlignment2DVertical, OdIfc4x2::IfcAlignment2DVerticalSegment, OdIfc4x2::IfcAlignmentCurve, OdIfc4x2::IfcAnnotationFillArea, OdIfc4x2::IfcAxis1Placement, OdIfc4x2::IfcAxis2Placement2D, OdIfc4x2::IfcAxis2Placement3D, OdIfc4x2::IfcBlock, OdIfc4x2::IfcBooleanClippingResult, OdIfc4x2::IfcBooleanResult, OdIfc4x2::IfcBoundaryCurve, OdIfc4x2::IfcBoundedCurve, OdIfc4x2::IfcBoundedSurface, OdIfc4x2::IfcBoundingBox, OdIfc4x2::IfcBoxedHalfSpace, OdIfc4x2::IfcBSplineCurve, OdIfc4x2::IfcBSplineCurveWithKnots, OdIfc4x2::IfcBSplineSurface, OdIfc4x2::IfcBSplineSurfaceWithKnots, OdIfc4x2::IfcCartesianPoint, OdIfc4x2::IfcCartesianPointList2D, OdIfc4x2::IfcCartesianPointList3D, OdIfc4x2::IfcCartesianPointList, OdIfc4x2::IfcCartesianTransformationOperator2D, OdIfc4x2::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator3D, OdIfc4x2::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator, OdIfc4x2::IfcCircle, OdIfc4x2::IfcCircularArcSegment2D, OdIfc4x2::IfcClosedShell, OdIfc4x2::IfcCompositeCurve, OdIfc4x2::IfcCompositeCurveOnSurface, OdIfc4x2::IfcCompositeCurveSegment, OdIfc4x2::IfcConic, OdIfc4x2::IfcConnectedFaceSet, OdIfc4x2::IfcCsgPrimitive3D, OdIfc4x2::IfcCsgSolid, OdIfc4x2::IfcCurve, OdIfc4x2::IfcCurveBoundedPlane, OdIfc4x2::IfcCurveBoundedSurface, OdIfc4x2::IfcCurveSegment2D, OdIfc4x2::IfcCylindricalSurface, OdIfc4x2::IfcDirection, OdIfc4x2::IfcDistanceExpression, OdIfc4x2::IfcEdge, OdIfc4x2::IfcEdgeCurve, OdIfc4x2::IfcEdgeLoop, OdIfc4x2::IfcElementarySurface, OdIfc4x2::IfcEllipse, OdIfc4x2::IfcExtrudedAreaSolid, OdIfc4x2::IfcExtrudedAreaSolidTapered, OdIfc4x2::IfcFace, OdIfc4x2::IfcFaceBasedSurfaceModel, OdIfc4x2::IfcFaceBound, OdIfc4x2::IfcFaceOuterBound, OdIfc4x2::IfcFaceSurface, OdIfc4x2::IfcFacetedBrep, OdIfc4x2::IfcFacetedBrepWithVoids, OdIfc4x2::IfcFillAreaStyleHatching, OdIfc4x2::IfcFillAreaStyleTiles, OdIfc4x2::IfcFixedReferenceSweptAreaSolid, OdIfc4x2::IfcGeometricCurveSet, OdIfc4x2::IfcGeometricRepresentationItem, OdIfc4x2::IfcGeometricSet, OdIfc4x2::IfcHalfSpaceSolid, OdIfc4x2::IfcIndexedPolyCurve, OdIfc4x2::IfcIndexedPolygonalFace, OdIfc4x2::IfcIndexedPolygonalFaceWithVoids, OdIfc4x2::IfcIntersectionCurve, OdIfc4x2::IfcLightSource, OdIfc4x2::IfcLightSourceAmbient, OdIfc4x2::IfcLightSourceDirectional, OdIfc4x2::IfcLightSourceGoniometric, OdIfc4x2::IfcLightSourcePositional, OdIfc4x2::IfcLightSourceSpot, OdIfc4x2::IfcLine, OdIfc4x2::IfcLineSegment2D, OdIfc4x2::IfcLoop, OdIfc4x2::IfcManifoldSolidBrep, OdIfc4x2::IfcMappedItem, OdIfc4x2::IfcOffsetCurve2D, OdIfc4x2::IfcOffsetCurve3D, OdIfc4x2::IfcOffsetCurve, OdIfc4x2::IfcOffsetCurveByDistances, OdIfc4x2::IfcOpenShell, OdIfc4x2::IfcOrientationExpression, OdIfc4x2::IfcOrientedEdge, OdIfc4x2::IfcOuterBoundaryCurve, OdIfc4x2::IfcPath, OdIfc4x2::IfcPcurve, OdIfc4x2::IfcPlacement, OdIfc4x2::IfcPlanarBox, OdIfc4x2::IfcPlanarExtent, OdIfc4x2::IfcPlane, OdIfc4x2::IfcPoint, OdIfc4x2::IfcPointOnCurve, OdIfc4x2::IfcPointOnSurface, OdIfc4x2::IfcPolygonalBoundedHalfSpace, OdIfc4x2::IfcPolygonalFaceSet, OdIfc4x2::IfcPolyline, OdIfc4x2::IfcPolyLoop, OdIfc4x2::IfcRationalBSplineCurveWithKnots, OdIfc4x2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x2::IfcRectangularPyramid, OdIfc4x2::IfcRectangularTrimmedSurface, OdIfc4x2::IfcReparametrisedCompositeCurveSegment, OdIfc4x2::IfcRevolvedAreaSolid, OdIfc4x2::IfcRevolvedAreaSolidTapered, OdIfc4x2::IfcRightCircularCone, OdIfc4x2::IfcRightCircularCylinder, OdIfc4x2::IfcSeamCurve, OdIfc4x2::IfcSectionedSolid, OdIfc4x2::IfcSectionedSolidHorizontal, OdIfc4x2::IfcSectionedSpine, OdIfc4x2::IfcShellBasedSurfaceModel, OdIfc4x2::IfcSolidModel, OdIfc4x2::IfcSphere, OdIfc4x2::IfcSphericalSurface, OdIfc4x2::IfcStyledItem, OdIfc4x2::IfcSubedge, OdIfc4x2::IfcSurface, OdIfc4x2::IfcSurfaceCurve, OdIfc4x2::IfcSurfaceCurveSweptAreaSolid, OdIfc4x2::IfcSurfaceOfLinearExtrusion, OdIfc4x2::IfcSurfaceOfRevolution, OdIfc4x2::IfcSweptAreaSolid, OdIfc4x2::IfcSweptDiskSolid, OdIfc4x2::IfcSweptDiskSolidPolygonal, OdIfc4x2::IfcSweptSurface, OdIfc4x2::IfcTessellatedFaceSet, OdIfc4x2::IfcTessellatedItem, OdIfc4x2::IfcTextLiteral, OdIfc4x2::IfcTextLiteralWithExtent, OdIfc4x2::IfcTopologicalRepresentationItem, OdIfc4x2::IfcToroidalSurface, OdIfc4x2::IfcTransitionCurveSegment2D, OdIfc4x2::IfcTriangulatedFaceSet, OdIfc4x2::IfcTriangulatedIrregularNetwork, OdIfc4x2::IfcTrimmedCurve, OdIfc4x2::IfcVector, OdIfc4x2::IfcVertex, OdIfc4x2::IfcVertexLoop, and OdIfc4x2::IfcVertexPoint.

getInvLayerAssignment()

void OdIfc4x2::IfcRepresentationItem::getInvLayerAssignment

(

OdDAIObjectIds &

LayerAssignment

)

const

Returns the value of LayerAssignment attribute. This attribute represents assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items.

Parameters

LayerAssignment

[out] Receives the value of LayerAssignment attribute.

getInvStyledByItem()

void OdIfc4x2::IfcRepresentationItem::getInvStyledByItem

(

OdDAIObjectIds &

StyledByItem

)

const

Returns the value of StyledByItem attribute. This attribute represents reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including color and thickness to a geometric curve.

Parameters

StyledByItem

[out] Receives the value of StyledByItem attribute.

inFields()

virtual OdResult OdIfc4x2::IfcRepresentationItem::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler

[in] Pointer to a filer from which to read the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x2::IfcAdvancedBrepWithVoids, OdIfc4x2::IfcAlignment2DHorizontal, OdIfc4x2::IfcAlignment2DHorizontalSegment, OdIfc4x2::IfcAlignment2DSegment, OdIfc4x2::IfcAlignment2DVerSegCircularArc, OdIfc4x2::IfcAlignment2DVerSegParabolicArc, OdIfc4x2::IfcAlignment2DVertical, OdIfc4x2::IfcAlignment2DVerticalSegment, OdIfc4x2::IfcAlignmentCurve, OdIfc4x2::IfcAnnotationFillArea, OdIfc4x2::IfcAxis1Placement, OdIfc4x2::IfcAxis2Placement2D, OdIfc4x2::IfcAxis2Placement3D, OdIfc4x2::IfcBlock, OdIfc4x2::IfcBooleanResult, OdIfc4x2::IfcBoundedCurve, OdIfc4x2::IfcBoundingBox, OdIfc4x2::IfcBoxedHalfSpace, OdIfc4x2::IfcBSplineCurve, OdIfc4x2::IfcBSplineCurveWithKnots, OdIfc4x2::IfcBSplineSurface, OdIfc4x2::IfcBSplineSurfaceWithKnots, OdIfc4x2::IfcCartesianPoint, OdIfc4x2::IfcCartesianPointList2D, OdIfc4x2::IfcCartesianPointList3D, OdIfc4x2::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator3D, OdIfc4x2::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator, OdIfc4x2::IfcCircle, OdIfc4x2::IfcCircularArcSegment2D, OdIfc4x2::IfcCompositeCurve, OdIfc4x2::IfcCompositeCurveSegment, OdIfc4x2::IfcConic, OdIfc4x2::IfcConnectedFaceSet, OdIfc4x2::IfcCsgPrimitive3D, OdIfc4x2::IfcCsgSolid, OdIfc4x2::IfcCurveBoundedPlane, OdIfc4x2::IfcCurveBoundedSurface, OdIfc4x2::IfcCurveSegment2D, OdIfc4x2::IfcCylindricalSurface, OdIfc4x2::IfcDirection, OdIfc4x2::IfcDistanceExpression, OdIfc4x2::IfcEdge, OdIfc4x2::IfcEdgeCurve, OdIfc4x2::IfcEdgeLoop, OdIfc4x2::IfcElementarySurface, OdIfc4x2::IfcEllipse, OdIfc4x2::IfcExtrudedAreaSolid, OdIfc4x2::IfcExtrudedAreaSolidTapered, OdIfc4x2::IfcFace, OdIfc4x2::IfcFaceBasedSurfaceModel, OdIfc4x2::IfcFaceBound, OdIfc4x2::IfcFaceSurface, OdIfc4x2::IfcFacetedBrepWithVoids, OdIfc4x2::IfcFillAreaStyleHatching, OdIfc4x2::IfcFillAreaStyleTiles, OdIfc4x2::IfcFixedReferenceSweptAreaSolid, OdIfc4x2::IfcGeometricSet, OdIfc4x2::IfcHalfSpaceSolid, OdIfc4x2::IfcIndexedPolyCurve, OdIfc4x2::IfcIndexedPolygonalFace, OdIfc4x2::IfcIndexedPolygonalFaceWithVoids, OdIfc4x2::IfcLightSource, OdIfc4x2::IfcLightSourceDirectional, OdIfc4x2::IfcLightSourceGoniometric, OdIfc4x2::IfcLightSourcePositional, OdIfc4x2::IfcLightSourceSpot, OdIfc4x2::IfcLine, OdIfc4x2::IfcManifoldSolidBrep, OdIfc4x2::IfcMappedItem, OdIfc4x2::IfcOffsetCurve2D, OdIfc4x2::IfcOffsetCurve3D, OdIfc4x2::IfcOffsetCurve, OdIfc4x2::IfcOffsetCurveByDistances, OdIfc4x2::IfcOrientationExpression, OdIfc4x2::IfcOrientedEdge, OdIfc4x2::IfcPath, OdIfc4x2::IfcPcurve, OdIfc4x2::IfcPlacement, OdIfc4x2::IfcPlanarBox, OdIfc4x2::IfcPlanarExtent, OdIfc4x2::IfcPointOnCurve, OdIfc4x2::IfcPointOnSurface, OdIfc4x2::IfcPolygonalBoundedHalfSpace, OdIfc4x2::IfcPolygonalFaceSet, OdIfc4x2::IfcPolyline, OdIfc4x2::IfcPolyLoop, OdIfc4x2::IfcRationalBSplineCurveWithKnots, OdIfc4x2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x2::IfcRectangularPyramid, OdIfc4x2::IfcRectangularTrimmedSurface, OdIfc4x2::IfcReparametrisedCompositeCurveSegment, OdIfc4x2::IfcRevolvedAreaSolid, OdIfc4x2::IfcRevolvedAreaSolidTapered, OdIfc4x2::IfcRightCircularCone, OdIfc4x2::IfcRightCircularCylinder, OdIfc4x2::IfcSectionedSolid, OdIfc4x2::IfcSectionedSolidHorizontal, OdIfc4x2::IfcSectionedSpine, OdIfc4x2::IfcShellBasedSurfaceModel, OdIfc4x2::IfcSphere, OdIfc4x2::IfcSphericalSurface, OdIfc4x2::IfcStyledItem, OdIfc4x2::IfcSubedge, OdIfc4x2::IfcSurfaceCurve, OdIfc4x2::IfcSurfaceCurveSweptAreaSolid, OdIfc4x2::IfcSurfaceOfLinearExtrusion, OdIfc4x2::IfcSurfaceOfRevolution, OdIfc4x2::IfcSweptAreaSolid, OdIfc4x2::IfcSweptDiskSolid, OdIfc4x2::IfcSweptDiskSolidPolygonal, OdIfc4x2::IfcSweptSurface, OdIfc4x2::IfcTessellatedFaceSet, OdIfc4x2::IfcTextLiteral, OdIfc4x2::IfcTextLiteralWithExtent, OdIfc4x2::IfcToroidalSurface, OdIfc4x2::IfcTransitionCurveSegment2D, OdIfc4x2::IfcTriangulatedFaceSet, OdIfc4x2::IfcTriangulatedIrregularNetwork, OdIfc4x2::IfcTrimmedCurve, OdIfc4x2::IfcVector, OdIfc4x2::IfcVertexLoop, and OdIfc4x2::IfcVertexPoint.

isKindOf()

virtual bool OdIfc4x2::IfcRepresentationItem::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcAdvancedBrep, OdIfc4x2::IfcAdvancedBrepWithVoids, OdIfc4x2::IfcAdvancedFace, OdIfc4x2::IfcAlignment2DHorizontal, OdIfc4x2::IfcAlignment2DHorizontalSegment, OdIfc4x2::IfcAlignment2DSegment, OdIfc4x2::IfcAlignment2DVerSegCircularArc, OdIfc4x2::IfcAlignment2DVerSegLine, OdIfc4x2::IfcAlignment2DVerSegParabolicArc, OdIfc4x2::IfcAlignment2DVertical, OdIfc4x2::IfcAlignment2DVerticalSegment, OdIfc4x2::IfcAlignmentCurve, OdIfc4x2::IfcAnnotationFillArea, OdIfc4x2::IfcAxis1Placement, OdIfc4x2::IfcAxis2Placement2D, OdIfc4x2::IfcAxis2Placement3D, OdIfc4x2::IfcBlock, OdIfc4x2::IfcBooleanClippingResult, OdIfc4x2::IfcBooleanResult, OdIfc4x2::IfcBoundaryCurve, OdIfc4x2::IfcBoundedCurve, OdIfc4x2::IfcBoundedSurface, OdIfc4x2::IfcBoundingBox, OdIfc4x2::IfcBoxedHalfSpace, OdIfc4x2::IfcBSplineCurve, OdIfc4x2::IfcBSplineCurveWithKnots, OdIfc4x2::IfcBSplineSurface, OdIfc4x2::IfcBSplineSurfaceWithKnots, OdIfc4x2::IfcCartesianPoint, OdIfc4x2::IfcCartesianPointList2D, OdIfc4x2::IfcCartesianPointList3D, OdIfc4x2::IfcCartesianPointList, OdIfc4x2::IfcCartesianTransformationOperator2D, OdIfc4x2::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator3D, OdIfc4x2::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator, OdIfc4x2::IfcCircle, OdIfc4x2::IfcCircularArcSegment2D, OdIfc4x2::IfcClosedShell, OdIfc4x2::IfcCompositeCurve, OdIfc4x2::IfcCompositeCurveOnSurface, OdIfc4x2::IfcCompositeCurveSegment, OdIfc4x2::IfcConic, OdIfc4x2::IfcConnectedFaceSet, OdIfc4x2::IfcCsgPrimitive3D, OdIfc4x2::IfcCsgSolid, OdIfc4x2::IfcCurve, OdIfc4x2::IfcCurveBoundedPlane, OdIfc4x2::IfcCurveBoundedSurface, OdIfc4x2::IfcCurveSegment2D, OdIfc4x2::IfcCylindricalSurface, OdIfc4x2::IfcDirection, OdIfc4x2::IfcDistanceExpression, OdIfc4x2::IfcEdge, OdIfc4x2::IfcEdgeCurve, OdIfc4x2::IfcEdgeLoop, OdIfc4x2::IfcElementarySurface, OdIfc4x2::IfcEllipse, OdIfc4x2::IfcExtrudedAreaSolid, OdIfc4x2::IfcExtrudedAreaSolidTapered, OdIfc4x2::IfcFace, OdIfc4x2::IfcFaceBasedSurfaceModel, OdIfc4x2::IfcFaceBound, OdIfc4x2::IfcFaceOuterBound, OdIfc4x2::IfcFaceSurface, OdIfc4x2::IfcFacetedBrep, OdIfc4x2::IfcFacetedBrepWithVoids, OdIfc4x2::IfcFillAreaStyleHatching, OdIfc4x2::IfcFillAreaStyleTiles, OdIfc4x2::IfcFixedReferenceSweptAreaSolid, OdIfc4x2::IfcGeometricCurveSet, OdIfc4x2::IfcGeometricRepresentationItem, OdIfc4x2::IfcGeometricSet, OdIfc4x2::IfcHalfSpaceSolid, OdIfc4x2::IfcIndexedPolyCurve, OdIfc4x2::IfcIndexedPolygonalFace, OdIfc4x2::IfcIndexedPolygonalFaceWithVoids, OdIfc4x2::IfcIntersectionCurve, OdIfc4x2::IfcLightSource, OdIfc4x2::IfcLightSourceAmbient, OdIfc4x2::IfcLightSourceDirectional, OdIfc4x2::IfcLightSourceGoniometric, OdIfc4x2::IfcLightSourcePositional, OdIfc4x2::IfcLightSourceSpot, OdIfc4x2::IfcLine, OdIfc4x2::IfcLineSegment2D, OdIfc4x2::IfcLoop, OdIfc4x2::IfcManifoldSolidBrep, OdIfc4x2::IfcMappedItem, OdIfc4x2::IfcOffsetCurve2D, OdIfc4x2::IfcOffsetCurve3D, OdIfc4x2::IfcOffsetCurve, OdIfc4x2::IfcOffsetCurveByDistances, OdIfc4x2::IfcOpenShell, OdIfc4x2::IfcOrientationExpression, OdIfc4x2::IfcOrientedEdge, OdIfc4x2::IfcOuterBoundaryCurve, OdIfc4x2::IfcPath, OdIfc4x2::IfcPcurve, OdIfc4x2::IfcPlacement, OdIfc4x2::IfcPlanarBox, OdIfc4x2::IfcPlanarExtent, OdIfc4x2::IfcPlane, OdIfc4x2::IfcPoint, OdIfc4x2::IfcPointOnCurve, OdIfc4x2::IfcPointOnSurface, OdIfc4x2::IfcPolygonalBoundedHalfSpace, OdIfc4x2::IfcPolygonalFaceSet, OdIfc4x2::IfcPolyline, OdIfc4x2::IfcPolyLoop, OdIfc4x2::IfcRationalBSplineCurveWithKnots, OdIfc4x2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x2::IfcRectangularPyramid, OdIfc4x2::IfcRectangularTrimmedSurface, OdIfc4x2::IfcReparametrisedCompositeCurveSegment, OdIfc4x2::IfcRevolvedAreaSolid, OdIfc4x2::IfcRevolvedAreaSolidTapered, OdIfc4x2::IfcRightCircularCone, OdIfc4x2::IfcRightCircularCylinder, OdIfc4x2::IfcSeamCurve, OdIfc4x2::IfcSectionedSolid, OdIfc4x2::IfcSectionedSolidHorizontal, OdIfc4x2::IfcSectionedSpine, OdIfc4x2::IfcShellBasedSurfaceModel, OdIfc4x2::IfcSolidModel, OdIfc4x2::IfcSphere, OdIfc4x2::IfcSphericalSurface, OdIfc4x2::IfcStyledItem, OdIfc4x2::IfcSubedge, OdIfc4x2::IfcSurface, OdIfc4x2::IfcSurfaceCurve, OdIfc4x2::IfcSurfaceCurveSweptAreaSolid, OdIfc4x2::IfcSurfaceOfLinearExtrusion, OdIfc4x2::IfcSurfaceOfRevolution, OdIfc4x2::IfcSweptAreaSolid, OdIfc4x2::IfcSweptDiskSolid, OdIfc4x2::IfcSweptDiskSolidPolygonal, OdIfc4x2::IfcSweptSurface, OdIfc4x2::IfcTessellatedFaceSet, OdIfc4x2::IfcTessellatedItem, OdIfc4x2::IfcTextLiteral, OdIfc4x2::IfcTextLiteralWithExtent, OdIfc4x2::IfcTopologicalRepresentationItem, OdIfc4x2::IfcToroidalSurface, OdIfc4x2::IfcTransitionCurveSegment2D, OdIfc4x2::IfcTriangulatedFaceSet, OdIfc4x2::IfcTriangulatedIrregularNetwork, OdIfc4x2::IfcTrimmedCurve, OdIfc4x2::IfcVector, OdIfc4x2::IfcVertex, OdIfc4x2::IfcVertexLoop, and OdIfc4x2::IfcVertexPoint.

outFields()

virtual OdResult OdIfc4x2::IfcRepresentationItem::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler

[in] Pointer to a filer to which to write the data.

Returns

A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x2::IfcAdvancedBrepWithVoids, OdIfc4x2::IfcAlignment2DHorizontal, OdIfc4x2::IfcAlignment2DHorizontalSegment, OdIfc4x2::IfcAlignment2DSegment, OdIfc4x2::IfcAlignment2DVerSegCircularArc, OdIfc4x2::IfcAlignment2DVerSegParabolicArc, OdIfc4x2::IfcAlignment2DVertical, OdIfc4x2::IfcAlignment2DVerticalSegment, OdIfc4x2::IfcAlignmentCurve, OdIfc4x2::IfcAnnotationFillArea, OdIfc4x2::IfcAxis1Placement, OdIfc4x2::IfcAxis2Placement2D, OdIfc4x2::IfcAxis2Placement3D, OdIfc4x2::IfcBlock, OdIfc4x2::IfcBooleanResult, OdIfc4x2::IfcBoundedCurve, OdIfc4x2::IfcBoundingBox, OdIfc4x2::IfcBoxedHalfSpace, OdIfc4x2::IfcBSplineCurve, OdIfc4x2::IfcBSplineCurveWithKnots, OdIfc4x2::IfcBSplineSurface, OdIfc4x2::IfcBSplineSurfaceWithKnots, OdIfc4x2::IfcCartesianPoint, OdIfc4x2::IfcCartesianPointList2D, OdIfc4x2::IfcCartesianPointList3D, OdIfc4x2::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator3D, OdIfc4x2::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator, OdIfc4x2::IfcCircle, OdIfc4x2::IfcCircularArcSegment2D, OdIfc4x2::IfcCompositeCurve, OdIfc4x2::IfcCompositeCurveSegment, OdIfc4x2::IfcConic, OdIfc4x2::IfcConnectedFaceSet, OdIfc4x2::IfcCsgPrimitive3D, OdIfc4x2::IfcCsgSolid, OdIfc4x2::IfcCurveBoundedPlane, OdIfc4x2::IfcCurveBoundedSurface, OdIfc4x2::IfcCurveSegment2D, OdIfc4x2::IfcCylindricalSurface, OdIfc4x2::IfcDirection, OdIfc4x2::IfcDistanceExpression, OdIfc4x2::IfcEdge, OdIfc4x2::IfcEdgeCurve, OdIfc4x2::IfcEdgeLoop, OdIfc4x2::IfcElementarySurface, OdIfc4x2::IfcEllipse, OdIfc4x2::IfcExtrudedAreaSolid, OdIfc4x2::IfcExtrudedAreaSolidTapered, OdIfc4x2::IfcFace, OdIfc4x2::IfcFaceBasedSurfaceModel, OdIfc4x2::IfcFaceBound, OdIfc4x2::IfcFaceSurface, OdIfc4x2::IfcFacetedBrepWithVoids, OdIfc4x2::IfcFillAreaStyleHatching, OdIfc4x2::IfcFillAreaStyleTiles, OdIfc4x2::IfcFixedReferenceSweptAreaSolid, OdIfc4x2::IfcGeometricSet, OdIfc4x2::IfcHalfSpaceSolid, OdIfc4x2::IfcIndexedPolyCurve, OdIfc4x2::IfcIndexedPolygonalFace, OdIfc4x2::IfcIndexedPolygonalFaceWithVoids, OdIfc4x2::IfcLightSource, OdIfc4x2::IfcLightSourceDirectional, OdIfc4x2::IfcLightSourceGoniometric, OdIfc4x2::IfcLightSourcePositional, OdIfc4x2::IfcLightSourceSpot, OdIfc4x2::IfcLine, OdIfc4x2::IfcManifoldSolidBrep, OdIfc4x2::IfcMappedItem, OdIfc4x2::IfcOffsetCurve2D, OdIfc4x2::IfcOffsetCurve3D, OdIfc4x2::IfcOffsetCurve, OdIfc4x2::IfcOffsetCurveByDistances, OdIfc4x2::IfcOrientationExpression, OdIfc4x2::IfcOrientedEdge, OdIfc4x2::IfcPath, OdIfc4x2::IfcPcurve, OdIfc4x2::IfcPlacement, OdIfc4x2::IfcPlanarBox, OdIfc4x2::IfcPlanarExtent, OdIfc4x2::IfcPointOnCurve, OdIfc4x2::IfcPointOnSurface, OdIfc4x2::IfcPolygonalBoundedHalfSpace, OdIfc4x2::IfcPolygonalFaceSet, OdIfc4x2::IfcPolyline, OdIfc4x2::IfcPolyLoop, OdIfc4x2::IfcRationalBSplineCurveWithKnots, OdIfc4x2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x2::IfcRectangularPyramid, OdIfc4x2::IfcRectangularTrimmedSurface, OdIfc4x2::IfcReparametrisedCompositeCurveSegment, OdIfc4x2::IfcRevolvedAreaSolid, OdIfc4x2::IfcRevolvedAreaSolidTapered, OdIfc4x2::IfcRightCircularCone, OdIfc4x2::IfcRightCircularCylinder, OdIfc4x2::IfcSectionedSolid, OdIfc4x2::IfcSectionedSolidHorizontal, OdIfc4x2::IfcSectionedSpine, OdIfc4x2::IfcShellBasedSurfaceModel, OdIfc4x2::IfcSphere, OdIfc4x2::IfcSphericalSurface, OdIfc4x2::IfcStyledItem, OdIfc4x2::IfcSubedge, OdIfc4x2::IfcSurfaceCurve, OdIfc4x2::IfcSurfaceCurveSweptAreaSolid, OdIfc4x2::IfcSurfaceOfLinearExtrusion, OdIfc4x2::IfcSurfaceOfRevolution, OdIfc4x2::IfcSweptAreaSolid, OdIfc4x2::IfcSweptDiskSolid, OdIfc4x2::IfcSweptDiskSolidPolygonal, OdIfc4x2::IfcSweptSurface, OdIfc4x2::IfcTessellatedFaceSet, OdIfc4x2::IfcTextLiteral, OdIfc4x2::IfcTextLiteralWithExtent, OdIfc4x2::IfcToroidalSurface, OdIfc4x2::IfcTransitionCurveSegment2D, OdIfc4x2::IfcTriangulatedFaceSet, OdIfc4x2::IfcTriangulatedIrregularNetwork, OdIfc4x2::IfcTrimmedCurve, OdIfc4x2::IfcVector, OdIfc4x2::IfcVertexLoop, and OdIfc4x2::IfcVertexPoint.

putAttr()

virtual bool OdIfc4x2::IfcRepresentationItem::putAttr ( const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue & val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns

true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcAdvancedBrepWithVoids, OdIfc4x2::IfcAlignment2DHorizontal, OdIfc4x2::IfcAlignment2DHorizontalSegment, OdIfc4x2::IfcAlignment2DSegment, OdIfc4x2::IfcAlignment2DVerSegCircularArc, OdIfc4x2::IfcAlignment2DVerSegParabolicArc, OdIfc4x2::IfcAlignment2DVertical, OdIfc4x2::IfcAlignment2DVerticalSegment, OdIfc4x2::IfcAlignmentCurve, OdIfc4x2::IfcAnnotationFillArea, OdIfc4x2::IfcAxis1Placement, OdIfc4x2::IfcAxis2Placement2D, OdIfc4x2::IfcAxis2Placement3D, OdIfc4x2::IfcBlock, OdIfc4x2::IfcBooleanResult, OdIfc4x2::IfcBoundedCurve, OdIfc4x2::IfcBoundingBox, OdIfc4x2::IfcBoxedHalfSpace, OdIfc4x2::IfcBSplineCurve, OdIfc4x2::IfcBSplineCurveWithKnots, OdIfc4x2::IfcBSplineSurface, OdIfc4x2::IfcBSplineSurfaceWithKnots, OdIfc4x2::IfcCartesianPoint, OdIfc4x2::IfcCartesianPointList2D, OdIfc4x2::IfcCartesianPointList3D, OdIfc4x2::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator3D, OdIfc4x2::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator, OdIfc4x2::IfcCircle, OdIfc4x2::IfcCircularArcSegment2D, OdIfc4x2::IfcCompositeCurve, OdIfc4x2::IfcCompositeCurveSegment, OdIfc4x2::IfcConic, OdIfc4x2::IfcConnectedFaceSet, OdIfc4x2::IfcCsgPrimitive3D, OdIfc4x2::IfcCsgSolid, OdIfc4x2::IfcCurveBoundedPlane, OdIfc4x2::IfcCurveBoundedSurface, OdIfc4x2::IfcCurveSegment2D, OdIfc4x2::IfcCylindricalSurface, OdIfc4x2::IfcDirection, OdIfc4x2::IfcDistanceExpression, OdIfc4x2::IfcEdge, OdIfc4x2::IfcEdgeCurve, OdIfc4x2::IfcEdgeLoop, OdIfc4x2::IfcElementarySurface, OdIfc4x2::IfcEllipse, OdIfc4x2::IfcExtrudedAreaSolid, OdIfc4x2::IfcExtrudedAreaSolidTapered, OdIfc4x2::IfcFace, OdIfc4x2::IfcFaceBasedSurfaceModel, OdIfc4x2::IfcFaceBound, OdIfc4x2::IfcFaceSurface, OdIfc4x2::IfcFacetedBrepWithVoids, OdIfc4x2::IfcFillAreaStyleHatching, OdIfc4x2::IfcFillAreaStyleTiles, OdIfc4x2::IfcFixedReferenceSweptAreaSolid, OdIfc4x2::IfcGeometricSet, OdIfc4x2::IfcHalfSpaceSolid, OdIfc4x2::IfcIndexedPolyCurve, OdIfc4x2::IfcIndexedPolygonalFace, OdIfc4x2::IfcIndexedPolygonalFaceWithVoids, OdIfc4x2::IfcLightSource, OdIfc4x2::IfcLightSourceDirectional, OdIfc4x2::IfcLightSourceGoniometric, OdIfc4x2::IfcLightSourcePositional, OdIfc4x2::IfcLightSourceSpot, OdIfc4x2::IfcLine, OdIfc4x2::IfcManifoldSolidBrep, OdIfc4x2::IfcMappedItem, OdIfc4x2::IfcOffsetCurve2D, OdIfc4x2::IfcOffsetCurve3D, OdIfc4x2::IfcOffsetCurve, OdIfc4x2::IfcOffsetCurveByDistances, OdIfc4x2::IfcOrientationExpression, OdIfc4x2::IfcOrientedEdge, OdIfc4x2::IfcPath, OdIfc4x2::IfcPcurve, OdIfc4x2::IfcPlacement, OdIfc4x2::IfcPlanarBox, OdIfc4x2::IfcPlanarExtent, OdIfc4x2::IfcPointOnCurve, OdIfc4x2::IfcPointOnSurface, OdIfc4x2::IfcPolygonalBoundedHalfSpace, OdIfc4x2::IfcPolygonalFaceSet, OdIfc4x2::IfcPolyline, OdIfc4x2::IfcPolyLoop, OdIfc4x2::IfcRationalBSplineCurveWithKnots, OdIfc4x2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x2::IfcRectangularPyramid, OdIfc4x2::IfcRectangularTrimmedSurface, OdIfc4x2::IfcReparametrisedCompositeCurveSegment, OdIfc4x2::IfcRevolvedAreaSolid, OdIfc4x2::IfcRevolvedAreaSolidTapered, OdIfc4x2::IfcRightCircularCone, OdIfc4x2::IfcRightCircularCylinder, OdIfc4x2::IfcSectionedSolid, OdIfc4x2::IfcSectionedSolidHorizontal, OdIfc4x2::IfcSectionedSpine, OdIfc4x2::IfcShellBasedSurfaceModel, OdIfc4x2::IfcSphere, OdIfc4x2::IfcSphericalSurface, OdIfc4x2::IfcStyledItem, OdIfc4x2::IfcSubedge, OdIfc4x2::IfcSurfaceCurve, OdIfc4x2::IfcSurfaceCurveSweptAreaSolid, OdIfc4x2::IfcSurfaceOfLinearExtrusion, OdIfc4x2::IfcSurfaceOfRevolution, OdIfc4x2::IfcSweptAreaSolid, OdIfc4x2::IfcSweptDiskSolid, OdIfc4x2::IfcSweptDiskSolidPolygonal, OdIfc4x2::IfcSweptSurface, OdIfc4x2::IfcTessellatedFaceSet, OdIfc4x2::IfcTextLiteral, OdIfc4x2::IfcTextLiteralWithExtent, OdIfc4x2::IfcToroidalSurface, OdIfc4x2::IfcTransitionCurveSegment2D, OdIfc4x2::IfcTriangulatedFaceSet, OdIfc4x2::IfcTriangulatedIrregularNetwork, OdIfc4x2::IfcTrimmedCurve, OdIfc4x2::IfcVector, OdIfc4x2::IfcVertexLoop, and OdIfc4x2::IfcVertexPoint.

testAttr() [1/2]

virtual bool OdIfc4x2::IfcRepresentationItem::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName

[in] Explicit name of the attribute to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcAdvancedBrepWithVoids, OdIfc4x2::IfcAlignment2DHorizontal, OdIfc4x2::IfcAlignment2DHorizontalSegment, OdIfc4x2::IfcAlignment2DSegment, OdIfc4x2::IfcAlignment2DVerSegCircularArc, OdIfc4x2::IfcAlignment2DVerSegParabolicArc, OdIfc4x2::IfcAlignment2DVertical, OdIfc4x2::IfcAlignment2DVerticalSegment, OdIfc4x2::IfcAlignmentCurve, OdIfc4x2::IfcAnnotationFillArea, OdIfc4x2::IfcAxis1Placement, OdIfc4x2::IfcAxis2Placement2D, OdIfc4x2::IfcAxis2Placement3D, OdIfc4x2::IfcBlock, OdIfc4x2::IfcBooleanResult, OdIfc4x2::IfcBoundedCurve, OdIfc4x2::IfcBoundingBox, OdIfc4x2::IfcBoxedHalfSpace, OdIfc4x2::IfcBSplineCurve, OdIfc4x2::IfcBSplineCurveWithKnots, OdIfc4x2::IfcBSplineSurface, OdIfc4x2::IfcBSplineSurfaceWithKnots, OdIfc4x2::IfcCartesianPoint, OdIfc4x2::IfcCartesianPointList2D, OdIfc4x2::IfcCartesianPointList3D, OdIfc4x2::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator3D, OdIfc4x2::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator, OdIfc4x2::IfcCircle, OdIfc4x2::IfcCircularArcSegment2D, OdIfc4x2::IfcCompositeCurve, OdIfc4x2::IfcCompositeCurveSegment, OdIfc4x2::IfcConic, OdIfc4x2::IfcConnectedFaceSet, OdIfc4x2::IfcCsgPrimitive3D, OdIfc4x2::IfcCsgSolid, OdIfc4x2::IfcCurveBoundedPlane, OdIfc4x2::IfcCurveBoundedSurface, OdIfc4x2::IfcCurveSegment2D, OdIfc4x2::IfcCylindricalSurface, OdIfc4x2::IfcDirection, OdIfc4x2::IfcDistanceExpression, OdIfc4x2::IfcEdge, OdIfc4x2::IfcEdgeCurve, OdIfc4x2::IfcEdgeLoop, OdIfc4x2::IfcElementarySurface, OdIfc4x2::IfcEllipse, OdIfc4x2::IfcExtrudedAreaSolid, OdIfc4x2::IfcExtrudedAreaSolidTapered, OdIfc4x2::IfcFace, OdIfc4x2::IfcFaceBasedSurfaceModel, OdIfc4x2::IfcFaceBound, OdIfc4x2::IfcFaceSurface, OdIfc4x2::IfcFacetedBrepWithVoids, OdIfc4x2::IfcFillAreaStyleHatching, OdIfc4x2::IfcFillAreaStyleTiles, OdIfc4x2::IfcFixedReferenceSweptAreaSolid, OdIfc4x2::IfcGeometricSet, OdIfc4x2::IfcHalfSpaceSolid, OdIfc4x2::IfcIndexedPolyCurve, OdIfc4x2::IfcIndexedPolygonalFace, OdIfc4x2::IfcIndexedPolygonalFaceWithVoids, OdIfc4x2::IfcLightSource, OdIfc4x2::IfcLightSourceDirectional, OdIfc4x2::IfcLightSourceGoniometric, OdIfc4x2::IfcLightSourcePositional, OdIfc4x2::IfcLightSourceSpot, OdIfc4x2::IfcLine, OdIfc4x2::IfcManifoldSolidBrep, OdIfc4x2::IfcMappedItem, OdIfc4x2::IfcOffsetCurve2D, OdIfc4x2::IfcOffsetCurve3D, OdIfc4x2::IfcOffsetCurve, OdIfc4x2::IfcOffsetCurveByDistances, OdIfc4x2::IfcOrientationExpression, OdIfc4x2::IfcOrientedEdge, OdIfc4x2::IfcPath, OdIfc4x2::IfcPcurve, OdIfc4x2::IfcPlacement, OdIfc4x2::IfcPlanarBox, OdIfc4x2::IfcPlanarExtent, OdIfc4x2::IfcPointOnCurve, OdIfc4x2::IfcPointOnSurface, OdIfc4x2::IfcPolygonalBoundedHalfSpace, OdIfc4x2::IfcPolygonalFaceSet, OdIfc4x2::IfcPolyline, OdIfc4x2::IfcPolyLoop, OdIfc4x2::IfcRationalBSplineCurveWithKnots, OdIfc4x2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x2::IfcRectangularPyramid, OdIfc4x2::IfcRectangularTrimmedSurface, OdIfc4x2::IfcReparametrisedCompositeCurveSegment, OdIfc4x2::IfcRevolvedAreaSolid, OdIfc4x2::IfcRevolvedAreaSolidTapered, OdIfc4x2::IfcRightCircularCone, OdIfc4x2::IfcRightCircularCylinder, OdIfc4x2::IfcSectionedSolid, OdIfc4x2::IfcSectionedSolidHorizontal, OdIfc4x2::IfcSectionedSpine, OdIfc4x2::IfcShellBasedSurfaceModel, OdIfc4x2::IfcSphere, OdIfc4x2::IfcSphericalSurface, OdIfc4x2::IfcStyledItem, OdIfc4x2::IfcSubedge, OdIfc4x2::IfcSurfaceCurve, OdIfc4x2::IfcSurfaceCurveSweptAreaSolid, OdIfc4x2::IfcSurfaceOfLinearExtrusion, OdIfc4x2::IfcSurfaceOfRevolution, OdIfc4x2::IfcSweptAreaSolid, OdIfc4x2::IfcSweptDiskSolid, OdIfc4x2::IfcSweptDiskSolidPolygonal, OdIfc4x2::IfcSweptSurface, OdIfc4x2::IfcTessellatedFaceSet, OdIfc4x2::IfcTextLiteral, OdIfc4x2::IfcTextLiteralWithExtent, OdIfc4x2::IfcToroidalSurface, OdIfc4x2::IfcTransitionCurveSegment2D, OdIfc4x2::IfcTriangulatedFaceSet, OdIfc4x2::IfcTriangulatedIrregularNetwork, OdIfc4x2::IfcTrimmedCurve, OdIfc4x2::IfcVector, OdIfc4x2::IfcVertexLoop, and OdIfc4x2::IfcVertexPoint.

testAttr() [2/2]

virtual bool OdIfc4x2::IfcRepresentationItem::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef

[in] Attribute definition to test.

Returns

true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcAdvancedBrepWithVoids, OdIfc4x2::IfcAlignment2DHorizontal, OdIfc4x2::IfcAlignment2DHorizontalSegment, OdIfc4x2::IfcAlignment2DSegment, OdIfc4x2::IfcAlignment2DVerSegCircularArc, OdIfc4x2::IfcAlignment2DVerSegParabolicArc, OdIfc4x2::IfcAlignment2DVertical, OdIfc4x2::IfcAlignment2DVerticalSegment, OdIfc4x2::IfcAlignmentCurve, OdIfc4x2::IfcAnnotationFillArea, OdIfc4x2::IfcAxis1Placement, OdIfc4x2::IfcAxis2Placement2D, OdIfc4x2::IfcAxis2Placement3D, OdIfc4x2::IfcBlock, OdIfc4x2::IfcBooleanResult, OdIfc4x2::IfcBoundedCurve, OdIfc4x2::IfcBoundingBox, OdIfc4x2::IfcBoxedHalfSpace, OdIfc4x2::IfcBSplineCurve, OdIfc4x2::IfcBSplineCurveWithKnots, OdIfc4x2::IfcBSplineSurface, OdIfc4x2::IfcBSplineSurfaceWithKnots, OdIfc4x2::IfcCartesianPoint, OdIfc4x2::IfcCartesianPointList2D, OdIfc4x2::IfcCartesianPointList3D, OdIfc4x2::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator3D, OdIfc4x2::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator, OdIfc4x2::IfcCircle, OdIfc4x2::IfcCircularArcSegment2D, OdIfc4x2::IfcCompositeCurve, OdIfc4x2::IfcCompositeCurveSegment, OdIfc4x2::IfcConic, OdIfc4x2::IfcConnectedFaceSet, OdIfc4x2::IfcCsgPrimitive3D, OdIfc4x2::IfcCsgSolid, OdIfc4x2::IfcCurveBoundedPlane, OdIfc4x2::IfcCurveBoundedSurface, OdIfc4x2::IfcCurveSegment2D, OdIfc4x2::IfcCylindricalSurface, OdIfc4x2::IfcDirection, OdIfc4x2::IfcDistanceExpression, OdIfc4x2::IfcEdge, OdIfc4x2::IfcEdgeCurve, OdIfc4x2::IfcEdgeLoop, OdIfc4x2::IfcElementarySurface, OdIfc4x2::IfcEllipse, OdIfc4x2::IfcExtrudedAreaSolid, OdIfc4x2::IfcExtrudedAreaSolidTapered, OdIfc4x2::IfcFace, OdIfc4x2::IfcFaceBasedSurfaceModel, OdIfc4x2::IfcFaceBound, OdIfc4x2::IfcFaceSurface, OdIfc4x2::IfcFacetedBrepWithVoids, OdIfc4x2::IfcFillAreaStyleHatching, OdIfc4x2::IfcFillAreaStyleTiles, OdIfc4x2::IfcFixedReferenceSweptAreaSolid, OdIfc4x2::IfcGeometricSet, OdIfc4x2::IfcHalfSpaceSolid, OdIfc4x2::IfcIndexedPolyCurve, OdIfc4x2::IfcIndexedPolygonalFace, OdIfc4x2::IfcIndexedPolygonalFaceWithVoids, OdIfc4x2::IfcLightSource, OdIfc4x2::IfcLightSourceDirectional, OdIfc4x2::IfcLightSourceGoniometric, OdIfc4x2::IfcLightSourcePositional, OdIfc4x2::IfcLightSourceSpot, OdIfc4x2::IfcLine, OdIfc4x2::IfcManifoldSolidBrep, OdIfc4x2::IfcMappedItem, OdIfc4x2::IfcOffsetCurve2D, OdIfc4x2::IfcOffsetCurve3D, OdIfc4x2::IfcOffsetCurve, OdIfc4x2::IfcOffsetCurveByDistances, OdIfc4x2::IfcOrientationExpression, OdIfc4x2::IfcOrientedEdge, OdIfc4x2::IfcPath, OdIfc4x2::IfcPcurve, OdIfc4x2::IfcPlacement, OdIfc4x2::IfcPlanarBox, OdIfc4x2::IfcPlanarExtent, OdIfc4x2::IfcPointOnCurve, OdIfc4x2::IfcPointOnSurface, OdIfc4x2::IfcPolygonalBoundedHalfSpace, OdIfc4x2::IfcPolygonalFaceSet, OdIfc4x2::IfcPolyline, OdIfc4x2::IfcPolyLoop, OdIfc4x2::IfcRationalBSplineCurveWithKnots, OdIfc4x2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x2::IfcRectangularPyramid, OdIfc4x2::IfcRectangularTrimmedSurface, OdIfc4x2::IfcReparametrisedCompositeCurveSegment, OdIfc4x2::IfcRevolvedAreaSolid, OdIfc4x2::IfcRevolvedAreaSolidTapered, OdIfc4x2::IfcRightCircularCone, OdIfc4x2::IfcRightCircularCylinder, OdIfc4x2::IfcSectionedSolid, OdIfc4x2::IfcSectionedSolidHorizontal, OdIfc4x2::IfcSectionedSpine, OdIfc4x2::IfcShellBasedSurfaceModel, OdIfc4x2::IfcSphere, OdIfc4x2::IfcSphericalSurface, OdIfc4x2::IfcStyledItem, OdIfc4x2::IfcSubedge, OdIfc4x2::IfcSurfaceCurve, OdIfc4x2::IfcSurfaceCurveSweptAreaSolid, OdIfc4x2::IfcSurfaceOfLinearExtrusion, OdIfc4x2::IfcSurfaceOfRevolution, OdIfc4x2::IfcSweptAreaSolid, OdIfc4x2::IfcSweptDiskSolid, OdIfc4x2::IfcSweptDiskSolidPolygonal, OdIfc4x2::IfcSweptSurface, OdIfc4x2::IfcTessellatedFaceSet, OdIfc4x2::IfcTextLiteral, OdIfc4x2::IfcTextLiteralWithExtent, OdIfc4x2::IfcToroidalSurface, OdIfc4x2::IfcTransitionCurveSegment2D, OdIfc4x2::IfcTriangulatedFaceSet, OdIfc4x2::IfcTriangulatedIrregularNetwork, OdIfc4x2::IfcTrimmedCurve, OdIfc4x2::IfcVector, OdIfc4x2::IfcVertexLoop, and OdIfc4x2::IfcVertexPoint.

type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcRepresentationItem::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcAdvancedBrep, OdIfc4x2::IfcAdvancedBrepWithVoids, OdIfc4x2::IfcAdvancedFace, OdIfc4x2::IfcAlignment2DHorizontal, OdIfc4x2::IfcAlignment2DHorizontalSegment, OdIfc4x2::IfcAlignment2DSegment, OdIfc4x2::IfcAlignment2DVerSegCircularArc, OdIfc4x2::IfcAlignment2DVerSegLine, OdIfc4x2::IfcAlignment2DVerSegParabolicArc, OdIfc4x2::IfcAlignment2DVertical, OdIfc4x2::IfcAlignment2DVerticalSegment, OdIfc4x2::IfcAlignmentCurve, OdIfc4x2::IfcAnnotationFillArea, OdIfc4x2::IfcAxis1Placement, OdIfc4x2::IfcAxis2Placement2D, OdIfc4x2::IfcAxis2Placement3D, OdIfc4x2::IfcBlock, OdIfc4x2::IfcBooleanClippingResult, OdIfc4x2::IfcBooleanResult, OdIfc4x2::IfcBoundaryCurve, OdIfc4x2::IfcBoundedCurve, OdIfc4x2::IfcBoundedSurface, OdIfc4x2::IfcBoundingBox, OdIfc4x2::IfcBoxedHalfSpace, OdIfc4x2::IfcBSplineCurve, OdIfc4x2::IfcBSplineCurveWithKnots, OdIfc4x2::IfcBSplineSurface, OdIfc4x2::IfcBSplineSurfaceWithKnots, OdIfc4x2::IfcCartesianPoint, OdIfc4x2::IfcCartesianPointList2D, OdIfc4x2::IfcCartesianPointList3D, OdIfc4x2::IfcCartesianPointList, OdIfc4x2::IfcCartesianTransformationOperator2D, OdIfc4x2::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator3D, OdIfc4x2::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator, OdIfc4x2::IfcCircle, OdIfc4x2::IfcCircularArcSegment2D, OdIfc4x2::IfcClosedShell, OdIfc4x2::IfcCompositeCurve, OdIfc4x2::IfcCompositeCurveOnSurface, OdIfc4x2::IfcCompositeCurveSegment, OdIfc4x2::IfcConic, OdIfc4x2::IfcConnectedFaceSet, OdIfc4x2::IfcCsgPrimitive3D, OdIfc4x2::IfcCsgSolid, OdIfc4x2::IfcCurve, OdIfc4x2::IfcCurveBoundedPlane, OdIfc4x2::IfcCurveBoundedSurface, OdIfc4x2::IfcCurveSegment2D, OdIfc4x2::IfcCylindricalSurface, OdIfc4x2::IfcDirection, OdIfc4x2::IfcDistanceExpression, OdIfc4x2::IfcEdge, OdIfc4x2::IfcEdgeCurve, OdIfc4x2::IfcEdgeLoop, OdIfc4x2::IfcElementarySurface, OdIfc4x2::IfcEllipse, OdIfc4x2::IfcExtrudedAreaSolid, OdIfc4x2::IfcExtrudedAreaSolidTapered, OdIfc4x2::IfcFace, OdIfc4x2::IfcFaceBasedSurfaceModel, OdIfc4x2::IfcFaceBound, OdIfc4x2::IfcFaceOuterBound, OdIfc4x2::IfcFaceSurface, OdIfc4x2::IfcFacetedBrep, OdIfc4x2::IfcFacetedBrepWithVoids, OdIfc4x2::IfcFillAreaStyleHatching, OdIfc4x2::IfcFillAreaStyleTiles, OdIfc4x2::IfcFixedReferenceSweptAreaSolid, OdIfc4x2::IfcGeometricCurveSet, OdIfc4x2::IfcGeometricRepresentationItem, OdIfc4x2::IfcGeometricSet, OdIfc4x2::IfcHalfSpaceSolid, OdIfc4x2::IfcIndexedPolyCurve, OdIfc4x2::IfcIndexedPolygonalFace, OdIfc4x2::IfcIndexedPolygonalFaceWithVoids, OdIfc4x2::IfcIntersectionCurve, OdIfc4x2::IfcLightSource, OdIfc4x2::IfcLightSourceAmbient, OdIfc4x2::IfcLightSourceDirectional, OdIfc4x2::IfcLightSourceGoniometric, OdIfc4x2::IfcLightSourcePositional, OdIfc4x2::IfcLightSourceSpot, OdIfc4x2::IfcLine, OdIfc4x2::IfcLineSegment2D, OdIfc4x2::IfcLoop, OdIfc4x2::IfcManifoldSolidBrep, OdIfc4x2::IfcMappedItem, OdIfc4x2::IfcOffsetCurve2D, OdIfc4x2::IfcOffsetCurve3D, OdIfc4x2::IfcOffsetCurve, OdIfc4x2::IfcOffsetCurveByDistances, OdIfc4x2::IfcOpenShell, OdIfc4x2::IfcOrientationExpression, OdIfc4x2::IfcOrientedEdge, OdIfc4x2::IfcOuterBoundaryCurve, OdIfc4x2::IfcPath, OdIfc4x2::IfcPcurve, OdIfc4x2::IfcPlacement, OdIfc4x2::IfcPlanarBox, OdIfc4x2::IfcPlanarExtent, OdIfc4x2::IfcPlane, OdIfc4x2::IfcPoint, OdIfc4x2::IfcPointOnCurve, OdIfc4x2::IfcPointOnSurface, OdIfc4x2::IfcPolygonalBoundedHalfSpace, OdIfc4x2::IfcPolygonalFaceSet, OdIfc4x2::IfcPolyline, OdIfc4x2::IfcPolyLoop, OdIfc4x2::IfcRationalBSplineCurveWithKnots, OdIfc4x2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x2::IfcRectangularPyramid, OdIfc4x2::IfcRectangularTrimmedSurface, OdIfc4x2::IfcReparametrisedCompositeCurveSegment, OdIfc4x2::IfcRevolvedAreaSolid, OdIfc4x2::IfcRevolvedAreaSolidTapered, OdIfc4x2::IfcRightCircularCone, OdIfc4x2::IfcRightCircularCylinder, OdIfc4x2::IfcSeamCurve, OdIfc4x2::IfcSectionedSolid, OdIfc4x2::IfcSectionedSolidHorizontal, OdIfc4x2::IfcSectionedSpine, OdIfc4x2::IfcShellBasedSurfaceModel, OdIfc4x2::IfcSolidModel, OdIfc4x2::IfcSphere, OdIfc4x2::IfcSphericalSurface, OdIfc4x2::IfcStyledItem, OdIfc4x2::IfcSubedge, OdIfc4x2::IfcSurface, OdIfc4x2::IfcSurfaceCurve, OdIfc4x2::IfcSurfaceCurveSweptAreaSolid, OdIfc4x2::IfcSurfaceOfLinearExtrusion, OdIfc4x2::IfcSurfaceOfRevolution, OdIfc4x2::IfcSweptAreaSolid, OdIfc4x2::IfcSweptDiskSolid, OdIfc4x2::IfcSweptDiskSolidPolygonal, OdIfc4x2::IfcSweptSurface, OdIfc4x2::IfcTessellatedFaceSet, OdIfc4x2::IfcTessellatedItem, OdIfc4x2::IfcTextLiteral, OdIfc4x2::IfcTextLiteralWithExtent, OdIfc4x2::IfcTopologicalRepresentationItem, OdIfc4x2::IfcToroidalSurface, OdIfc4x2::IfcTransitionCurveSegment2D, OdIfc4x2::IfcTriangulatedFaceSet, OdIfc4x2::IfcTriangulatedIrregularNetwork, OdIfc4x2::IfcTrimmedCurve, OdIfc4x2::IfcVector, OdIfc4x2::IfcVertex, OdIfc4x2::IfcVertexLoop, and OdIfc4x2::IfcVertexPoint.

unsetAttr() [1/2]

virtual void OdIfc4x2::IfcRepresentationItem::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName

[in] Explicit name of the attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcAdvancedBrepWithVoids, OdIfc4x2::IfcAlignment2DHorizontal, OdIfc4x2::IfcAlignment2DHorizontalSegment, OdIfc4x2::IfcAlignment2DSegment, OdIfc4x2::IfcAlignment2DVerSegCircularArc, OdIfc4x2::IfcAlignment2DVerSegParabolicArc, OdIfc4x2::IfcAlignment2DVertical, OdIfc4x2::IfcAlignment2DVerticalSegment, OdIfc4x2::IfcAlignmentCurve, OdIfc4x2::IfcAnnotationFillArea, OdIfc4x2::IfcAxis1Placement, OdIfc4x2::IfcAxis2Placement2D, OdIfc4x2::IfcAxis2Placement3D, OdIfc4x2::IfcBlock, OdIfc4x2::IfcBooleanResult, OdIfc4x2::IfcBoundedCurve, OdIfc4x2::IfcBoundingBox, OdIfc4x2::IfcBoxedHalfSpace, OdIfc4x2::IfcBSplineCurve, OdIfc4x2::IfcBSplineCurveWithKnots, OdIfc4x2::IfcBSplineSurface, OdIfc4x2::IfcBSplineSurfaceWithKnots, OdIfc4x2::IfcCartesianPoint, OdIfc4x2::IfcCartesianPointList2D, OdIfc4x2::IfcCartesianPointList3D, OdIfc4x2::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator3D, OdIfc4x2::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator, OdIfc4x2::IfcCircle, OdIfc4x2::IfcCircularArcSegment2D, OdIfc4x2::IfcCompositeCurve, OdIfc4x2::IfcCompositeCurveSegment, OdIfc4x2::IfcConic, OdIfc4x2::IfcConnectedFaceSet, OdIfc4x2::IfcCsgPrimitive3D, OdIfc4x2::IfcCsgSolid, OdIfc4x2::IfcCurveBoundedPlane, OdIfc4x2::IfcCurveBoundedSurface, OdIfc4x2::IfcCurveSegment2D, OdIfc4x2::IfcCylindricalSurface, OdIfc4x2::IfcDirection, OdIfc4x2::IfcDistanceExpression, OdIfc4x2::IfcEdge, OdIfc4x2::IfcEdgeCurve, OdIfc4x2::IfcEdgeLoop, OdIfc4x2::IfcElementarySurface, OdIfc4x2::IfcEllipse, OdIfc4x2::IfcExtrudedAreaSolid, OdIfc4x2::IfcExtrudedAreaSolidTapered, OdIfc4x2::IfcFace, OdIfc4x2::IfcFaceBasedSurfaceModel, OdIfc4x2::IfcFaceBound, OdIfc4x2::IfcFaceSurface, OdIfc4x2::IfcFacetedBrepWithVoids, OdIfc4x2::IfcFillAreaStyleHatching, OdIfc4x2::IfcFillAreaStyleTiles, OdIfc4x2::IfcFixedReferenceSweptAreaSolid, OdIfc4x2::IfcGeometricSet, OdIfc4x2::IfcHalfSpaceSolid, OdIfc4x2::IfcIndexedPolyCurve, OdIfc4x2::IfcIndexedPolygonalFace, OdIfc4x2::IfcIndexedPolygonalFaceWithVoids, OdIfc4x2::IfcLightSource, OdIfc4x2::IfcLightSourceDirectional, OdIfc4x2::IfcLightSourceGoniometric, OdIfc4x2::IfcLightSourcePositional, OdIfc4x2::IfcLightSourceSpot, OdIfc4x2::IfcLine, OdIfc4x2::IfcManifoldSolidBrep, OdIfc4x2::IfcMappedItem, OdIfc4x2::IfcOffsetCurve2D, OdIfc4x2::IfcOffsetCurve3D, OdIfc4x2::IfcOffsetCurve, OdIfc4x2::IfcOffsetCurveByDistances, OdIfc4x2::IfcOrientationExpression, OdIfc4x2::IfcOrientedEdge, OdIfc4x2::IfcPath, OdIfc4x2::IfcPcurve, OdIfc4x2::IfcPlacement, OdIfc4x2::IfcPlanarBox, OdIfc4x2::IfcPlanarExtent, OdIfc4x2::IfcPointOnCurve, OdIfc4x2::IfcPointOnSurface, OdIfc4x2::IfcPolygonalBoundedHalfSpace, OdIfc4x2::IfcPolygonalFaceSet, OdIfc4x2::IfcPolyline, OdIfc4x2::IfcPolyLoop, OdIfc4x2::IfcRationalBSplineCurveWithKnots, OdIfc4x2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x2::IfcRectangularPyramid, OdIfc4x2::IfcRectangularTrimmedSurface, OdIfc4x2::IfcReparametrisedCompositeCurveSegment, OdIfc4x2::IfcRevolvedAreaSolid, OdIfc4x2::IfcRevolvedAreaSolidTapered, OdIfc4x2::IfcRightCircularCone, OdIfc4x2::IfcRightCircularCylinder, OdIfc4x2::IfcSectionedSolid, OdIfc4x2::IfcSectionedSolidHorizontal, OdIfc4x2::IfcSectionedSpine, OdIfc4x2::IfcShellBasedSurfaceModel, OdIfc4x2::IfcSphere, OdIfc4x2::IfcSphericalSurface, OdIfc4x2::IfcStyledItem, OdIfc4x2::IfcSubedge, OdIfc4x2::IfcSurfaceCurve, OdIfc4x2::IfcSurfaceCurveSweptAreaSolid, OdIfc4x2::IfcSurfaceOfLinearExtrusion, OdIfc4x2::IfcSurfaceOfRevolution, OdIfc4x2::IfcSweptAreaSolid, OdIfc4x2::IfcSweptDiskSolid, OdIfc4x2::IfcSweptDiskSolidPolygonal, OdIfc4x2::IfcSweptSurface, OdIfc4x2::IfcTessellatedFaceSet, OdIfc4x2::IfcTextLiteral, OdIfc4x2::IfcTextLiteralWithExtent, OdIfc4x2::IfcToroidalSurface, OdIfc4x2::IfcTransitionCurveSegment2D, OdIfc4x2::IfcTriangulatedFaceSet, OdIfc4x2::IfcTriangulatedIrregularNetwork, OdIfc4x2::IfcTrimmedCurve, OdIfc4x2::IfcVector, OdIfc4x2::IfcVertexLoop, and OdIfc4x2::IfcVertexPoint.

unsetAttr() [2/2]

virtual void OdIfc4x2::IfcRepresentationItem::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef

[in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcAdvancedBrepWithVoids, OdIfc4x2::IfcAlignment2DHorizontal, OdIfc4x2::IfcAlignment2DHorizontalSegment, OdIfc4x2::IfcAlignment2DSegment, OdIfc4x2::IfcAlignment2DVerSegCircularArc, OdIfc4x2::IfcAlignment2DVerSegParabolicArc, OdIfc4x2::IfcAlignment2DVertical, OdIfc4x2::IfcAlignment2DVerticalSegment, OdIfc4x2::IfcAlignmentCurve, OdIfc4x2::IfcAnnotationFillArea, OdIfc4x2::IfcAxis1Placement, OdIfc4x2::IfcAxis2Placement2D, OdIfc4x2::IfcAxis2Placement3D, OdIfc4x2::IfcBlock, OdIfc4x2::IfcBooleanResult, OdIfc4x2::IfcBoundedCurve, OdIfc4x2::IfcBoundingBox, OdIfc4x2::IfcBoxedHalfSpace, OdIfc4x2::IfcBSplineCurve, OdIfc4x2::IfcBSplineCurveWithKnots, OdIfc4x2::IfcBSplineSurface, OdIfc4x2::IfcBSplineSurfaceWithKnots, OdIfc4x2::IfcCartesianPoint, OdIfc4x2::IfcCartesianPointList2D, OdIfc4x2::IfcCartesianPointList3D, OdIfc4x2::IfcCartesianTransformationOperator2DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator3D, OdIfc4x2::IfcCartesianTransformationOperator3DnonUniform, OdIfc4x2::IfcCartesianTransformationOperator, OdIfc4x2::IfcCircle, OdIfc4x2::IfcCircularArcSegment2D, OdIfc4x2::IfcCompositeCurve, OdIfc4x2::IfcCompositeCurveSegment, OdIfc4x2::IfcConic, OdIfc4x2::IfcConnectedFaceSet, OdIfc4x2::IfcCsgPrimitive3D, OdIfc4x2::IfcCsgSolid, OdIfc4x2::IfcCurveBoundedPlane, OdIfc4x2::IfcCurveBoundedSurface, OdIfc4x2::IfcCurveSegment2D, OdIfc4x2::IfcCylindricalSurface, OdIfc4x2::IfcDirection, OdIfc4x2::IfcDistanceExpression, OdIfc4x2::IfcEdge, OdIfc4x2::IfcEdgeCurve, OdIfc4x2::IfcEdgeLoop, OdIfc4x2::IfcElementarySurface, OdIfc4x2::IfcEllipse, OdIfc4x2::IfcExtrudedAreaSolid, OdIfc4x2::IfcExtrudedAreaSolidTapered, OdIfc4x2::IfcFace, OdIfc4x2::IfcFaceBasedSurfaceModel, OdIfc4x2::IfcFaceBound, OdIfc4x2::IfcFaceSurface, OdIfc4x2::IfcFacetedBrepWithVoids, OdIfc4x2::IfcFillAreaStyleHatching, OdIfc4x2::IfcFillAreaStyleTiles, OdIfc4x2::IfcFixedReferenceSweptAreaSolid, OdIfc4x2::IfcGeometricSet, OdIfc4x2::IfcHalfSpaceSolid, OdIfc4x2::IfcIndexedPolyCurve, OdIfc4x2::IfcIndexedPolygonalFace, OdIfc4x2::IfcIndexedPolygonalFaceWithVoids, OdIfc4x2::IfcLightSource, OdIfc4x2::IfcLightSourceDirectional, OdIfc4x2::IfcLightSourceGoniometric, OdIfc4x2::IfcLightSourcePositional, OdIfc4x2::IfcLightSourceSpot, OdIfc4x2::IfcLine, OdIfc4x2::IfcManifoldSolidBrep, OdIfc4x2::IfcMappedItem, OdIfc4x2::IfcOffsetCurve2D, OdIfc4x2::IfcOffsetCurve3D, OdIfc4x2::IfcOffsetCurve, OdIfc4x2::IfcOffsetCurveByDistances, OdIfc4x2::IfcOrientationExpression, OdIfc4x2::IfcOrientedEdge, OdIfc4x2::IfcPath, OdIfc4x2::IfcPcurve, OdIfc4x2::IfcPlacement, OdIfc4x2::IfcPlanarBox, OdIfc4x2::IfcPlanarExtent, OdIfc4x2::IfcPointOnCurve, OdIfc4x2::IfcPointOnSurface, OdIfc4x2::IfcPolygonalBoundedHalfSpace, OdIfc4x2::IfcPolygonalFaceSet, OdIfc4x2::IfcPolyline, OdIfc4x2::IfcPolyLoop, OdIfc4x2::IfcRationalBSplineCurveWithKnots, OdIfc4x2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x2::IfcRectangularPyramid, OdIfc4x2::IfcRectangularTrimmedSurface, OdIfc4x2::IfcReparametrisedCompositeCurveSegment, OdIfc4x2::IfcRevolvedAreaSolid, OdIfc4x2::IfcRevolvedAreaSolidTapered, OdIfc4x2::IfcRightCircularCone, OdIfc4x2::IfcRightCircularCylinder, OdIfc4x2::IfcSectionedSolid, OdIfc4x2::IfcSectionedSolidHorizontal, OdIfc4x2::IfcSectionedSpine, OdIfc4x2::IfcShellBasedSurfaceModel, OdIfc4x2::IfcSphere, OdIfc4x2::IfcSphericalSurface, OdIfc4x2::IfcStyledItem, OdIfc4x2::IfcSubedge, OdIfc4x2::IfcSurfaceCurve, OdIfc4x2::IfcSurfaceCurveSweptAreaSolid, OdIfc4x2::IfcSurfaceOfLinearExtrusion, OdIfc4x2::IfcSurfaceOfRevolution, OdIfc4x2::IfcSweptAreaSolid, OdIfc4x2::IfcSweptDiskSolid, OdIfc4x2::IfcSweptDiskSolidPolygonal, OdIfc4x2::IfcSweptSurface, OdIfc4x2::IfcTessellatedFaceSet, OdIfc4x2::IfcTextLiteral, OdIfc4x2::IfcTextLiteralWithExtent, OdIfc4x2::IfcToroidalSurface, OdIfc4x2::IfcTransitionCurveSegment2D, OdIfc4x2::IfcTriangulatedFaceSet, OdIfc4x2::IfcTriangulatedIrregularNetwork, OdIfc4x2::IfcTrimmedCurve, OdIfc4x2::IfcVector, OdIfc4x2::IfcVertexLoop, and OdIfc4x2::IfcVertexPoint.

Friends And Related Symbol Documentation

IfcPresentationLayerAssignment

friend class IfcPresentationLayerAssignment

friend

Definition at line 185 of file Ifc4x2/IfcRepresentationItemAutoImpl.h.

IfcStyledItem

friend class IfcStyledItem

friend

Definition at line 186 of file Ifc4x2/IfcRepresentationItemAutoImpl.h.

---

The documentation for this class was generated from the following file:

• Ifc4x2/IfcRepresentationItemAutoImpl.h
