#include <IfcRelAssignsAutoImpl.h>

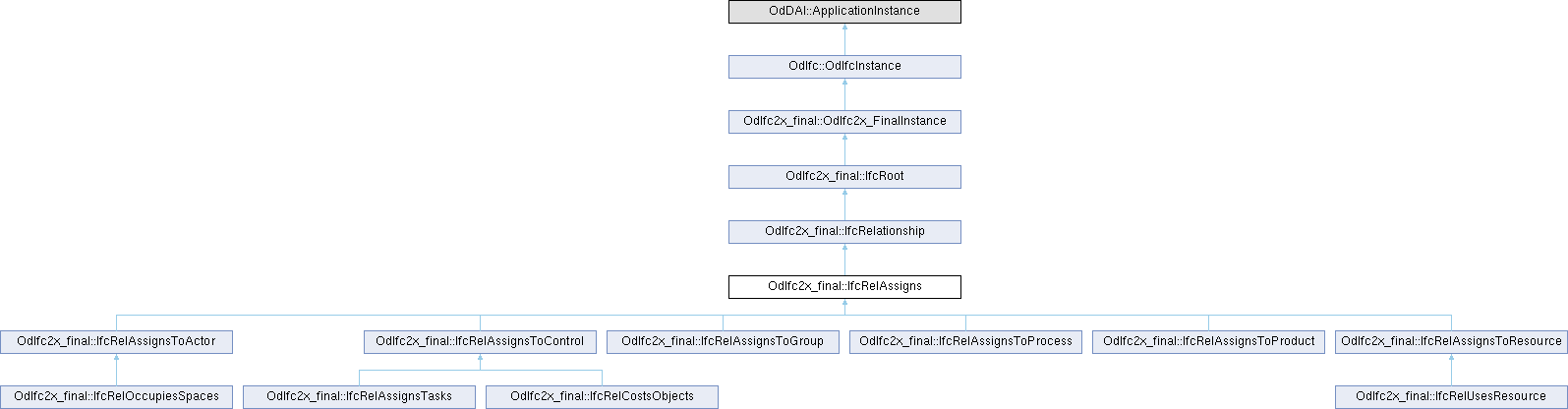

Inheritance diagram for OdIfc2x_final::IfcRelAssigns:

Public Member Functions
void	getRelatedObjects (OdDAIObjectIds &RelatedObjects) const

OdDAI::SetOfOdDAIObjectId &	relatedObjects ()

IfcObjectTypeEnum	getRelatedObjectsType () const

void	setRelatedObjectsType (IfcObjectTypeEnum RelatedObjectsType)

	IfcRelAssigns ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::SetOfOdDAIObjectId	m_RelatedObjects

OdDAI::Enum	m_RelatedObjectsType

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The assignment relationship, IfcRelAssigns, is a generalization of "link" relationships among instances of IfcObject and its various 1st level subtypes. A link denotes the specific association through which one object (the client) applies the services of other objects (the suppliers), or through which one object can navigate to other objects.

The client is denoted as the relating object and is established at the level of the specific, instantiable subtypes of IfcRelAssigns. The suppliers are denoted as the related objects and they are established by the RelatedObjects attribute.

Remarks: The terms "client" and "supplier" are used in a general concept and do not imply any meaning for implementations of systems (like client-server). EXAMPLE: A resource can receive information about its nature of representing real building products by establishing a link between IfcResource and IfcBuildingElement (subtype of IfcProduct) through the assignment relationship IfcRelAssignsToResource. The resource is then the client that applies the services of other objects (here building elements) to express the particular view of elements to be consumed as a resource in a process.

Definition at line 51 of file Ifc2x_Final/IfcRelAssignsAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcRelAssigns()

OdIfc2x_final::IfcRelAssigns::IfcRelAssigns ( )

Default constructor for the IfcRelAssigns class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcRelAssigns::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, and OdIfc2x_final::IfcRelUsesResource.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcRelAssigns::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, and OdIfc2x_final::IfcRelUsesResource.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcRelAssigns::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcRelationship.

Reimplemented in OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelCostsObjects, OdIfc2x_final::IfcRelOccupiesSpaces, and OdIfc2x_final::IfcRelUsesResource.

◆ getRelatedObjects()

void OdIfc2x_final::IfcRelAssigns::getRelatedObjects ( OdDAIObjectIds & RelatedObjects ) const

Returns the value of RelatedObjects attribute. RelatedObjects attribute represents related objects which are assigned to a single object. The type of the single (or relating) object is defined in the subtypes of IfcRelAssigns.

Parameters

RelatedObjects [out] Reveives the RelatedObjects attribute.

◆ getRelatedObjectsType()

IfcObjectTypeEnum OdIfc2x_final::IfcRelAssigns::getRelatedObjectsType ( ) const

Returns the value of RelatedObjectsType attribute. RelatedObjectsType is particular type of the assignment relationship. It can constrain the applicable object types, used within the role of RelatedObjects.

Returns: Returns the value of RelatedObjectsType attribute.

Remarks: IFC4 CHANGE: The attribute is deprecated.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcRelAssigns::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, and OdIfc2x_final::IfcRelUsesResource.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcRelAssigns::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcRelationship.

Reimplemented in OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelCostsObjects, OdIfc2x_final::IfcRelOccupiesSpaces, and OdIfc2x_final::IfcRelUsesResource.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcRelAssigns::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, and OdIfc2x_final::IfcRelUsesResource.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcRelAssigns::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, and OdIfc2x_final::IfcRelUsesResource.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcRelAssigns::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, and OdIfc2x_final::IfcRelUsesResource.

◆ relatedObjects()

OdDAI::SetOfOdDAIObjectId & OdIfc2x_final::IfcRelAssigns::relatedObjects ( )

Returns the value of RelatedObjects attribute. RelatedObjects attribute represents related objects which are assigned to a single object. The type of the single (or relating) object is defined in the subtypes of IfcRelAssigns.

Returns: Returns the value of RelatedObjects attribute.

◆ setRelatedObjectsType()

void OdIfc2x_final::IfcRelAssigns::setRelatedObjectsType ( IfcObjectTypeEnum RelatedObjectsType )

Sets the value of RelatedObjectsType attribute. RelatedObjectsType is particular type of the assignment relationship. It can constrain the applicable object types, used within the role of RelatedObjects.

Parameters

RelatedObjectsType [in] RelatedObjectsType to set.

Remarks: IFC4 CHANGE: The attribute is deprecated.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcRelAssigns::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, and OdIfc2x_final::IfcRelUsesResource.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcRelAssigns::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x_final::IfcRoot.

Reimplemented in OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, and OdIfc2x_final::IfcRelUsesResource.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcRelAssigns::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcRelationship.

Reimplemented in OdIfc2x_final::IfcRelAssignsTasks, OdIfc2x_final::IfcRelAssignsToActor, OdIfc2x_final::IfcRelAssignsToControl, OdIfc2x_final::IfcRelAssignsToGroup, OdIfc2x_final::IfcRelAssignsToProcess, OdIfc2x_final::IfcRelAssignsToProduct, OdIfc2x_final::IfcRelAssignsToResource, OdIfc2x_final::IfcRelCostsObjects, OdIfc2x_final::IfcRelOccupiesSpaces, and OdIfc2x_final::IfcRelUsesResource.
