#include <IfcFaceSurfaceAutoImpl.h>

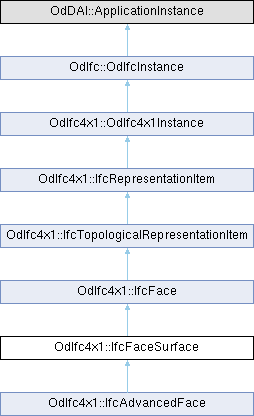

Inheritance diagram for OdIfc4x1::IfcFaceSurface:

Public Member Functions
const OdDAIObjectId &	getFaceSurface () const

void	setFaceSurface (const OdDAIObjectId &FaceSurface)

OdDAI::Boolean	getSameSense () const

void	setSameSense (OdDAI::Boolean SameSense)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcFace
void	getBounds (OdDAIObjectIds &Bounds) const

OdDAI::SetOfOdDAIObjectId &	bounds ()

void	getInvHasTextureMaps (OdDAIObjectIds &HasTextureMaps) const

Public Member Functions inherited from OdIfc4x1::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_FaceSurface

OdDAI::Boolean	m_SameSense

Protected Attributes inherited from OdIfc4x1::IfcFace
OdDAI::SetOfOdDAIObjectId	m_Bounds

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcFaceSurface defines the underlying geometry of the associated surface to the face. A face surface is a subtype of face in which the geometry is defined by an associated surface. The portion of the surface used by the face is embeddable in the plane as an open disk, possibly with holes. However, the union of the face with the edges and vertices of its bounding loops need not be embeddable in the plane. For example, it can cover an entire sphere or torus. The geometry associated with any component of the loops of the face can be consistent with the surface geometry, in the sense that the domains of all the vertex points and edge curves are contained in the face geometry surface. A surface can be referenced by more than one face surface.

Definition at line 48 of file Ifc4x1/IfcFaceSurfaceAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcFaceSurface::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcFace.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcFaceSurface::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcFace.

◆ getFaceSurface()

const OdDAIObjectId & OdIfc4x1::IfcFaceSurface::getFaceSurface ( ) const

Returns the value of FaceSurface attribute. This attribute represents the surface which defines the internal shape of the face. This surface can be unbounded. The domain of the face is defined by this surface and the bounding loops in the inherited attribute SELF\FaceBounds.

Returns: Returns the value of FaceSurface attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcFaceSurface::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcFace.

Reimplemented in OdIfc4x1::IfcAdvancedFace.

◆ getSameSense()

OdDAI::Boolean OdIfc4x1::IfcFaceSurface::getSameSense ( ) const

Returns the value of SameSense attribute. This attribute indicates whether the sense of the surface normal agrees with or opposes the sense of the topological normal to the face.

Returns: Returns the value of SameSense attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcFaceSurface::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcFace.

◆ isKindOf()

virtual bool OdIfc4x1::IfcFaceSurface::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcFace.

Reimplemented in OdIfc4x1::IfcAdvancedFace.

◆ outFields()

virtual OdResult OdIfc4x1::IfcFaceSurface::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcFace.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcFaceSurface::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcFace.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcFaceSurface::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcFace.

◆ setFaceSurface()

void OdIfc4x1::IfcFaceSurface::setFaceSurface ( const OdDAIObjectId & FaceSurface )

Sets the value of FaceSurface attribute. This attribute represents the surface which defines the internal shape of the face. This surface can be unbounded. The domain of the face is defined by this surface and the bounding loops in the inherited attribute SELF\FaceBounds.

Parameters

FaceSurface [in] Face surface to set.

◆ setSameSense()

void OdIfc4x1::IfcFaceSurface::setSameSense ( OdDAI::Boolean SameSense )

Sets the value of SameSense attribute. This attribute indicates whether the sense of the surface normal agrees with or opposes the sense of the topological normal to the face.

Parameters

SameSense [in] SameSense attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcFaceSurface::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcFace.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcFaceSurface::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcFace.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcFaceSurface::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcFace.

Reimplemented in OdIfc4x1::IfcAdvancedFace.

◆ unsetAttr() [1/2]

virtual void OdIfc4x1::IfcFaceSurface::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x1::IfcFace.

◆ unsetAttr() [2/2]

virtual void OdIfc4x1::IfcFaceSurface::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x1::IfcFace.

Member Data Documentation

◆ m_FaceSurface

OdDAIObjectId OdIfc4x1::IfcFaceSurface::m_FaceSurface

protected

Definition at line 203 of file Ifc4x1/IfcFaceSurfaceAutoImpl.h.

◆ m_SameSense

OdDAI::Boolean OdIfc4x1::IfcFaceSurface::m_SameSense

protected

Definition at line 204 of file Ifc4x1/IfcFaceSurfaceAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x1/IfcFaceSurfaceAutoImpl.h
