#include <IfcAdvancedFaceAutoImpl.h>

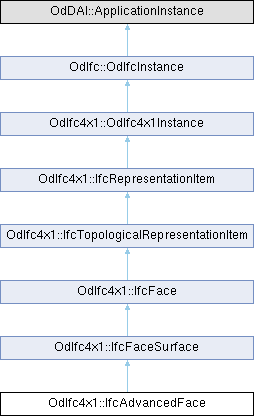

Inheritance diagram for OdIfc4x1::IfcAdvancedFace:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc4x1::IfcFaceSurface
const OdDAIObjectId &	getFaceSurface () const

void	setFaceSurface (const OdDAIObjectId &FaceSurface)

OdDAI::Boolean	getSameSense () const

void	setSameSense (OdDAI::Boolean SameSense)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcFace
void	getBounds (OdDAIObjectIds &Bounds) const

OdDAI::SetOfOdDAIObjectId &	bounds ()

void	getInvHasTextureMaps (OdDAIObjectIds &HasTextureMaps) const

Public Member Functions inherited from OdIfc4x1::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4x1::IfcFaceSurface
OdDAIObjectId	m_FaceSurface

OdDAI::Boolean	m_SameSense

Protected Attributes inherited from OdIfc4x1::IfcFace
OdDAI::SetOfOdDAIObjectId	m_Bounds

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

An advanced face is a specialization of a face surface that has to use particular topological and geometric representation items for the definition of the faces, edges and vertices.

Details - An IfcAdvancedFace is restricted to: having a face surface geometry of type IfcElementarySurface, IfcSweptSurface or IfcBSplineSurface; having one IfcFaceOuterBound as the bound of the face, with the exception of closed surfaces; having all faces to be bound by IfcEdgeLoop or IfcVertexLoop; having all edges to have an edge curve geometry; having the edge curve geometry restricted to IfcLine, IfcConic, IfcPolyline, or IfcBSplineCurve;

In case of closed faces with periodic surfaces, such as cylindrical or spherical surfaces, the following applies: the edges of the closed surface, in case of a cylindrical surface the upper and lower cap, refer to the same instance of IfcVertexPoint twice; no IfcFaceOuterBound is provided, or the IfcFaceOuterBound is constructed using an IfcSeamCurve at the periodic end of the underlying closed surface, in case of a cylindrical surface at 0./360. degree;

Definition at line 56 of file Ifc4x1/IfcAdvancedFaceAutoImpl.h.

Member Function Documentation

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcAdvancedFace::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcFaceSurface.

◆ isKindOf()

virtual bool OdIfc4x1::IfcAdvancedFace::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcFaceSurface.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcAdvancedFace::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcFaceSurface.

The documentation for this class was generated from the following file:

Ifc4x1/IfcAdvancedFaceAutoImpl.h
