OdGsBlockReferenceNode Class Reference

#include <GsBlockReferenceNode.h>

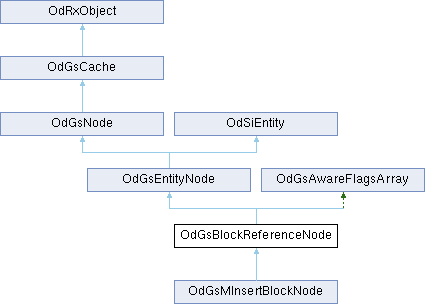

Inheritance diagram for OdGsBlockReferenceNode:

Public Types
enum	{   kValid = OdGsEntityNode::kLastFlag << 1 , kBrExcludeFromViewExt = OdGsEntityNode::kLastFlag << 2 , kBrClipped = OdGsEntityNode::kLastFlag << 3 , kForceNotEmpty = OdGsEntityNode::kLastFlag << 4 ,   kBrOwnGeom = OdGsEntityNode::kLastFlag << 5 , kLastFlag = kBrOwnGeom }
Public Types inherited from OdGsEntityNode
enum	MetafileCompatibilityLevel { kSkipCheckCompatible = 0 , kCheckViewChanges = 1 , kCheckCompatibleView = 2 , kFindCompatible = 3 }
typedef OdSmartPtr< Metafile >	MetafilePtr

Public Member Functions
	ODRX_DECLARE_MEMBERS (OdGsBlockReferenceNode)
	OdGsBlockReferenceNode (OdGsBaseModel *pModel, const OdGiDrawable *pDrawable, bool bSetGsNode=false)
	~OdGsBlockReferenceNode ()
bool	isValid () const
void	setValid (bool bSet)
bool	excludeFromViewExt () const
void	setExcludeFromViewExt (bool bSet)
bool	isForceNotEmpty () const
void	setForceNotEmpty (bool b)
virtual bool	isReference () const
virtual bool	isSelfReferential () const
virtual bool	layersChanged (OdGsViewImpl &view) const
virtual void	update (OdGsUpdateContext &ctx, OdGsContainerNode *pParent, OdSiSpatialIndex *pParentIndex)
virtual void	propagateLayerChanges (OdGsViewImpl &view)
virtual void	invalidate (OdGsContainerNode *pParent, OdGsViewImpl *pView, OdUInt32 mask)
virtual void	destroy ()
virtual void	destroySubitems ()
virtual bool	select (OdGsBaseVectorizer &view, OdSiSelBaseVisitor *, OdGsView::SelectionMode mode)
bool	highlightSubnodes (OdUInt32 nSubnodes, bool bHighlight, bool bAll)
virtual OdUInt32	awareFlags (OdUInt32 viewportId) const
virtual bool	awareFlagsAreInvalid (OdUInt32 viewportId) const
virtual bool	isEmpty ()
virtual OdGsEntityNode *	firstEntity ()
virtual OdGsEntityNode *	firstAttrib ()
void	updateImpl (OdGsUpdateContext &ctx, const OdGiDrawable *pInsert, OdSiSpatialIndex *pParentIndex)
OdGsBlockNode *	blockNode () const
void	clearBlockNode ()
virtual void	makeStock ()
virtual void	releaseStock ()
virtual void	propagateLayerChangesStock ()
void	updateBlockNode (const OdGiDrawable *pBlockTableRecord)
void *	sharedDefinition (const OdGsViewImpl &view)
virtual bool	isMInsert () const
virtual void	doDisplay (OdGsDisplayContext &ctx)
virtual bool	doSelect (OdGsBaseVectorizer &vect, OdGiDrawable *pDrw, OdSiSelBaseVisitor *pVisitor, OdGsView::SelectionMode mode)
virtual void	spatialQuery (const OdGsView &view, OdSiRecursiveVisitor *pVisitor)
virtual bool	getSharedTransform (OdGeMatrix3d &transform) const
virtual void	invalidateBlockNode (OdGsContainerNode *pParent, OdGsViewImpl *pView, OdUInt32 mask, bool bRecursively=true)
Public Member Functions inherited from OdGsEntityNode
OdGsEntityNode::MetafilePtr	metafileAt (int metafileIndex) const
void	setMetafile (OdGsEntityNode::Metafile *metafiles)
void	setMetafileAt (int metafileIndex, OdGsEntityNode::Metafile *pMetafile)
void	convertToViewportDependent (const OdGsUpdateContext &ctx)
OdGsEntityNode::Metafile *	metafile (const OdGsViewImpl &view, OdGsUpdateContext *ctx, MetafileCompatibilityLevel findCompatibleLevel=kFindCompatible)
void	setMetafile (OdGsUpdateContext &ctx, OdGsEntityNode::Metafile *metafiles)
OdRxObject *	findCompatibleCache (const OdGsViewImpl &keyView, OdGsUpdateContext *ctx, OdUInt32 awareMask=0)
OdRxObject *	findFirstGsMetafile (const OdGsViewImpl &view, bool *bContainsNested=nullptr, MetafileCompatibilityLevel findCompatibleLevel=kSkipCheckCompatible)
	ODRX_DECLARE_MEMBERS (OdGsEntityNode)
	OdGsEntityNode (OdGsBaseModel *pModel, const OdGiDrawable *pUnderlyingDrawable, bool bSetGsNode=false)
	~OdGsEntityNode ()
void	setNextEntity (OdGsEntityNode *pNextEntity)
void	setNextEntity (OdUInt32 nVpId, OdGsEntityNode *pNextEntity)
OdGsEntityNode *	nextEntity ()
OdGsEntityNode *	nextEntity (OdUInt32 nVpId)
const OdGsEntityNode *	nextEntity () const
const OdGsEntityNode *	nextEntity (OdUInt32 nVpId) const
OdUInt32	numNextEntity () const
void	enableMultipleNextEntities (OdUInt32 nMaxVpId)
void	update (OdGsUpdateContext &ctx, OdGsContainerNode *pParent, OdSiSpatialIndex *pParentIndex)
void	updateVisible (OdGsViewImpl *pViewImpl)
virtual OdGsEntityNode::MetafilePtr	regenMetafile (OdGsUpdateContext &ctx, OdUInt32 vpDepFlags)
virtual ENodeType	nodeType () const
virtual bool	isLight () const
void	display (OdGsDisplayContext &ctx)
void	select (OdGsBaseVectorizer &view)
void	invalidate (OdGsContainerNode *pParent, OdGsViewImpl *pView, OdUInt32 mask)
bool	extents (OdGeExtents3d &extents) const
bool	spatiallyIndexed () const
bool	spatiallyIndexed (OdUInt32 nVpId) const
void	setSpatiallyIndexed (bool spatiallyIndexed)
void	setSpatiallyIndexed (OdUInt32 nVpId, bool spatiallyIndexed)
bool	owned () const
bool	owned (OdUInt32 nVpId) const
void	setOwned (bool owned)
void	setOwned (OdUInt32 nVpId, bool owned)
bool	markedByUpdateManager () const
void	setMarkedByUpdateManager (bool marked)
bool	hasExtents () const
const OdGeExtents3d &	extents () const
virtual bool	hasFrozenLayers ()
bool	markedToSkip (unsigned mask)
void	markToSkip (unsigned mask, bool markToSkip)
void	markToSkipAll ()
void	destroy ()
bool	markedAsNonSelectable () const
void	markAsNonSelectable (bool val)
bool	isMarkedSkipSelection () const
void	markSkipSelection (bool val)
bool	isMarkedErased () const
void	markErased (bool val)
bool	isInWorkset () const
void	setInWorkset (bool val)
bool	isRegenOnDraw () const
void	setRegenOnDraw (bool val)
bool	isSingleThreaded () const
void	setSingleThreaded (bool val)
bool	skipDisplayClipping () const
void	setSkipDisplayClipping (bool bOn)
bool	isXref () const
virtual void	highlight (bool bDoIt, bool bWholeBranch, OdUInt32 nSelStyle=0)
void	hide (bool bDoIt, bool bSelectable=false, bool bWholeBranch=true)
void	setStateBranch (OdGsStateBranch *pBr)
void	resetStateBranch (OdGsStateBranch::BranchType branchType=OdGsStateBranch::kHighlightingBranch)
OdGsStateBranch *	stateBranch (OdGsStateBranch::BranchType branchType=OdGsStateBranch::kHighlightingBranch)
const OdGsStateBranch *	stateBranch (OdGsStateBranch::BranchType branchType=OdGsStateBranch::kHighlightingBranch) const
bool	hasAnyStateBranch () const
bool	extents (const OdGsView *pView, OdGeExtents3d &ext) const
OdDb::LineWeight	getMaxLineweightUsed () const
void	addMaxLineweightUsed (OdDb::LineWeight lwd)
void	setMaxLineweightUsed (OdDb::LineWeight lwd)
bool	entityUnerased () const
void	setEntityUnerased (bool flag)
bool	isInvisible () const
bool	isExtentsOutOfModelSpace () const
void	setExtentsOutOfModelSpace (bool flag)
void	resetInvalidVpFlag ()
void	setAsLightSourceOwner (bool bSet)
bool	isLightSourceOwner () const
bool	isRequireRegenOnHighlightChange () const
bool	saveNodeState (OdGsFiler *pFiler, OdGsBaseVectorizer *pVectorizer=NULL) const
bool	loadNodeState (OdGsFiler *pFiler, OdGsBaseVectorizer *pVectorizer=NULL)
void	transformExtents (OdGeExtents3d &ext, const OdGsStateBranch *pTransformBr=NULL, bool bInverse=false) const
void	insertToSpatialIndex (OdUInt32 nVpId, OdSiSpatialIndex &parentIndex, const OdGeExtents3d &prevExtents)
void	addContentToUpdateManager (OdUInt32 viewportId, OdGsUpdateManager *pManager, const UpdateManagerContext &context)
bool	isMetafilesCompatible (const OdGsViewImpl *pView1, const OdGsViewImpl *pView2, OdGsUpdateContext *ctx)
Public Member Functions inherited from OdGsNode
bool	invalidVp () const
void	setToDrawable (const OdGiDrawable *pUnderlyingDrawable)
	ODRX_DECLARE_MEMBERS (OdGsNode)
void *	operator new (size_t)
void	operator delete (void *)
void	addRef ()
void	release () ODRX_NOEXCEPT
	OdGsNode (OdGsBaseModel *pModel, const OdGiDrawable *pUnderlyingDrawable)
virtual	~OdGsNode ()
OdGsBaseModel *	baseModel () const
OdGsModel *	model () const
bool	isContainer () const
bool	isSyncDrawable () const
OdGiDrawablePtr	underlyingDrawable () const
OdDbStub *	underlyingDrawableId () const
bool	isHighlighted () const
bool	isHighlightedAll () const
bool	isHidden () const
bool	isSelectableIfHidden () const
bool	isHiddenAll () const
OdUInt32	selectionStyle () const
bool	hasSelectionStyle () const
OdUInt32	userFlags () const
void	setUserFlags (OdUInt32 val)
	TD_USING (OdGsCache::extents)
bool	modelExtents (OdGeExtents3d &ext, bool bUseModelTf=true) const
bool	modelExtents (const OdGsView *pView, OdGeExtents3d &ext, bool bUseModelTf=true) const
virtual void	setDrawableNull ()
Public Member Functions inherited from OdGsCache
	ODRX_DECLARE_MEMBERS (OdGsCache)
Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()
	OdRxObject ()
virtual	~OdRxObject ()
virtual OdRxObject *	queryX (const OdRxClass *pClass) const
virtual OdRxObject *	x (const OdRxClass *pClass) const
virtual OdRxClass *	isA () const
virtual long	numRefs () const
bool	isKindOf (const OdRxClass *pClass) const
virtual OdRxObjectPtr	clone () const
virtual void	copyFrom (const OdRxObject *pSource)
virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const
virtual bool	isEqualTo (const OdRxObject *pOther) const

Static Public Member Functions
static OdGsBlockReferenceNode *	create (OdGsBaseModel *pModel, const OdGiDrawable *pDrawable)
Static Public Member Functions inherited from OdGsEntityNode
static void *	Alloc (size_t nBytes)
static void	Free (void *pMemBlock)
static void *	Realloc (void *pMemBlock, size_t newSize, size_t)
static OdGsEntityNode::MetafilePtr	getEmptyMetafile (OdUInt32 flags, OdGsLayerNode *pLayerNode=NULL)
static unsigned	markToSkipMask (OdUInt32 threadIndex)
Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)
static OdRxClass *	desc ()
static void	rxInit ()
static void	rxUninit ()

Protected Member Functions
virtual void	setChildrenUpToDate (bool childrenUpToDate, const OdUInt32 nVpID)
virtual bool	childrenUpToDate (OdUInt32 nVpID) const
virtual bool	childrenRegenDraw (OdUInt32 nVpID) const
void	updateAttribute (OdGsUpdateContext &ctx, OdGsEntityNode *pNode, const OdGiDrawable *pInsert, OdGsMarker marker)
void	setAwareFlags (OdUInt32 viewportId, OdUInt32 nAwareFlags)
virtual void	playAsGeometry (OdGsBaseVectorizer &view, EMetafilePlayMode eMode)
void	initBlockNode (const OdGiDrawable *pBlock)
void	setMetafile (OdGsUpdateContext &ctx, OdGsEntityNode::Metafile *pMf, OdUInt32 awareFlags, const OdGeExtents3d &ext)
bool	needRegen (OdUInt32 nVpID) const
virtual void	doUpdateImpl (OdGsUpdateContext &ctx, const OdGiDrawable *pBlockTableRecord, unsigned iInstance)
void	drawBlock (OdGsUpdateContext &ctx, const OdGiDrawable *pBlockTableRecord, OdGsBlockReferenceNodeImpl *pContainer, bool bEnableSharedGraphics)
void	postUpdateStep (OdGsUpdateState &state)
void	addEntPropsFromState (const OdGsUpdateState &state)
void	checkCancelledSharedRef (OdGsUpdateState &state)
virtual void	doSpatialQuery (OdGsSpQueryContext &ctx)
OdGsBlockReferenceNodeImpl *	getImpl (const OdGsViewImpl &view)
bool	saveClientNodeState (OdGsFiler *pFiler, OdGsBaseVectorizer *pVectorizer) const
bool	loadClientNodeState (OdGsFiler *pFiler, OdGsBaseVectorizer *pVectorizer)
bool	postprocessNodeLoading (OdGsFiler *pFiler)
Protected Member Functions inherited from OdGsEntityNode
MetafilePtrArray &	metafileArray ()
const MetafilePtrArray &	metafileArray () const
OdGsEntityNode::MetafilePtr	metafile () const
void	setExtentsFromMetafiles ()
bool	findMetafileInStock (OdGsUpdateContext &ctx)
void	setExtentsFlags ()
Protected Member Functions inherited from OdGsNode
void	setInvalidVp (bool val)
void	clearDrawable ()
void	setSelectionStyleImpl (OdUInt32 nStyle)
OdUInt32	getSelectionStyleImpl () const
	OdGsNode (const OdGsNode &c)
Protected Member Functions inherited from OdGsAwareFlagsArray
bool	findFlag (OdUInt32 nVpID) const
	OdGsAwareFlagsArray ()
void	setChildrenUpToDate (bool childrenUpToDate, const OdUInt32 nVpID)
bool	childrenUpToDate (OdUInt32 nVpID) const
OdUInt32	get (OdUInt32 nVpID) const
void	set (OdUInt32 nVpID, OdUInt32 flags)
void	clear ()
bool	isEmpty () const
OdUInt32	numAwareFlags () const
bool	areInvalid (OdUInt32 nVpID) const
void	setInvalid (OdUInt32 nVpID)

Static Protected Member Functions
static void	actionPostUpdateStep (void *pObj, OdGsUpdateState &state)
static void	actionAddEntPropsFromState (void *pObj, OdGsUpdateState &state)
static void	actionCheckCancelledSharedRef (void *pObj, OdGsUpdateState &state)
static void	actionRestartLocked (void *pObj, OdGsUpdateContext &ctx)

Protected Attributes
TPtr< OdGsBlockReferenceNodeImpl >	m_pImpl
OdGsBlockNode *	m_pBlockNode
OdGsEntityNode *	m_pFirstAttrib
Protected Attributes inherited from OdGsEntityNode
OdGeExtents3d	m_extents
OdGsStateBranchPtr	m_stateBranch
MetafileHolder	m_metafile
OdUInt32	m_entFlags
Protected Attributes inherited from OdGsNode
OdGsNode *	m_pPrev
OdGsNode *	m_pNext
OdGsBaseModel *	m_pModel
void *	m_underlyingDrawable
OdUInt32	m_flags
OdUInt32	m_userFlags

Friends
class	WorldDrawBlockRef
class	GsDrawableNested
class	OdGsSpQueryContext

Additional Inherited Members
Protected Types inherited from OdGsEntityNode
enum	{   kHasExtents = OdGsNode::kLastFlag << 1 , kSpatiallyIndexed = OdGsNode::kLastFlag << 2 , kInWorkset = OdGsNode::kLastFlag << 3 , kSingleThreaded = OdGsNode::kLastFlag << 4 ,   kOwned = OdGsNode::kLastFlag << 5 , kDrawableRegenDraw = OdGsNode::kLastFlag << 6 , kEntityUnerased = OdGsNode::kLastFlag << 7 , kInvisible = OdGsNode::kLastFlag << 8 ,   kExtentsOutOfMS = OdGsNode::kLastFlag << 9 , kNonSelectable = OdGsNode::kLastFlag << 10 , kSkipSelection = OdGsNode::kLastFlag << 11 , kErased = OdGsNode::kLastFlag << 12 ,   kDrawableIsXref = OdGsNode::kLastFlag << 13 , kMultilistNextPtr = OdGsNode::kLastFlag << 14 , kLastFlag = kMultilistNextPtr }
enum	{   kLineweightBit1 = (1 << 0) , kLineweightBit2 = (1 << 1) , kLineweightOffset = 0 , kLineweightBit3 = (1 << 2) ,   kLineweightBit4 = (1 << 3) , kLineweightBit5 = (1 << 4) , kLineweightBit6 = (1 << 5) , kLineweightBit7 = (1 << 6) ,   kLineweightBit8 = (1 << 7) , kLineweightBitMask = kLineweightBit1 | kLineweightBit2 | kLineweightBit3 | kLineweightBit4 | kLineweightBit5 | kLineweightBit6 | kLineweightBit7 | kLineweightBit8 , kLightSourceOwner = (1 << 8) , kRegenOnHighlight = (1 << 9) ,   kMarkedByUpdateManager = (1 << 10) , kSkipDisplayClipping = (1 << 11) , kLastEntFlag = kSkipDisplayClipping }
enum	{ kMarkedToSkipFirst = 0x00000001 , kMarkedToSkipLast = kMarkedToSkipFirst << 30 , kMarkedToSkipAll = 0x7FFFFFFF }
Protected Types inherited from OdGsNode
enum	{   kPersistent = 0x00000001 , kContainer = 0x00000002 , kHLT = 0x00000004 , kHLT_All = 0x00000008 ,   kSyncDrawable =0x00000010 , kHidden = 0x00000020 , kSelectHidden =0x00000040 , kHiddenAll = 0x00000080 ,   kSelStyle = 0x00000100 , kLastFlag = kSelStyle }
enum	{ kInvalidateVp = 0x80000000 }
Protected Types inherited from OdGsAwareFlagsArray
enum	{ kChildrenNotUpToDate = 0x80000000 }
Static Protected Attributes inherited from OdGsNode
static GS_STATIC_EXPORT AllocatorArray	s_aAlloc

Detailed Description

Corresponding C++ library: TD_Gs

<group OdGs_Classes>

Definition at line 231 of file GsBlockReferenceNode.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
kValid
kBrExcludeFromViewExt
kBrClipped
kForceNotEmpty
kBrOwnGeom
kLastFlag

Definition at line 242 of file GsBlockReferenceNode.h.

Constructor & Destructor Documentation

OdGsBlockReferenceNode()

OdGsBlockReferenceNode::OdGsBlockReferenceNode	(	OdGsBaseModel *	pModel,
		const OdGiDrawable *	pDrawable,
		bool	bSetGsNode = false )

~OdGsBlockReferenceNode()

OdGsBlockReferenceNode::~OdGsBlockReferenceNode

(

)

Member Function Documentation

actionAddEntPropsFromState()

static void OdGsBlockReferenceNode::actionAddEntPropsFromState ( void * pObj, OdGsUpdateState & state )

staticprotected

actionCheckCancelledSharedRef()

static void OdGsBlockReferenceNode::actionCheckCancelledSharedRef ( void * pObj, OdGsUpdateState & state )

staticprotected

actionPostUpdateStep()

static void OdGsBlockReferenceNode::actionPostUpdateStep ( void * pObj, OdGsUpdateState & state )

staticprotected

actionRestartLocked()

static void OdGsBlockReferenceNode::actionRestartLocked ( void * pObj, OdGsUpdateContext & ctx )

staticprotected

addEntPropsFromState()

void OdGsBlockReferenceNode::addEntPropsFromState ( const OdGsUpdateState & state )

protected

awareFlags()

virtual OdUInt32 OdGsBlockReferenceNode::awareFlags ( OdUInt32 viewportId ) const

virtual

Returns the Aware flags for the specified Viewport for object.

Parameters

viewportId

[in] Viewport ID.

Reimplemented from OdGsEntityNode.

awareFlagsAreInvalid()

virtual bool OdGsBlockReferenceNode::awareFlagsAreInvalid ( OdUInt32 viewportId ) const

virtual

Check Aware flags for the specified Viewport and return true if flags are invalid, i.e. cannot be used for determining awareness of the node about view properties.

Parameters

viewportId

[in] Viewport ID.

blockNode()

OdGsBlockNode * OdGsBlockReferenceNode::blockNode ( ) const

inline

Definition at line 307 of file GsBlockReferenceNode.h.

checkCancelledSharedRef()

void OdGsBlockReferenceNode::checkCancelledSharedRef ( OdGsUpdateState & state )

protected

childrenRegenDraw()

virtual bool OdGsBlockReferenceNode::childrenRegenDraw ( OdUInt32 nVpID ) const

protectedvirtual

childrenUpToDate()

virtual bool OdGsBlockReferenceNode::childrenUpToDate ( OdUInt32 nVpID ) const

protectedvirtual

clearBlockNode()

void OdGsBlockReferenceNode::clearBlockNode ( )

inline

Definition at line 521 of file GsBlockReferenceNode.h.

create()

static OdGsBlockReferenceNode * OdGsBlockReferenceNode::create ( OdGsBaseModel * pModel, const OdGiDrawable * pDrawable )

static

destroy()

virtual void OdGsBlockReferenceNode::destroy ( )

virtual

Destroys node object.

Implements OdGsNode.

Reimplemented in OdGsMInsertBlockNode.

destroySubitems()

virtual void OdGsBlockReferenceNode::destroySubitems ( )

virtual

Reimplemented in OdGsMInsertBlockNode.

doDisplay()

virtual void OdGsBlockReferenceNode::doDisplay ( OdGsDisplayContext & ctx )

virtual

Reimplemented in OdGsMInsertBlockNode.

doSelect()

virtual bool OdGsBlockReferenceNode::doSelect ( OdGsBaseVectorizer & vect, OdGiDrawable * pDrw, OdSiSelBaseVisitor * pVisitor, OdGsView::SelectionMode mode )

virtual

Reimplemented in OdGsMInsertBlockNode.

doSpatialQuery()

virtual void OdGsBlockReferenceNode::doSpatialQuery ( OdGsSpQueryContext & ctx )

protectedvirtual

doUpdateImpl()

virtual void OdGsBlockReferenceNode::doUpdateImpl ( OdGsUpdateContext & ctx, const OdGiDrawable * pBlockTableRecord, unsigned iInstance )

protectedvirtual

Reimplemented in OdGsMInsertBlockNode.

drawBlock()

void OdGsBlockReferenceNode::drawBlock ( OdGsUpdateContext & ctx, const OdGiDrawable * pBlockTableRecord, OdGsBlockReferenceNodeImpl * pContainer, bool bEnableSharedGraphics )

protected

excludeFromViewExt()

bool OdGsBlockReferenceNode::excludeFromViewExt ( ) const

inline

Definition at line 254 of file GsBlockReferenceNode.h.

firstAttrib()

virtual OdGsEntityNode * OdGsBlockReferenceNode::firstAttrib ( )

inlinevirtual

Reimplemented in OdGsMInsertBlockNode.

Definition at line 303 of file GsBlockReferenceNode.h.

firstEntity()

virtual OdGsEntityNode * OdGsBlockReferenceNode::firstEntity ( )

virtual

Reimplemented in OdGsMInsertBlockNode.

getImpl()

OdGsBlockReferenceNodeImpl * OdGsBlockReferenceNode::getImpl ( const OdGsViewImpl & view )

inlineprotected

Definition at line 379 of file GsBlockReferenceNode.h.

getSharedTransform()

virtual bool OdGsBlockReferenceNode::getSharedTransform ( OdGeMatrix3d & transform ) const

virtual

Retrieves transformation for the shared block reference.

Parameters

transform

[out] A transformation.

Returns

True if block reference is shared and transformation was successfully retrieved, or false otherwise.

highlightSubnodes()

bool OdGsBlockReferenceNode::highlightSubnodes	(	OdUInt32	nSubnodes,
		bool	bHighlight,
		bool	bAll )

Add/release counter of highlighted children of the node, and set kHLT/kHLT_All flags if necessary

Parameters

nSubnodes	[in] number of subnodes
bHighlight	[in] if true then highlight else unhighlight
bAll	[in] if true then consider kHLT_All flag Returns true if and only if highlighting of the child caused changing of kHLT flag on the container.

initBlockNode()

void OdGsBlockReferenceNode::initBlockNode ( const OdGiDrawable * pBlock )

protected

invalidate()

virtual void OdGsBlockReferenceNode::invalidate ( OdGsContainerNode * pParent, OdGsViewImpl * pView, OdUInt32 mask )

virtual

Invalidates the cached data within this object.

Parameters

pParent	[in] Pointer to the ContainerNode object for this Node object.
pView	[in] Pointer to the VectorizeView object for which data are to be invalidated.
mask	[in] Mask.

Remarks

The cached data will be regenerated the next time this Node object is accessed.

Implements OdGsNode.

Reimplemented in OdGsMInsertBlockNode.

invalidateBlockNode()

virtual void OdGsBlockReferenceNode::invalidateBlockNode ( OdGsContainerNode * pParent, OdGsViewImpl * pView, OdUInt32 mask, bool bRecursively = true )

virtual

Invalidates associated block cache node.

Parameters

pParent	[in] Parent container node.
view	[in] BaseVectorizeView object for which data are to be invalidated.
mask	[in] Mask.
bRecursively	[in] A flag that indicates whether nested reference should invalidate cache nodes or not.

isEmpty()

virtual bool OdGsBlockReferenceNode::isEmpty ( )

virtual

Returns true if the node has no graphical content.

Reimplemented from OdGsEntityNode.

isForceNotEmpty()

bool OdGsBlockReferenceNode::isForceNotEmpty ( ) const

inline

Definition at line 257 of file GsBlockReferenceNode.h.

isMInsert()

virtual bool OdGsBlockReferenceNode::isMInsert ( ) const

inlinevirtual

Reimplemented in OdGsMInsertBlockNode.

Definition at line 316 of file GsBlockReferenceNode.h.

isReference()

virtual bool OdGsBlockReferenceNode::isReference ( ) const

inlinevirtual

Reimplemented from OdGsEntityNode.

Definition at line 260 of file GsBlockReferenceNode.h.

isSelfReferential()

virtual bool OdGsBlockReferenceNode::isSelfReferential ( ) const

virtual

Reimplemented from OdGsEntityNode.

isValid()

bool OdGsBlockReferenceNode::isValid ( ) const

inline

Definition at line 252 of file GsBlockReferenceNode.h.

layersChanged()

virtual bool OdGsBlockReferenceNode::layersChanged ( OdGsViewImpl & view ) const

virtual

Checks whether at least one geometry portion of an metafile has a layer that changed.

Parameters

view	[in] GS view.

Returns

true if one or more layers changed, false if all the layer are up to date.

Reimplemented from OdGsEntityNode.

Reimplemented in OdGsMInsertBlockNode.

loadClientNodeState()

bool OdGsBlockReferenceNode::loadClientNodeState ( OdGsFiler * pFiler, OdGsBaseVectorizer * pVectorizer )

protectedvirtual

Reimplemented from OdGsNode.

Reimplemented in OdGsMInsertBlockNode.

makeStock()

virtual void OdGsBlockReferenceNode::makeStock ( )

virtual

Reimplemented from OdGsEntityNode.

Reimplemented in OdGsMInsertBlockNode.

needRegen()

bool OdGsBlockReferenceNode::needRegen ( OdUInt32 nVpID ) const

inlineprotected

Definition at line 355 of file GsBlockReferenceNode.h.

ODRX_DECLARE_MEMBERS()

OdGsBlockReferenceNode::ODRX_DECLARE_MEMBERS

(

OdGsBlockReferenceNode

)

playAsGeometry()

virtual void OdGsBlockReferenceNode::playAsGeometry ( OdGsBaseVectorizer & view, EMetafilePlayMode eMode )

protectedvirtual

details Plays geometry metafile for specified vectorization view depending on playing mode.

Parameters

view	[in] Vectorization view.
eMode	[in] Playing mode.

Reimplemented from OdGsEntityNode.

Reimplemented in OdGsMInsertBlockNode.

postprocessNodeLoading()

bool OdGsBlockReferenceNode::postprocessNodeLoading ( OdGsFiler * pFiler )

protectedvirtual

Reimplemented from OdGsNode.

Reimplemented in OdGsMInsertBlockNode.

postUpdateStep()

void OdGsBlockReferenceNode::postUpdateStep ( OdGsUpdateState & state )

protected

propagateLayerChanges()

virtual void OdGsBlockReferenceNode::propagateLayerChanges ( OdGsViewImpl & view )

virtual

Invalidates parts of cache depended on layers modified since last regeneration.

Parameters

view	[in] View Implementation object.

Remarks

For internal use only. Returns this if and only if the this node is one of modified layers.

Reimplemented from OdGsEntityNode.

propagateLayerChangesStock()

virtual void OdGsBlockReferenceNode::propagateLayerChangesStock ( )

virtual

Reimplemented from OdGsEntityNode.

Reimplemented in OdGsMInsertBlockNode.

releaseStock()

virtual void OdGsBlockReferenceNode::releaseStock ( )

virtual

Reimplemented from OdGsEntityNode.

Reimplemented in OdGsMInsertBlockNode.

saveClientNodeState()

bool OdGsBlockReferenceNode::saveClientNodeState ( OdGsFiler * pFiler, OdGsBaseVectorizer * pVectorizer ) const

protectedvirtual

Reimplemented from OdGsNode.

Reimplemented in OdGsMInsertBlockNode.

select()

virtual bool OdGsBlockReferenceNode::select ( OdGsBaseVectorizer & view, OdSiSelBaseVisitor * , OdGsView::SelectionMode mode )

virtual

setAwareFlags()

void OdGsBlockReferenceNode::setAwareFlags ( OdUInt32 viewportId, OdUInt32 nAwareFlags )

protected

setChildrenUpToDate()

virtual void OdGsBlockReferenceNode::setChildrenUpToDate ( bool childrenUpToDate, const OdUInt32 nVpID )

protectedvirtual

setExcludeFromViewExt()

void OdGsBlockReferenceNode::setExcludeFromViewExt ( bool bSet )

inline

Definition at line 255 of file GsBlockReferenceNode.h.

setForceNotEmpty()

void OdGsBlockReferenceNode::setForceNotEmpty ( bool b )

inline

Definition at line 258 of file GsBlockReferenceNode.h.

setMetafile()

void OdGsBlockReferenceNode::setMetafile ( OdGsUpdateContext & ctx, OdGsEntityNode::Metafile * pMf, OdUInt32 awareFlags, const OdGeExtents3d & ext )

protected

setValid()

void OdGsBlockReferenceNode::setValid ( bool bSet )

inline

Definition at line 253 of file GsBlockReferenceNode.h.

sharedDefinition()

void * OdGsBlockReferenceNode::sharedDefinition

(

const OdGsViewImpl &

view

)

spatialQuery()

virtual void OdGsBlockReferenceNode::spatialQuery ( const OdGsView & view, OdSiRecursiveVisitor * pVisitor )

virtual

update()

virtual void OdGsBlockReferenceNode::update ( OdGsUpdateContext & ctx, OdGsContainerNode * pParent, OdSiSpatialIndex * pParentIndex )

virtual

Updates the cached data within this Node object for the specified VectorizeView and ContainerNode objects.

Parameters

pParent	[in] Pointer to the ContainerNode object for this Node object.
view	[in] VectorizeView object for which data are to be updated.

Implements OdGsNode.

updateAttribute()

void OdGsBlockReferenceNode::updateAttribute ( OdGsUpdateContext & ctx, OdGsEntityNode * pNode, const OdGiDrawable * pInsert, OdGsMarker marker )

protected

updateBlockNode()

void OdGsBlockReferenceNode::updateBlockNode

(

const OdGiDrawable *

pBlockTableRecord

)

updateImpl()

void OdGsBlockReferenceNode::updateImpl	(	OdGsUpdateContext &	ctx,
		const OdGiDrawable *	pInsert,
		OdSiSpatialIndex *	pParentIndex )

Friends And Related Symbol Documentation

GsDrawableNested

friend class GsDrawableNested

friend

Definition at line 409 of file GsBlockReferenceNode.h.

OdGsSpQueryContext

friend class OdGsSpQueryContext

friend

Definition at line 410 of file GsBlockReferenceNode.h.

WorldDrawBlockRef

friend class WorldDrawBlockRef

friend

Definition at line 408 of file GsBlockReferenceNode.h.

Member Data Documentation

m_pBlockNode

OdGsBlockNode* OdGsBlockReferenceNode::m_pBlockNode

protected

Definition at line 404 of file GsBlockReferenceNode.h.

m_pFirstAttrib

OdGsEntityNode* OdGsBlockReferenceNode::m_pFirstAttrib

protected

Definition at line 406 of file GsBlockReferenceNode.h.

m_pImpl

TPtr<OdGsBlockReferenceNodeImpl> OdGsBlockReferenceNode::m_pImpl

protected

Definition at line 402 of file GsBlockReferenceNode.h.

---

The documentation for this class was generated from the following file:

• GsBlockReferenceNode.h
