#include <IfcSimplePropertyTemplateAutoImpl.h>

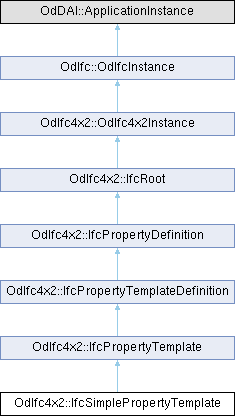

Inheritance diagram for OdIfc4x2::IfcSimplePropertyTemplate:

Public Member Functions
IfcSimplePropertyTemplateTypeEnum	getTemplateType () const

void	setTemplateType (IfcSimplePropertyTemplateTypeEnum TemplateType)

const OdAnsiString &	getPrimaryMeasureType () const

void	setPrimaryMeasureType (const OdAnsiString &PrimaryMeasureType)

const OdAnsiString &	getSecondaryMeasureType () const

void	setSecondaryMeasureType (const OdAnsiString &SecondaryMeasureType)

const OdDAIObjectId &	getEnumerators () const

void	setEnumerators (const OdDAIObjectId &Enumerators)

IfcUnit	primaryUnit ()

IfcUnit	secondaryUnit ()

const OdAnsiString &	getExpression () const

void	setExpression (const OdAnsiString &Expression)

IfcStateEnum	getAccessState () const

void	setAccessState (IfcStateEnum AccessState)

	IfcSimplePropertyTemplate ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcPropertyTemplate
void	getInvPartOfComplexTemplate (OdDAIObjectIds &PartOfComplexTemplate) const

void	getInvPartOfPsetTemplate (OdDAIObjectIds &PartOfPsetTemplate) const

Public Member Functions inherited from OdIfc4x2::IfcPropertyDefinition
void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_TemplateType

OdAnsiString	m_PrimaryMeasureType

OdAnsiString	m_SecondaryMeasureType

OdDAIObjectId	m_Enumerators

OdDAI::Select	m_PrimaryUnit

OdDAI::Select	m_SecondaryUnit

OdAnsiString	m_Expression

OdDAI::Enum	m_AccessState

Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcSimplePropertyTemplate defines the template for all dynamically extensible properties, either the subtypes of IfcSimpleProperty or the subtypes of IfcPhysicalSimpleQuantity. The individual property templates are interpreted according to their Name attribute and can have a predefined template type, property units, and property measure types. The correct interpretation of the attributes: PrimaryUnit SecondaryUnit PrimaryMeasureType SecondaryMeasureType

Details - The IfcSimplePropertyTemplate is part of the set of templates included in the IfcPropertySetTemplate. The template can be accessed through the inverse attribute PartOfPsetTemplate. The IfcPropertySetTemplate can define one or several instances of IfcPropertySet (or IfcElementQuantity). The definition assignment is established by the objectified relationship IfcRelDefinesByTemplate as shown on the image below. There is no direct link between an IfcSimplePropertyTemplate and a subtype of either IfcSimpleProperty or IfcPhysicalSimpleQuantity. The definition relationship between the template and the individual properties (or quantities) is established by the Name attributes.

Remarks: Constraints at IfcPropertySetTemplate and IfcPropertySet (and IfcElementQuantity) guarantee that the Name attributes of included property templates and individual properties are unique.

Definition at line 63 of file Ifc4x2/IfcSimplePropertyTemplateAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcSimplePropertyTemplate()

OdIfc4x2::IfcSimplePropertyTemplate::IfcSimplePropertyTemplate ( )

Default constructor for the IfcSimplePropertyTemplate class.

Member Function Documentation

◆ getAccessState()

IfcStateEnum OdIfc4x2::IfcSimplePropertyTemplate::getAccessState ( ) const

Returns the value of AccessState attribute. This attribute represents information about the access state of the property. It determines whether a property be viewed and/or modified by any receiving application without specific knowledge of it. Attribute use definition for IfcStateEnum: READWRITE: Properties of this template are readable and writable. They can be viewed and modified by users of any application. These are typical informational properties set by a user. READONLY: Properties of this template are read-only. They can be viewed but not modified by users of any application. (Applications can generate such values). These are typical automatically generated properties that should be displayed only, but not written back. LOCKED: Properties of this template are locked. They can only be accessed by the owning application (the publisher of the property set template). These are typically application depended, internal properties that should not be published. READWRITELOCKED: Properties of this template are locked, readable, and writable. They can only be accessed by the owning application. READONLYLOCKED: Properties of this template are locked and read-only. They can only be accessed by the owning application.

Returns: Returns the value of AccessState attribute.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcSimplePropertyTemplate::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcSimplePropertyTemplate::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ getEnumerators()

const OdDAIObjectId & OdIfc4x2::IfcSimplePropertyTemplate::getEnumerators ( ) const

Returns the value of Enumerators attribute. This attribute represents name of the property enumeration, and list of all valid enumerators being selectable values, assigned to the definition of the property.This attribute shall only be provided, if the PropertyType is set to: kIfcSimplePropertyTemplateTypeEnum_P_ENUMERATEDVALUE.

Returns: Returns the value of Enumerators attribute.

◆ getExpression()

const OdAnsiString & OdIfc4x2::IfcSimplePropertyTemplate::getExpression ( ) const

Returns the value of Expression attribute. This attribute represents the expression used to store additional information for the property template depending on the PropertyType. It should the following definitions, if the PropertyType is set to: kIfcSimplePropertyTemplateTypeEnum_P_TABLEVALUE: the expression that could be evaluated to define the correlation between the defining values and the defined values. kIfcSimplePropertyTemplateTypeEnum_Q_LENGTH, kIfcSimplePropertyTemplateTypeEnum_Q_AREA, kIfcSimplePropertyTemplateTypeEnum_Q_VOLUME, kIfcSimplePropertyTemplateTypeEnum_Q_COUNT, kIfcSimplePropertyTemplateTypeEnum_Q_WEIGHT, kIfcSimplePropertyTemplateTypeEnum_Q_TIME: the formula to be used to calculate the quantity.

Returns: Returns the value of Expression attribute.

Remarks: No value shall be asserted if the PropertyType is not listed above.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcSimplePropertyTemplate::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ getPrimaryMeasureType()

const OdAnsiString & OdIfc4x2::IfcSimplePropertyTemplate::getPrimaryMeasureType ( ) const

Returns the value of PrimaryMeasureType attribute. This attribute represents primary measure type assigned to the definition of the property. It should be provided, if the PropertyType is set to: kIfcSimplePropertyTemplateTypeEnum_P_SINGLEVALUE: determining the measure type of IfcPropertySingleValue.NominalValue. kIfcSimplePropertyTemplateTypeEnum_P_ENUMERATEDVALUE: determining the measure type of IfcPropertyEnumeratedValue.EnumerationValues. kIfcSimplePropertyTemplateTypeEnum_P_BOUNDEDVALUE: determining the measure type of IfcPropertyBoundedValue.LowerBoundValue. kIfcSimplePropertyTemplateTypeEnum_P_LISTVALUE: determining the measure type of IfcPropertyListValue.ListValues. kIfcSimplePropertyTemplateTypeEnum_P_TABLEVALUE: determining the measure type of IfcPropertyTableValue.DefiningValues. kIfcSimplePropertyTemplateTypeEnum_P_REFERENCEVALUE: determining the measure type of IfcPropertyTableValue.PropertyReference.

Returns: Returns the value of PrimaryMeasureType attribute.

Remarks: The value range of the measure type is within the select type IfcValue for all PropertyType's with the exception of kIfcSimplePropertyTemplateTypeEnum_P_REFERENCEVALUE. Here it is within the IfcObjectReferenceSelect type.

◆ getSecondaryMeasureType()

const OdAnsiString & OdIfc4x2::IfcSimplePropertyTemplate::getSecondaryMeasureType ( ) const

Returns the value of SecondaryMeasureType attribute. This attribute represents secondary measure type assigned to the definition of the property. It should be provided, if the PropertyType is set to: kIfcSimplePropertyTemplateTypeEnum_P_BOUNDEDVALUE: determining the measure type of IfcPropertyBoundedValue.UpperBoundValue. kIfcSimplePropertyTemplateTypeEnum_P_TABLEVALUE: determining the measure type of IfcPropertyTableValue.DefinedValues.

The value range of the measure type is within the select type IfcValue for all PropertyType's with the exception of kIfcSimplePropertyTemplateTypeEnum_P_ENUMERATEDVALUE.

Returns: Returns the value of SecondaryMeasureType attribute.

Remarks: The measure type of IfcPropertyEnumeration.EnumerationValues is provided as PrimaryDataType.

◆ getTemplateType()

IfcSimplePropertyTemplateTypeEnum OdIfc4x2::IfcSimplePropertyTemplate::getTemplateType ( ) const

Returns the value of TemplateType attribute. This attribute represents property type defining whether the property template defines a property with a single value, a bounded value, a list value, a table value, an enumerated value, or a reference value. Or the quantity type defining whether the template defines a quantity with a length, area, volume, weight or time value.

Returns: Returns the value of TemplateType attribute.

Remarks: The value of this property determines the correct use of the PrimaryUnit, SecondaryUnit, PrimaryDataType, SecondaryDataType, and Expression attributes.

◆ inFields()

virtual OdResult OdIfc4x2::IfcSimplePropertyTemplate::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ isKindOf()

virtual bool OdIfc4x2::IfcSimplePropertyTemplate::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ outFields()

virtual OdResult OdIfc4x2::IfcSimplePropertyTemplate::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ primaryUnit()

IfcUnit OdIfc4x2::IfcSimplePropertyTemplate::primaryUnit ( )

Returns the value of PrimaryUnit attribute. This attribute represents primary unit assigned to the definition of the property. It should be provided, if the PropertyType is set to: P_SINGLEVALUE: determining the IfcPropertySingleValue.Unit. P_ENUMERATEDVALUE: determining the IfcPropertyEnumeration.Unit. P_BOUNDEDVALUE: determining the IfcPropertyBoundedValue.Unit. P_LISTVALUE: determining the IfcPropertyListValue.Unit. P_TABLEVALUE: determining the IfcPropertyTableValue.DefiningUnit.

Returns: Returns the value of PrimaryUnit attribute.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcSimplePropertyTemplate::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcSimplePropertyTemplate::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ secondaryUnit()

IfcUnit OdIfc4x2::IfcSimplePropertyTemplate::secondaryUnit ( )

Returns the value of SecondaryUnit attribute. This attribute represents secondary unit assigned to the definition of the property. It should be provided, if the PropertyType is set to: P_TABLEVALUE: determining the IfcPropertyTableValue.DefinedUnit.

Returns: Returns the value of SecondaryUnit attribute.

◆ setAccessState()

void OdIfc4x2::IfcSimplePropertyTemplate::setAccessState ( IfcStateEnum AccessState )

Sets the value of AccessState attribute. This attribute represents information about the access state of the property. It determines whether a property be viewed and/or modified by any receiving application without specific knowledge of it. Attribute use definition for IfcStateEnum READWRITE: Properties of this template are readable and writable. They can be viewed and modified by users of any application. These are typical informational properties set by a user. READONLY: Properties of this template are read-only. They can be viewed but not modified by users of any application. (Applications can generate such values). These are typical automatically generated properties that should be displayed only, but not written back. LOCKED: Properties of this template are locked. They can only be accessed by the owning application (the publisher of the property set template). These are typically application depended, internal properties that should not be published. READWRITELOCKED: Properties of this template are locked, readable, and writable. They can only be accessed by the owning application. READONLYLOCKED: Properties of this template are locked and read-only. They can only be accessed by the owning application.

Parameters

AccessState [in] Access state to set.

◆ setEnumerators()

void OdIfc4x2::IfcSimplePropertyTemplate::setEnumerators ( const OdDAIObjectId & Enumerators )

Sets the value of Enumerators attribute. This attribute represents name of the property enumeration, and list of all valid enumerators being selectable values, assigned to the definition of the property.This attribute shall only be provided, if the PropertyType is set to: kIfcSimplePropertyTemplateTypeEnum_P_ENUMERATEDVALUE.

Parameters

Enumerators [in] Enumerators to set.

◆ setExpression()

void OdIfc4x2::IfcSimplePropertyTemplate::setExpression ( const OdAnsiString & Expression )

Sets the value of Expression attribute. This attribute represents the expression used to store additional information for the property template depending on the PropertyType. It should the following definitions, if the PropertyType is set to: kIfcSimplePropertyTemplateTypeEnum_P_TABLEVALUE: the expression that could be evaluated to define the correlation between the defining values and the defined values. kIfcSimplePropertyTemplateTypeEnum_Q_LENGTH, kIfcSimplePropertyTemplateTypeEnum_Q_AREA, kIfcSimplePropertyTemplateTypeEnum_Q_VOLUME, kIfcSimplePropertyTemplateTypeEnum_Q_COUNT, kIfcSimplePropertyTemplateTypeEnum_Q_WEIGHT, kIfcSimplePropertyTemplateTypeEnum_Q_TIME: the formula to be used to calculate the quantity.

Parameters

Expression [in] Expression to set.

Remarks: No value shall be asserted if the PropertyType is not listed above.

◆ setPrimaryMeasureType()

void OdIfc4x2::IfcSimplePropertyTemplate::setPrimaryMeasureType ( const OdAnsiString & PrimaryMeasureType )

Sets the value of PrimaryMeasureType attribute. This attribute represents primary measure type assigned to the definition of the property. It should be provided, if the PropertyType is set to: kIfcSimplePropertyTemplateTypeEnum_P_SINGLEVALUE: determining the measure type of IfcPropertySingleValue.NominalValue. kIfcSimplePropertyTemplateTypeEnum_P_ENUMERATEDVALUE: determining the measure type of IfcPropertyEnumeratedValue.EnumerationValues. kIfcSimplePropertyTemplateTypeEnum_P_BOUNDEDVALUE: determining the measure type of IfcPropertyBoundedValue.LowerBoundValue. kIfcSimplePropertyTemplateTypeEnum_P_LISTVALUE: determining the measure type of IfcPropertyListValue.ListValues. kIfcSimplePropertyTemplateTypeEnum_P_TABLEVALUE: determining the measure type of IfcPropertyTableValue.DefiningValues. kIfcSimplePropertyTemplateTypeEnum_P_REFERENCEVALUE: determining the measure type of IfcPropertyTableValue.PropertyReference.

Parameters

PrimaryMeasureType [in] Primary measure type to set.

Remarks: The value range of the measure type is within the select type IfcValue for all PropertyType's with the exception of kIfcSimplePropertyTemplateTypeEnum_P_REFERENCEVALUE. Here it is within the IfcObjectReferenceSelect type.

◆ setSecondaryMeasureType()

void OdIfc4x2::IfcSimplePropertyTemplate::setSecondaryMeasureType ( const OdAnsiString & SecondaryMeasureType )

Sets the value of SecondaryMeasureType attribute. This attribute represents secondary measure type assigned to the definition of the property. It should be provided, if the PropertyType is set to: kIfcSimplePropertyTemplateTypeEnum_P_BOUNDEDVALUE: determining the measure type of IfcPropertyBoundedValue.UpperBoundValue. kIfcSimplePropertyTemplateTypeEnum_P_TABLEVALUE: determining the measure type of IfcPropertyTableValue.DefinedValues.

The value range of the measure type is within the select type IfcValue for all PropertyType's with the exception of kIfcSimplePropertyTemplateTypeEnum_P_ENUMERATEDVALUE.

Parameters

SecondaryMeasureType [in] Secondary measure type to set.

Remarks: The measure type of IfcPropertyEnumeration.EnumerationValues is provided as PrimaryDataType.

◆ setTemplateType()

void OdIfc4x2::IfcSimplePropertyTemplate::setTemplateType ( IfcSimplePropertyTemplateTypeEnum TemplateType )

Sets the value of TemplateType attribute. This attribute represents property type defining whether the property template defines a property with a single value, a bounded value, a list value, a table value, an enumerated value, or a reference value. Or the quantity type defining whether the template defines a quantity with a length, area, volume, weight or time value.

Parameters

TemplateType [in] Template type to set.

Remarks: The value of this property determines the correct use of the PrimaryUnit, SecondaryUnit, PrimaryDataType, SecondaryDataType, and Expression attributes.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcSimplePropertyTemplate::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcSimplePropertyTemplate::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcSimplePropertyTemplate::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ unsetAttr() [1/2]

virtual void OdIfc4x2::IfcSimplePropertyTemplate::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

◆ unsetAttr() [2/2]

virtual void OdIfc4x2::IfcSimplePropertyTemplate::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x2::IfcPropertyTemplate.

Member Data Documentation

◆ m_AccessState

OdDAI::Enum OdIfc4x2::IfcSimplePropertyTemplate::m_AccessState

protected

Definition at line 404 of file Ifc4x2/IfcSimplePropertyTemplateAutoImpl.h.

◆ m_Enumerators

OdDAIObjectId OdIfc4x2::IfcSimplePropertyTemplate::m_Enumerators

protected

Definition at line 400 of file Ifc4x2/IfcSimplePropertyTemplateAutoImpl.h.

◆ m_Expression

OdAnsiString OdIfc4x2::IfcSimplePropertyTemplate::m_Expression

protected

Definition at line 403 of file Ifc4x2/IfcSimplePropertyTemplateAutoImpl.h.

◆ m_PrimaryMeasureType

OdAnsiString OdIfc4x2::IfcSimplePropertyTemplate::m_PrimaryMeasureType

protected

Definition at line 398 of file Ifc4x2/IfcSimplePropertyTemplateAutoImpl.h.

◆ m_PrimaryUnit

OdDAI::Select OdIfc4x2::IfcSimplePropertyTemplate::m_PrimaryUnit

protected

Definition at line 401 of file Ifc4x2/IfcSimplePropertyTemplateAutoImpl.h.

◆ m_SecondaryMeasureType

OdAnsiString OdIfc4x2::IfcSimplePropertyTemplate::m_SecondaryMeasureType

protected

Definition at line 399 of file Ifc4x2/IfcSimplePropertyTemplateAutoImpl.h.

◆ m_SecondaryUnit

OdDAI::Select OdIfc4x2::IfcSimplePropertyTemplate::m_SecondaryUnit

protected

Definition at line 402 of file Ifc4x2/IfcSimplePropertyTemplateAutoImpl.h.

◆ m_TemplateType

OdDAI::Enum OdIfc4x2::IfcSimplePropertyTemplate::m_TemplateType

protected

Definition at line 397 of file Ifc4x2/IfcSimplePropertyTemplateAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x2/IfcSimplePropertyTemplateAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcSimplePropertyTemplate()

Member Function Documentation

◆ getAccessState()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getEnumerators()

◆ getExpression()

◆ getInstanceType()

◆ getPrimaryMeasureType()

◆ getSecondaryMeasureType()

◆ getTemplateType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ primaryUnit()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ secondaryUnit()

◆ setAccessState()

◆ setEnumerators()

◆ setExpression()

◆ setPrimaryMeasureType()

◆ setSecondaryMeasureType()

◆ setTemplateType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_AccessState

◆ m_Enumerators

◆ m_Expression

◆ m_PrimaryMeasureType

◆ m_PrimaryUnit

◆ m_SecondaryMeasureType

◆ m_SecondaryUnit

◆ m_TemplateType
