#include <IfcPropertyDefinitionAutoImpl.h>

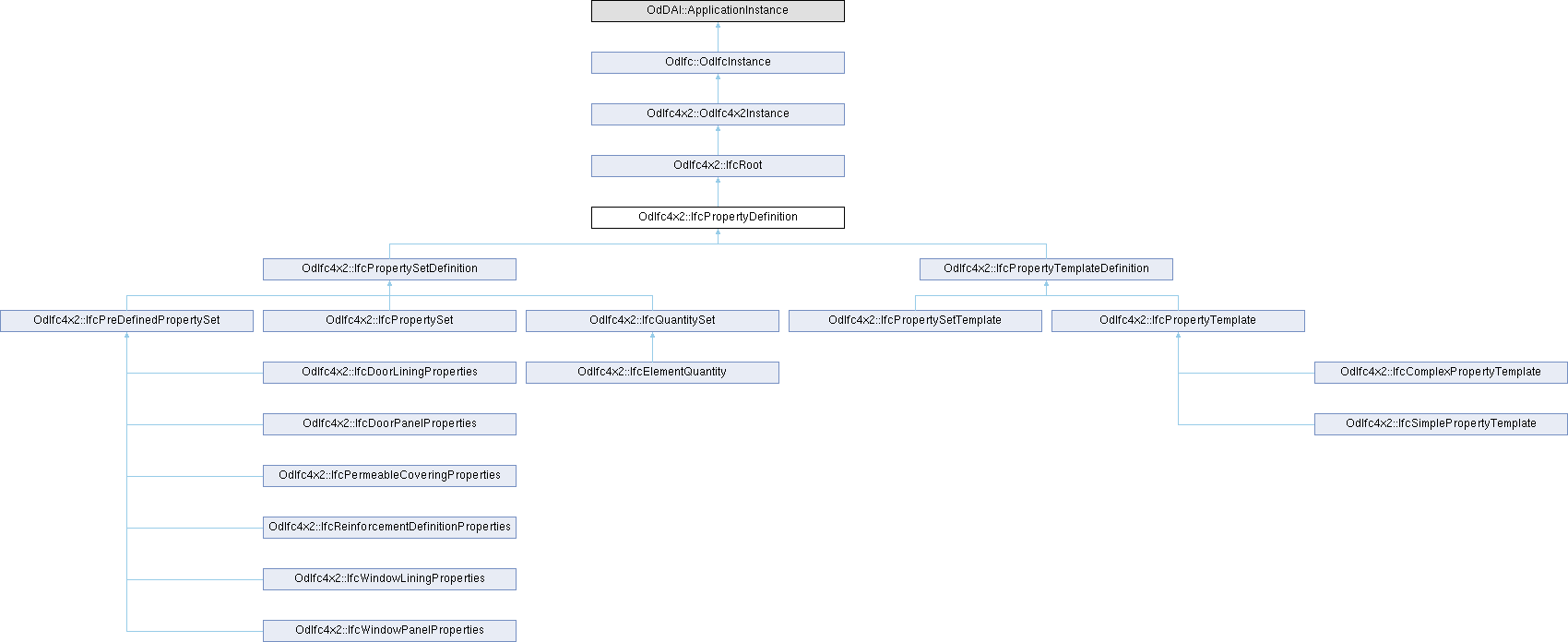

Inheritance diagram for OdIfc4x2::IfcPropertyDefinition:

Public Member Functions
void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Member Functions
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Friends
class	IfcRelDeclares

class	IfcRelAssociates

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcPropertyDefinition defines the generalization of all characteristics (i.e. a grouping of individual properties), that can be assigned to objects. Currently, subtypes of IfcPropertyDefinition include property set occurrences, property set templates and property templates.

Property set template - IfcPropertySetTemplate, a collection of property templates that determine the definition of properties used within a project context.
Property template - IfcPropertyTemplate, a single template that determines the definition of a particular property used in the same project context.
The template can determine the name, description, data type, the unit, or a standard expression for each property that is based on that template.
Property set occurrence - IfcPropertySet, a set of individual properties (that may or may not be determined by a property template) holding individual values,
measure types and units, and are associated to an object occurrence or object type.

Property definitions define information that is shared among multiple instances of objects, either object occurrences or object types. IfcPropertyDefinition's (by their instantiable subtypes) can participate within the following relationships: Assignment to a project context - an HasContext relationship to IfcRelDeclares that establishes the project context in which this property definition is declared. This relationship is mostly applicable to subtypes of IfcPropertyTemplateDefinition. Association to external resources - an HasAssociation relationship to IfcRelAssociates that refers to external sources of information (most notably a classification or document) and creates a uni-directional association. There is no dependency implied by the association.

Remarks: The subtype hierarchy of IfcPropertyDefinition also includes statically defined property sets as IfcPreDefinedPropertySet. Those are rarely used collections of fixed attributes combined in an entity definition. The IfcPreDefinedPropertySet can not be determined by an IfcPropertySetTemplate. Individual properties, (subtypes of IfcProperty), are currently not included in the subtype hierarchy of IfcPropertyDefinition. This is due to upward compatibility reasons with earlier releases of this standard.

Definition at line 61 of file Ifc4x2/IfcPropertyDefinitionAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcRoot::getAttr ( const char * attrName ) const

overrideprotectedvirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcRoot.

Reimplemented in OdIfc4x2::IfcPropertySet, OdIfc4x2::IfcPropertySetDefinition, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, OdIfc4x2::IfcReinforcementDefinitionProperties, OdIfc4x2::IfcSimplePropertyTemplate, OdIfc4x2::IfcWindowLiningProperties, and OdIfc4x2::IfcWindowPanelProperties.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcPropertyDefinition::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcRoot.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcDoorLiningProperties, OdIfc4x2::IfcDoorPanelProperties, OdIfc4x2::IfcElementQuantity, OdIfc4x2::IfcPermeableCoveringProperties, OdIfc4x2::IfcPropertySet, OdIfc4x2::IfcPropertySetDefinition, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, OdIfc4x2::IfcReinforcementDefinitionProperties, OdIfc4x2::IfcSimplePropertyTemplate, OdIfc4x2::IfcWindowLiningProperties, and OdIfc4x2::IfcWindowPanelProperties.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcPropertyDefinition::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcRoot.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcDoorLiningProperties, OdIfc4x2::IfcDoorPanelProperties, OdIfc4x2::IfcElementQuantity, OdIfc4x2::IfcPermeableCoveringProperties, OdIfc4x2::IfcPreDefinedPropertySet, OdIfc4x2::IfcPropertySet, OdIfc4x2::IfcPropertySetDefinition, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, OdIfc4x2::IfcPropertyTemplateDefinition, OdIfc4x2::IfcQuantitySet, OdIfc4x2::IfcReinforcementDefinitionProperties, OdIfc4x2::IfcSimplePropertyTemplate, OdIfc4x2::IfcWindowLiningProperties, and OdIfc4x2::IfcWindowPanelProperties.

◆ getInvHasAssociations()

void OdIfc4x2::IfcPropertyDefinition::getInvHasAssociations ( OdDAIObjectIds & HasAssociations ) const

Returns the value of HasAssociations attribute. This attribute represents reference to the relationship IfcRelAssociates and thus to those externally defined concepts, like classifications, documents, or library information, which are associated to the property definition.

Parameters

HasAssociations [out] Receives the value of HasAssociations attribute.

◆ getInvHasContext()

void OdIfc4x2::IfcPropertyDefinition::getInvHasContext ( OdDAIObjectIds & HasContext ) const

Returns the value of HasContext attribute. This attribute is an assignment to a project context relationship that establishes the project context in which this property definition is declared.

Parameters

HasContext [out] Receives the value of HasContext attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcPropertyDefinition::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcRoot.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcDoorLiningProperties, OdIfc4x2::IfcDoorPanelProperties, OdIfc4x2::IfcElementQuantity, OdIfc4x2::IfcPermeableCoveringProperties, OdIfc4x2::IfcPropertySet, OdIfc4x2::IfcPropertySetDefinition, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, OdIfc4x2::IfcReinforcementDefinitionProperties, OdIfc4x2::IfcSimplePropertyTemplate, OdIfc4x2::IfcWindowLiningProperties, and OdIfc4x2::IfcWindowPanelProperties.

◆ isKindOf()

virtual bool OdIfc4x2::IfcPropertyDefinition::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcRoot.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcDoorLiningProperties, OdIfc4x2::IfcDoorPanelProperties, OdIfc4x2::IfcElementQuantity, OdIfc4x2::IfcPermeableCoveringProperties, OdIfc4x2::IfcPreDefinedPropertySet, OdIfc4x2::IfcPropertySet, OdIfc4x2::IfcPropertySetDefinition, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, OdIfc4x2::IfcPropertyTemplateDefinition, OdIfc4x2::IfcQuantitySet, OdIfc4x2::IfcReinforcementDefinitionProperties, OdIfc4x2::IfcSimplePropertyTemplate, OdIfc4x2::IfcWindowLiningProperties, and OdIfc4x2::IfcWindowPanelProperties.

◆ outFields()

virtual OdResult OdIfc4x2::IfcPropertyDefinition::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcRoot.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcDoorLiningProperties, OdIfc4x2::IfcDoorPanelProperties, OdIfc4x2::IfcElementQuantity, OdIfc4x2::IfcPermeableCoveringProperties, OdIfc4x2::IfcPropertySet, OdIfc4x2::IfcPropertySetDefinition, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, OdIfc4x2::IfcReinforcementDefinitionProperties, OdIfc4x2::IfcSimplePropertyTemplate, OdIfc4x2::IfcWindowLiningProperties, and OdIfc4x2::IfcWindowPanelProperties.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcRoot::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overrideprotectedvirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcRoot.

Reimplemented in OdIfc4x2::IfcPropertySet, OdIfc4x2::IfcPropertySetDefinition, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, OdIfc4x2::IfcReinforcementDefinitionProperties, OdIfc4x2::IfcSimplePropertyTemplate, OdIfc4x2::IfcWindowLiningProperties, and OdIfc4x2::IfcWindowPanelProperties.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcPropertyDefinition::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcRoot.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcDoorLiningProperties, OdIfc4x2::IfcDoorPanelProperties, OdIfc4x2::IfcElementQuantity, OdIfc4x2::IfcPermeableCoveringProperties, OdIfc4x2::IfcPropertySet, OdIfc4x2::IfcPropertySetDefinition, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, OdIfc4x2::IfcReinforcementDefinitionProperties, OdIfc4x2::IfcSimplePropertyTemplate, OdIfc4x2::IfcWindowLiningProperties, and OdIfc4x2::IfcWindowPanelProperties.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcPropertyDefinition::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcRoot.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcDoorLiningProperties, OdIfc4x2::IfcDoorPanelProperties, OdIfc4x2::IfcElementQuantity, OdIfc4x2::IfcPermeableCoveringProperties, OdIfc4x2::IfcPropertySet, OdIfc4x2::IfcPropertySetDefinition, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, OdIfc4x2::IfcReinforcementDefinitionProperties, OdIfc4x2::IfcSimplePropertyTemplate, OdIfc4x2::IfcWindowLiningProperties, and OdIfc4x2::IfcWindowPanelProperties.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcPropertyDefinition::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcRoot.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcDoorLiningProperties, OdIfc4x2::IfcDoorPanelProperties, OdIfc4x2::IfcElementQuantity, OdIfc4x2::IfcPermeableCoveringProperties, OdIfc4x2::IfcPropertySet, OdIfc4x2::IfcPropertySetDefinition, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, OdIfc4x2::IfcReinforcementDefinitionProperties, OdIfc4x2::IfcSimplePropertyTemplate, OdIfc4x2::IfcWindowLiningProperties, and OdIfc4x2::IfcWindowPanelProperties.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcPropertyDefinition::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcRoot.

Reimplemented in OdIfc4x2::IfcComplexPropertyTemplate, OdIfc4x2::IfcDoorLiningProperties, OdIfc4x2::IfcDoorPanelProperties, OdIfc4x2::IfcElementQuantity, OdIfc4x2::IfcPermeableCoveringProperties, OdIfc4x2::IfcPreDefinedPropertySet, OdIfc4x2::IfcPropertySet, OdIfc4x2::IfcPropertySetDefinition, OdIfc4x2::IfcPropertySetTemplate, OdIfc4x2::IfcPropertyTemplate, OdIfc4x2::IfcPropertyTemplateDefinition, OdIfc4x2::IfcQuantitySet, OdIfc4x2::IfcReinforcementDefinitionProperties, OdIfc4x2::IfcSimplePropertyTemplate, OdIfc4x2::IfcWindowLiningProperties, and OdIfc4x2::IfcWindowPanelProperties.
