#include <IfcStructuralProfilePropertiesAutoImpl.h>

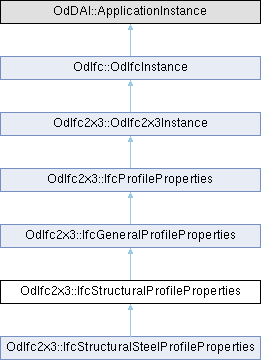

Inheritance diagram for OdIfc2x3::IfcStructuralProfileProperties:

Public Member Functions
double	getTorsionalConstantX () const

void	setTorsionalConstantX (double TorsionalConstantX)

double	getMomentOfInertiaYZ () const

void	setMomentOfInertiaYZ (double MomentOfInertiaYZ)

double	getMomentOfInertiaY () const

void	setMomentOfInertiaY (double MomentOfInertiaY)

double	getMomentOfInertiaZ () const

void	setMomentOfInertiaZ (double MomentOfInertiaZ)

double	getWarpingConstant () const

void	setWarpingConstant (double WarpingConstant)

double	getShearCentreZ () const

void	setShearCentreZ (double ShearCentreZ)

double	getShearCentreY () const

void	setShearCentreY (double ShearCentreY)

double	getShearDeformationAreaZ () const

void	setShearDeformationAreaZ (double ShearDeformationAreaZ)

double	getShearDeformationAreaY () const

void	setShearDeformationAreaY (double ShearDeformationAreaY)

double	getMaximumSectionModulusY () const

void	setMaximumSectionModulusY (double MaximumSectionModulusY)

double	getMinimumSectionModulusY () const

void	setMinimumSectionModulusY (double MinimumSectionModulusY)

double	getMaximumSectionModulusZ () const

void	setMaximumSectionModulusZ (double MaximumSectionModulusZ)

double	getMinimumSectionModulusZ () const

void	setMinimumSectionModulusZ (double MinimumSectionModulusZ)

double	getTorsionalSectionModulus () const

void	setTorsionalSectionModulus (double TorsionalSectionModulus)

double	getCentreOfGravityInX () const

void	setCentreOfGravityInX (double CentreOfGravityInX)

double	getCentreOfGravityInY () const

void	setCentreOfGravityInY (double CentreOfGravityInY)

	IfcStructuralProfileProperties ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcGeneralProfileProperties
double	getPhysicalWeight () const

void	setPhysicalWeight (double PhysicalWeight)

double	getPerimeter () const

void	setPerimeter (double Perimeter)

double	getMinimumPlateThickness () const

void	setMinimumPlateThickness (double MinimumPlateThickness)

double	getMaximumPlateThickness () const

void	setMaximumPlateThickness (double MaximumPlateThickness)

double	getCrossSectionArea () const

void	setCrossSectionArea (double CrossSectionArea)

	IfcGeneralProfileProperties ()

Public Member Functions inherited from OdIfc2x3::IfcProfileProperties
const OdAnsiString &	getProfileName () const

void	setProfileName (const OdAnsiString &ProfileName)

const OdDAIObjectId &	getProfileDefinition () const

void	setProfileDefinition (const OdDAIObjectId &ProfileDefinition)

	IfcProfileProperties ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
double	m_TorsionalConstantX

double	m_MomentOfInertiaYZ

double	m_MomentOfInertiaY

double	m_MomentOfInertiaZ

double	m_WarpingConstant

double	m_ShearCentreZ

double	m_ShearCentreY

double	m_ShearDeformationAreaZ

double	m_ShearDeformationAreaY

double	m_MaximumSectionModulusY

double	m_MinimumSectionModulusY

double	m_MaximumSectionModulusZ

double	m_MinimumSectionModulusZ

double	m_TorsionalSectionModulus

double	m_CentreOfGravityInX

double	m_CentreOfGravityInY

Protected Attributes inherited from OdIfc2x3::IfcGeneralProfileProperties
double	m_PhysicalWeight

IfcPositiveLengthMeasure	m_Perimeter

IfcPositiveLengthMeasure	m_MinimumPlateThickness

IfcPositiveLengthMeasure	m_MaximumPlateThickness

double	m_CrossSectionArea

Protected Attributes inherited from OdIfc2x3::IfcProfileProperties
OdAnsiString	m_ProfileName

OdDAIObjectId	m_ProfileDefinition

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

This is a collection of structural properties applicable to all linear structural members that have a profile definition. For the structural profile properties a further material dependent specialization is given for taking into account specific profile properties applicable only in the context of a specific building material.

The center of gravity is measured from the origin of the geometric profile definition (see subtypes of IfcProfileDef). The CentreOfGravityInX defines the distance along the geometric x axis of the geometric profile definition, the CentreOfGravityInY defines the distance along the geometric y axis.

For parameterized profiles: Center of gravity is measured from the center of the profile definition, which is the center of the bounding box of that profile geometry. For arbitrary profiles: Center of gravity is measured from the 0.,0. local origin of the underlying 2D coordinate system of the explicit profile definition.

The shear center is measured from the gravity center and is given in the structural coordinates, defined by: origin = center of gravity y axis = negative x axis of the geometric coordinate system z axis = negative y axis of the geometric coordinate system

Definition at line 56 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcStructuralProfileProperties()

OdIfc2x3::IfcStructuralProfileProperties::IfcStructuralProfileProperties ( )

Default constructor for the IfcStructuralProfileProperties class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcStructuralProfileProperties::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcStructuralProfileProperties::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcStructuralProfileProperties::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ getCentreOfGravityInX()

double OdIfc2x3::IfcStructuralProfileProperties::getCentreOfGravityInX ( ) const

Returns the value of CentreOfGravityInX attribute. This attribute represents the location of the profile's center of gravity in the geometric X direction. The CentreOfGravityInX is measured in the global length unit as defined at IfcProject.UnitsInContext.

Returns: Returns the value of CentreOfGravityInX attribute.

◆ getCentreOfGravityInY()

double OdIfc2x3::IfcStructuralProfileProperties::getCentreOfGravityInY ( ) const

Returns the value of CentreOfGravityInY attribute. This attribute represents the location of the profile's center of gravity in the geometric Y direction. The CentreOfGravityInY is measured in the global length unit as defined at IfcProject.UnitsInContext.

Returns: Returns the value of CentreOfGravityInY attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcStructuralProfileProperties::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ getMaximumSectionModulusY()

double OdIfc2x3::IfcStructuralProfileProperties::getMaximumSectionModulusY ( ) const

Returns the value of MaximumSectionModulusY attribute. This attribute represents the bending resistance about Y-axis of profile coordinate system at maximum Z-ordinate. Usually measured in [mm3].

Returns: Returns the value of MaximumSectionModulusY attribute.

◆ getMaximumSectionModulusZ()

double OdIfc2x3::IfcStructuralProfileProperties::getMaximumSectionModulusZ ( ) const

Returns the value of MaximumSectionModulusZ attribute. This attribute represents the bending resistance about Z-axis of profile coordinate system at maximum Y-ordinate. Usually measured in [mm3].

Returns: Returns the value of MaximumSectionModulusZ attribute.

◆ getMinimumSectionModulusY()

double OdIfc2x3::IfcStructuralProfileProperties::getMinimumSectionModulusY ( ) const

Returns the value of MinimumSectionModulusY attribute. This attribute represents the bending resistance about Y-axis of profile coordinate system at minimum Z-ordinate. Usually measured in [mm3].

Returns: Returns the value of MinimumSectionModulusY attribute.

◆ getMinimumSectionModulusZ()

double OdIfc2x3::IfcStructuralProfileProperties::getMinimumSectionModulusZ ( ) const

Returns the value of MinimumSectionModulusZ attribute. This attribute represents the bending resistance about Z-axis of profile coordinate system at minimum Y-ordinate. Usually measured in [mm3].

Returns: Returns the value of MinimumSectionModulusZ attribute.

◆ getMomentOfInertiaY()

double OdIfc2x3::IfcStructuralProfileProperties::getMomentOfInertiaY ( ) const

Returns the value of MomentOfInertiaY attribute. This attribute represents the moment of inertia about Y-axis of profile coordinate system. Usually measured in [mm4].

Returns: Returns the value of MomentOfInertiaY attribute.

◆ getMomentOfInertiaYZ()

double OdIfc2x3::IfcStructuralProfileProperties::getMomentOfInertiaYZ ( ) const

Returns the value of MomentOfInertiaYZ attribute. This attribute represents the moment of inertia about Y and Z-axes of profile coordinate system. Usually measured in [mm4].

Returns: Returns the value of MomentOfInertiaYZ attribute.

◆ getMomentOfInertiaZ()

double OdIfc2x3::IfcStructuralProfileProperties::getMomentOfInertiaZ ( ) const

Returns the value of MomentOfInertiaZ attribute. This attribute represents the moment of inertia about Z-axis of profile coordinate system. Usually measured in [mm4].

Returns: Returns the value of MomentOfInertiaZ attribute.

◆ getShearCentreY()

double OdIfc2x3::IfcStructuralProfileProperties::getShearCentreY ( ) const

Returns the value of ShearCentreY attribute. This attribute represents the location of the profile's shear center in the structural Y direction. Mapped on IFC profile coordinate system it is the offset in the direction of the negative X axis. The offset is relative to the center of gravity. The ShearCentreY is measured in the global length unit as defined at IfcProject.UnitsInContext.

Returns: Returns the value of ShearCentreY attribute.

◆ getShearCentreZ()

double OdIfc2x3::IfcStructuralProfileProperties::getShearCentreZ ( ) const

Returns the value of ShearCentreZ attribute. This attribute represents the location of the profile's shear center in the structural Z direction. Mapped on IFC profile coordinate system it is the offset in the direction of the negative Y axis. The offset is relative to the center of gravity. The ShearCentreZ is measured in the global length unit as defined at IfcProject.UnitsInContext.

Returns: Returns the value of ShearCentreZ attribute.

◆ getShearDeformationAreaY()

double OdIfc2x3::IfcStructuralProfileProperties::getShearDeformationAreaY ( ) const

Returns the value of ShearDeformationAreaY attribute. This attribute represents the area of the profile for calculating the shear deformation for a shear force parallel to the profile’s Y-axis. Usually measured in [mm2].

Returns: Returns the value of ShearDeformationAreaY attribute.

◆ getShearDeformationAreaZ()

double OdIfc2x3::IfcStructuralProfileProperties::getShearDeformationAreaZ ( ) const

Returns the value of ShearDeformationAreaZ attribute. This attribute represents the area of the profile for calculating the shear deformation for a shear force parallel to the profile’s Z-axis. Usually measured in [mm2].

Returns: Returns the value of ShearDeformationAreaZ attribute.

◆ getTorsionalConstantX()

double OdIfc2x3::IfcStructuralProfileProperties::getTorsionalConstantX ( ) const

Returns the value of TorsionalConstantX attribute. This attribute represents the torsional constant about X-axis of profile coordinate system. Usually measured in [mm4].

Returns: Returns the value of TorsionalConstantX attribute.

◆ getTorsionalSectionModulus()

double OdIfc2x3::IfcStructuralProfileProperties::getTorsionalSectionModulus ( ) const

Returns the value of TorsionalSectionModulus attribute. This attribute represents the torsional resistance (about the profiles X-axis). Usually measured in [mm3].

Returns: Returns the value of TorsionalSectionModulus attribute.

◆ getWarpingConstant()

double OdIfc2x3::IfcStructuralProfileProperties::getWarpingConstant ( ) const

Returns the value of WarpingConstant attribute. This attribute represents the warping constant of the profile for torsional action. Usually measured in [mm6].

Returns: Returns the value of WarpingConstant attribute.

◆ inFields()

virtual OdResult OdIfc2x3::IfcStructuralProfileProperties::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ isKindOf()

virtual bool OdIfc2x3::IfcStructuralProfileProperties::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ outFields()

virtual OdResult OdIfc2x3::IfcStructuralProfileProperties::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcStructuralProfileProperties::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcStructuralProfileProperties::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ setCentreOfGravityInX()

void OdIfc2x3::IfcStructuralProfileProperties::setCentreOfGravityInX ( double CentreOfGravityInX )

Sets the value of CentreOfGravityInX attribute. This attribute represents the location of the profile's center of gravity in the geometric X direction. The CentreOfGravityInX is measured in the global length unit as defined at IfcProject.UnitsInContext.

Parameters

CentreOfGravityInX [in] CentreOfGravityInX attribute to set.

◆ setCentreOfGravityInY()

void OdIfc2x3::IfcStructuralProfileProperties::setCentreOfGravityInY ( double CentreOfGravityInY )

Sets the value of CentreOfGravityInY attribute. This attribute represents the location of the profile's center of gravity in the geometric Y direction. The CentreOfGravityInY is measured in the global length unit as defined at IfcProject.UnitsInContext.

Parameters

CentreOfGravityInY [in] CentreOfGravityInY attribute to set.

◆ setMaximumSectionModulusY()

void OdIfc2x3::IfcStructuralProfileProperties::setMaximumSectionModulusY ( double MaximumSectionModulusY )

Sets the value of MaximumSectionModulusY attribute. This attribute represents the bending resistance about Y-axis of profile coordinate system at maximum Z-ordinate. Usually measured in [mm3].

Parameters

MaximumSectionModulusY [in] MaximumSectionModulusY attribute to set.

◆ setMaximumSectionModulusZ()

void OdIfc2x3::IfcStructuralProfileProperties::setMaximumSectionModulusZ ( double MaximumSectionModulusZ )

Sets the value of MaximumSectionModulusZ attribute. This attribute represents the bending resistance about Z-axis of profile coordinate system at maximum Y-ordinate. Usually measured in [mm3].

Parameters

MaximumSectionModulusZ [in] MaximumSectionModulusZ attribute to set.

◆ setMinimumSectionModulusY()

void OdIfc2x3::IfcStructuralProfileProperties::setMinimumSectionModulusY ( double MinimumSectionModulusY )

Sets the value of MinimumSectionModulusY attribute. This attribute represents the bending resistance about Y-axis of profile coordinate system at minimum Z-ordinate. Usually measured in [mm3].

Parameters

MinimumSectionModulusY [in] MinimumSectionModulusY attribute to set.

◆ setMinimumSectionModulusZ()

void OdIfc2x3::IfcStructuralProfileProperties::setMinimumSectionModulusZ ( double MinimumSectionModulusZ )

Sets the value of MinimumSectionModulusZ attribute. This attribute represents the bending resistance about Z-axis of profile coordinate system at minimum Y-ordinate. Usually measured in [mm3].

Parameters

MinimumSectionModulusZ [in] MinimumSectionModulusZ attribute to set.

◆ setMomentOfInertiaY()

void OdIfc2x3::IfcStructuralProfileProperties::setMomentOfInertiaY ( double MomentOfInertiaY )

Sets the value of MomentOfInertiaY attribute. This attribute represents the moment of inertia about Y-axis of profile coordinate system. Usually measured in [mm4].

Parameters

MomentOfInertiaY [in] MomentOfInertiaY attribute to set.

◆ setMomentOfInertiaYZ()

void OdIfc2x3::IfcStructuralProfileProperties::setMomentOfInertiaYZ ( double MomentOfInertiaYZ )

Sets the value of MomentOfInertiaYZ attribute. This attribute represents the moment of inertia about Y and Z-axes of profile coordinate system. Usually measured in [mm4].

Parameters

MomentOfInertiaYZ [in] MomentOfInertiaYZ attribute to set.

◆ setMomentOfInertiaZ()

void OdIfc2x3::IfcStructuralProfileProperties::setMomentOfInertiaZ ( double MomentOfInertiaZ )

Sets the value of MomentOfInertiaZ attribute. This attribute represents the moment of inertia about Z-axis of profile coordinate system. Usually measured in [mm4].

Parameters

MomentOfInertiaZ [in] MomentOfInertiaZ attribute to set.

◆ setShearCentreY()

void OdIfc2x3::IfcStructuralProfileProperties::setShearCentreY ( double ShearCentreY )

Sets the value of ShearCentreY attribute. This attribute represents the location of the profile's shear center in the structural Y direction. Mapped on IFC profile coordinate system it is the offset in the direction of the negative X axis. The offset is relative to the center of gravity. The ShearCentreY is measured in the global length unit as defined at IfcProject.UnitsInContext.

Parameters

ShearCentreY [in] ShearCentreY attribute to set.

◆ setShearCentreZ()

void OdIfc2x3::IfcStructuralProfileProperties::setShearCentreZ ( double ShearCentreZ )

Sets the value of ShearCentreZ attribute. This attribute represents the location of the profile's shear center in the structural Z direction. Mapped on IFC profile coordinate system it is the offset in the direction of the negative Y axis. The offset is relative to the center of gravity. The ShearCentreZ is measured in the global length unit as defined at IfcProject.UnitsInContext.

Parameters

ShearCentreZ [in] ShearCentreZ attribute to set.

◆ setShearDeformationAreaY()

void OdIfc2x3::IfcStructuralProfileProperties::setShearDeformationAreaY ( double ShearDeformationAreaY )

Sets the value of ShearDeformationAreaY attribute. This attribute represents the area of the profile for calculating the shear deformation for a shear force parallel to the profile’s Y-axis. Usually measured in [mm2].

Parameters

ShearDeformationAreaY [in] ShearDeformationAreaY attribute to set.

◆ setShearDeformationAreaZ()

void OdIfc2x3::IfcStructuralProfileProperties::setShearDeformationAreaZ ( double ShearDeformationAreaZ )

Sets the value of ShearDeformationAreaZ attribute. This attribute represents the area of the profile for calculating the shear deformation for a shear force parallel to the profile’s Z-axis. Usually measured in [mm2].

Parameters

ShearDeformationAreaZ [in] ShearDeformationAreaZ attribute to set.

◆ setTorsionalConstantX()

void OdIfc2x3::IfcStructuralProfileProperties::setTorsionalConstantX ( double TorsionalConstantX )

Sets the value of TorsionalConstantX attribute. This attribute represents the torsional constant about X-axis of profile coordinate system. Usually measured in [mm4].

Parameters

TorsionalConstantX [in] TorsionalConstantX attribute to set.

◆ setTorsionalSectionModulus()

void OdIfc2x3::IfcStructuralProfileProperties::setTorsionalSectionModulus ( double TorsionalSectionModulus )

Sets the value of TorsionalSectionModulus attribute. This attribute represents the torsional resistance (about the profiles X-axis). Usually measured in [mm3].

Parameters

TorsionalSectionModulus [in] TorsionalSectionModulus attribute to set.

◆ setWarpingConstant()

void OdIfc2x3::IfcStructuralProfileProperties::setWarpingConstant ( double WarpingConstant )

Sets the value of WarpingConstant attribute. This attribute represents the warping constant of the profile for torsional action. Usually measured in [mm6].

Parameters

WarpingConstant [in] WarpingConstant attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcStructuralProfileProperties::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcStructuralProfileProperties::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcStructuralProfileProperties::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcStructuralProfileProperties::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcStructuralProfileProperties::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcGeneralProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralSteelProfileProperties.

Member Data Documentation

◆ m_CentreOfGravityInX

double OdIfc2x3::IfcStructuralProfileProperties::m_CentreOfGravityInX

protected

Definition at line 477 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_CentreOfGravityInY

double OdIfc2x3::IfcStructuralProfileProperties::m_CentreOfGravityInY

protected

Definition at line 478 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_MaximumSectionModulusY

double OdIfc2x3::IfcStructuralProfileProperties::m_MaximumSectionModulusY

protected

Definition at line 472 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_MaximumSectionModulusZ

double OdIfc2x3::IfcStructuralProfileProperties::m_MaximumSectionModulusZ

protected

Definition at line 474 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_MinimumSectionModulusY

double OdIfc2x3::IfcStructuralProfileProperties::m_MinimumSectionModulusY

protected

Definition at line 473 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_MinimumSectionModulusZ

double OdIfc2x3::IfcStructuralProfileProperties::m_MinimumSectionModulusZ

protected

Definition at line 475 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_MomentOfInertiaY

double OdIfc2x3::IfcStructuralProfileProperties::m_MomentOfInertiaY

protected

Definition at line 465 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_MomentOfInertiaYZ

double OdIfc2x3::IfcStructuralProfileProperties::m_MomentOfInertiaYZ

protected

Definition at line 464 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_MomentOfInertiaZ

double OdIfc2x3::IfcStructuralProfileProperties::m_MomentOfInertiaZ

protected

Definition at line 466 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_ShearCentreY

double OdIfc2x3::IfcStructuralProfileProperties::m_ShearCentreY

protected

Definition at line 469 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_ShearCentreZ

double OdIfc2x3::IfcStructuralProfileProperties::m_ShearCentreZ

protected

Definition at line 468 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_ShearDeformationAreaY

double OdIfc2x3::IfcStructuralProfileProperties::m_ShearDeformationAreaY

protected

Definition at line 471 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_ShearDeformationAreaZ

double OdIfc2x3::IfcStructuralProfileProperties::m_ShearDeformationAreaZ

protected

Definition at line 470 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_TorsionalConstantX

double OdIfc2x3::IfcStructuralProfileProperties::m_TorsionalConstantX

protected

Definition at line 463 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_TorsionalSectionModulus

double OdIfc2x3::IfcStructuralProfileProperties::m_TorsionalSectionModulus

protected

Definition at line 476 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

◆ m_WarpingConstant

double OdIfc2x3::IfcStructuralProfileProperties::m_WarpingConstant

protected

Definition at line 467 of file Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcStructuralProfilePropertiesAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcStructuralProfileProperties()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getCentreOfGravityInX()

◆ getCentreOfGravityInY()

◆ getInstanceType()

◆ getMaximumSectionModulusY()

◆ getMaximumSectionModulusZ()

◆ getMinimumSectionModulusY()

◆ getMinimumSectionModulusZ()

◆ getMomentOfInertiaY()

◆ getMomentOfInertiaYZ()

◆ getMomentOfInertiaZ()

◆ getShearCentreY()

◆ getShearCentreZ()

◆ getShearDeformationAreaY()

◆ getShearDeformationAreaZ()

◆ getTorsionalConstantX()

◆ getTorsionalSectionModulus()

◆ getWarpingConstant()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setCentreOfGravityInX()

◆ setCentreOfGravityInY()

◆ setMaximumSectionModulusY()

◆ setMaximumSectionModulusZ()

◆ setMinimumSectionModulusY()

◆ setMinimumSectionModulusZ()

◆ setMomentOfInertiaY()

◆ setMomentOfInertiaYZ()

◆ setMomentOfInertiaZ()

◆ setShearCentreY()

◆ setShearCentreZ()

◆ setShearDeformationAreaY()

◆ setShearDeformationAreaZ()

◆ setTorsionalConstantX()

◆ setTorsionalSectionModulus()

◆ setWarpingConstant()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_CentreOfGravityInX

◆ m_CentreOfGravityInY

◆ m_MaximumSectionModulusY

◆ m_MaximumSectionModulusZ

◆ m_MinimumSectionModulusY

◆ m_MinimumSectionModulusZ

◆ m_MomentOfInertiaY

◆ m_MomentOfInertiaYZ

◆ m_MomentOfInertiaZ

◆ m_ShearCentreY

◆ m_ShearCentreZ

◆ m_ShearDeformationAreaY

◆ m_ShearDeformationAreaZ

◆ m_TorsionalConstantX

◆ m_TorsionalSectionModulus

◆ m_WarpingConstant
