#include <IfcGeneralProfilePropertiesAutoImpl.h>

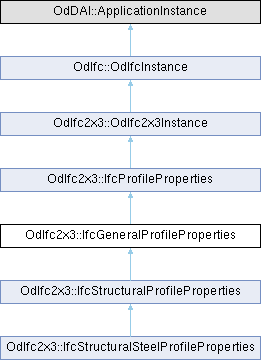

Inheritance diagram for OdIfc2x3::IfcGeneralProfileProperties:

Public Member Functions
double	getPhysicalWeight () const

void	setPhysicalWeight (double PhysicalWeight)

double	getPerimeter () const

void	setPerimeter (double Perimeter)

double	getMinimumPlateThickness () const

void	setMinimumPlateThickness (double MinimumPlateThickness)

double	getMaximumPlateThickness () const

void	setMaximumPlateThickness (double MaximumPlateThickness)

double	getCrossSectionArea () const

void	setCrossSectionArea (double CrossSectionArea)

	IfcGeneralProfileProperties ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcProfileProperties
const OdAnsiString &	getProfileName () const

void	setProfileName (const OdAnsiString &ProfileName)

const OdDAIObjectId &	getProfileDefinition () const

void	setProfileDefinition (const OdDAIObjectId &ProfileDefinition)

	IfcProfileProperties ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
double	m_PhysicalWeight

IfcPositiveLengthMeasure	m_Perimeter

IfcPositiveLengthMeasure	m_MinimumPlateThickness

IfcPositiveLengthMeasure	m_MaximumPlateThickness

double	m_CrossSectionArea

Protected Attributes inherited from OdIfc2x3::IfcProfileProperties
OdAnsiString	m_ProfileName

OdDAIObjectId	m_ProfileDefinition

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

This is a collection of properties applicable to all linear structural members having a profile definition.

Definition at line 40 of file Ifc2x3/IfcGeneralProfilePropertiesAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcGeneralProfileProperties()

OdIfc2x3::IfcGeneralProfileProperties::IfcGeneralProfileProperties ( )

Default constructor for the IfcGeneralProfileProperties class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcGeneralProfileProperties::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcGeneralProfileProperties::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcGeneralProfileProperties::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ getCrossSectionArea()

double OdIfc2x3::IfcGeneralProfileProperties::getCrossSectionArea ( ) const

Returns the value of CrossSectionArea attribute. This attribute represents the cross-sectional area of profile. Usually measured in [mm2].

Returns: Returns the value of CrossSectionArea attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcGeneralProfileProperties::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ getMaximumPlateThickness()

double OdIfc2x3::IfcGeneralProfileProperties::getMaximumPlateThickness ( ) const

Returns the value of MaximumPlateThickness attribute. This attribute represents the value that is needed for stress analysis and for handling buckling problems. It can be derived from the given profile geometry and therefore it is only an optional feature allowing an explicit description. Usually measured in [mm].

Returns: Returns the value of MaximumPlateThickness attribute.

◆ getMinimumPlateThickness()

double OdIfc2x3::IfcGeneralProfileProperties::getMinimumPlateThickness ( ) const

Returns the value of MinimumPlateThickness attribute. This attribute represents a value that is needed for stress analysis and for handling buckling problems. It can be derived from the given profile geometry and therefore it is only an optional feature allowing an explicit description. Usually measured in [mm].

Returns: Returns the value of MinimumPlateThickness attribute.

◆ getPerimeter()

double OdIfc2x3::IfcGeneralProfileProperties::getPerimeter ( ) const

Returns the value of Perimeter attribute. This attribute represents the perimeter of the profile for calculating the surface area. Usually measured in [mm].

Returns: Returns the value of Perimeter attribute.

◆ getPhysicalWeight()

double OdIfc2x3::IfcGeneralProfileProperties::getPhysicalWeight ( ) const

Returns the value of PhysicalWeight attribute. This attribute represents the weight of an imaginary steel beam per length, as for example given by the national standards for this profile. Usually measured in [kg/m].

Returns: Returns the value of PhysicalWeight attribute.

◆ inFields()

virtual OdResult OdIfc2x3::IfcGeneralProfileProperties::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ isKindOf()

virtual bool OdIfc2x3::IfcGeneralProfileProperties::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ outFields()

virtual OdResult OdIfc2x3::IfcGeneralProfileProperties::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcGeneralProfileProperties::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcGeneralProfileProperties::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ setCrossSectionArea()

void OdIfc2x3::IfcGeneralProfileProperties::setCrossSectionArea ( double CrossSectionArea )

Sets the value of CrossSectionArea attribute. This attribute represents the cross-sectional area of profile. Usually measured in [mm2].

Parameters

CrossSectionArea [in] CrossSectionArea attribute to set.

◆ setMaximumPlateThickness()

void OdIfc2x3::IfcGeneralProfileProperties::setMaximumPlateThickness ( double MaximumPlateThickness )

Sets the value of MaximumPlateThickness attribute. This attribute represents the value that is needed for stress analysis and for handling buckling problems. It can be derived from the given profile geometry and therefore it is only an optional feature allowing an explicit description. Usually measured in [mm].

Parameters

MaximumPlateThickness [in] MaximumPlateThickness attribute to set.

◆ setMinimumPlateThickness()

void OdIfc2x3::IfcGeneralProfileProperties::setMinimumPlateThickness ( double MinimumPlateThickness )

Sets the value of MinimumPlateThickness attribute. This attribute represents a value that is needed for stress analysis and for handling buckling problems. It can be derived from the given profile geometry and therefore it is only an optional feature allowing an explicit description. Usually measured in [mm].

Parameters

MinimumPlateThickness [in] MinimumPlateThickness attribute to set.

◆ setPerimeter()

void OdIfc2x3::IfcGeneralProfileProperties::setPerimeter ( double Perimeter )

Sets the value of Perimeter attribute. This attribute represents the perimeter of the profile for calculating the surface area. Usually measured in [mm].

Parameters

Perimeter [in] Perimeter attribute to set.

◆ setPhysicalWeight()

void OdIfc2x3::IfcGeneralProfileProperties::setPhysicalWeight ( double PhysicalWeight )

Sets the value of PhysicalWeight attribute. This attribute represents the weight of an imaginary steel beam per length, as for example given by the national standards for this profile. Usually measured in [kg/m].

Parameters

PhysicalWeight [in] PhysicalWeight attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcGeneralProfileProperties::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcGeneralProfileProperties::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcGeneralProfileProperties::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcProfileProperties.

Reimplemented in OdIfc2x3::IfcStructuralProfileProperties, and OdIfc2x3::IfcStructuralSteelProfileProperties.
