#include <IfcTendonAutoImpl.h>

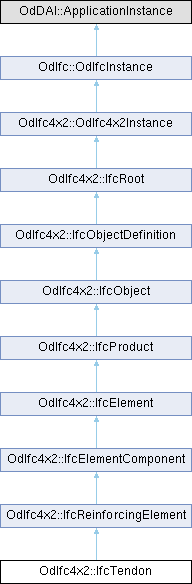

Inheritance diagram for OdIfc4x2::IfcTendon:

Public Member Functions
IfcTendonTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcTendonTypeEnum PredefinedType)

double	getNominalDiameter () const

void	setNominalDiameter (double NominalDiameter)

double	getCrossSectionArea () const

void	setCrossSectionArea (double CrossSectionArea)

double	getTensionForce () const

void	setTensionForce (double TensionForce)

double	getPreStress () const

void	setPreStress (double PreStress)

double	getFrictionCoefficient () const

void	setFrictionCoefficient (double FrictionCoefficient)

double	getAnchorageSlip () const

void	setAnchorageSlip (double AnchorageSlip)

double	getMinCurvatureRadius () const

void	setMinCurvatureRadius (double MinCurvatureRadius)

	IfcTendon ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcReinforcingElement
const OdAnsiString &	getSteelGrade () const

void	setSteelGrade (const OdAnsiString &SteelGrade)

	IfcReinforcingElement ()

Public Member Functions inherited from OdIfc4x2::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

	IfcElement ()

Public Member Functions inherited from OdIfc4x2::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x2::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x2::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_PredefinedType

IfcPositiveLengthMeasure	m_NominalDiameter

double	m_CrossSectionArea

double	m_TensionForce

double	m_PreStress

IfcNormalisedRatioMeasure	m_FrictionCoefficient

IfcPositiveLengthMeasure	m_AnchorageSlip

IfcPositiveLengthMeasure	m_MinCurvatureRadius

Protected Attributes inherited from OdIfc4x2::IfcReinforcingElement
OdAnsiString	m_SteelGrade

Protected Attributes inherited from OdIfc4x2::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4x2::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x2::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A tendon is a steel element such as a wire, cable, bar, rod, or strand used to impart prestress to concrete when the element is tensioned.

Mapped Geometry - This method of representation allows for several tendons represented by a single instance of IfcTendon. The representation map should contain one IfcSweptDiskSolid.
Object Typing - This concept can be applied to the following resources: IfcTendonType

\changes

IFC4 changes: CrossSectionArea attribute is optional. NominalDiameter attribute is optional. PredefinedType attribute is optional.

Definition at line 54 of file Ifc4x2/IfcTendonAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcTendon()

OdIfc4x2::IfcTendon::IfcTendon ( )

Default constructor for the IfcTendon class.

Member Function Documentation

◆ getAnchorageSlip()

double OdIfc4x2::IfcTendon::getAnchorageSlip ( ) const

Returns the value of AnchorageSlip attribute. This attribute represents the deformation of an anchor or slippage of tendons when the prestressing device is released.

Returns: Returns the value of AnchorageSlip attribute.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcTendon::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcTendon::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ getCrossSectionArea()

double OdIfc4x2::IfcTendon::getCrossSectionArea ( ) const

Returns the value of CrossSectionArea attribute. This attribute represents the effective cross-section area of the tendon.

Returns: Returns the value of CrossSectionArea attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use respective attribute at IfcTendonType instead.

◆ getFrictionCoefficient()

double OdIfc4x2::IfcTendon::getFrictionCoefficient ( ) const

Returns the value of FrictionCoefficient attribute. This attribute represents the friction coefficient between tendon and tendon sheet while the tendon is unbonded.

Returns: Returns the value of FrictionCoefficient attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcTendon::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ getMinCurvatureRadius()

double OdIfc4x2::IfcTendon::getMinCurvatureRadius ( ) const

Returns the value of MinCurvatureRadius attribute. This attribute represents the smallest curvature radius calculated on the whole effective length of the tendon where the tension properties are still valid.

Returns: Returns the value of MinCurvatureRadius attribute.

◆ getNominalDiameter()

double OdIfc4x2::IfcTendon::getNominalDiameter ( ) const

Returns the value of NominalDiameter attribute. This attribute represents the nominal diameter defining the cross-section size of the tendon.

Returns: Returns the value of NominalDiameter attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use respective attribute at IfcTendonType instead.

◆ getPredefinedType()

IfcTendonTypeEnum OdIfc4x2::IfcTendon::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents predefined generic types for a tendon.

Returns: Returns the value of PredefinedType attribute.

◆ getPreStress()

double OdIfc4x2::IfcTendon::getPreStress ( ) const

Returns the value of PreStress attribute. This attribute represents the prestress to be applied on the tendon.

Returns: Returns the value of PreStress attribute.

◆ getTensionForce()

double OdIfc4x2::IfcTendon::getTensionForce ( ) const

Returns the value of TensionForce attribute. This attribute represents the maximum allowed tension force that can be applied on the tendon.

Returns: Returns the value of TensionForce attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcTendon::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ isKindOf()

virtual bool OdIfc4x2::IfcTendon::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ outFields()

virtual OdResult OdIfc4x2::IfcTendon::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcTendon::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcTendon::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ setAnchorageSlip()

void OdIfc4x2::IfcTendon::setAnchorageSlip ( double AnchorageSlip )

Sets the value of AnchorageSlip attribute. This attribute represents the deformation of an anchor or slippage of tendons when the prestressing device is released.

Parameters

AnchorageSlip [in] Anchorage slip to set.

◆ setCrossSectionArea()

void OdIfc4x2::IfcTendon::setCrossSectionArea ( double CrossSectionArea )

Sets the value of CrossSectionArea attribute. This attribute represents the effective cross-section area of the tendon.

Parameters

CrossSectionArea [in] Cross section area to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use respective attribute at IfcTendonType instead.

◆ setFrictionCoefficient()

void OdIfc4x2::IfcTendon::setFrictionCoefficient ( double FrictionCoefficient )

Sets the value of FrictionCoefficient attribute. This attribute represents the friction coefficient between tendon and tendon sheet while the tendon is unbonded.

Parameters

FrictionCoefficient [in] Friction coefficient to set.

◆ setMinCurvatureRadius()

void OdIfc4x2::IfcTendon::setMinCurvatureRadius ( double MinCurvatureRadius )

Sets the value of MinCurvatureRadius attribute. This attribute represents the smallest curvature radius calculated on the whole effective length of the tendon where the tension properties are still valid.

Parameters

MinCurvatureRadius [in] Minimum curvature radius to set.

◆ setNominalDiameter()

void OdIfc4x2::IfcTendon::setNominalDiameter ( double NominalDiameter )

Sets the value of NominalDiameter attribute. This attribute represents the nominal diameter defining the cross-section size of the tendon.

Parameters

NominalDiameter [in] Nominal diameter to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use respective attribute at IfcTendonType instead.

◆ setPredefinedType()

void OdIfc4x2::IfcTendon::setPredefinedType ( IfcTendonTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents predefined generic types for a tendon.

Parameters

PredefinedType [in] Predefined type to set.

◆ setPreStress()

void OdIfc4x2::IfcTendon::setPreStress ( double PreStress )

Sets the value of PreStress attribute. This attribute represents the prestress to be applied on the tendon.

Parameters

PreStress [in] PreStress to set.

◆ setTensionForce()

void OdIfc4x2::IfcTendon::setTensionForce ( double TensionForce )

Sets the value of TensionForce attribute. This attribute represents the maximum allowed tension force that can be applied on the tendon.

Parameters

TensionForce [in] Tension force to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcTendon::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcTendon::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcTendon::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ unsetAttr() [1/2]

virtual void OdIfc4x2::IfcTendon::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

◆ unsetAttr() [2/2]

virtual void OdIfc4x2::IfcTendon::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x2::IfcReinforcingElement.

Member Data Documentation

◆ m_AnchorageSlip

IfcPositiveLengthMeasure OdIfc4x2::IfcTendon::m_AnchorageSlip

protected

Definition at line 314 of file Ifc4x2/IfcTendonAutoImpl.h.

◆ m_CrossSectionArea

double OdIfc4x2::IfcTendon::m_CrossSectionArea

protected

Definition at line 310 of file Ifc4x2/IfcTendonAutoImpl.h.

◆ m_FrictionCoefficient

IfcNormalisedRatioMeasure OdIfc4x2::IfcTendon::m_FrictionCoefficient

protected

Definition at line 313 of file Ifc4x2/IfcTendonAutoImpl.h.

◆ m_MinCurvatureRadius

IfcPositiveLengthMeasure OdIfc4x2::IfcTendon::m_MinCurvatureRadius

protected

Definition at line 315 of file Ifc4x2/IfcTendonAutoImpl.h.

◆ m_NominalDiameter

IfcPositiveLengthMeasure OdIfc4x2::IfcTendon::m_NominalDiameter

protected

Definition at line 309 of file Ifc4x2/IfcTendonAutoImpl.h.

◆ m_PredefinedType

OdDAI::Enum OdIfc4x2::IfcTendon::m_PredefinedType

protected

Definition at line 308 of file Ifc4x2/IfcTendonAutoImpl.h.

◆ m_PreStress

double OdIfc4x2::IfcTendon::m_PreStress

protected

Definition at line 312 of file Ifc4x2/IfcTendonAutoImpl.h.

◆ m_TensionForce

double OdIfc4x2::IfcTendon::m_TensionForce

protected

Definition at line 311 of file Ifc4x2/IfcTendonAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x2/IfcTendonAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcTendon()

Member Function Documentation

◆ getAnchorageSlip()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getCrossSectionArea()

◆ getFrictionCoefficient()

◆ getInstanceType()

◆ getMinCurvatureRadius()

◆ getNominalDiameter()

◆ getPredefinedType()

◆ getPreStress()

◆ getTensionForce()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setAnchorageSlip()

◆ setCrossSectionArea()

◆ setFrictionCoefficient()

◆ setMinCurvatureRadius()

◆ setNominalDiameter()

◆ setPredefinedType()

◆ setPreStress()

◆ setTensionForce()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_AnchorageSlip

◆ m_CrossSectionArea

◆ m_FrictionCoefficient

◆ m_MinCurvatureRadius

◆ m_NominalDiameter

◆ m_PredefinedType

◆ m_PreStress

◆ m_TensionForce
