#include <IfcReinforcingElementAutoImpl.h>

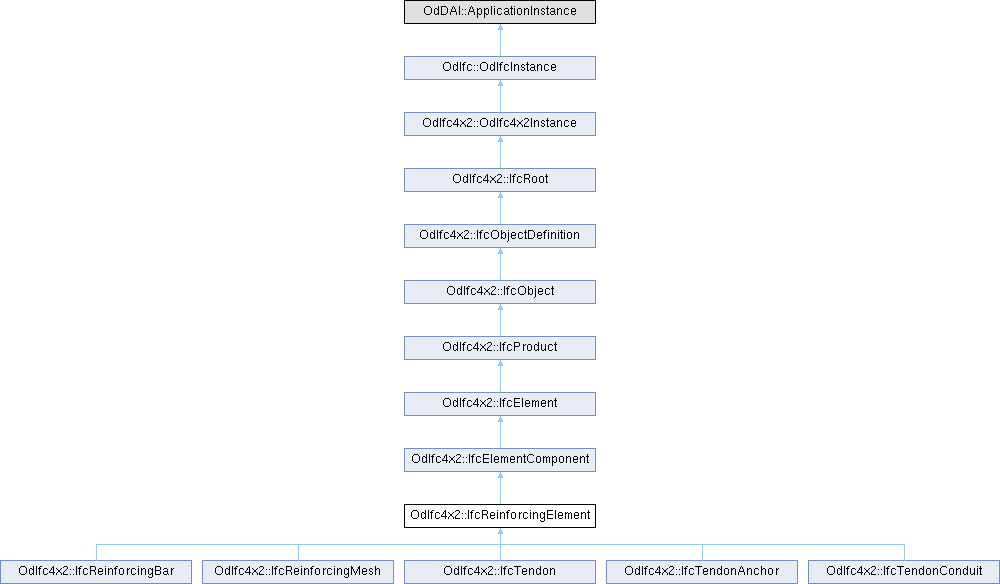

Inheritance diagram for OdIfc4x2::IfcReinforcingElement:

Public Member Functions
const OdAnsiString &	getSteelGrade () const

void	setSteelGrade (const OdAnsiString &SteelGrade)

	IfcReinforcingElement ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

	IfcElement ()

Public Member Functions inherited from OdIfc4x2::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x2::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x2::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_SteelGrade

Protected Attributes inherited from OdIfc4x2::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4x2::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x2::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A reinforcing element represents bars, wires, strands, meshes, tendons, and other components embedded in concrete in such a manner that the reinforcement and the concrete act together in resisting forces.

One or several instances of subtypes of IfcReinforcingElement should always have a defining instance of a respective subtype of IfcReinforcingElementType. The type object holds shape and material information.

Object Typing - This concept can be applied to the following resources: IfcReinforcingElementType
Quantity Sets - This concept can be applied to the following resources: Qto_ReinforcingElementBaseQuantities

Remarks: ABSTRACT: This definition cannot be instantiated.

\changes

IFC4 changes: Supertype changed from "IfcBuildingElementComponent" to "IfcElementComponent" Attribute SteelGrade is deprecated

Definition at line 61 of file Ifc4x2/IfcReinforcingElementAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcReinforcingElement()

OdIfc4x2::IfcReinforcingElement::IfcReinforcingElement ( )

Default constructor for the IfcReinforcingElement class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcReinforcingElement::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcElement.

Reimplemented in OdIfc4x2::IfcReinforcingBar, OdIfc4x2::IfcReinforcingMesh, OdIfc4x2::IfcTendon, OdIfc4x2::IfcTendonAnchor, and OdIfc4x2::IfcTendonConduit.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcReinforcingElement::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcElement.

Reimplemented in OdIfc4x2::IfcReinforcingBar, OdIfc4x2::IfcReinforcingMesh, OdIfc4x2::IfcTendon, OdIfc4x2::IfcTendonAnchor, and OdIfc4x2::IfcTendonConduit.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcReinforcingElement::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcElementComponent.

Reimplemented in OdIfc4x2::IfcReinforcingBar, OdIfc4x2::IfcReinforcingMesh, OdIfc4x2::IfcTendon, OdIfc4x2::IfcTendonAnchor, and OdIfc4x2::IfcTendonConduit.

◆ getSteelGrade()

const OdAnsiString & OdIfc4x2::IfcReinforcingElement::getSteelGrade ( ) const

Returns the value of SteelGrade attribute. This attribute represents the nominal steel grade defined according to local standards.

Returns: Returns the value of SteelGrade attribute.

Remarks: IFC4 CHANGE: Attribute deprecated. Use material association at IfcReinforcingElementType instead.

◆ inFields()

virtual OdResult OdIfc4x2::IfcReinforcingElement::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcElement.

Reimplemented in OdIfc4x2::IfcReinforcingBar, OdIfc4x2::IfcReinforcingMesh, OdIfc4x2::IfcTendon, OdIfc4x2::IfcTendonAnchor, and OdIfc4x2::IfcTendonConduit.

◆ isKindOf()

virtual bool OdIfc4x2::IfcReinforcingElement::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcElementComponent.

Reimplemented in OdIfc4x2::IfcReinforcingBar, OdIfc4x2::IfcReinforcingMesh, OdIfc4x2::IfcTendon, OdIfc4x2::IfcTendonAnchor, and OdIfc4x2::IfcTendonConduit.

◆ outFields()

virtual OdResult OdIfc4x2::IfcReinforcingElement::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcElement.

Reimplemented in OdIfc4x2::IfcReinforcingBar, OdIfc4x2::IfcReinforcingMesh, OdIfc4x2::IfcTendon, OdIfc4x2::IfcTendonAnchor, and OdIfc4x2::IfcTendonConduit.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcReinforcingElement::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcElement.

Reimplemented in OdIfc4x2::IfcReinforcingBar, OdIfc4x2::IfcReinforcingMesh, OdIfc4x2::IfcTendon, OdIfc4x2::IfcTendonAnchor, and OdIfc4x2::IfcTendonConduit.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcReinforcingElement::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcElement.

Reimplemented in OdIfc4x2::IfcReinforcingBar, OdIfc4x2::IfcReinforcingMesh, OdIfc4x2::IfcTendon, OdIfc4x2::IfcTendonAnchor, and OdIfc4x2::IfcTendonConduit.

◆ setSteelGrade()

void OdIfc4x2::IfcReinforcingElement::setSteelGrade ( const OdAnsiString & SteelGrade )

Sets the value of SteelGrade attribute. This attribute represents the nominal steel grade defined according to local standards.

Parameters

SteelGrade [in] Steel grade to set.

Remarks: IFC4 CHANGE: Attribute deprecated. Use material association at IfcReinforcingElementType instead.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcReinforcingElement::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcElement.

Reimplemented in OdIfc4x2::IfcReinforcingBar, OdIfc4x2::IfcReinforcingMesh, OdIfc4x2::IfcTendon, OdIfc4x2::IfcTendonAnchor, and OdIfc4x2::IfcTendonConduit.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcReinforcingElement::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcElement.

Reimplemented in OdIfc4x2::IfcReinforcingBar, OdIfc4x2::IfcReinforcingMesh, OdIfc4x2::IfcTendon, OdIfc4x2::IfcTendonAnchor, and OdIfc4x2::IfcTendonConduit.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcReinforcingElement::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcElementComponent.

Reimplemented in OdIfc4x2::IfcReinforcingBar, OdIfc4x2::IfcReinforcingMesh, OdIfc4x2::IfcTendon, OdIfc4x2::IfcTendonAnchor, and OdIfc4x2::IfcTendonConduit.
