#include <IfcElementAssemblyAutoImpl.h>

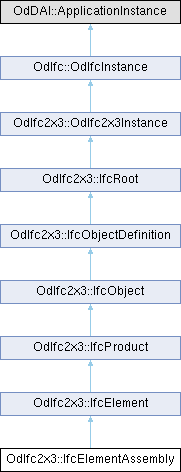

Inheritance diagram for OdIfc2x3::IfcElementAssembly:

Public Member Functions
IfcAssemblyPlaceEnum	getAssemblyPlace () const

void	setAssemblyPlace (IfcAssemblyPlaceEnum AssemblyPlace)

IfcElementAssemblyTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcElementAssemblyTypeEnum PredefinedType)

	IfcElementAssembly ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvHasStructuralMember (OdDAIObjectIds &HasStructuralMember) const

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasPorts (OdDAIObjectIds &HasPorts) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x3::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc2x3::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x3::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_AssemblyPlace

OdDAI::Enum	m_PredefinedType

Protected Attributes inherited from OdIfc2x3::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x3::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x3::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcElementAssembly represents complex element assemblies aggregated from several elements, such as discrete elements, building elements, or other elements. The geometry of an IfcElementAssembly is generally formed from its components, in which case it does not need to have an explicit geometric representation. In some cases it can be useful to also expose an own explicit representation of the aggregate.

Aggregation - The IfcElementAssembly represents an aggregate, i.e. it should have other elements of IfcElement subtypes as contained (sub)parts.

The IfcElementAssembly is an aggregate i.e. being composed by other elements and acting as an assembly using the objectified relationship IfcRelAggregates, referring to it by its inverse attribute SELF\IfcObjectDefinition.IsDecomposedBy. Components of an assembly are described by instances of subtypes of IfcElement. In this case, the contained subtypes of IfcElement is not additionally contained in the project spatial hierarchy, i.e. the inverse attribute SELF\IfcElement.ContainedInStructure of those IfcElement's should be NIL.

The image below illustrates spatial containment and element aggregation relationships:

Spatial Containment - The Spatial Containment concept template applies to this entity as shown in the table below:

RelatingStructure

Description IfcBuildingStorey Default spatial container IfcBuilding Spatial container for element assemblies not assignable to a building storey IfcSite Spatial container for element assemblies that are placed on site (outside of building)

The IfcElementAssembly should have a relationship for its containment in the hierarchical spatial structure of the project. Only if the IfcElementAssembly is itself a part of another assembly this relationship should be omitted.

Remarks: The IfcElementAssembly is a general purpose entity that is required to be decomposed. Also other subtypes of IfcElement can be decomposed. The assembly structure can be nested, i.e. an IfcElementAssembly could be an aggregated part within another IfcElementAssembly. View definitions and/or implementer agreements can restrict the number of allowed levels of nesting. View definitions or implementer agreements can further constrain the applicability of certain shape representations at the IfcElementAssembly in respect of the shape representations of its parts.

Definition at line 75 of file Ifc2x3/IfcElementAssemblyAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcElementAssembly()

OdIfc2x3::IfcElementAssembly::IfcElementAssembly ( )

Default constructor for the IfcElementAssembly class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcElementAssembly::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcElement.

◆ getAssemblyPlace()

IfcAssemblyPlaceEnum OdIfc2x3::IfcElementAssembly::getAssemblyPlace ( ) const

Returns the value of AssemblyPlace attribute. This attribute represents a designation of where the assembly is intended to take place defined by an enumeration value.

Returns: Returns the value of AssemblyPlace attribute.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcElementAssembly::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcElementAssembly::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcElement.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcElementAssembly::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcElement.

◆ getPredefinedType()

IfcElementAssemblyTypeEnum OdIfc2x3::IfcElementAssembly::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents a list of types to further identify the object. Some property sets can be specifically applicable to one of these types.

Returns: Returns the value of PredefinedType attribute.

Remarks: If the object has an associated IfcTypeObject with a PredefinedType, then this attribute is not used.

◆ inFields()

virtual OdResult OdIfc2x3::IfcElementAssembly::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcElement.

◆ isKindOf()

virtual bool OdIfc2x3::IfcElementAssembly::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcElement.

◆ outFields()

virtual OdResult OdIfc2x3::IfcElementAssembly::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcElement.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcElementAssembly::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcElement.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcElementAssembly::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcElement.

◆ setAssemblyPlace()

void OdIfc2x3::IfcElementAssembly::setAssemblyPlace ( IfcAssemblyPlaceEnum AssemblyPlace )

Sets the value of AssemblyPlace attribute. This attribute represents a designation of where the assembly is intended to take place defined by an enumeration value.

Parameters

AssemblyPlace [in] Assembly place to set.

◆ setPredefinedType()

void OdIfc2x3::IfcElementAssembly::setPredefinedType ( IfcElementAssemblyTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents a list of types to further identify the object. Some property sets can be specifically applicable to one of these types.

Parameters

PredefinedType [in] Predefined type to set.

Remarks: If the object has an associated IfcTypeObject with a PredefinedType, then this attribute is not used.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcElementAssembly::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcElement.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcElementAssembly::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcElementAssembly::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcElement.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcElementAssembly::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcElement.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcElementAssembly::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcElement.

Member Data Documentation

◆ m_AssemblyPlace

OdDAI::Enum OdIfc2x3::IfcElementAssembly::m_AssemblyPlace

protected

Definition at line 254 of file Ifc2x3/IfcElementAssemblyAutoImpl.h.

◆ m_PredefinedType

OdDAI::Enum OdIfc2x3::IfcElementAssembly::m_PredefinedType

protected

Definition at line 255 of file Ifc2x3/IfcElementAssemblyAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcElementAssemblyAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcElementAssembly()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAssemblyPlace()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getPredefinedType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setAssemblyPlace()

◆ setPredefinedType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_AssemblyPlace

◆ m_PredefinedType
