#include <IfcRelConnectsAutoImpl.h>

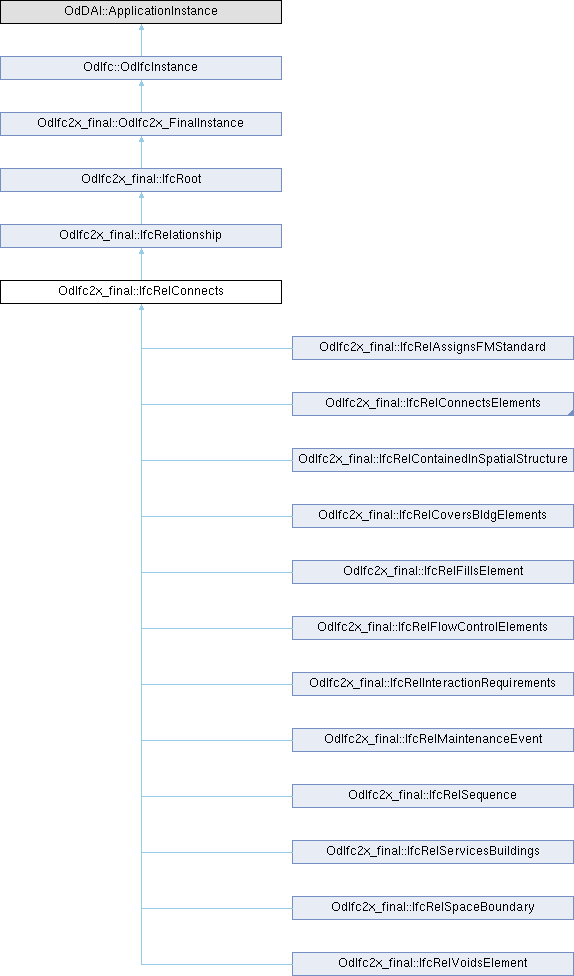

Inheritance diagram for OdIfc2x_final::IfcRelConnects:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc2x_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcRelConnects is a connectivity relationship that connects objects under some criteria. As a general connectivity it does not imply constraints, however subtypes of the relationship define the applicable object types for the connectivity relationship and the semantics of the particular connectivity.

Remarks: This definition may not be instantiated.

Definition at line 45 of file Ifc2x_Final/IfcRelConnectsAutoImpl.h.

Member Function Documentation

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcRelConnects::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcRelationship.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcRelConnects::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcRelationship.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcRelConnects::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcRelationship.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcRelConnectsAutoImpl.h
