#include <IfcMoveAutoImpl.h>

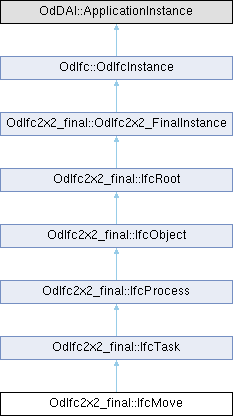

Inheritance diagram for OdIfc2x2_final::IfcMove:

Public Member Functions
const OdDAIObjectId &	getMoveFrom () const

void	setMoveFrom (const OdDAIObjectId &MoveFrom)

const OdDAIObjectId &	getMoveTo () const

void	setMoveTo (const OdDAIObjectId &MoveTo)

void	getPunchList (OdArray< OdAnsiString > &PunchList) const

OdDAI::ListOfOdAnsiString &	punchList ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcTask
const OdAnsiString &	getTaskId () const

void	setTaskId (const OdAnsiString &TaskId)

const OdAnsiString &	getStatus () const

void	setStatus (const OdAnsiString &Status)

const OdAnsiString &	getWorkMethod () const

void	setWorkMethod (const OdAnsiString &WorkMethod)

OdDAI::Boolean	getIsMilestone () const

void	setIsMilestone (OdDAI::Boolean IsMilestone)

int	getPriority () const

void	setPriority (int Priority)

	IfcTask ()

Public Member Functions inherited from OdIfc2x2_final::IfcProcess
void	getInvOperatesOn (OdDAIObjectIds &OperatesOn) const

void	getInvIsSuccessorFrom (OdDAIObjectIds &IsSuccessorFrom) const

void	getInvIsPredecessorTo (OdDAIObjectIds &IsPredecessorTo) const

Public Member Functions inherited from OdIfc2x2_final::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_MoveFrom

OdDAIObjectId	m_MoveTo

OdDAI::ListOfOdAnsiString	m_PunchList

Protected Attributes inherited from OdIfc2x2_final::IfcTask
OdAnsiString	m_TaskId

OdAnsiString	m_Status

OdAnsiString	m_WorkMethod

OdDAI::Boolean	m_IsMilestone

int	m_Priority

Protected Attributes inherited from OdIfc2x2_final::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcMove is an activity that moves people, groups within an organization or complete organizations together with their associated furniture and equipment from one place to another. The objects to be moved (normally people, equipment and furniture) are assigned by the IfcRelAssignsToProcess relationship.

Actors, equipment and furniture are moved from one IfcSpatialStructuralElement to another. The IfcSpatialStructureElement to be moved from and that to be moved to are assigned to the IfcMove class using the IfcRelAssignsToProcess relationship. The actors (as IfcActor), equipment and furniture pieces to be moved are assigned to the IfcMove using the IfcRelAssignsToProcess relationship.

Moves can be nested, i.e. a move object can contain other (more detailed) move objects. This is handled by the IfcRelNests relationship pointing (with RelatingObject) to the containing move and (with RelatedObjects) to the contained (sub)moves. Moves are assigned to a move schedule (represented as IfcWorkSchedule with Purpose attribute 'Move') by using the IfcRelAssignsTask relationship.

Definition at line 52 of file Ifc2x2_Final/IfcMoveAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcMove::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcMove::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcMove::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ getMoveFrom()

const OdDAIObjectId & OdIfc2x2_final::IfcMove::getMoveFrom ( ) const

Returns the value of MoveFrom attribute. This attribute represents the place from which actors and their associated equipment are moving.

Returns: Returns the value of MoveFrom attribute.

◆ getMoveTo()

const OdDAIObjectId & OdIfc2x2_final::IfcMove::getMoveTo ( ) const

Returns the value of MoveTo attribute. This attribute represents the place to which actors and their associated equipment are moving.

Returns: Returns the value of MoveTo attribute.

◆ getPunchList()

void OdIfc2x2_final::IfcMove::getPunchList ( OdArray< OdAnsiString > & PunchList ) const

Gets the value of PunchList attribute. This attribute represents the list of points concerning a move that require attention.

Parameters

PunchList [out] Receives the PunchList attribute.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcMove::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcMove::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcMove::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ punchList()

OdDAI::ListOfOdAnsiString & OdIfc2x2_final::IfcMove::punchList ( )

Returns the value of PunchList attribute. This attribute represents the list of points concerning a move that require attention.

Returns: Returns the value of PunchList attribute.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcMove::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcMove::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ setMoveFrom()

void OdIfc2x2_final::IfcMove::setMoveFrom ( const OdDAIObjectId & MoveFrom )

Sets the value of MoveFrom attribute. This attribute represents the place from which actors and their associated equipment are moving.

Parameters

MoveFrom [in] MoveFrom attribute to set.

◆ setMoveTo()

void OdIfc2x2_final::IfcMove::setMoveTo ( const OdDAIObjectId & MoveTo )

Sets the value of MoveTo attribute. This attribute represents the place to which actors and their associated equipment are moving.

Parameters

MoveTo [in] MoveTo attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcMove::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcMove::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcMove::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ unsetAttr() [1/2]

virtual void OdIfc2x2_final::IfcMove::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x2_final::IfcTask.

◆ unsetAttr() [2/2]

virtual void OdIfc2x2_final::IfcMove::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x2_final::IfcTask.

Member Data Documentation

◆ m_MoveFrom

OdDAIObjectId OdIfc2x2_final::IfcMove::m_MoveFrom

protected

Definition at line 216 of file Ifc2x2_Final/IfcMoveAutoImpl.h.

◆ m_MoveTo

OdDAIObjectId OdIfc2x2_final::IfcMove::m_MoveTo

protected

Definition at line 217 of file Ifc2x2_Final/IfcMoveAutoImpl.h.

◆ m_PunchList

OdDAI::ListOfOdAnsiString OdIfc2x2_final::IfcMove::m_PunchList

protected

Definition at line 218 of file Ifc2x2_Final/IfcMoveAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x2_Final/IfcMoveAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getMoveFrom()

◆ getMoveTo()

◆ getPunchList()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ punchList()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setMoveFrom()

◆ setMoveTo()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_MoveFrom

◆ m_MoveTo

◆ m_PunchList
