#include <Db3PointAngularDimension.h>

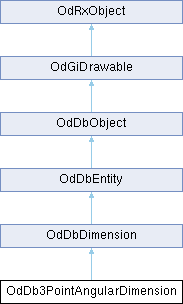

Inheritance diagram for OdDb3PointAngularDimension:

Public Member Functions
	DWGMAP_DECLARE_MEMBERS (OdDb3PointAngularDimension)

	OdDb3PointAngularDimension ()

OdGePoint3d	arcPoint () const

void	setArcPoint (const OdGePoint3d &arcPoint)

OdGePoint3d	xLine1Point () const

void	setXLine1Point (const OdGePoint3d &xLine1Point)

OdGePoint3d	xLine2Point () const

void	setXLine2Point (const OdGePoint3d &xLine2Point)

OdGePoint3d	centerPoint () const

bool	extArcOn () const

void	setExtArcOn (bool value)

void	setCenterPoint (const OdGePoint3d &centerPoint)

virtual OdResult	dwgInFields (OdDbDwgFiler *pFiler)

virtual void	dwgOutFields (OdDbDwgFiler *pFiler) const

virtual OdResult	dxfInFields (OdDbDxfFiler *pFiler)

virtual void	dxfOutFields (OdDbDxfFiler *pFiler) const

virtual OdResult	dxfInFields_R12 (OdDbDxfFiler *pFiler)

virtual void	dxfOutFields_R12 (OdDbDxfFiler *pFiler) const

virtual OdResult	subGetClassID (void *pClsid) const

Public Member Functions inherited from OdDbDimension
	DWGMAP_DECLARE_MEMBERS (OdDbDimension)

	OdDbDimension ()

OdGePoint3d	textPosition () const

void	setTextPosition (const OdGePoint3d &textPosition)

bool	isUsingDefaultTextPosition () const

void	useSetTextPosition ()

void	useDefaultTextPosition ()

OdGeVector3d	normal () const

void	setNormal (const OdGeVector3d &normal)

virtual bool	isPlanar () const

virtual OdResult	getPlane (OdGePlane &plane, OdDb::Planarity &planarity) const

double	elevation () const

void	setElevation (double elevation)

const OdString	dimensionText () const

void	setDimensionText (const OdString &dimensionText)

bool	getDimensionTextMoved () const

void	setDimensionTextMoved (bool bValue)

double	textRotation () const

void	setTextRotation (double textRotation)

OdDbObjectId	dimensionStyle () const

void	setDimensionStyle (OdDbObjectId objectID)

OdDbMText::AttachmentPoint	textAttachment () const

void	setTextAttachment (OdDbMText::AttachmentPoint attachmentPoint)

OdDb::LineSpacingStyle	textLineSpacingStyle () const

void	setTextLineSpacingStyle (OdDb::LineSpacingStyle lineSpacingStyle)

double	textLineSpacingFactor () const

void	setTextLineSpacingFactor (double lineSpacingFactor)

void	getDimstyleData (OdDbDimStyleTableRecord *pRecord) const

void	setDimstyleData (const OdDbDimStyleTableRecord *pDimstyle)

void	setDimstyleData (OdDbObjectId dimstyleID)

double	horizontalRotation () const

void	setHorizontalRotation (double horizontalRotation)

OdDbObjectId	dimBlockId () const

void	setDimBlockId (const OdDbObjectId &dimBlockId, bool singleReferenced=true)

bool	isSingleDimBlockReference () const

OdGePoint3d	dimBlockPosition () const

void	setDimBlockPosition (const OdGePoint3d &dimBlockPosition)

double	dimBlockRotation () const

void	setDimBlockRotation (double dimBlockRotation)

OdGeScale3d	dimBlockScale () const

void	setDimBlockScale (const OdGeScale3d &dimBlockScale)

OdGeMatrix3d	dimBlockTransform () const

void	recomputeDimBlock (bool forceUpdate=true)

double	getMeasurement () const

double	measurement ()

OdUInt16	getBgrndTxtColor (OdCmColor &bgrndTxtColor) const

void	setBgrndTxtColor (const OdCmColor &bgrndTxtColor, OdUInt16 bgrndTxtFlags)

bool	getExtLineFixLenEnable () const

void	setExtLineFixLenEnable (bool extLineFixLenEnable)

double	getExtLineFixLen () const

void	setExtLineFixLen (double extLineFixLen)

OdDbObjectId	getDimLinetype () const

void	setDimLinetype (const OdDbObjectId &linetypeId)

OdDbObjectId	getDimExt1Linetype () const

void	setDimExt1Linetype (const OdDbObjectId &linetypeId)

OdDbObjectId	getDimExt2Linetype () const

void	setDimExt2Linetype (const OdDbObjectId &linetypeId)

bool	getArrowFirstIsFlipped () const

bool	getArrowSecondIsFlipped () const

void	setArrowFirstIsFlipped (bool bIsFlipped)

void	setArrowSecondIsFlipped (bool bIsFlipped)

bool	inspection () const

void	setInspection (bool val)

int	inspectionFrame () const

void	setInspectionFrame (int frame)

OdString	inspectionLabel () const

void	setInspectionLabel (const OdString &label)

OdString	inspectionRate () const

void	setInspectionRate (const OdString &label)

	VAR_DEF (OdInt16, adec, 179,(0),(0),(), ValidateRange(0, 8)) VAR_DEF(bool

	ValidateNone ()) VAR_DEF(OdUInt16

	ValidateRange (0, 8)) VAR_DEF(double

	ValidateRange (DBL_EPSILON, DBL_MAX)) VAR_DEF(ODTDIST

	ValidateRange (0, DBL_MAX)) VAR_DEF(OdInt16

	ValidateRange (0, 8)) VAR_DEF(OdUInt8

	ValidateRange (0, 15)) VAR_DEF(OdInt16

	ValidateRange (1, 8)) VAR_DEF(OdUInt8

	ValidateRange (0, 15)) VAR_DEF(OdString

	OD_T (""))

	OD_T (""))

	ValidateNone ()) VAR_DEF(ODTDIST

	ValidateRange (0, DBL_MAX)) ANNOVAR_DEF(OdInt16

	ValidateRange (0, 3)) VAR_DEF(OdInt16

	ValidateRange (0, 4)) VAR_DEF(OdInt16

	ValidateRange (0, 3)) BLKVAR_DEF(ODTARROWBLK

	ValidateDimBlock ()) BLKVAR_DEF(ODTARROWBLK

	ValidateDimBlock ()) BLKVAR_DEF(ODTARROWBLK

	ValidateDimBlock ()) VAR_DEF(ODTDIST

	ValidateNone ()) VAR_DEF(OdCmColor

	ValidateColor ()) VAR_DEF(OdCmColor

	ValidateColor ()) VAR_DEF(OdCmColor

	ValidateColor ()) VAR_DEF(OdInt16

	ValidateRange (0, 8)) VAR_DEF(ODTDIST

	ValidateRange (0, DBL_MAX)) VAR_DEF(ODTDIST

	ValidatePositive ()) VAR_DEF(ODTDECSEP

	ValidateDecSep ()) VAR_DEF(ODTDIST

	ValidatePositive ()) VAR_DEF(ODTDIST

	ValidatePositive ()) VAR_DEF(OdInt16

	ValidateRange (0, 2)) VAR_DEF(ODTDIST

	ValidateNone ()) VAR_DEF(OdUInt16

	ValidateRange (0, 4)) VAR_DEF(ODTARROWBLK

	ValidateDimBlock ()) VAR_DEF(double

	ValidateNone ()) VAR_DEF(bool

	ValidateNone ()) VAR_DEF(OdInt16

	ValidateRange (1, 6)) VAR_DEF(ODTDB_LINEWEIGHT

	ValidateLineWeight ()) VAR_DEF(ODTDB_LINEWEIGHT

	ValidateLineWeight ()) VAR_DEF(OdString

	OD_T (""))

	OD_T (""))

	ValidateNone ()) VAR_DEF(ODTDIST

	ValidatePositive ()) VAR_DEF(bool

	ValidateNone ()) VAR_DEF(double

	ValidatePositive ()) VAR_DEF(bool

	ValidateNone ()) VAR_DEF(bool

	ValidateNone ()) VAR_DEF(bool

	ValidateNone ()) VAR_DEF(bool

	ValidateNone ()) ANNOVAR_DEF(bool

	ValidateNone ()) VAR_DEF(OdInt16

	ValidateRange (0, 4)) VAR_DEF(OdInt16

	ValidateRange (0, 8)) VAR_DEF(double

	ValidatePositiveNonZero ()) VAR_DEF(bool

	ValidateNone ()) ANNOVAR_DEF(bool

	ValidateNone ()) VAR_DEF(ODTDIST

	ValidateNone ()) ANNOVAR_DEF(OdInt16

	ValidateRange (0, 2)) ANNOVAR_DEF(bool

	ValidateNone ()) VAR_DEF(bool

	ValidateNone ()) VAR_DEF(bool

	ValidateNone ()) VAR_DEF(OdUInt8

	ValidateRange (0, 2)) VAR_DEF(ODTDIST

	ValidateNone ()) VAR_DEF(ODTDIST

	ValidatePositive ()) VAR_DEF(double

	ValidateNone ()) VAR_DEF(ODTTEXTSTYLEID

	ValidateTextStyle (NullIdAllowed)) VAR_DEF(ODTDIST

	ValidatePositiveNonZero ()) VAR_DEF(OdUInt8

	ValidateRange (0, 15)) VAR_DEF(bool

	ValidateNone ()) VAR_DEF(OdUInt8

	ValidateRange (0, 15)) VAR_DEF(ODTDIST

	ValidateNone ()) VAR_DEF(bool

	ValidateBOOL ()) VAR_DEF(ODTORIENT

	ValidateDouble (5.0 *OdaPI/180.0, OdaPI2)) VAR_DEF(OdInt16

	ValidateRange (0, 2)) VAR_DEF(OdCmColor

	ValidateNone ()) VAR_DEF(OdInt16

	ValidateRange (0, 2)) VAR_DEF(ODTLINETYPEID

	ValidateLinetype (true)) VAR_DEF(ODTLINETYPEID

	ValidateLinetype (true)) VAR_DEF(ODTLINETYPEID

	ValidateLinetype (true)) VAR_DEF(bool

	ValidateBOOL ()) VAR_DEF(double

	ValidateNone ()) VAR_DEF(OdString

	OD_T (""))

	OD_T (""))

	ValidateNone ()) VAR_DEF(double

	ValidateNone ()) VAR_DEF(OdString

	OD_T (""))

	OD_T (""))

	ValidateNone ()) virtual OdResult dwgInFields(OdDbDwgFiler *pFiler)

OdResult	subGetClassID (void *pClsid) const

OdUInt32	subSetAttributes (OdGiDrawableTraits *pTraits) const

bool	subWorldDraw (OdGiWorldDraw *pWd) const

void	subViewportDraw (OdGiViewportDraw *pVd) const

virtual OdResult	subExplode (OdRxObjectPtrArray &entitySet) const ODRX_OVERRIDE

void	subClose ()

virtual void	modified (const OdDbObject *pObject)

virtual OdResult	subTransformBy (const OdGeMatrix3d &xfm) ODRX_OVERRIDE

virtual OdResult	subGetTransformedCopy (const OdGeMatrix3d &xfm, OdDbEntityPtr &pCopy) const ODRX_OVERRIDE

void	subSetDatabaseDefaults (OdDbDatabase *pDb, bool doSubents)

virtual void	appendToOwner (OdDbIdPair &idPair, OdDbObject *pOwnerObject, OdDbIdMapping &ownerIdMap) ODRX_OVERRIDE

virtual OdDbObjectPtr	subWblockClone (OdDbIdMapping &ownerIdMap, OdDbObject *, bool bPrimary) const ODRX_OVERRIDE

void	formatMeasurement (OdString &formattedMeasurement, double measurementValue, const OdString &dimensionText)

OdResult	explodeGeometry (OdRxObjectPtrArray &entitySet) const

OdDbObjectPtr	dimBlock (OdDb::OpenMode openMode=OdDb::kForRead)

virtual OdResult	subGetCompoundObjectTransform (OdGeMatrix3d &xM) const ODRX_OVERRIDE

bool	isDynamicDimension () const

void	setDynamicDimension (bool bDynamic)

virtual bool	isConstraintObject () const

OdResult	isConstraintObject (bool &isConstraintObject, bool &hasExpression, bool &isReferenceConstraint) const

bool	isConstraintDynamic () const

OdResult	setConstraintDynamic (bool bDynamic)

bool	shouldParticipateInOPM () const

void	setShouldParticipateInOPM (bool bShouldParticipate)

void	setDIMTALN (bool val)

bool	getDIMTALN () const

void	removeTextField ()

void	fieldToMText (OdDbMTextPtr &pDimMText)

void	fieldFromMText (OdDbMTextPtr &pDimMText)

OdGeMatrix3d	getEcs () const

void	resetTextDefinedSize ()

void	setTextDefinedSize (double width, double height)

void	textDefinedSize (double &width, double &height) const

OdResult	subGetGeomExtents (OdGeExtents3d &extents) const

Public Member Functions inherited from OdDbEntity
	ODDB_DECLARE_MEMBERS (OdDbEntity)

	OdDbEntity ()

OdDbObjectId	blockId () const

OdCmColor	color () const

virtual OdResult	setColor (const OdCmColor &color, bool doSubents=true)

OdUInt16	colorIndex () const

virtual OdCmEntityColor	entityColor () const

virtual OdResult	setColorIndex (OdUInt16 colorIndex, bool doSubents=true)

OdDbObjectId	colorId () const

virtual OdResult	setColorId (OdDbObjectId colorId, bool doSubents=true)

OdCmTransparency	transparency () const

virtual OdResult	setTransparency (const OdCmTransparency &transparency, bool doSubents=true)

OdString	plotStyleName () const

OdDb::PlotStyleNameType	getPlotStyleNameId (OdDbObjectId &plotStyleNameId) const

virtual OdResult	setPlotStyleName (const OdString &plotStyleName, bool doSubents=true)

virtual OdResult	setPlotStyleName (OdDb::PlotStyleNameType plotStyleNameType, OdDbObjectId plotStyleNameId=OdDbObjectId::kNull, bool doSubents=true)

OdString	layer () const

OdDbObjectId	layerId () const

virtual OdResult	setLayer (const OdString &layerName, bool doSubents=true, bool allowHiddenLayer=false)

virtual OdResult	setLayer (OdDbObjectId layerId, bool doSubents=true, bool allowHiddenLayer=false)

OdString	linetype () const

OdDbObjectId	linetypeId () const

virtual OdResult	setLinetype (const OdString &linetypeName, bool doSubents=true)

virtual OdResult	setLinetype (OdDbObjectId linetypeID, bool doSubents=true)

OdString	material () const

OdDbObjectId	materialId () const

virtual OdResult	setMaterial (const OdString &materialName, bool doSubents=true)

virtual OdResult	setMaterial (OdDbObjectId materialID, bool doSubents=true)

OdDbObjectId	visualStyleId (VisualStyleType vstype=kFullVisualStyle) const

virtual OdResult	setVisualStyle (OdDbObjectId visualStyleId, VisualStyleType vstype=kFullVisualStyle, bool doSubents=true)

virtual const OdGiMapper *	materialMapper () const

virtual void	setMaterialMapper (const OdGiMapper *mapper, bool doSubents=true)

double	linetypeScale () const

virtual OdResult	setLinetypeScale (double linetypeScale, bool doSubents=true)

OdDb::Visibility	visibility () const

ODRX_SEALED_VIRTUAL OdResult	setVisibility (OdDb::Visibility visibility, bool doSubents=true) ODRX_FINAL

OdDb::Visibility	tempVisibility () const

void	setTempVisibility (OdDb::Visibility visibility)

OdDb::LineWeight	lineWeight () const

virtual OdResult	setLineWeight (OdDb::LineWeight lineWeight, bool doSubents=true)

virtual bool	castShadows () const

virtual void	setCastShadows (bool castShadows)

virtual bool	receiveShadows () const

virtual void	setReceiveShadows (bool receiveShadows)

virtual OdDb::CollisionType	collisionType () const

void	setPropertiesFrom (const OdDbEntity *pSource, bool doSubents=true)

void	subHandOverTo (OdDbObject *pNewObject)

ODRX_SEALED_VIRTUAL OdResult	transformBy (const OdGeMatrix3d &xfm) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getTransformedCopy (const OdGeMatrix3d &xfm, OdDbEntityPtr &pCopy) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	explode (OdRxObjectPtrArray &entitySet) const ODRX_FINAL

virtual OdResult	explodeToBlock (OdDbBlockTableRecord pBlockRecord, OdDbObjectIdArray ids=0)

virtual OdResult	explodeGeometryToBlock (OdDbBlockTableRecord pBlockRecord, OdDbObjectIdArray ids=0)

void	setDatabaseDefaults (OdDbDatabase *pDb=0, bool doSubents=false)

virtual void	applyPartialUndo (OdDbDwgFiler pUndoFiler, OdRxClass pClassObj)

void	appendToOwner (OdDbIdPair &idPair, OdDbObject *pOwnerObject, OdDbIdMapping &ownerIdMap)

virtual OdResult	dxfIn (OdDbDxfFiler *pFiler)

virtual void	dxfOut (OdDbDxfFiler *pFiler) const

virtual OdGiDrawable *	drawable ()

virtual void	subList () const

void	subSwapIdWith (const OdDbObjectId &otherId, bool swapXdata=false, bool swapExtDict=false)

virtual OdResult	subErase (bool erasing) ODRX_OVERRIDE

virtual OdResult	subOpen (OdDb::OpenMode mode) ODRX_OVERRIDE

void	recordGraphicsModified (bool graphicsModified=true)

virtual void	copyFrom (const OdRxObject *pSource)

ODRX_SEALED_VIRTUAL void	list () const ODRX_FINAL

virtual OdResult	getGeomExtents (OdGeExtents3d &extents) const ODRX_FINAL

ODRX_SEALED_VIRTUAL void	highlight (bool bDoIt=true, const OdDbFullSubentPath *pSubId=0, bool highlightAll=false) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getOsnapPoints (OdDb::OsnapMode osnapMode, OdGsMarker gsSelectionMark, const OdGePoint3d &pickPoint, const OdGePoint3d &lastPoint, const OdGeMatrix3d &xWorldToEye, OdGePoint3dArray &snapPoints) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getOsnapPoints (OdDb::OsnapMode osnapMode, OdGsMarker gsSelectionMark, const OdGePoint3d &pickPoint, const OdGePoint3d &lastPoint, const OdGeMatrix3d &xWorldToEye, OdGePoint3dArray &snapPoints, const OdGeMatrix3d &insertionMat) const ODRX_FINAL

ODRX_SEALED_VIRTUAL bool	isContentSnappable () const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getGripPoints (OdGePoint3dArray &gripPoints) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	moveGripPointsAt (const OdIntArray &indices, const OdGeVector3d &offset) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getGripPoints (OdDbGripDataPtrArray &grips, const double curViewUnitSize, const int gripSize, const OdGeVector3d &curViewDir, const int bitFlags) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	moveGripPointsAt (const OdDbVoidPtrArray &grips, const OdGeVector3d &offset, int bitFlags) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getStretchPoints (OdGePoint3dArray &stretchPoints) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	moveStretchPointsAt (const OdIntArray &indices, const OdGeVector3d &offset) ODRX_FINAL

virtual void	dragStatus (const OdDb::DragStat status)

ODRX_SEALED_VIRTUAL void	gripStatus (const OdDb::GripStat status) ODRX_FINAL

ODRX_SEALED_VIRTUAL bool	cloneMeForDragging () ODRX_FINAL

ODRX_SEALED_VIRTUAL bool	hideMeForDragging () const ODRX_FINAL

virtual void	saveAs (OdGiWorldDraw *pWd, OdDb::DwgVersion ver) const

ODRX_SEALED_VIRTUAL OdResult	getCompoundObjectTransform (OdGeMatrix3d &xM) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	intersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, OdGePoint3dArray &points, OdGsMarker thisGsMarker=0, OdGsMarker otherGsMarker=0) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	intersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, const OdGePlane &projPlane, OdGePoint3dArray &points, OdGsMarker thisGsMarker=0, OdGsMarker otherGsMarker=0) const ODRX_FINAL

OdResult	boundingBoxIntersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, OdGePoint3dArray &points, OdGsMarker thisGsMarker, OdGsMarker otherGsMarker) const

OdResult	boundingBoxIntersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, const OdGePlane &projPlane, OdGePoint3dArray &points, OdGsMarker thisGsMarker, OdGsMarker otherGsMarker) const

ODRX_SEALED_VIRTUAL OdResult	getSubentPathsAtGsMarker (OdDb::SubentType type, OdGsMarker gsMark, const OdGePoint3d &pickPoint, const OdGeMatrix3d &xfm, OdDbFullSubentPathArray &subentPaths, const OdDbObjectIdArray *pEntAndInsertStack=0) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getGsMarkersAtSubentPath (const OdDbFullSubentPath &subPath, OdGsMarkerArray &gsMarkers) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getGripPointsAtSubentPath (const OdDbFullSubentPath &path, OdDbGripDataPtrArray &grips, const double curViewUnitSize, const int gripSize, const OdGeVector3d &curViewDir, const OdUInt32 bitflags) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	moveGripPointsAtSubentPaths (const OdDbFullSubentPathArray &paths, const OdDbVoidPtrArray &gripAppData, const OdGeVector3d &offset, const OdUInt32 bitflags) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	deleteSubentPaths (const OdDbFullSubentPathArray &paths) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	addSubentPaths (const OdDbFullSubentPathArray &paths) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdDbEntityPtr	subentPtr (const OdDbFullSubentPath &path) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	transformSubentPathsBy (const OdDbFullSubentPathArray &paths, const OdGeMatrix3d &xform) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getSubentClassId (const OdDbFullSubentPath &path, void *clsId) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getSubentPathGeomExtents (const OdDbFullSubentPath &path, OdGeExtents3d &extents) ODRX_FINAL

ODRX_SEALED_VIRTUAL void	subentGripStatus (OdDb::GripStat status, const OdDbFullSubentPath &subentity) ODRX_FINAL

Public Member Functions inherited from OdDbObject
	ODDB_DECLARE_MEMBERS (OdDbObject)

	~OdDbObject ()

virtual void	addRef () override

virtual void	release () ODRX_NOEXCEPT override

virtual long	numRefs () const override

OdDbObjectId	objectId () const

OdDbHandle	getDbHandle () const

OdDbHandle	handle () const

OdDbObjectId	ownerId () const

virtual void	setOwnerId (OdDbObjectId ownerId)

OdDbDatabase *	database () const

void	createExtensionDictionary ()

OdDbObjectId	extensionDictionary () const

bool	releaseExtensionDictionary ()

OdDbXrecordPtr	createXrecord (const OdString &xrecordName, OdDb::DuplicateRecordCloning style=OdDb::kDrcIgnore)

void	upgradeOpen ()

void	downgradeOpen ()

void	cancel ()

OdResult	erase (bool eraseIt=true)

void	handOverTo (OdDbObject *pNewObject, bool keepXData=true, bool keepExtDict=true)

void	swapIdWith (OdDbObjectId otherId, bool swapXdata=false, bool swapExtDict=false)

virtual void	audit (OdDbAuditInfo *pAuditInfo)

void	dwgIn (OdDbDwgFiler *pFiler)

void	dwgOut (OdDbDwgFiler *pFiler) const

virtual OdDb::DuplicateRecordCloning	mergeStyle () const

virtual OdResBufPtr	xData (const OdString &regappName=OdString::kEmpty) const

virtual void	setXData (const OdResBuf *pRb)

bool	hasXData (const OdChar *regappName=nullptr) const

bool	isEraseStatusToggled () const

bool	isErased () const

bool	isReadEnabled () const

bool	isWriteEnabled () const

bool	isNotifyEnabled () const

bool	isModified () const

bool	isModifiedXData () const

bool	isModifiedGraphics () const

bool	isNewObject () const

bool	isNotifying () const

bool	isUndoing () const

bool	isReallyClosing () const

bool	isDBRO () const

void	assertReadEnabled () const

void	assertWriteEnabled (bool autoUndo=true, bool recordModified=true)

void	assertNotifyEnabled () const

void	disableUndoRecording (bool disable)

bool	isUndoRecordingDisabled () const

OdDbDwgFiler *	undoFiler ()

void	addReactor (OdDbObjectReactor *pReactor) const

void	removeReactor (OdDbObjectReactor *pReactor) const

virtual void	addPersistentReactor (const OdDbObjectId &objId)

virtual void	removePersistentReactor (const OdDbObjectId &objId)

bool	hasPersistentReactor (const OdDbObjectId &objId) const

OdDbObjectIdArray	getPersistentReactors () const

OdDbObjectReactorArray	getTransientReactors () const

virtual void	recvPropagateModify (const OdDbObject *pSubObj)

virtual void	xmitPropagateModify () const

ODRX_SEALED_VIRTUAL OdDbObjectPtr	deepClone (OdDbIdMapping &idMap, OdDbObject *pOwner, bool bPrimary=true) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdDbObjectPtr	wblockClone (OdDbIdMapping &idMap, OdDbObject *pOwner, bool bPrimary=true) const ODRX_FINAL

void	setOdDbObjectIdsInFlux ()

bool	isOdDbObjectIdsInFlux () const

virtual void	copied (const OdDbObject pObject, const OdDbObject pNewObject)

virtual void	erased (const OdDbObject *pObject, bool erasing=true)

virtual void	goodbye (const OdDbObject *pObject)

virtual void	openedForModify (const OdDbObject *pObject)

virtual void	subObjModified (const OdDbObject pObject, const OdDbObject pSubObj)

virtual void	modifyUndone (const OdDbObject *pObject)

virtual void	modifiedXData (const OdDbObject *pObject)

virtual void	unappended (const OdDbObject *pObject)

virtual void	reappended (const OdDbObject *pObject)

bool	isAProxy () const

virtual void	objectClosed (const OdDbObjectId &objectId)

virtual void	modifiedGraphics (const OdDbObject *pObject)

bool	hasSaveVersionOverride () const

void	setHasSaveVersionOverride (bool hasSaveVersionOverride)

virtual OdDb::DwgVersion	getObjectSaveVersion (const OdDbFiler pFiler, OdDb::MaintReleaseVer pMaintVer=0) const

virtual OdDbObjectPtr	decomposeForSave (OdDb::DwgVersion ver, OdDbObjectId &replaceId, bool &exchangeXData)

virtual OdDbObjectPtr	decomposeForSave (OdDb::SaveType format, OdDb::DwgVersion ver, OdDbObjectId &replaceId, bool &exchangeXData)

void	convertForSave (OdDb::DwgVersion ver)

virtual void	composeForLoad (OdDb::SaveType format, OdDb::DwgVersion version, OdDbAuditInfo *pAuditInfo)

virtual bool	isPersistent () const

virtual OdDbStub *	id () const

ODRX_SEALED_VIRTUAL OdResult	getClassID (void *pClsid) const ODRX_FINAL

void	setGsNode (OdGsCache *pNode)

OdGsCache *	gsNode () const

void	xDataTransformBy (const OdGeMatrix3d &xfm)

bool	hasFields () const

OdDbObjectId	getField (const OdString &fieldName) const

OdDbObjectPtr	getField (const OdString &fieldName, OdDb::OpenMode mode) const

virtual OdDbObjectId	setField (const OdString &fieldName, OdDbField *pField)

virtual OdResult	removeField (OdDbObjectId fieldId)

virtual OdDbObjectId	removeField (const OdString &fieldName)

OdDbObjectId	getFieldDictionary () const

OdDbObjectPtr	getFieldDictionary (OdDb::OpenMode mode) const

virtual OdRxClass *	saveAsClass (OdRxClass *pClass) const

Public Member Functions inherited from OdGiDrawable
	ODRX_DECLARE_MEMBERS (OdGiDrawable)

virtual DrawableType	drawableType () const

ODRX_SEALED_VIRTUAL OdUInt32	setAttributes (OdGiDrawableTraits *pTraits) const ODRX_FINAL

ODRX_SEALED_VIRTUAL bool	worldDraw (OdGiWorldDraw *pWd) const ODRX_FINAL

ODRX_SEALED_VIRTUAL void	viewportDraw (OdGiViewportDraw *pVd) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdUInt32	viewportDrawLogicalFlags (OdGiViewportDraw *pVd) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdUInt32	regenSupportFlags () const ODRX_FINAL

Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()

	OdRxObject ()

virtual	~OdRxObject ()

virtual OdRxObject *	queryX (const OdRxClass *pClass) const

virtual OdRxObject *	x (const OdRxClass *pClass) const

virtual OdRxClass *	isA () const

bool	isKindOf (const OdRxClass *pClass) const

virtual OdRxObjectPtr	clone () const

virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const

virtual bool	isEqualTo (const OdRxObject *pOther) const

Additional Inherited Members
Public Types inherited from OdDbDimension
enum	DimInspect { kShapeRemove = 0x00 , kShapeRound = 0x01 , kShapeAngular = 0x02 , kShapeNone = 0x04 , kShapeLabel = 0x10 , kShapeRate = 0x20 }

Public Types inherited from OdDbEntity
enum	VisualStyleType { kFullVisualStyle , kFaceVisualStyle , kEdgeVisualStyle }

Public Types inherited from OdGiDrawable
enum	SetAttributesFlags { kDrawableNone = 0 , kDrawableIsAnEntity = 1 , kDrawableUsesNesting = 2 , kDrawableIsCompoundObject = 4 , kDrawableViewIndependentViewportDraw = 8 , kDrawableIsInvisible = 16 , kDrawableHasAttributes = 32 , kDrawableRegenTypeDependantGeometry = 64 , kDrawableIsDimension = (kDrawableIsAnEntity + kDrawableIsCompoundObject + 128) , kDrawableRegenDraw = 256 , kDrawableStandardDisplaySingleLOD = 512 , kDrawableShadedDisplaySingleLOD = 1024 , kDrawableViewDependentViewportDraw = 2048 , kDrawableBlockDependentViewportDraw = 4096 , kDrawableIsExternalReference = 8192 , kDrawableNotPlottable = 16384 , kDrawableNotAllowLCS = 32768 , kDrawableMergeControlOff = 65536 , kLastFlag = kDrawableMergeControlOff }

enum	DrawableType { kGeometry = 0 , kDistantLight = 1 , kPointLight = 2 , kSpotLight = 3 , kAmbientLight , kSolidBackground , kGradientBackground , kImageBackground , kGroundPlaneBackground , kViewport , kWebLight , kSkyBackground , kImageBasedLightingBackground , kEnvironmentBackground = 16 , kCustomBackground }

Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)

static OdRxClass *	desc ()

static void	rxInit ()

static void	rxUninit ()

Public Attributes inherited from OdDbDimension
	alt

	false

	altd

	altf

	altrnd

	alttd

	alttz

	altu

	altz

	apost

	asz

	atfit

	aunit

	azin

	blk

	blk1

	blk2

	cen

	clrd

	clre

	clrt

	dec

	dle

	dli

	dsep

	exe

	exo

	frac

	gap

	just

	ldrblk

	lfac

	lim

	lunit

	lwd

	lwe

	post

	rnd

	sah

	scale

	sd1

	sd2

	se1

	se2

	soxd

	tad

	tdec

	tfac

	tih

	true

	tix

	tm

	tmove

	tofl

	toh

	tol

	tolj

	tp

	tsz

	tvp

	txsty

	txt

	tzin

	upt

	zin

	fxl

	fxlon

	jogang

	OdaPI4

	tfill

	tfillclr

	arcsym

	ltype

	ltex1

	ltex2

	txtdirection

	mzf

	mzs

	altmzf

	altmzs

Protected Member Functions inherited from OdDbEntity
virtual OdDbObjectPtr	subDeepClone (OdDbIdMapping &ownerIdMap, OdDbObject *, bool bPrimary) const ODRX_OVERRIDE

virtual bool	subCloneMeForDragging ()

virtual bool	subHideMeForDragging () const

virtual void	subGripStatus (const OdDb::GripStat status)

virtual OdResult	subGetOsnapPoints (OdDb::OsnapMode osnapMode, OdGsMarker gsSelectionMark, const OdGePoint3d &pickPoint, const OdGePoint3d &lastPoint, const OdGeMatrix3d &xWorldToEye, OdGePoint3dArray &snapPoints) const

virtual OdResult	subGetOsnapPoints (OdDb::OsnapMode osnapMode, OdGsMarker gsSelectionMark, const OdGePoint3d &pickPoint, const OdGePoint3d &lastPoint, const OdGeMatrix3d &xWorldToEye, OdGePoint3dArray &snapPoints, const OdGeMatrix3d &insertionMat) const

virtual bool	subIsContentSnappable () const

virtual OdResult	subGetGripPoints (OdGePoint3dArray &gripPoints) const

virtual OdResult	subMoveGripPointsAt (const OdIntArray &indices, const OdGeVector3d &offset)

virtual OdResult	subGetGripPoints (OdDbGripDataPtrArray &grips, const double curViewUnitSize, const int gripSize, const OdGeVector3d &curViewDir, const int bitFlags) const

virtual OdResult	subMoveGripPointsAt (const OdDbVoidPtrArray &grips, const OdGeVector3d &offset, int bitFlags)

virtual OdResult	subGetStretchPoints (OdGePoint3dArray &stretchPoints) const

virtual OdResult	subMoveStretchPointsAt (const OdIntArray &indices, const OdGeVector3d &offset)

virtual OdResult	subIntersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, OdGePoint3dArray &points, OdGsMarker thisGsMarker=0, OdGsMarker otherGsMarker=0) const

virtual OdResult	subIntersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, const OdGePlane &projPlane, OdGePoint3dArray &points, OdGsMarker thisGsMarker=0, OdGsMarker otherGsMarker=0) const

virtual void	subHighlight (bool bDoIt=true, const OdDbFullSubentPath *pSubId=0, bool highlightAll=false) const

virtual OdDb::Visibility	subVisibility () const

virtual OdResult	subSetVisibility (OdDb::Visibility visibility, bool doSubents=true)

virtual OdResult	subDeleteSubentPaths (const OdDbFullSubentPathArray &paths)

virtual OdResult	subAddSubentPaths (const OdDbFullSubentPathArray &paths)

virtual OdResult	subMoveGripPointsAtSubentPaths (const OdDbFullSubentPathArray &paths, const OdDbVoidPtrArray &gripAppData, const OdGeVector3d &offset, const OdUInt32 bitflags)

virtual OdResult	subGetGripPointsAtSubentPath (const OdDbFullSubentPath &path, OdDbGripDataPtrArray &grips, const double curViewUnitSize, const int gripSize, const OdGeVector3d &curViewDir, const OdUInt32 bitflags) const

virtual OdResult	subGetSubentPathsAtGsMarker (OdDb::SubentType type, OdGsMarker gsMark, const OdGePoint3d &pickPoint, const OdGeMatrix3d &xfm, OdDbFullSubentPathArray &subentPaths, const OdDbObjectIdArray *pEntAndInsertStack=0) const

virtual OdResult	subGetGsMarkersAtSubentPath (const OdDbFullSubentPath &subPath, OdGsMarkerArray &gsMarkers) const

virtual OdDbEntityPtr	subSubentPtr (const OdDbFullSubentPath &path) const

virtual OdResult	subTransformSubentPathsBy (const OdDbFullSubentPathArray &paths, const OdGeMatrix3d &xform)

virtual OdResult	subGetSubentClassId (const OdDbFullSubentPath &path, void *clsId) const

virtual OdResult	subGetSubentPathGeomExtents (const OdDbFullSubentPath &path, OdGeExtents3d &extents) const

virtual void	subSubentGripStatus (OdDb::GripStat status, const OdDbFullSubentPath &subentity)

Protected Member Functions inherited from OdDbObject
	OdDbObject ()

Protected Member Functions inherited from OdGiDrawable
	OdGiDrawable ()

virtual OdUInt32	subViewportDrawLogicalFlags (OdGiViewportDraw *vd) const

virtual OdUInt32	subRegenSupportFlags () const

Protected Attributes inherited from OdDbObject
OdDbObjectImpl *	m_pImpl

Detailed Description

This class represents 3-Point Angular Dimension entities in an OdDbDatabase instance.

Remarks: A 3-Point Angular Dimension entity dimensions the angle defined by three points.

See also: <link OdDb2LineAngularDimension, OdDb2LineAngularDimension>; <link db_dimensions, Working with Dimensions>

Definition at line 48 of file Db3PointAngularDimension.h.

Constructor & Destructor Documentation

◆ OdDb3PointAngularDimension()

OdDb3PointAngularDimension::OdDb3PointAngularDimension ( )

Member Function Documentation

◆ arcPoint()

OdGePoint3d OdDb3PointAngularDimension::arcPoint ( ) const

Returns the point defining the location of dimension arc for this Dimension entity (DXF 16 as WCS).

◆ centerPoint()

OdGePoint3d OdDb3PointAngularDimension::centerPoint ( ) const

Returns the WCS vertex of the angle being dimensioned by this Dimension entity (DXF 15).

Remarks: The vertex of the angle being dimensioned is the center of the dimension arc.

◆ dwgInFields()

virtual OdResult OdDb3PointAngularDimension::dwgInFields ( OdDbDwgFiler * pFiler )

virtual

Reads the .dwg file data of this object.

Parameters

pFiler [in] Filer object from which data are read.

Returns: Returns the filer status.

This function is called by dwgIn() to allow the object to read its data.

When overriding this function:

1) Call assertWriteEnabled(). 2) Call the parent class's dwgInFields(pFiler). 3) If it returns eOK, continue; otherwise return whatever the parent's dwgInFields(pFiler) returned. 4) Call the OdDbDwgFiler(pFiler) methods to read each of the object's data items in the order they were written. 5) Return pFiler->filerStatus().

Reimplemented from OdDbEntity.

◆ DWGMAP_DECLARE_MEMBERS()

OdDb3PointAngularDimension::DWGMAP_DECLARE_MEMBERS ( OdDb3PointAngularDimension )

◆ dwgOutFields()

virtual void OdDb3PointAngularDimension::dwgOutFields ( OdDbDwgFiler * pFiler ) const

virtual

Writes the .dwg file data of this object.

Parameters

pFiler [in] Pointer to the filer to which data are written.

Remarks

This function is called by dwgIn() to allow the object to write its data.

When overriding this function:

1) Call assertReadEnabled(). 2) Call the parent class's dwgOutFields(pFiler). 3) Call the OdDbDwgFiler(pFiler) methods to write each of the object's data items in the order they were written.

Reimplemented from OdDbDimension.

◆ dxfInFields()

virtual OdResult OdDb3PointAngularDimension::dxfInFields ( OdDbDxfFiler * pFiler )

virtual

Reads the DXF data of this object.

Parameters

pFiler [in] Pointer to the filer from which data are read.

Returns: Returns the filer status.

This function is called by dxfIn() to allow the object to read its data.

When overriding this function:

1) Call assertWriteEnabled(). 2) Call the parent class's dwgInFields(pFiler). 3) If it returns eOK, continue; otherwise return whatever the parent's dxfInFields(pFiler) returned. 4) Call the OdDbDxfFiler(pFiler) methods to read each of the object's data items in the order they were written. 5) Return pFiler->filerStatus().

Reimplemented from OdDbDimension.

◆ dxfInFields_R12()

virtual OdResult OdDb3PointAngularDimension::dxfInFields_R12 ( OdDbDxfFiler * pFiler )

virtual

Reads the DXF R12 format data of this object.

Parameters

pFiler [in] Pointer to the filer from which data are to be read.

Returns: Returns the filer status.

This function is called by dxfIn() to allow the object to read its data.

When overriding this function:

1) Call assertWriteEnabled(). 2) Call the parent class's dxfInFields_R12(pFiler). 3) If it returns eOK, continue; otherwise return whatever the parent's dxfOutFields_R12(pFiler) returned. 4) Call the OdDbDxfFiler(pFiler) methods to read each of the object's data items in the order they were written. 5) Return pFiler->filerStatus().

Reimplemented from OdDbDimension.

◆ dxfOutFields()

virtual void OdDb3PointAngularDimension::dxfOutFields ( OdDbDxfFiler * pFiler ) const

virtual

Writes the DXF data of this object.

Parameters

pFiler [in] Pointer to the filer to which data are to be written.

Remarks

This function is called by dxfOut() to allow the object to write its data.

When overriding this function:

1) Call assertReadEnabled(). 2) Call the parent class's dxfOutFields(pFiler). 4) Use pFiler to call the OdDbDxfFiler methods to write each of the object's data items in the order they were written.

Reimplemented from OdDbDimension.

◆ dxfOutFields_R12()

virtual void OdDb3PointAngularDimension::dxfOutFields_R12 ( OdDbDxfFiler * pFiler ) const

virtual

Writes the DXF data of this object.

Parameters

pFiler [in] Pointer to the filer to which data are to be written.

Returns: Returns the filer status.

This function is called by dxfOut() to allow the object to write its data.

When overriding this function:

1) Call assertReadEnabled(). 2) Call the parent class's dxfOutFields(pFiler). 3) Use pFiler to call the OdDbDxfFiler methods to write each of the object's data items in the order they were written.

Reimplemented from OdDbDimension.

◆ extArcOn()

bool OdDb3PointAngularDimension::extArcOn ( ) const

Returns the extension arc status of this Dimension entity.

Returns: Returns true if extension arc is on, otherwise returns false.

◆ setArcPoint()

void OdDb3PointAngularDimension::setArcPoint ( const OdGePoint3d & arcPoint )

Sets the point defining the location of dimension arc for this Dimension entity (DXF 16 as WCS).

Parameters

arcPoint [in] Arc point.

◆ setCenterPoint()

void OdDb3PointAngularDimension::setCenterPoint ( const OdGePoint3d & centerPoint )

Sets the WCS vertex of the angle being dimensioned by this Dimension entity (DXF 15).

Parameters

centerPoint [in] Center point.

Remarks: The vertex of the angle being dimensioned is the center of the dimension arc.

◆ setExtArcOn()

void OdDb3PointAngularDimension::setExtArcOn ( bool value )

Sets the extension arc status for this Dimension entity.

Parameters

value [in] Input extension arc status.

◆ setXLine1Point()

void OdDb3PointAngularDimension::setXLine1Point ( const OdGePoint3d & xLine1Point )

Sets the WCS start point of the first extension line of this Dimension entity (DXF 13).

Parameters

xLine1Point [in] Start point.

Remarks: This point and the centerPoint define one side of the angle being dimensioned.

◆ setXLine2Point()

void OdDb3PointAngularDimension::setXLine2Point ( const OdGePoint3d & xLine2Point )

Sets the WCS start point of the second extension line of this Dimension entity (DXF 14).

Parameters

xLine2Point [in] Start point.

Remarks: This point and the centerPoint define one side of the angle being dimensioned.

◆ subGetClassID()

virtual OdResult OdDb3PointAngularDimension::subGetClassID ( void * pClsid ) const

virtual

Reimplemented from OdDbEntity.

◆ xLine1Point()

OdGePoint3d OdDb3PointAngularDimension::xLine1Point ( ) const

Returns the WCS start point of the first extension line of this Dimension entity (DXF 13).

Remarks: This point and the centerPoint define one side of the angle being dimensioned.

◆ xLine2Point()

OdGePoint3d OdDb3PointAngularDimension::xLine2Point ( ) const

Returns the WCS start point of the second extension line of this Dimension entity (DXF 14).

Remarks: This point and the centerPoint define one side of the angle being dimensioned.

The documentation for this class was generated from the following file:

Db3PointAngularDimension.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ OdDb3PointAngularDimension()

Member Function Documentation

◆ arcPoint()

◆ centerPoint()

◆ dwgInFields()

◆ DWGMAP_DECLARE_MEMBERS()

◆ dwgOutFields()

◆ dxfInFields()

◆ dxfInFields_R12()

◆ dxfOutFields()

◆ dxfOutFields_R12()

◆ extArcOn()

◆ setArcPoint()

◆ setCenterPoint()

◆ setExtArcOn()

◆ setXLine1Point()

◆ setXLine2Point()

◆ subGetClassID()

◆ xLine1Point()

◆ xLine2Point()
