#include <IfcSpatialStructureElementAutoImpl.h>

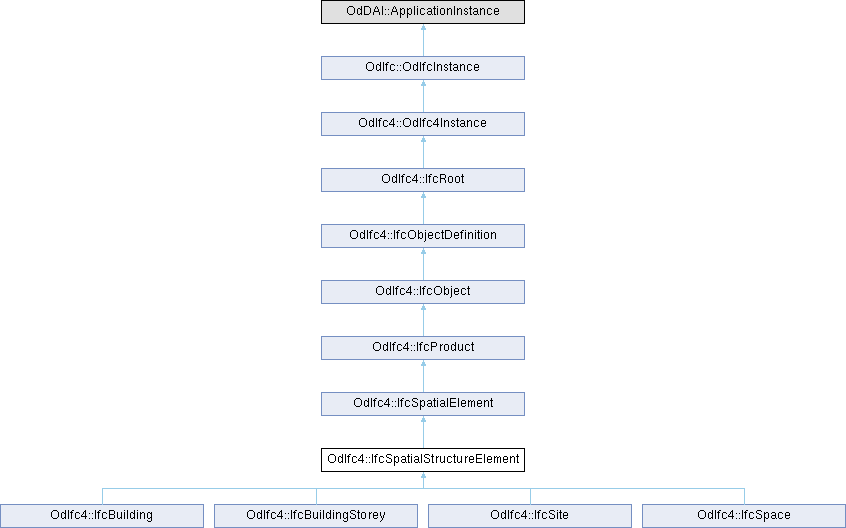

Inheritance diagram for OdIfc4::IfcSpatialStructureElement:

Public Member Functions
IfcElementCompositionEnum	getCompositionType () const

void	setCompositionType (IfcElementCompositionEnum CompositionType)

	IfcSpatialStructureElement ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcSpatialElement
const OdAnsiString &	getLongName () const

void	setLongName (const OdAnsiString &LongName)

void	getInvContainsElements (OdDAIObjectIds &ContainsElements) const

void	getInvServicedBySystems (OdDAIObjectIds &ServicedBySystems) const

void	getInvReferencesElements (OdDAIObjectIds &ReferencesElements) const

	IfcSpatialElement ()

Public Member Functions inherited from OdIfc4::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_CompositionType

Protected Attributes inherited from OdIfc4::IfcSpatialElement
OdAnsiString	m_LongName

Protected Attributes inherited from OdIfc4::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A spatial structure element is the generalization of all spatial elements that can be used to define a spatial structure. That spatial structure tipically provides a project structure to organize a building project.

A spatial project structure can define as many levels of decomposition as necessary for the building project. Elements within the spatial project structure are: site as IfcSite facility as IfcFacility, or specifically building as IfcBuilding bridge as IfcBridge marine facility as IfcMarineFacility railway as IfcRailway road as IfcRoad facility part as IfcFacilityPart, or specifically storey as IfcBuildingStorey facility part as IfcFacilityPart space as IfcSpace

Also elements can be aggregations or parts of items from the list above. The composition type declares an element to be either an element itself, or an aggregation (complex) or a decomposition (part). The interpretation of these types is specified at each subtype of IfcSpatialStructureElement.

The image below shows the use of IfcRelAggregates to establish a spatial structure including site, building, building section and storey.

Remarks: This definition may not be instantiated.

Definition at line 66 of file Ifc4/IfcSpatialStructureElementAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcSpatialStructureElement()

OdIfc4::IfcSpatialStructureElement::IfcSpatialStructureElement ( )

Default constructor for the IfcSpatialStructureElement class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcSpatialStructureElement::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcSpatialStructureElement::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcSpatialStructureElement::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.

◆ getCompositionType()

IfcElementCompositionEnum OdIfc4::IfcSpatialStructureElement::getCompositionType ( ) const

Returns the value of CompositionType attribute. This attribute indicates whether the predefined spatial structure element represents itself, or an aggregate (complex) or a part (part). The interpretation is specified separately for each subtype of spatial structure element. If no CompositionType is asserted, the dafault value 'ELEMENT' applies.

Returns: Returns the value of CompositionType attribute.

Remarks: IFC4 CHANGE: Attribute made optional.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcSpatialStructureElement::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.

◆ inFields()

virtual OdResult OdIfc4::IfcSpatialStructureElement::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.

◆ isKindOf()

virtual bool OdIfc4::IfcSpatialStructureElement::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.

◆ outFields()

virtual OdResult OdIfc4::IfcSpatialStructureElement::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcSpatialStructureElement::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcSpatialStructureElement::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.

◆ setCompositionType()

void OdIfc4::IfcSpatialStructureElement::setCompositionType ( IfcElementCompositionEnum CompositionType )

Sets the value of CompositionType attribute. This attribute indicates whether the predefined spatial structure element represents itself, or an aggregate (complex) or a part (part). The interpretation is specified separately for each subtype of spatial structure element. If no CompositionType is asserted, the dafault value 'ELEMENT' applies.

Parameters

CompositionType [in] Composition type to set.

Remarks: IFC4 CHANGE: Attribute made optional.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcSpatialStructureElement::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcSpatialStructureElement::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcSpatialStructureElement::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcSpatialElement.

Reimplemented in OdIfc4::IfcBuilding, OdIfc4::IfcBuildingStorey, OdIfc4::IfcSite, and OdIfc4::IfcSpace.
