#include <IfcBuildingStoreyAutoImpl.h>

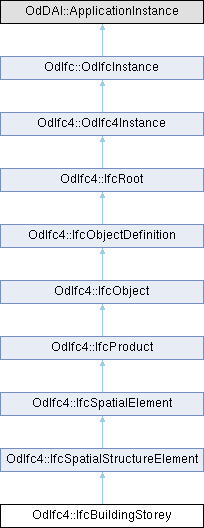

Inheritance diagram for OdIfc4::IfcBuildingStorey:

Public Member Functions
double	getElevation () const

void	setElevation (double Elevation)

	IfcBuildingStorey ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcSpatialStructureElement
IfcElementCompositionEnum	getCompositionType () const

void	setCompositionType (IfcElementCompositionEnum CompositionType)

	IfcSpatialStructureElement ()

Public Member Functions inherited from OdIfc4::IfcSpatialElement
const OdAnsiString &	getLongName () const

void	setLongName (const OdAnsiString &LongName)

void	getInvContainsElements (OdDAIObjectIds &ContainsElements) const

void	getInvServicedBySystems (OdDAIObjectIds &ServicedBySystems) const

void	getInvReferencesElements (OdDAIObjectIds &ReferencesElements) const

	IfcSpatialElement ()

Public Member Functions inherited from OdIfc4::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
double	m_Elevation

Protected Attributes inherited from OdIfc4::IfcSpatialStructureElement
OdDAI::Enum	m_CompositionType

Protected Attributes inherited from OdIfc4::IfcSpatialElement
OdAnsiString	m_LongName

Protected Attributes inherited from OdIfc4::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The building storey typically represents a (nearly) horizontal aggregation of spaces that are vertically bound. A storey (if specified) is associated to a building. A storey can span over several connected storeys. Therefore storey complex provides for a collection of storeys included in a building. A storey can also be decomposed in (horizontical) parts, where each part defines a partial storey. This is defined by the composition type attribute of the supertype IfcSpatialStructureElement which is interpreted as follow: COMPLEX: building storey complex ELEMENT: building storey PARTIAL: partial building storey

The image below shows the IfcBuildingStorey as part of the spatial structure. It also serves as the spatial container for building and other elements.

The next image describes the heights and elevations of the IfcBuildingStorey.

Elevation of the structural slab level: provided by Pset_BuildingStoreyCommon with Name="ElevationOfSSLRelative" Elevation of the finish floor level: provided by Pset_BuildingStoreyCommon with Name="ElevationOfFFLRelative" Gross height of storey, also referred to as total height (top of construction slab to top of construction slab above): provided by Qto_BuildingStoreyBaseQuantities with Name="GrossHeight" Net height of storey (top of construction slab to bottom of construction slab above): provided by Qto_BuildingStoreyBaseQuantities with Name="NetHeight"

FootPrint GeomSet Geometry - The foot print representation of IfcBuildingStorey is specified by either a single 2D curve, or by a list of 2D curves, if the building storey has an independent geometric representation.
Product Local Placement - The local placement for IfcBuildingStorey is defined in its supertype IfcProduct. It is defined by the IfcLocalPlacement, which defines the local coordinate system that is referenced by all geometric representations. The PlacementRelTo relationship of IfcLocalPlacement points to the IfcSpatialStructureElement of the IfcBuilding or IfcBuildingStorey type. If the relative placement is not used, the absolute placement is defined within the world coordinate system.
Property Sets for Objects - This concept can be applied to the following resources: Pset_BuildingStoreyCommon
Quantity Sets - This concept can be applied to the following resources: Qto_BuildingStoreyBaseQuantities
Spatial Composition - This concept can be applied to the following resources: IfcBuilding IfcBuildingStorey
Spatial Container - If there are building elements and/or other elements directly related to the IfcBuildingStorey (like most building elements, such as walls, columns, etc.), they are associated with the IfcBuildingStorey by using the IfcRelContainedInSpatialStructure relationship. The IfcBuildingStorey references them by its inverse relationship: IfcBuildingStorey.ContainsElements - referencing any subtype of IfcProduct (with the exception of other spatial structure element) by IfcRelContainedInSpatialStructure.RelatedElements.
Spatial Decomposition - Spatial Decomposition concept uses the IfcBuildingStorey.IsDecomposedBy inverse relationship to reference IfcBuildingStorey or IfcSpace through IfcRelAggregates.RelatedObjects. If it refers to another instance of IfcBuildingStorey, the referenced IfcBuildingStorey needs to have a different and lower CompositionType, i.e. ELEMENT (if the other IfcBuildingStorey has COMPLEX), or PARTIAL (if the other IfcBuildingStorey has ELEMENT).

This concept can be applied to the following resources: IfcBuildingStorey IfcSpace

Definition at line 103 of file Ifc4/IfcBuildingStoreyAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcBuildingStorey()

OdIfc4::IfcBuildingStorey::IfcBuildingStorey ( )

Default constructor for the IfcBuildingStorey class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcBuildingStorey::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcBuildingStorey::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcBuildingStorey::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ getElevation()

double OdIfc4::IfcBuildingStorey::getElevation ( ) const

Returns the value of Elevation attribute. This attribute represents elevation of the base of this storey, relative to the 0,00 internal reference height of the building. The 0.00 level is specified by the absolute above sea level height by the ElevationOfRefHeight attribute specified at IfcBuilding.

Returns: Returns the value of Elevation attribute.

Remarks: If the geometric data is provided (ObjectPlacement is specified), the Elevation value will either not be included, or be equal to the local placement Z value.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcBuildingStorey::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ inFields()

virtual OdResult OdIfc4::IfcBuildingStorey::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ isKindOf()

virtual bool OdIfc4::IfcBuildingStorey::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ outFields()

virtual OdResult OdIfc4::IfcBuildingStorey::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcBuildingStorey::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcBuildingStorey::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ setElevation()

void OdIfc4::IfcBuildingStorey::setElevation ( double Elevation )

Sets the value of Elevation attribute. This attribute represents elevation of the base of this storey, relative to the 0,00 internal reference height of the building. The 0.00 level is specified by the absolute above sea level height by the ElevationOfRefHeight attribute specified at IfcBuilding.

Parameters

Elevation [in] Elevation to set.

Remarks: If the geometric data is provided (ObjectPlacement is specified), the Elevation value will either not be included, or be equal to the local placement Z value.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcBuildingStorey::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcBuildingStorey::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcBuildingStorey::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcBuildingStorey::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcBuildingStorey::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcSpatialStructureElement.

Member Data Documentation

◆ m_Elevation

double OdIfc4::IfcBuildingStorey::m_Elevation

protected

Definition at line 269 of file Ifc4/IfcBuildingStoreyAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcBuildingStoreyAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcBuildingStorey()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getElevation()

◆ getInstanceType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setElevation()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_Elevation
