#include <DbDetailSymbol.h>

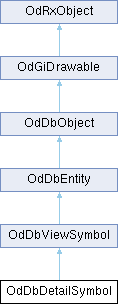

Inheritance diagram for OdDbDetailSymbol:

Public Types
enum	BoundaryType { kCircularBoundary , kRectangularBoundary , kCustomBoundary }

enum	OverriddenProperty { kNone = 0 , kModelEdge = 0x1 , kIdentifierPosition = 0x1 << 1 }

Public Types inherited from OdDbEntity
enum	VisualStyleType { kFullVisualStyle , kFaceVisualStyle , kEdgeVisualStyle }

Public Types inherited from OdGiDrawable
enum	SetAttributesFlags { kDrawableNone = 0 , kDrawableIsAnEntity = 1 , kDrawableUsesNesting = 2 , kDrawableIsCompoundObject = 4 , kDrawableViewIndependentViewportDraw = 8 , kDrawableIsInvisible = 16 , kDrawableHasAttributes = 32 , kDrawableRegenTypeDependantGeometry = 64 , kDrawableIsDimension = (kDrawableIsAnEntity + kDrawableIsCompoundObject + 128) , kDrawableRegenDraw = 256 , kDrawableStandardDisplaySingleLOD = 512 , kDrawableShadedDisplaySingleLOD = 1024 , kDrawableViewDependentViewportDraw = 2048 , kDrawableBlockDependentViewportDraw = 4096 , kDrawableIsExternalReference = 8192 , kDrawableNotPlottable = 16384 , kDrawableNotAllowLCS = 32768 , kDrawableMergeControlOff = 65536 , kLastFlag = kDrawableMergeControlOff }

enum	DrawableType { kGeometry = 0 , kDistantLight = 1 , kPointLight = 2 , kSpotLight = 3 , kAmbientLight , kSolidBackground , kGradientBackground , kImageBackground , kGroundPlaneBackground , kViewport , kWebLight , kSkyBackground , kImageBasedLightingBackground , kEnvironmentBackground = 16 , kCustomBackground }

Public Member Functions
	ODDB_DECLARE_MEMBERS (OdDbDetailSymbol)

	OdDbDetailSymbol ()

	~OdDbDetailSymbol ()

BoundaryType	boundaryType () const

OdDbDetailViewStyle::ModelEdge	modelEdgeType () const

bool	isOverriddenProperty (OdDbDetailSymbol::OverriddenProperty property) const

bool	displayIdentifier () const

OdGePoint3d	origin () const

const OdGeVector3d	direction () const

const OdGeVector2d &	boundarySize () const

const OdGePoint3d &	modelEdgeOrigin () const

double	owningViewScale () const

double	detailViewScale () const

const OdGeVector3d &	modelEdgeDirection () const

OdResult	modelEdgeBorderExtents (OdGeExtents3d &extents) const

OdGePoint3d	identifierPosition () const

OdResult	initializeIdentifierPositionAt (const OdGePoint3d &pt)

OdResult	resetIdentifierPosition ()

OdResult	setIdentifierPosition (const OdGePoint3d &pt)

OdResult	setDetailViewScale (double viewScale)

OdResult	setOwningViewScale (double viewScale)

OdResult	setBoundaryType (OdDbDetailSymbol::BoundaryType bndType)

OdResult	setModelEdgeType (OdDbDetailViewStyle::ModelEdge modelEdgeType)

OdResult	setModelEdgeOrigin (const OdGePoint3d &pt)

OdResult	setModelEdgeDirection (const OdGeVector3d &dir)

OdResult	setDisplayIdentifier (const bool displayIdentifier)

OdResult	setOrigin (const OdGePoint3d &pt)

OdResult	setBoundarySize (const OdGeVector2d &size)

OdResult	setPickPoints (const OdGePoint3dArray &pickPoints)

Public Member Functions inherited from OdDbViewSymbol
	ODDB_DECLARE_MEMBERS (OdDbViewSymbol)

virtual	~OdDbViewSymbol ()

OdDbObjectId	symbolStyleId () const

void	setSymbolStyleId (const OdDbObjectId &styleId)

double	scale () const

void	setScale (double val)

OdResult	getIdentifier (OdString &sName) const

OdResult	setIdentifier (const OdString &sName)

OdDbObjectId	owningViewRep () const

void	setOwningViewRep (const OdDbObjectId &owner)

OdResult	createDefinition (OdRxSymbolSketch *pSketchObject)

OdResult	exportSymbolGeometry (OdGeCurve3dPtrArray &geomArr, const OdDbObjectId &viewRepId)

OdResult	setSymbolGeometry (const OdDbObjectIdArray &entIds)

OdResult	setSymbolGeometry (const OdArray< OdDbObject * > &entities)

OdResult	updateDefinition ()

Public Member Functions inherited from OdDbEntity
	ODDB_DECLARE_MEMBERS (OdDbEntity)

	OdDbEntity ()

OdDbObjectId	blockId () const

OdCmColor	color () const

virtual OdResult	setColor (const OdCmColor &color, bool doSubents=true)

OdUInt16	colorIndex () const

virtual OdCmEntityColor	entityColor () const

virtual OdResult	setColorIndex (OdUInt16 colorIndex, bool doSubents=true)

OdDbObjectId	colorId () const

virtual OdResult	setColorId (OdDbObjectId colorId, bool doSubents=true)

OdCmTransparency	transparency () const

virtual OdResult	setTransparency (const OdCmTransparency &transparency, bool doSubents=true)

OdString	plotStyleName () const

OdDb::PlotStyleNameType	getPlotStyleNameId (OdDbObjectId &plotStyleNameId) const

virtual OdResult	setPlotStyleName (const OdString &plotStyleName, bool doSubents=true)

virtual OdResult	setPlotStyleName (OdDb::PlotStyleNameType plotStyleNameType, OdDbObjectId plotStyleNameId=OdDbObjectId::kNull, bool doSubents=true)

OdString	layer () const

OdDbObjectId	layerId () const

virtual OdResult	setLayer (const OdString &layerName, bool doSubents=true, bool allowHiddenLayer=false)

virtual OdResult	setLayer (OdDbObjectId layerId, bool doSubents=true, bool allowHiddenLayer=false)

OdString	linetype () const

OdDbObjectId	linetypeId () const

virtual OdResult	setLinetype (const OdString &linetypeName, bool doSubents=true)

virtual OdResult	setLinetype (OdDbObjectId linetypeID, bool doSubents=true)

OdString	material () const

OdDbObjectId	materialId () const

virtual OdResult	setMaterial (const OdString &materialName, bool doSubents=true)

virtual OdResult	setMaterial (OdDbObjectId materialID, bool doSubents=true)

OdDbObjectId	visualStyleId (VisualStyleType vstype=kFullVisualStyle) const

virtual OdResult	setVisualStyle (OdDbObjectId visualStyleId, VisualStyleType vstype=kFullVisualStyle, bool doSubents=true)

virtual const OdGiMapper *	materialMapper () const

virtual void	setMaterialMapper (const OdGiMapper *mapper, bool doSubents=true)

double	linetypeScale () const

virtual OdResult	setLinetypeScale (double linetypeScale, bool doSubents=true)

OdDb::Visibility	visibility () const

ODRX_SEALED_VIRTUAL OdResult	setVisibility (OdDb::Visibility visibility, bool doSubents=true) ODRX_FINAL

OdDb::Visibility	tempVisibility () const

void	setTempVisibility (OdDb::Visibility visibility)

OdDb::LineWeight	lineWeight () const

virtual OdResult	setLineWeight (OdDb::LineWeight lineWeight, bool doSubents=true)

virtual bool	castShadows () const

virtual void	setCastShadows (bool castShadows)

virtual bool	receiveShadows () const

virtual void	setReceiveShadows (bool receiveShadows)

virtual OdDb::CollisionType	collisionType () const

void	setPropertiesFrom (const OdDbEntity *pSource, bool doSubents=true)

virtual bool	isPlanar () const

virtual OdResult	getPlane (OdGePlane &plane, OdDb::Planarity &planarity) const

void	subHandOverTo (OdDbObject *pNewObject)

ODRX_SEALED_VIRTUAL OdResult	transformBy (const OdGeMatrix3d &xfm) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getTransformedCopy (const OdGeMatrix3d &xfm, OdDbEntityPtr &pCopy) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	explode (OdRxObjectPtrArray &entitySet) const ODRX_FINAL

virtual OdResult	explodeToBlock (OdDbBlockTableRecord pBlockRecord, OdDbObjectIdArray ids=0)

virtual OdResult	explodeGeometry (OdRxObjectPtrArray &entitySet) const

virtual OdResult	explodeGeometryToBlock (OdDbBlockTableRecord pBlockRecord, OdDbObjectIdArray ids=0)

virtual void	subViewportDraw (OdGiViewportDraw *pVd) const

void	setDatabaseDefaults (OdDbDatabase *pDb=0, bool doSubents=false)

virtual void	applyPartialUndo (OdDbDwgFiler pUndoFiler, OdRxClass pClassObj)

void	appendToOwner (OdDbIdPair &idPair, OdDbObject *pOwnerObject, OdDbIdMapping &ownerIdMap)

virtual OdResult	dxfIn (OdDbDxfFiler *pFiler)

virtual void	dxfOut (OdDbDxfFiler *pFiler) const

virtual OdResult	dxfInFields_R12 (OdDbDxfFiler *pFiler)

virtual void	dxfOutFields_R12 (OdDbDxfFiler *pFiler) const

virtual OdGiDrawable *	drawable ()

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *pTraits) const

virtual void	subList () const

virtual OdResult	subGetClassID (void *pClsid) const

void	subSwapIdWith (const OdDbObjectId &otherId, bool swapXdata=false, bool swapExtDict=false)

virtual OdResult	subErase (bool erasing) ODRX_OVERRIDE

virtual OdResult	subOpen (OdDb::OpenMode mode) ODRX_OVERRIDE

void	recordGraphicsModified (bool graphicsModified=true)

virtual void	copyFrom (const OdRxObject *pSource)

ODRX_SEALED_VIRTUAL void	list () const ODRX_FINAL

virtual OdResult	getGeomExtents (OdGeExtents3d &extents) const ODRX_FINAL

ODRX_SEALED_VIRTUAL void	highlight (bool bDoIt=true, const OdDbFullSubentPath *pSubId=0, bool highlightAll=false) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getOsnapPoints (OdDb::OsnapMode osnapMode, OdGsMarker gsSelectionMark, const OdGePoint3d &pickPoint, const OdGePoint3d &lastPoint, const OdGeMatrix3d &xWorldToEye, OdGePoint3dArray &snapPoints) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getOsnapPoints (OdDb::OsnapMode osnapMode, OdGsMarker gsSelectionMark, const OdGePoint3d &pickPoint, const OdGePoint3d &lastPoint, const OdGeMatrix3d &xWorldToEye, OdGePoint3dArray &snapPoints, const OdGeMatrix3d &insertionMat) const ODRX_FINAL

ODRX_SEALED_VIRTUAL bool	isContentSnappable () const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getGripPoints (OdGePoint3dArray &gripPoints) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	moveGripPointsAt (const OdIntArray &indices, const OdGeVector3d &offset) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getGripPoints (OdDbGripDataPtrArray &grips, const double curViewUnitSize, const int gripSize, const OdGeVector3d &curViewDir, const int bitFlags) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	moveGripPointsAt (const OdDbVoidPtrArray &grips, const OdGeVector3d &offset, int bitFlags) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getStretchPoints (OdGePoint3dArray &stretchPoints) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	moveStretchPointsAt (const OdIntArray &indices, const OdGeVector3d &offset) ODRX_FINAL

virtual void	dragStatus (const OdDb::DragStat status)

ODRX_SEALED_VIRTUAL void	gripStatus (const OdDb::GripStat status) ODRX_FINAL

ODRX_SEALED_VIRTUAL bool	cloneMeForDragging () ODRX_FINAL

ODRX_SEALED_VIRTUAL bool	hideMeForDragging () const ODRX_FINAL

virtual void	saveAs (OdGiWorldDraw *pWd, OdDb::DwgVersion ver) const

ODRX_SEALED_VIRTUAL OdResult	getCompoundObjectTransform (OdGeMatrix3d &xM) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	intersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, OdGePoint3dArray &points, OdGsMarker thisGsMarker=0, OdGsMarker otherGsMarker=0) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	intersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, const OdGePlane &projPlane, OdGePoint3dArray &points, OdGsMarker thisGsMarker=0, OdGsMarker otherGsMarker=0) const ODRX_FINAL

OdResult	boundingBoxIntersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, OdGePoint3dArray &points, OdGsMarker thisGsMarker, OdGsMarker otherGsMarker) const

OdResult	boundingBoxIntersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, const OdGePlane &projPlane, OdGePoint3dArray &points, OdGsMarker thisGsMarker, OdGsMarker otherGsMarker) const

ODRX_SEALED_VIRTUAL OdResult	getSubentPathsAtGsMarker (OdDb::SubentType type, OdGsMarker gsMark, const OdGePoint3d &pickPoint, const OdGeMatrix3d &xfm, OdDbFullSubentPathArray &subentPaths, const OdDbObjectIdArray *pEntAndInsertStack=0) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getGsMarkersAtSubentPath (const OdDbFullSubentPath &subPath, OdGsMarkerArray &gsMarkers) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getGripPointsAtSubentPath (const OdDbFullSubentPath &path, OdDbGripDataPtrArray &grips, const double curViewUnitSize, const int gripSize, const OdGeVector3d &curViewDir, const OdUInt32 bitflags) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	moveGripPointsAtSubentPaths (const OdDbFullSubentPathArray &paths, const OdDbVoidPtrArray &gripAppData, const OdGeVector3d &offset, const OdUInt32 bitflags) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	deleteSubentPaths (const OdDbFullSubentPathArray &paths) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	addSubentPaths (const OdDbFullSubentPathArray &paths) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdDbEntityPtr	subentPtr (const OdDbFullSubentPath &path) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	transformSubentPathsBy (const OdDbFullSubentPathArray &paths, const OdGeMatrix3d &xform) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getSubentClassId (const OdDbFullSubentPath &path, void *clsId) ODRX_FINAL

ODRX_SEALED_VIRTUAL OdResult	getSubentPathGeomExtents (const OdDbFullSubentPath &path, OdGeExtents3d &extents) ODRX_FINAL

ODRX_SEALED_VIRTUAL void	subentGripStatus (OdDb::GripStat status, const OdDbFullSubentPath &subentity) ODRX_FINAL

virtual OdGeMatrix3d	getEcs () const

Public Member Functions inherited from OdDbObject
	ODDB_DECLARE_MEMBERS (OdDbObject)

	~OdDbObject ()

virtual void	addRef () override

virtual void	release () ODRX_NOEXCEPT override

virtual long	numRefs () const override

OdDbObjectId	objectId () const

OdDbHandle	getDbHandle () const

OdDbHandle	handle () const

OdDbObjectId	ownerId () const

virtual void	setOwnerId (OdDbObjectId ownerId)

OdDbDatabase *	database () const

void	createExtensionDictionary ()

OdDbObjectId	extensionDictionary () const

bool	releaseExtensionDictionary ()

OdDbXrecordPtr	createXrecord (const OdString &xrecordName, OdDb::DuplicateRecordCloning style=OdDb::kDrcIgnore)

void	upgradeOpen ()

void	downgradeOpen ()

void	cancel ()

virtual void	subClose ()

OdResult	erase (bool eraseIt=true)

void	handOverTo (OdDbObject *pNewObject, bool keepXData=true, bool keepExtDict=true)

void	swapIdWith (OdDbObjectId otherId, bool swapXdata=false, bool swapExtDict=false)

virtual void	audit (OdDbAuditInfo *pAuditInfo)

void	dwgIn (OdDbDwgFiler *pFiler)

void	dwgOut (OdDbDwgFiler *pFiler) const

virtual OdDb::DuplicateRecordCloning	mergeStyle () const

virtual OdResBufPtr	xData (const OdString &regappName=OdString::kEmpty) const

virtual void	setXData (const OdResBuf *pRb)

bool	hasXData (const OdChar *regappName=nullptr) const

bool	isEraseStatusToggled () const

bool	isErased () const

bool	isReadEnabled () const

bool	isWriteEnabled () const

bool	isNotifyEnabled () const

bool	isModified () const

bool	isModifiedXData () const

bool	isModifiedGraphics () const

bool	isNewObject () const

bool	isNotifying () const

bool	isUndoing () const

bool	isReallyClosing () const

bool	isDBRO () const

void	assertReadEnabled () const

void	assertWriteEnabled (bool autoUndo=true, bool recordModified=true)

void	assertNotifyEnabled () const

void	disableUndoRecording (bool disable)

bool	isUndoRecordingDisabled () const

OdDbDwgFiler *	undoFiler ()

void	addReactor (OdDbObjectReactor *pReactor) const

void	removeReactor (OdDbObjectReactor *pReactor) const

virtual void	addPersistentReactor (const OdDbObjectId &objId)

virtual void	removePersistentReactor (const OdDbObjectId &objId)

bool	hasPersistentReactor (const OdDbObjectId &objId) const

OdDbObjectIdArray	getPersistentReactors () const

OdDbObjectReactorArray	getTransientReactors () const

virtual void	recvPropagateModify (const OdDbObject *pSubObj)

virtual void	xmitPropagateModify () const

ODRX_SEALED_VIRTUAL OdDbObjectPtr	deepClone (OdDbIdMapping &idMap, OdDbObject *pOwner, bool bPrimary=true) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdDbObjectPtr	wblockClone (OdDbIdMapping &idMap, OdDbObject *pOwner, bool bPrimary=true) const ODRX_FINAL

void	setOdDbObjectIdsInFlux ()

bool	isOdDbObjectIdsInFlux () const

virtual void	copied (const OdDbObject pObject, const OdDbObject pNewObject)

virtual void	erased (const OdDbObject *pObject, bool erasing=true)

virtual void	goodbye (const OdDbObject *pObject)

virtual void	openedForModify (const OdDbObject *pObject)

virtual void	subObjModified (const OdDbObject pObject, const OdDbObject pSubObj)

virtual void	modifyUndone (const OdDbObject *pObject)

virtual void	modifiedXData (const OdDbObject *pObject)

virtual void	unappended (const OdDbObject *pObject)

virtual void	reappended (const OdDbObject *pObject)

bool	isAProxy () const

virtual void	objectClosed (const OdDbObjectId &objectId)

virtual void	modifiedGraphics (const OdDbObject *pObject)

bool	hasSaveVersionOverride () const

void	setHasSaveVersionOverride (bool hasSaveVersionOverride)

virtual OdDb::DwgVersion	getObjectSaveVersion (const OdDbFiler pFiler, OdDb::MaintReleaseVer pMaintVer=0) const

virtual OdDbObjectPtr	decomposeForSave (OdDb::DwgVersion ver, OdDbObjectId &replaceId, bool &exchangeXData)

virtual OdDbObjectPtr	decomposeForSave (OdDb::SaveType format, OdDb::DwgVersion ver, OdDbObjectId &replaceId, bool &exchangeXData)

void	convertForSave (OdDb::DwgVersion ver)

virtual void	composeForLoad (OdDb::SaveType format, OdDb::DwgVersion version, OdDbAuditInfo *pAuditInfo)

virtual bool	isPersistent () const

virtual OdDbStub *	id () const

ODRX_SEALED_VIRTUAL OdResult	getClassID (void *pClsid) const ODRX_FINAL

void	setGsNode (OdGsCache *pNode)

OdGsCache *	gsNode () const

void	xDataTransformBy (const OdGeMatrix3d &xfm)

bool	hasFields () const

OdDbObjectId	getField (const OdString &fieldName) const

OdDbObjectPtr	getField (const OdString &fieldName, OdDb::OpenMode mode) const

virtual OdDbObjectId	setField (const OdString &fieldName, OdDbField *pField)

virtual OdResult	removeField (OdDbObjectId fieldId)

virtual OdDbObjectId	removeField (const OdString &fieldName)

OdDbObjectId	getFieldDictionary () const

OdDbObjectPtr	getFieldDictionary (OdDb::OpenMode mode) const

virtual OdRxClass *	saveAsClass (OdRxClass *pClass) const

Public Member Functions inherited from OdGiDrawable
	ODRX_DECLARE_MEMBERS (OdGiDrawable)

virtual DrawableType	drawableType () const

ODRX_SEALED_VIRTUAL OdUInt32	setAttributes (OdGiDrawableTraits *pTraits) const ODRX_FINAL

ODRX_SEALED_VIRTUAL bool	worldDraw (OdGiWorldDraw *pWd) const ODRX_FINAL

ODRX_SEALED_VIRTUAL void	viewportDraw (OdGiViewportDraw *pVd) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdUInt32	viewportDrawLogicalFlags (OdGiViewportDraw *pVd) const ODRX_FINAL

ODRX_SEALED_VIRTUAL OdUInt32	regenSupportFlags () const ODRX_FINAL

Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()

	OdRxObject ()

virtual	~OdRxObject ()

virtual OdRxObject *	queryX (const OdRxClass *pClass) const

virtual OdRxObject *	x (const OdRxClass *pClass) const

virtual OdRxClass *	isA () const

bool	isKindOf (const OdRxClass *pClass) const

virtual OdRxObjectPtr	clone () const

virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const

virtual bool	isEqualTo (const OdRxObject *pOther) const

Protected Member Functions
virtual void	modified (const OdDbObject *pObject) ODRX_OVERRIDE

virtual OdResult	dwgInFields (OdDbDwgFiler *pFiler) ODRX_OVERRIDE

virtual void	dwgOutFields (OdDbDwgFiler *pFiler) const ODRX_OVERRIDE

virtual OdResult	dxfInFields (OdDbDxfFiler *pFiler) ODRX_OVERRIDE

virtual void	dxfOutFields (OdDbDxfFiler *pFiler) const ODRX_OVERRIDE

virtual bool	subWorldDraw (OdGiWorldDraw *pWorldDraw) const ODRX_OVERRIDE

virtual OdResult	subTransformBy (const OdGeMatrix3d &xfm) ODRX_OVERRIDE

virtual void	subSetDatabaseDefaults (OdDbDatabase *db, bool doSubents) ODRX_OVERRIDE

Protected Member Functions inherited from OdDbViewSymbol
virtual OdDbObjectPtr	subWblockClone (OdDbIdMapping &idMap, OdDbObject *owner, bool bPrimary) const

	OdDbViewSymbol ()

Protected Member Functions inherited from OdDbEntity
virtual OdDbObjectPtr	subDeepClone (OdDbIdMapping &ownerIdMap, OdDbObject *, bool bPrimary) const ODRX_OVERRIDE

virtual OdResult	subGetTransformedCopy (const OdGeMatrix3d &xfm, OdDbEntityPtr &pCopy) const

virtual OdResult	subExplode (OdRxObjectPtrArray &entitySet) const

virtual OdResult	subGetCompoundObjectTransform (OdGeMatrix3d &xM) const

virtual bool	subCloneMeForDragging ()

virtual bool	subHideMeForDragging () const

virtual void	subGripStatus (const OdDb::GripStat status)

virtual OdResult	subGetOsnapPoints (OdDb::OsnapMode osnapMode, OdGsMarker gsSelectionMark, const OdGePoint3d &pickPoint, const OdGePoint3d &lastPoint, const OdGeMatrix3d &xWorldToEye, OdGePoint3dArray &snapPoints) const

virtual OdResult	subGetOsnapPoints (OdDb::OsnapMode osnapMode, OdGsMarker gsSelectionMark, const OdGePoint3d &pickPoint, const OdGePoint3d &lastPoint, const OdGeMatrix3d &xWorldToEye, OdGePoint3dArray &snapPoints, const OdGeMatrix3d &insertionMat) const

virtual bool	subIsContentSnappable () const

virtual OdResult	subGetGripPoints (OdGePoint3dArray &gripPoints) const

virtual OdResult	subMoveGripPointsAt (const OdIntArray &indices, const OdGeVector3d &offset)

virtual OdResult	subGetGripPoints (OdDbGripDataPtrArray &grips, const double curViewUnitSize, const int gripSize, const OdGeVector3d &curViewDir, const int bitFlags) const

virtual OdResult	subMoveGripPointsAt (const OdDbVoidPtrArray &grips, const OdGeVector3d &offset, int bitFlags)

virtual OdResult	subGetStretchPoints (OdGePoint3dArray &stretchPoints) const

virtual OdResult	subMoveStretchPointsAt (const OdIntArray &indices, const OdGeVector3d &offset)

virtual OdResult	subIntersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, OdGePoint3dArray &points, OdGsMarker thisGsMarker=0, OdGsMarker otherGsMarker=0) const

virtual OdResult	subIntersectWith (const OdDbEntity *pEnt, OdDb::Intersect intType, const OdGePlane &projPlane, OdGePoint3dArray &points, OdGsMarker thisGsMarker=0, OdGsMarker otherGsMarker=0) const

virtual void	subHighlight (bool bDoIt=true, const OdDbFullSubentPath *pSubId=0, bool highlightAll=false) const

virtual OdDb::Visibility	subVisibility () const

virtual OdResult	subSetVisibility (OdDb::Visibility visibility, bool doSubents=true)

virtual OdResult	subGetGeomExtents (OdGeExtents3d &extents) const

virtual OdResult	subDeleteSubentPaths (const OdDbFullSubentPathArray &paths)

virtual OdResult	subAddSubentPaths (const OdDbFullSubentPathArray &paths)

virtual OdResult	subMoveGripPointsAtSubentPaths (const OdDbFullSubentPathArray &paths, const OdDbVoidPtrArray &gripAppData, const OdGeVector3d &offset, const OdUInt32 bitflags)

virtual OdResult	subGetGripPointsAtSubentPath (const OdDbFullSubentPath &path, OdDbGripDataPtrArray &grips, const double curViewUnitSize, const int gripSize, const OdGeVector3d &curViewDir, const OdUInt32 bitflags) const

virtual OdResult	subGetSubentPathsAtGsMarker (OdDb::SubentType type, OdGsMarker gsMark, const OdGePoint3d &pickPoint, const OdGeMatrix3d &xfm, OdDbFullSubentPathArray &subentPaths, const OdDbObjectIdArray *pEntAndInsertStack=0) const

virtual OdResult	subGetGsMarkersAtSubentPath (const OdDbFullSubentPath &subPath, OdGsMarkerArray &gsMarkers) const

virtual OdDbEntityPtr	subSubentPtr (const OdDbFullSubentPath &path) const

virtual OdResult	subTransformSubentPathsBy (const OdDbFullSubentPathArray &paths, const OdGeMatrix3d &xform)

virtual OdResult	subGetSubentClassId (const OdDbFullSubentPath &path, void *clsId) const

virtual OdResult	subGetSubentPathGeomExtents (const OdDbFullSubentPath &path, OdGeExtents3d &extents) const

virtual void	subSubentGripStatus (OdDb::GripStat status, const OdDbFullSubentPath &subentity)

Protected Member Functions inherited from OdDbObject
	OdDbObject ()

Protected Member Functions inherited from OdGiDrawable
	OdGiDrawable ()

virtual OdUInt32	subViewportDrawLogicalFlags (OdGiViewportDraw *vd) const

virtual OdUInt32	subRegenSupportFlags () const

Additional Inherited Members
Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)

static OdRxClass *	desc ()

static void	rxInit ()

static void	rxUninit ()

Protected Attributes inherited from OdDbObject
OdDbObjectImpl *	m_pImpl

Detailed Description

This class represents a Detail Symbol entity.

Corresponding C++ library: AcModelDocObj <group OdModelDocObj_Classes>

Definition at line 37 of file DbDetailSymbol.h.

Member Enumeration Documentation

◆ BoundaryType

enum OdDbDetailSymbol::BoundaryType

Defines boundary types for Detail Symbol entities.

Enumerator
kCircularBoundary
kRectangularBoundary
kCustomBoundary

Definition at line 51 of file DbDetailSymbol.h.

◆ OverriddenProperty

enum OdDbDetailSymbol::OverriddenProperty

Defines which property of the style is overridden.

Enumerator
kNone
kModelEdge
kIdentifierPosition

Definition at line 62 of file DbDetailSymbol.h.

Constructor & Destructor Documentation

◆ OdDbDetailSymbol()

OdDbDetailSymbol::OdDbDetailSymbol ( )

Default constructor. Creates an OdDbDetailSymbol instance.

◆ ~OdDbDetailSymbol()

OdDbDetailSymbol::~OdDbDetailSymbol ( )

Member Function Documentation

◆ boundarySize()

const OdGeVector2d & OdDbDetailSymbol::boundarySize ( ) const

Returns the boundary size of this Detail Symbol entity.

◆ boundaryType()

BoundaryType OdDbDetailSymbol::boundaryType ( ) const

Returns the boundary type for this OdDbDetailSymbol object as a value defined in the BoundaryType enumeration.

◆ detailViewScale()

double OdDbDetailSymbol::detailViewScale ( ) const

Returns the scale parameter of the associated detail view.

◆ direction()

const OdGeVector3d OdDbDetailSymbol::direction ( ) const

Returns the direction of this Detail Symbol entity.

◆ displayIdentifier()

bool OdDbDetailSymbol::displayIdentifier ( ) const

Returns whether the identifier of this Detail Symbol entity must be displayed.

◆ dwgInFields()

virtual OdResult OdDbDetailSymbol::dwgInFields ( OdDbDwgFiler * pFiler )

protectedvirtual

Reads the .dwg file data of this object.

Parameters

pFiler [in] Filer object from which data are read.

Returns: Returns the filer status.

This function is called by dwgIn() to allow the object to read its data.

When overriding this function:

1) Call assertWriteEnabled(). 2) Call the parent class's dwgInFields(pFiler). 3) If it returns eOK, continue; otherwise return whatever the parent's dwgInFields(pFiler) returned. 4) Call the OdDbDwgFiler(pFiler) methods to read each of the object's data items in the order they were written. 5) Return pFiler->filerStatus().

Reimplemented from OdDbViewSymbol.

◆ dwgOutFields()

virtual void OdDbDetailSymbol::dwgOutFields ( OdDbDwgFiler * pFiler ) const

protectedvirtual

Writes the .dwg file data of this object.

Parameters

pFiler [in] Pointer to the filer to which data are written.

Remarks

This function is called by dwgIn() to allow the object to write its data.

When overriding this function:

1) Call assertReadEnabled(). 2) Call the parent class's dwgOutFields(pFiler). 3) Call the OdDbDwgFiler(pFiler) methods to write each of the object's data items in the order they were written.

Reimplemented from OdDbViewSymbol.

◆ dxfInFields()

virtual OdResult OdDbDetailSymbol::dxfInFields ( OdDbDxfFiler * pFiler )

protectedvirtual

Reads the DXF data of this object.

Parameters

pFiler [in] Pointer to the filer from which data are read.

Returns: Returns the filer status.

This function is called by dxfIn() to allow the object to read its data.

When overriding this function:

1) Call assertWriteEnabled(). 2) Call the parent class's dwgInFields(pFiler). 3) If it returns eOK, continue; otherwise return whatever the parent's dxfInFields(pFiler) returned. 4) Call the OdDbDxfFiler(pFiler) methods to read each of the object's data items in the order they were written. 5) Return pFiler->filerStatus().

Reimplemented from OdDbViewSymbol.

◆ dxfOutFields()

virtual void OdDbDetailSymbol::dxfOutFields ( OdDbDxfFiler * pFiler ) const

protectedvirtual

Writes the DXF data of this object.

Parameters

pFiler [in] Pointer to the filer to which data are to be written.

Remarks

This function is called by dxfOut() to allow the object to write its data.

When overriding this function:

1) Call assertReadEnabled(). 2) Call the parent class's dxfOutFields(pFiler). 4) Use pFiler to call the OdDbDxfFiler methods to write each of the object's data items in the order they were written.

Reimplemented from OdDbViewSymbol.

◆ identifierPosition()

OdGePoint3d OdDbDetailSymbol::identifierPosition ( ) const

Gets the identifier position of this Detail Symbol entity.

Returns: The identifier position.

◆ initializeIdentifierPositionAt()

OdResult OdDbDetailSymbol::initializeIdentifierPositionAt ( const OdGePoint3d & pt )

◆ isOverriddenProperty()

bool OdDbDetailSymbol::isOverriddenProperty ( OdDbDetailSymbol::OverriddenProperty property ) const

Returns true only if the specified property is overridden.

Parameters

property [in] The property value to check if it's overridden from the corresponding detail view style. All applicable values are defined in the OverriddenProperty enumeration.

◆ modelEdgeBorderExtents()

OdResult OdDbDetailSymbol::modelEdgeBorderExtents ( OdGeExtents3d & extents ) const

Calculates model edge border extents.

Parameters

extents [out] Calculated extents.

Returns: eOk - if successful, corresponding error type - otherwise.

◆ modelEdgeDirection()

const OdGeVector3d & OdDbDetailSymbol::modelEdgeDirection ( ) const

Returns the model edge direction of this Detail Symbol entity.

◆ modelEdgeOrigin()

const OdGePoint3d & OdDbDetailSymbol::modelEdgeOrigin ( ) const

Returns the origin of the model edge of of this Detail Symbol entity.

◆ modelEdgeType()

OdDbDetailViewStyle::ModelEdge OdDbDetailSymbol::modelEdgeType ( ) const

Returns the type of the model edge as a value defined in the OdDbDetailViewStyle::ModelEdge enumeration.

◆ modified()

virtual void OdDbDetailSymbol::modified ( const OdDbObject * pObject )

protectedvirtual

Notification from detail view style. Invalidates Gs cache.

Reimplemented from OdDbObject.

◆ ODDB_DECLARE_MEMBERS()

OdDbDetailSymbol::ODDB_DECLARE_MEMBERS ( OdDbDetailSymbol )

◆ origin()

OdGePoint3d OdDbDetailSymbol::origin ( ) const

Returns the origin of this Detail Symbol entity.

◆ owningViewScale()

double OdDbDetailSymbol::owningViewScale ( ) const

Returns the scale parameter of the parent view.

◆ resetIdentifierPosition()

OdResult OdDbDetailSymbol::resetIdentifierPosition ( )

◆ setBoundarySize()

OdResult OdDbDetailSymbol::setBoundarySize ( const OdGeVector2d & size )

◆ setBoundaryType()

OdResult OdDbDetailSymbol::setBoundaryType ( OdDbDetailSymbol::BoundaryType bndType )

◆ setDetailViewScale()

OdResult OdDbDetailSymbol::setDetailViewScale ( double viewScale )

◆ setDisplayIdentifier()

OdResult OdDbDetailSymbol::setDisplayIdentifier ( const bool displayIdentifier )

◆ setIdentifierPosition()

OdResult OdDbDetailSymbol::setIdentifierPosition ( const OdGePoint3d & pt )

◆ setModelEdgeDirection()

OdResult OdDbDetailSymbol::setModelEdgeDirection ( const OdGeVector3d & dir )

◆ setModelEdgeOrigin()

OdResult OdDbDetailSymbol::setModelEdgeOrigin ( const OdGePoint3d & pt )

◆ setModelEdgeType()

OdResult OdDbDetailSymbol::setModelEdgeType ( OdDbDetailViewStyle::ModelEdge modelEdgeType )

◆ setOrigin()

OdResult OdDbDetailSymbol::setOrigin ( const OdGePoint3d & pt )

◆ setOwningViewScale()

OdResult OdDbDetailSymbol::setOwningViewScale ( double viewScale )

◆ setPickPoints()

OdResult OdDbDetailSymbol::setPickPoints ( const OdGePoint3dArray & pickPoints )

◆ subSetDatabaseDefaults()

virtual void OdDbDetailSymbol::subSetDatabaseDefaults	(	OdDbDatabase *	pDb,
		bool	doSubents )

protectedvirtual

Called by setDatabaseDefaults() after the values are set.

Parameters

pDb	[in] Pointer to the database whose default values are to be used.
doSubents	[in] Set to true if subentities should be processed

Remarks: If pDb is null, the database containing this entity is used.

This function allows custom classes to inspect and modify the values set by setDatabaseDefaults.

The default implementation of this function returns eNotApplicable. This function can be overridden in custom classes.

Remarks: This function is not intended to be called by the user.

Reimplemented from OdDbViewSymbol.

◆ subTransformBy()

virtual OdResult OdDbDetailSymbol::subTransformBy ( const OdGeMatrix3d & xfm )

protectedvirtual

Reimplemented from OdDbViewSymbol.

◆ subWorldDraw()

virtual bool OdDbDetailSymbol::subWorldDraw ( OdGiWorldDraw * pWorldDraw ) const

protectedvirtual

Reimplemented from OdDbViewSymbol.

The documentation for this class was generated from the following file:

DbDetailSymbol.h

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ BoundaryType

◆ OverriddenProperty

Constructor & Destructor Documentation

◆ OdDbDetailSymbol()

◆ ~OdDbDetailSymbol()

Member Function Documentation

◆ boundarySize()

◆ boundaryType()

◆ detailViewScale()

◆ direction()

◆ displayIdentifier()

◆ dwgInFields()

◆ dwgOutFields()

◆ dxfInFields()

◆ dxfOutFields()

◆ identifierPosition()

◆ initializeIdentifierPositionAt()

◆ isOverriddenProperty()

◆ modelEdgeBorderExtents()

◆ modelEdgeDirection()

◆ modelEdgeOrigin()

◆ modelEdgeType()

◆ modified()

◆ ODDB_DECLARE_MEMBERS()

◆ origin()

◆ owningViewScale()

◆ resetIdentifierPosition()

◆ setBoundarySize()

◆ setBoundaryType()

◆ setDetailViewScale()

◆ setDisplayIdentifier()

◆ setIdentifierPosition()

◆ setModelEdgeDirection()

◆ setModelEdgeOrigin()

◆ setModelEdgeType()

◆ setOrigin()

◆ setOwningViewScale()

◆ setPickPoints()

◆ subSetDatabaseDefaults()

◆ subTransformBy()

◆ subWorldDraw()
