#include <IfcRectangularTrimmedSurfaceAutoImpl.h>

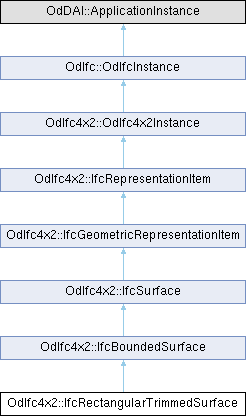

Inheritance diagram for OdIfc4x2::IfcRectangularTrimmedSurface:

Public Member Functions
const OdDAIObjectId &	getBasisSurface () const

void	setBasisSurface (const OdDAIObjectId &BasisSurface)

double	getU1 () const

void	setU1 (double U1)

double	getV1 () const

void	setV1 (double V1)

double	getU2 () const

void	setU2 (double U2)

double	getV2 () const

void	setV2 (double V2)

OdDAI::Boolean	getUsense () const

void	setUsense (OdDAI::Boolean Usense)

OdDAI::Boolean	getVsense () const

void	setVsense (OdDAI::Boolean Vsense)

	IfcRectangularTrimmedSurface ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_BasisSurface

double	m_U1

double	m_V1

double	m_U2

double	m_V2

OdDAI::Boolean	m_Usense

OdDAI::Boolean	m_Vsense

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcRectangularTrimmedSurface is a surface created by bounding its BasisSurface along two pairs of parallel curves defined within the parametric space of the referenced surface.

\changes

IFC4 changes: Type of the Usense attribute changed from "boolean" to "IfcBoolean" Type of the Vsense attribute changed from "boolean" to "IfcBoolean"

Definition at line 48 of file Ifc4x2/IfcRectangularTrimmedSurfaceAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcRectangularTrimmedSurface()

OdIfc4x2::IfcRectangularTrimmedSurface::IfcRectangularTrimmedSurface ( )

Default constructor for the IfcRectangularTrimmedSurface class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcRectangularTrimmedSurface::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcRectangularTrimmedSurface::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ getBasisSurface()

const OdDAIObjectId & OdIfc4x2::IfcRectangularTrimmedSurface::getBasisSurface ( ) const

Returns the value of BasisSurface attribute. This attribute represents a surface that is trimmed.

Returns: Returns the value of BasisSurface attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcRectangularTrimmedSurface::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcBoundedSurface.

◆ getU1()

double OdIfc4x2::IfcRectangularTrimmedSurface::getU1 ( ) const

Returns the value of U1 attribute. This attribute represents the first u parametric value.

Returns: Returns the value of U1 attribute.

◆ getU2()

double OdIfc4x2::IfcRectangularTrimmedSurface::getU2 ( ) const

Returns the value of U2 attribute. This attribute represents the second u parametric value.

Returns: Returns the value of U2 attribute.

◆ getUsense()

OdDAI::Boolean OdIfc4x2::IfcRectangularTrimmedSurface::getUsense ( ) const

Returns the value of Usense attribute. This attribute indicates whether the direction of the first parameter of the trimmed surface agrees with or opposes the sense of u in the basis surface.

Returns: Returns the value of Usense attribute.

◆ getV1()

double OdIfc4x2::IfcRectangularTrimmedSurface::getV1 ( ) const

Returns the value of V1 attribute. This attribute represents the first v parametric value.

Returns: Returns the value of V1 attribute.

◆ getV2()

double OdIfc4x2::IfcRectangularTrimmedSurface::getV2 ( ) const

Returns the value of V2 attribute. This attribute represents the second v parametric value.

Returns: Returns the value of V2 attribute.

◆ getVsense()

OdDAI::Boolean OdIfc4x2::IfcRectangularTrimmedSurface::getVsense ( ) const

Returns the value of Vsense attribute. This attribute indicates whether the direction of the second parameter of the trimmed surface agrees with or opposes the sense of v in the basis surface.

Returns: Returns the value of Vsense attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcRectangularTrimmedSurface::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ isKindOf()

virtual bool OdIfc4x2::IfcRectangularTrimmedSurface::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcBoundedSurface.

◆ outFields()

virtual OdResult OdIfc4x2::IfcRectangularTrimmedSurface::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcRectangularTrimmedSurface::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcRectangularTrimmedSurface::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ setBasisSurface()

void OdIfc4x2::IfcRectangularTrimmedSurface::setBasisSurface ( const OdDAIObjectId & BasisSurface )

Sets the value of BasisSurface attribute. This attribute represents a surface that is trimmed.

Parameters

BasisSurface [in] Basis surface to set.

◆ setU1()

void OdIfc4x2::IfcRectangularTrimmedSurface::setU1 ( double U1 )

Sets the value of U1 attribute. This attribute represents the first u parametric value.

Parameters

U1	[in] U1 to set.

◆ setU2()

void OdIfc4x2::IfcRectangularTrimmedSurface::setU2 ( double U2 )

Sets the value of U2 attribute. This attribute represents the second u parametric value.

Parameters

U2	[in] U2 to set.

◆ setUsense()

void OdIfc4x2::IfcRectangularTrimmedSurface::setUsense ( OdDAI::Boolean Usense )

Sets the value of Usense attribute. This attribute indicates whether the direction of the first parameter of the trimmed surface agrees with or opposes the sense of u in the basis surface.

Parameters

Usense [in] Usense to set.

◆ setV1()

void OdIfc4x2::IfcRectangularTrimmedSurface::setV1 ( double V1 )

Sets the value of V1 attribute. This attribute represents the first v parametric value.

Parameters

V1	[in] V1 to set.

◆ setV2()

void OdIfc4x2::IfcRectangularTrimmedSurface::setV2 ( double V2 )

Sets the value of V2 attribute. This attribute represents the second v parametric value.

Parameters

V2	[in] V2 to set.

◆ setVsense()

void OdIfc4x2::IfcRectangularTrimmedSurface::setVsense ( OdDAI::Boolean Vsense )

Sets the value of Vsense attribute. This attribute indicates whether the direction of the second parameter of the trimmed surface agrees with or opposes the sense of v in the basis surface.

Parameters

Vsense [in] Vsense to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcRectangularTrimmedSurface::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcRectangularTrimmedSurface::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcRectangularTrimmedSurface::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcBoundedSurface.

◆ unsetAttr() [1/2]

virtual void OdIfc4x2::IfcRectangularTrimmedSurface::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

◆ unsetAttr() [2/2]

virtual void OdIfc4x2::IfcRectangularTrimmedSurface::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

Member Data Documentation

◆ m_BasisSurface

OdDAIObjectId OdIfc4x2::IfcRectangularTrimmedSurface::m_BasisSurface

protected

Definition at line 281 of file Ifc4x2/IfcRectangularTrimmedSurfaceAutoImpl.h.

◆ m_U1

double OdIfc4x2::IfcRectangularTrimmedSurface::m_U1

protected

Definition at line 282 of file Ifc4x2/IfcRectangularTrimmedSurfaceAutoImpl.h.

◆ m_U2

double OdIfc4x2::IfcRectangularTrimmedSurface::m_U2

protected

Definition at line 284 of file Ifc4x2/IfcRectangularTrimmedSurfaceAutoImpl.h.

◆ m_Usense

OdDAI::Boolean OdIfc4x2::IfcRectangularTrimmedSurface::m_Usense

protected

Definition at line 286 of file Ifc4x2/IfcRectangularTrimmedSurfaceAutoImpl.h.

◆ m_V1

double OdIfc4x2::IfcRectangularTrimmedSurface::m_V1

protected

Definition at line 283 of file Ifc4x2/IfcRectangularTrimmedSurfaceAutoImpl.h.

◆ m_V2

double OdIfc4x2::IfcRectangularTrimmedSurface::m_V2

protected

Definition at line 285 of file Ifc4x2/IfcRectangularTrimmedSurfaceAutoImpl.h.

◆ m_Vsense

OdDAI::Boolean OdIfc4x2::IfcRectangularTrimmedSurface::m_Vsense

protected

Definition at line 287 of file Ifc4x2/IfcRectangularTrimmedSurfaceAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x2/IfcRectangularTrimmedSurfaceAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcRectangularTrimmedSurface()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getBasisSurface()

◆ getInstanceType()

◆ getU1()

◆ getU2()

◆ getUsense()

◆ getV1()

◆ getV2()

◆ getVsense()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setBasisSurface()

◆ setU1()

◆ setU2()

◆ setUsense()

◆ setV1()

◆ setV2()

◆ setVsense()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_BasisSurface

◆ m_U1

◆ m_U2

◆ m_Usense

◆ m_V1

◆ m_V2

◆ m_Vsense
