#include <IfcBSplineSurfaceAutoImpl.h>

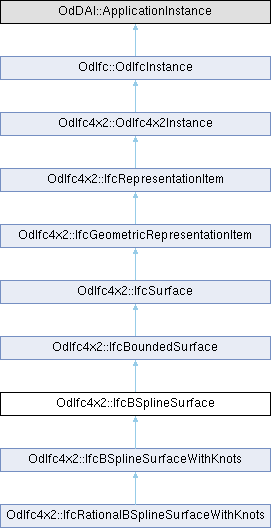

Inheritance diagram for OdIfc4x2::IfcBSplineSurface:

Public Member Functions
int	getUDegree () const

void	setUDegree (int UDegree)

int	getVDegree () const

void	setVDegree (int VDegree)

void	getControlPointsList (OdArray< OdDAIObjectIds > &ControlPointsList) const

OdDAI::List< OdDAI::Aggr * > &	controlPointsList ()

IfcBSplineSurfaceForm	getSurfaceForm () const

void	setSurfaceForm (IfcBSplineSurfaceForm SurfaceForm)

OdDAI::Logical	getUClosed () const

void	setUClosed (OdDAI::Logical UClosed)

OdDAI::Logical	getVClosed () const

void	setVClosed (OdDAI::Logical VClosed)

OdDAI::Logical	getSelfIntersect () const

void	setSelfIntersect (OdDAI::Logical SelfIntersect)

	IfcBSplineSurface ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
int	m_UDegree

int	m_VDegree

OdDAI::List< OdDAI::Aggr * >	m_ControlPointsList

OdDAI::Enum	m_SurfaceForm

OdDAI::Logical	m_UClosed

OdDAI::Logical	m_VClosed

OdDAI::Logical	m_SelfIntersect

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcBSplineSurface is a general form of rational or polynomial parametric surface. The descriptions of symbols used below:

Variable Definition K1 Upper index on U control points K2 Upper index on V control points P_ij Control points w_ij Weights d1 U degree d2 V degree

The control points are ordered as: P₀₀, P₀₁, P₀₂, ..., P_K1(K2-1), P_K1K2

The weights, in the case of the rational subtype, are ordered similarly.

For each parameter, s = u or v, if k is the upper index on the control points and d is the degree for s, the knot array is an array of (k + d + 2) real numbers [s_-d, ...., s_k+1], such that for all indices j in [-d, k]; s_j ≤ s_j+1. This array is obtained from the appropriate u_knots or v_knots list by repeating each multiple knot according to the multiplicity.

Remarks: This definition may not be instantiated.

Definition at line 62 of file Ifc4x2/IfcBSplineSurfaceAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcBSplineSurface()

OdIfc4x2::IfcBSplineSurface::IfcBSplineSurface ( )

Default constructor for the IfcBSplineSurface class.

Member Function Documentation

◆ controlPointsList()

OdDAI::List< OdDAI::Aggr * > & OdIfc4x2::IfcBSplineSurface::controlPointsList ( )

Returns the value of ControlPointsList attribute. This attribute represents this is a list of lists of control points.

Returns: Returns the value of ControlPointsList attribute.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcBSplineSurface::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc4x2::IfcBSplineSurfaceWithKnots, and OdIfc4x2::IfcRationalBSplineSurfaceWithKnots.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcBSplineSurface::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

Reimplemented in OdIfc4x2::IfcBSplineSurfaceWithKnots, and OdIfc4x2::IfcRationalBSplineSurfaceWithKnots.

◆ getControlPointsList()

void OdIfc4x2::IfcBSplineSurface::getControlPointsList ( OdArray< OdDAIObjectIds > & ControlPointsList ) const

Gets the value of ControlPointsList attribute. This attribute represents this is a list of lists of control points.

Parameters

ControlPointsList [out] Receives the control points list.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcBSplineSurface::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcBoundedSurface.

Reimplemented in OdIfc4x2::IfcBSplineSurfaceWithKnots, and OdIfc4x2::IfcRationalBSplineSurfaceWithKnots.

◆ getSelfIntersect()

OdDAI::Logical OdIfc4x2::IfcBSplineSurface::getSelfIntersect ( ) const

Returns the value of SelfIntersect attribute. This attribute indicates whether the surface is self-intersecting.

Returns: Returns the value of SelfIntersect attribute.

◆ getSurfaceForm()

IfcBSplineSurfaceForm OdIfc4x2::IfcBSplineSurface::getSurfaceForm ( ) const

Returns the value of SurfaceForm attribute. This attribute represents indicator of special surface types.

Returns: Returns the value of SurfaceForm attribute.

◆ getUClosed()

OdDAI::Logical OdIfc4x2::IfcBSplineSurface::getUClosed ( ) const

Returns the value of UClosed attribute. This attribute indicates whether the surface is closed in the u direction.

Returns: Returns the value of UClosed attribute.

◆ getUDegree()

int OdIfc4x2::IfcBSplineSurface::getUDegree ( ) const

Returns the value of UDegree attribute. This attribute represents algebraic degree of basis functions in u.

Returns: Returns the value of UDegree attribute.

◆ getVClosed()

OdDAI::Logical OdIfc4x2::IfcBSplineSurface::getVClosed ( ) const

Returns the value of VClosed attribute. This attribute indicates whether the surface is closed in the v direction.

Returns: Returns the value of VClosed attribute.

◆ getVDegree()

int OdIfc4x2::IfcBSplineSurface::getVDegree ( ) const

Returns the value of VDegree attribute. This attribute represents algebraic degree of basis functions in v.

Returns: Returns the value of VDegree attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcBSplineSurface::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

Reimplemented in OdIfc4x2::IfcBSplineSurfaceWithKnots, and OdIfc4x2::IfcRationalBSplineSurfaceWithKnots.

◆ isKindOf()

virtual bool OdIfc4x2::IfcBSplineSurface::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcBoundedSurface.

Reimplemented in OdIfc4x2::IfcBSplineSurfaceWithKnots, and OdIfc4x2::IfcRationalBSplineSurfaceWithKnots.

◆ outFields()

virtual OdResult OdIfc4x2::IfcBSplineSurface::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

Reimplemented in OdIfc4x2::IfcBSplineSurfaceWithKnots, and OdIfc4x2::IfcRationalBSplineSurfaceWithKnots.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcBSplineSurface::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcBSplineSurfaceWithKnots, and OdIfc4x2::IfcRationalBSplineSurfaceWithKnots.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcBSplineSurface::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

Reimplemented in OdIfc4x2::IfcBSplineSurfaceWithKnots, and OdIfc4x2::IfcRationalBSplineSurfaceWithKnots.

◆ setSelfIntersect()

void OdIfc4x2::IfcBSplineSurface::setSelfIntersect ( OdDAI::Logical SelfIntersect )

Sets the value of SelfIntersect attribute. This attribute indicates whether the surface is self-intersecting.

Parameters

SelfIntersect [in] SelfIntersect attribute to set.

◆ setSurfaceForm()

void OdIfc4x2::IfcBSplineSurface::setSurfaceForm ( IfcBSplineSurfaceForm SurfaceForm )

Sets the value of SurfaceForm attribute. This attribute represents indicator of special surface types.

Parameters

SurfaceForm [in] Surface form to set.

◆ setUClosed()

void OdIfc4x2::IfcBSplineSurface::setUClosed ( OdDAI::Logical UClosed )

Sets the value of UClosed attribute. This attribute indicates whether the surface is closed in the u direction.

Parameters

UClosed [in] UClosed attribute to set.

◆ setUDegree()

void OdIfc4x2::IfcBSplineSurface::setUDegree ( int UDegree )

Sets the value of UDegree attribute. This attribute represents algebraic degree of basis functions in u.

Parameters

UDegree [in] U degree to set.

◆ setVClosed()

void OdIfc4x2::IfcBSplineSurface::setVClosed ( OdDAI::Logical VClosed )

Sets the value of VClosed attribute. This attribute indicates whether the surface is closed in the v direction.

Parameters

VClosed [in] VClosed attribute to set.

◆ setVDegree()

void OdIfc4x2::IfcBSplineSurface::setVDegree ( int VDegree )

Sets the value of VDegree attribute. This attribute represents algebraic degree of basis functions in v.

Parameters

VDegree [in] V degree to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcBSplineSurface::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

Reimplemented in OdIfc4x2::IfcBSplineSurfaceWithKnots, and OdIfc4x2::IfcRationalBSplineSurfaceWithKnots.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcBSplineSurface::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcRepresentationItem.

Reimplemented in OdIfc4x2::IfcBSplineSurfaceWithKnots, and OdIfc4x2::IfcRationalBSplineSurfaceWithKnots.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcBSplineSurface::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcBoundedSurface.

Reimplemented in OdIfc4x2::IfcBSplineSurfaceWithKnots, and OdIfc4x2::IfcRationalBSplineSurfaceWithKnots.
