#include <IfcStyledItemAutoImpl.h>

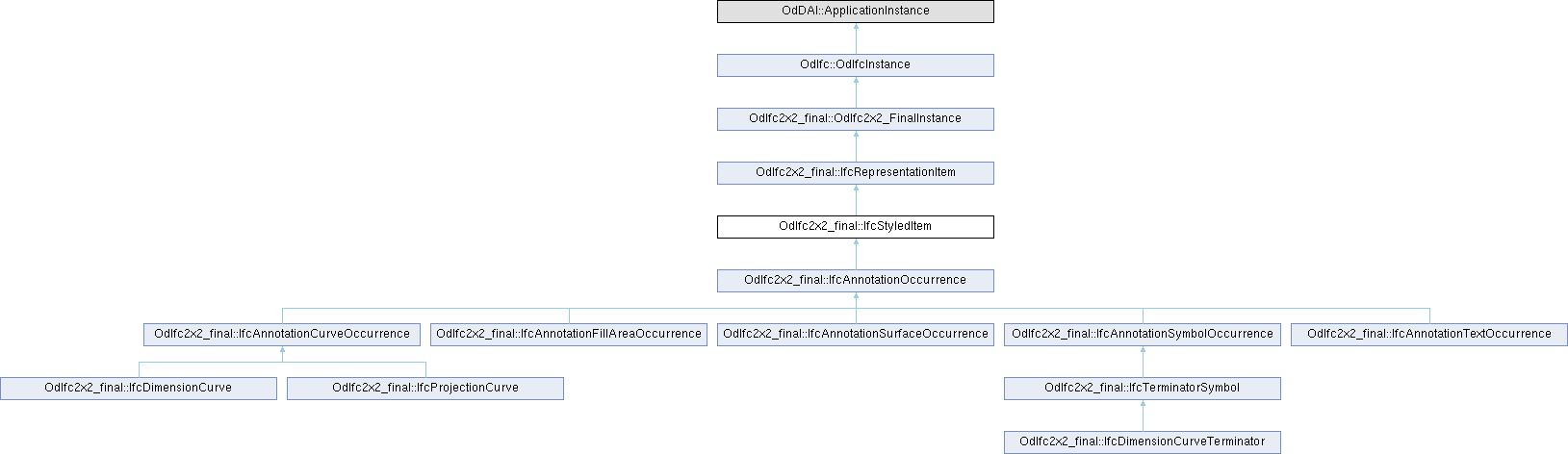

Inheritance diagram for OdIfc2x2_final::IfcStyledItem:

Public Member Functions
const OdDAIObjectId &	getItem () const

void	setItem (const OdDAIObjectId &Item)

void	getStyles (OdDAIObjectIds &Styles) const

OdDAI::SetOfOdDAIObjectId &	styles ()

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

	IfcStyledItem ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Item

OdDAI::SetOfOdDAIObjectId	m_Styles

OdAnsiString	m_Name

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcStyledItem holds presentation style information for products, either explicitly for an IfcGeometricRepresentationItem being part of an IfcShapeRepresentation assigned to a product, or by assigning presentation information to IfcMaterial being assigned as other representation for a product. If the IfcStyledItem is used within a reference from an IfcProductDefinitionShape then one Item is provided. If the IfcStyledItem is used within a reference from an IfcMaterialDefinitionRepresentation then no Item is provided.

Example - The image below illustrates use of IfcStyledItem for the two usage examples: As a presentation for a geometric representation item As a presentation for a material definition

The new IfcStyleAssignmentSelect allows the direct assignment styles, such as IfcCurveStyle, IfcSurfaceStyle without using the intermediate IfcPresentationStyleAssignment.

Definition at line 54 of file Ifc2x2_Final/IfcStyledItemAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcStyledItem()

OdIfc2x2_final::IfcStyledItem::IfcStyledItem ( )

Default constructor for the IfcStyledItem class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcStyledItem::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc2x2_final::IfcAnnotationFillAreaOccurrence, OdIfc2x2_final::IfcDimensionCurve, OdIfc2x2_final::IfcDimensionCurveTerminator, and OdIfc2x2_final::IfcTerminatorSymbol.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcStyledItem::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcAnnotationFillAreaOccurrence, OdIfc2x2_final::IfcDimensionCurve, OdIfc2x2_final::IfcDimensionCurveTerminator, and OdIfc2x2_final::IfcTerminatorSymbol.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcStyledItem::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcRepresentationItem.

Reimplemented in OdIfc2x2_final::IfcAnnotationCurveOccurrence, OdIfc2x2_final::IfcAnnotationFillAreaOccurrence, OdIfc2x2_final::IfcAnnotationOccurrence, OdIfc2x2_final::IfcAnnotationSurfaceOccurrence, OdIfc2x2_final::IfcAnnotationSymbolOccurrence, OdIfc2x2_final::IfcAnnotationTextOccurrence, OdIfc2x2_final::IfcDimensionCurve, OdIfc2x2_final::IfcDimensionCurveTerminator, OdIfc2x2_final::IfcProjectionCurve, and OdIfc2x2_final::IfcTerminatorSymbol.

◆ getItem()

const OdDAIObjectId & OdIfc2x2_final::IfcStyledItem::getItem ( ) const

Returns the value of Item attribute. This attribute represents a geometric representation item to which the style is assigned.

Returns: Returns the value of Item attribute.

Remarks: IFC2x2 change: The attribute Item has been made optional. Upward compatibility for file based exchange is guaranteed.

◆ getName()

const OdAnsiString & OdIfc2x2_final::IfcStyledItem::getName ( ) const

Returns the value of Name attribute. This attribute represents the word, or group of words, by which the styled item is referred to.

Returns: Returns the value of Name attribute.

◆ getStyles()

void OdIfc2x2_final::IfcStyledItem::getStyles ( OdDAIObjectIds & Styles ) const

Gets the value of Styles attribute. This attribute represents representation styles which are assigned, either to an geometric representation item, or to a material definition.

Parameters

Styles [out] Receives the Styles attribute.

Remarks: IFC4 change: The data type has been changed to IfcStyleAssignmentSelect with upward compatibility for file based exchange. Only the select item IfcPresentationStyle is used from IFC4 onwards, the IfcPresentationStyleAssignment has been deprecated.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcStyledItem::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x2_final::IfcAnnotationFillAreaOccurrence, OdIfc2x2_final::IfcDimensionCurve, OdIfc2x2_final::IfcDimensionCurveTerminator, and OdIfc2x2_final::IfcTerminatorSymbol.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcStyledItem::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRepresentationItem.

Reimplemented in OdIfc2x2_final::IfcAnnotationCurveOccurrence, OdIfc2x2_final::IfcAnnotationFillAreaOccurrence, OdIfc2x2_final::IfcAnnotationOccurrence, OdIfc2x2_final::IfcAnnotationSurfaceOccurrence, OdIfc2x2_final::IfcAnnotationSymbolOccurrence, OdIfc2x2_final::IfcAnnotationTextOccurrence, OdIfc2x2_final::IfcDimensionCurve, OdIfc2x2_final::IfcDimensionCurveTerminator, OdIfc2x2_final::IfcProjectionCurve, and OdIfc2x2_final::IfcTerminatorSymbol.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcStyledItem::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x2_final::IfcAnnotationFillAreaOccurrence, OdIfc2x2_final::IfcDimensionCurve, OdIfc2x2_final::IfcDimensionCurveTerminator, and OdIfc2x2_final::IfcTerminatorSymbol.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcStyledItem::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcAnnotationFillAreaOccurrence, OdIfc2x2_final::IfcDimensionCurve, OdIfc2x2_final::IfcDimensionCurveTerminator, and OdIfc2x2_final::IfcTerminatorSymbol.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcStyledItem::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcAnnotationFillAreaOccurrence, OdIfc2x2_final::IfcDimensionCurve, OdIfc2x2_final::IfcDimensionCurveTerminator, and OdIfc2x2_final::IfcTerminatorSymbol.

◆ setItem()

void OdIfc2x2_final::IfcStyledItem::setItem ( const OdDAIObjectId & Item )

Sets the value of Item attribute. This attribute represents a geometric representation item to which the style is assigned.

Parameters

Item	[in] Item to set.

Remarks: IFC2x2 change: The attribute Item has been made optional. Upward compatibility for file based exchange is guaranteed.

◆ setName()

void OdIfc2x2_final::IfcStyledItem::setName ( const OdAnsiString & Name )

Sets the value of Name attribute. This attribute represents the word, or group of words, by which the styled item is referred to.

Parameters

Name	[in] Name to set.

◆ styles()

OdDAI::SetOfOdDAIObjectId & OdIfc2x2_final::IfcStyledItem::styles ( )

Returns the value of Styles attribute. This attribute represents representation styles which are assigned, either to an geometric representation item, or to a material definition.

Returns: Returns the value of Styles attribute.

Remarks: IFC4 change: The data type has been changed to IfcStyleAssignmentSelect with upward compatibility for file based exchange. Only the select item IfcPresentationStyle is used from IFC4 onwards, the IfcPresentationStyleAssignment has been deprecated.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcStyledItem::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcAnnotationFillAreaOccurrence, OdIfc2x2_final::IfcDimensionCurve, OdIfc2x2_final::IfcDimensionCurveTerminator, and OdIfc2x2_final::IfcTerminatorSymbol.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcStyledItem::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcAnnotationFillAreaOccurrence, OdIfc2x2_final::IfcDimensionCurve, OdIfc2x2_final::IfcDimensionCurveTerminator, and OdIfc2x2_final::IfcTerminatorSymbol.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcStyledItem::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcRepresentationItem.

Reimplemented in OdIfc2x2_final::IfcAnnotationCurveOccurrence, OdIfc2x2_final::IfcAnnotationFillAreaOccurrence, OdIfc2x2_final::IfcAnnotationOccurrence, OdIfc2x2_final::IfcAnnotationSurfaceOccurrence, OdIfc2x2_final::IfcAnnotationSymbolOccurrence, OdIfc2x2_final::IfcAnnotationTextOccurrence, OdIfc2x2_final::IfcDimensionCurve, OdIfc2x2_final::IfcDimensionCurveTerminator, OdIfc2x2_final::IfcProjectionCurve, and OdIfc2x2_final::IfcTerminatorSymbol.
