OdIfc2x2_final::IfcDimensionCurve Class Reference

#include <IfcDimensionCurveAutoImpl.h>

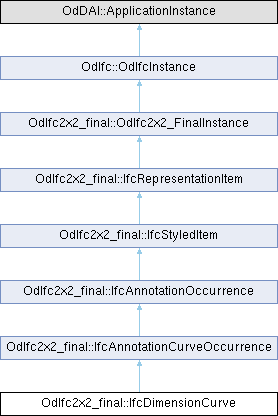

Inheritance diagram for OdIfc2x2_final::IfcDimensionCurve:
OdIfc2x2_final::IfcAnnotationCurveOccurrence OdIfc2x2_final::IfcAnnotationOccurrence OdIfc2x2_final::IfcStyledItem OdIfc2x2_final::IfcRepresentationItem OdIfc2x2_final::OdIfc2x2_FinalInstance OdIfc::OdIfcInstance

Public Member Functions

void getInvAnnotatedBySymbols (OdDAIObjectIds &AnnotatedBySymbols) const

virtual OdResult inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity * getInstanceType () const override

virtual void unsetAttr (const char *explicitAttrName) override

virtual bool testAttr (const char *explicitAttrName) const override

virtual bool isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType type () const override

virtual OdRxValue getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

- Public Member Functions inherited from OdIfc2x2_final::IfcStyledItem
const OdDAIObjectId & getItem () const

void setItem (const OdDAIObjectId &Item)

void getStyles (OdDAIObjectIds &Styles) const

OdDAI::SetOfOdDAIObjectId & styles ()

const OdAnsiString & getName () const

void setName (const OdAnsiString &Name)

 IfcStyledItem ()

- Public Member Functions inherited from OdIfc::OdIfcInstance
 ODRX_DECLARE_MEMBERS (OdIfcInstance)

 OdIfcInstance ()

 ~OdIfcInstance ()

bool isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult resolved ()

void resolve (IfcOpResult resolved, void *resPtr)

void unresolve ()

virtual void setGsNode (OdGsCache *pGsNode)

virtual OdGsCache * gsNode () const

virtual OdUInt32 subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub * ownerId () const


Protected Member Functions

virtual OdRxValue getAttr (const char *attrName) const override

virtual bool putAttr (const char *explicitAttrName, const OdRxValue &val) override


Friends

class IfcTerminatorSymbol


Additional Inherited Members

- Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d * asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d * asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d * asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d * asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d * asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d * asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor * asRgbColor (const OdIfcInstance *inst)

- Protected Attributes inherited from OdIfc2x2_final::IfcStyledItem
OdDAIObjectId m_Item

OdDAI::SetOfOdDAIObjectId m_Styles

OdAnsiString m_Name

- Protected Attributes inherited from OdIfc::OdIfcInstance
void * m_resPtr

IfcOpResult m_resolved


Detailed Description

A dimension curve is an annotated curve within a dimension that has the dimension text and can have terminator symbols assigned. It is used to present the extent and the direction of the dimension.

Definition at line 41 of file Ifc2x2_Final/IfcDimensionCurveAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcStyledItem::getAttr ( const char * attrName) const
overrideprotectedvirtual

Returns an attribute value for the specified attribute name.

Parameters
attrName[in] Name of an attribute to query.
Returns
OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcStyledItem.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcDimensionCurve::getAttr ( const OdIfc::OdIfcAttribute attrDef) const
overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters
attrDef[in] Attribute definition to query.
Returns
OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcStyledItem.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcDimensionCurve::getInstanceType ( ) const
overridevirtual

Returns a type of a class instance.

Returns
Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcAnnotationCurveOccurrence.

◆ getInvAnnotatedBySymbols()

void OdIfc2x2_final::IfcDimensionCurve::getInvAnnotatedBySymbols ( OdDAIObjectIds & AnnotatedBySymbols) const

Returns the value of AnnotatedBySymbols attribute. This attribute represents a reference to the terminator symbols that can be assigned to the dimension curve. There is either zero, one or two terminator symbols assigned.

Returns
Returns the value of AnnotatedBySymbols attribute.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcDimensionCurve::inFields ( OdDAI::OdSpfFilerBase * rdFiler)
overridevirtual

Reads object's data from the specified filer.

Parameters
rdFiler[in] Pointer to a filer from which to read the data.
Returns
A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcStyledItem.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcDimensionCurve::isKindOf ( OdIfc::OdIfcEntityType entityType) const
overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters
entityType[in] Entity to check.
Returns
true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcAnnotationCurveOccurrence.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcDimensionCurve::outFields ( OdDAI::OdSpfFilerBase * wrFiler)
overridevirtual

Writes object's data the the specified filer.

Parameters
wrFiler[in] Pointer to a filer to which to write the data.
Returns
A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcStyledItem.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcStyledItem::putAttr ( const char * explicitAttrName,
const OdRxValue & val )
overrideprotectedvirtual

Sets the specified attribute with a given value.

Parameters
explicitAttrName[in] Explicit name of the attribute to set.
val[in] Value to set.
Returns
true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcStyledItem.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcDimensionCurve::putAttr ( const OdIfc::OdIfcAttribute explicitAttrDef,
const OdRxValue & val )
overridevirtual

Sets the specified attribute with a given value.

Parameters
explicitAttrDef[in] Explicit attribute definition to set.
val[in] Value to set.
Returns
true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcStyledItem.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcDimensionCurve::testAttr ( const char * explicitAttrName) const
overridevirtual

Checks whether the specified attribute is set.

Parameters
explicitAttrName[in] Explicit name of the attribute to test.
Returns
true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcStyledItem.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcDimensionCurve::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef) const
overridevirtual

Checks whether the specified attribute is set.

Parameters
explicitAttrDef[in] Attribute definition to test.
Returns
true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcStyledItem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcDimensionCurve::type ( ) const
overridevirtual

Returns the type of this entity.

Returns
A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcAnnotationCurveOccurrence.

◆ unsetAttr() [1/2]

virtual void OdIfc2x2_final::IfcDimensionCurve::unsetAttr ( const char * explicitAttrName)
overridevirtual

Resets a value for the specified attribute.

Parameters
explicitAttrName[in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x2_final::IfcStyledItem.

◆ unsetAttr() [2/2]

virtual void OdIfc2x2_final::IfcDimensionCurve::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef)
overridevirtual

Resets a value for the specified attribute.

Parameters
explicitAttrDef[in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x2_final::IfcStyledItem.

Friends And Related Symbol Documentation

◆ IfcTerminatorSymbol

friend class IfcTerminatorSymbol
friend

Definition at line 158 of file Ifc2x2_Final/IfcDimensionCurveAutoImpl.h.

The documentation for this class was generated from the following file:
