#include <IfcZoneAutoImpl.h>

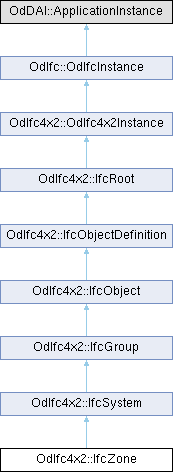

Inheritance diagram for OdIfc4x2::IfcZone:

Public Member Functions
const OdAnsiString &	getLongName () const

void	setLongName (const OdAnsiString &LongName)

	IfcZone ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcSystem
void	getInvServicesBuildings (OdDAIObjectIds &ServicesBuildings) const

Public Member Functions inherited from OdIfc4x2::IfcGroup
void	getInvIsGroupedBy (OdDAIObjectIds &IsGroupedBy) const

Public Member Functions inherited from OdIfc4x2::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x2::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_LongName

Protected Attributes inherited from OdIfc4x2::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A zone is a group of spaces, partial spaces or other zones. Zone structures may not be hierarchical (in contrary to the spatial structure of a project - see IfcSpatialStructureElement), i.e. one individual IfcSpace can be associated with zero, one, or several IfcZone's. IfcSpace's are grouped into an IfcZone by using the objectified relationship IfcRelAssignsToGroup as specified at the supertype IfcGroup.

Property Sets for Objects - The Property Sets for Objects concept template applies to this entity under Pset_ZoneCommon name as shown in table below:

Template

PropertyName Value Single Value Reference IfcIdentifier Single Value IsExternal IfcBoolean Single Value GrossPlannedArea IfcAreaMeasure Single Value NetPlannedArea IfcAreaMeasure Single Value PubliclyAccessible IfcBoolean Single Value HandicapAccessible IfcBoolean

The concept also applies to this entity under the Pset_ZoneCommon name:

Template PropertyName Value Single Value Name IfcLabel Single Value Description IfcLabel Single Value TotalAirflow IfcVolumetricFlowRateMeasure Single Value EnergyGainTotal IfcPowerMeasure Single Value AirflowSensible IfcVolumetricFlowRateMeasure Single Value EnergyGainSensible IfcPowerMeasure Single Value EnergyLoss IfcPowerMeasure Single Value LightingDiversity IfcPositiveRatioMeasure Single Value InfiltrationDiversitySummer IfcPositiveRatioMeasure Single Value InfiltrationDiversityWinter IfcPositiveRatioMeasure Single Value ApplianceDiversity IfcPositiveRatioMeasure Single Value LoadSafetyFactor IfcPositiveRatioMeasure Single Value HeatingTemperatureDelta IfcThermodynamicTemperatureMeasure Single Value CoolingTemperatureDelta IfcThermodynamicTemperatureMeasure Single Value Ventilation IfcVolumetricFlowRateMeasure Single Value FanPower IfcPowerMeasure Enumerated Value AirSideSystemType IfcLabel Enumerated Value AirSideSystemDistributionType IfcLabel

Group Assignment - An IfcZone is a spatial system under which individual IfcSpace's (and other IfcZone's) are grouped. In contrary to the IfcSpatialZone entity, IfcZone is a mere grouping, it can not define an own geometric representation and placement. Therefore it cannot be used for spatial zones having a different shape and size compared to the shape and size of aggregated spaces.

In case of a zone denoting a (fire) compartment, the following types should be used, if applicable, as values of the ObjectType attribute: 'FireCompartment': a zone of spaces, collected to represent a single fire compartment. 'ElevatorShaft': a collection of spaces within an elevator, potentially going through many storeys. 'RisingDuct': A collection of vertical airspaces. 'RunningDuct': A collection of horizontal airspaces.

\changes

IFC4 changes: The entity is now subtyped from IfcSystem (not its supertype IfcGroup) with upward compatibility for file-based exchange.

Definition at line 94 of file Ifc4x2/IfcZoneAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcZone()

OdIfc4x2::IfcZone::IfcZone ( )

Default constructor for the IfcZone class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcZone::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcSystem.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcZone::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcSystem.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcZone::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcSystem.

◆ getLongName()

const OdAnsiString & OdIfc4x2::IfcZone::getLongName ( ) const

Returns the value of LongName attribute. This attribute represents long name for a zone, used for informal purposes. It should be used, if available, in conjunction with the inherited Name attribute.

Returns: Returns the value of LongName attribute.

Remarks: In many scenarios the Name attribute refers to the short name or number of a zone, and the LongName refers to the full name. IFC4 CHANGE: The attribute has been added at the end of the entity definition.

◆ inFields()

virtual OdResult OdIfc4x2::IfcZone::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcSystem.

◆ isKindOf()

virtual bool OdIfc4x2::IfcZone::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcSystem.

◆ outFields()

virtual OdResult OdIfc4x2::IfcZone::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcSystem.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcZone::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcSystem.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcZone::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcSystem.

◆ setLongName()

void OdIfc4x2::IfcZone::setLongName ( const OdAnsiString & LongName )

Sets the value of LongName attribute. This attribute represents long name for a zone, used for informal purposes. It should be used, if available, in conjunction with the inherited Name attribute.

Parameters

LongName [in] Long name to set.

Remarks: In many scenarios the Name attribute refers to the short name or number of a zone, and the LongName refers to the full name. IFC4 CHANGE: The attribute has been added at the end of the entity definition.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcZone::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcSystem.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcZone::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcSystem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcZone::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcSystem.

◆ unsetAttr() [1/2]

virtual void OdIfc4x2::IfcZone::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x2::IfcSystem.

◆ unsetAttr() [2/2]

virtual void OdIfc4x2::IfcZone::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x2::IfcSystem.

Member Data Documentation

◆ m_LongName

OdAnsiString OdIfc4x2::IfcZone::m_LongName

protected

Definition at line 241 of file Ifc4x2/IfcZoneAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x2/IfcZoneAutoImpl.h
