#include <IfcReinforcingBarAutoImpl.h>

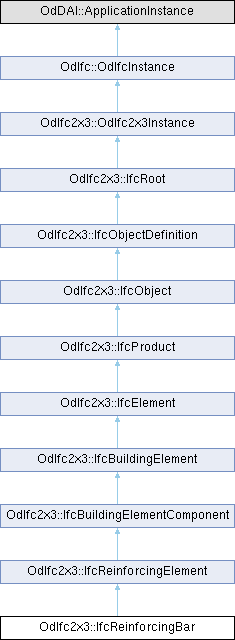

Inheritance diagram for OdIfc2x3::IfcReinforcingBar:

Public Member Functions
double	getNominalDiameter () const

void	setNominalDiameter (double NominalDiameter)

double	getCrossSectionArea () const

void	setCrossSectionArea (double CrossSectionArea)

double	getBarLength () const

void	setBarLength (double BarLength)

IfcReinforcingBarRoleEnum	getBarRole () const

void	setBarRole (IfcReinforcingBarRoleEnum BarRole)

IfcReinforcingBarSurfaceEnum	getBarSurface () const

void	setBarSurface (IfcReinforcingBarSurfaceEnum BarSurface)

	IfcReinforcingBar ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcReinforcingElement
const OdAnsiString &	getSteelGrade () const

void	setSteelGrade (const OdAnsiString &SteelGrade)

	IfcReinforcingElement ()

Public Member Functions inherited from OdIfc2x3::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvHasStructuralMember (OdDAIObjectIds &HasStructuralMember) const

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasPorts (OdDAIObjectIds &HasPorts) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

	IfcElement ()

Public Member Functions inherited from OdIfc2x3::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc2x3::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x3::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcPositiveLengthMeasure	m_NominalDiameter

double	m_CrossSectionArea

IfcPositiveLengthMeasure	m_BarLength

OdDAI::Enum	m_BarRole

OdDAI::Enum	m_BarSurface

Protected Attributes inherited from OdIfc2x3::IfcReinforcingElement
OdAnsiString	m_SteelGrade

Protected Attributes inherited from OdIfc2x3::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x3::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x3::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A reinforcing bar is usually made of steel with manufactured deformations in the surface, and used in concrete and masonry construction to provide additional strength. A single instance of this class can represent one or many of actual rebars, for example a row of rebars.

Mapped Geometry - The representation map should contain a representation of AdvancedSweptSolid type which holds an IfcSweptDiskSolid (including subtype IfcSweptDiskSolidPolygonal). Multiple IfcMappedItem's can be used to represent several bars as one occurrence of IfcReinforcingBar.
Material Set - This concept can be applied to the following resources: Core - Material from which the rebar is constructed, such as steel. Coating - Outer coating, if applicable.
Object Typing - This concept can be applied to the following resources: IfcReinforcingBarType

Definition at line 56 of file Ifc2x3/IfcReinforcingBarAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcReinforcingBar()

OdIfc2x3::IfcReinforcingBar::IfcReinforcingBar ( )

Default constructor for the IfcReinforcingBar class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcReinforcingBar::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcReinforcingBar::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcReinforcingBar::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ getBarLength()

double OdIfc2x3::IfcReinforcingBar::getBarLength ( ) const

Returns the value of BarLength attribute. This attribute represents the total length of the reinforcing bar. The total length of bended bars are calculated according to local standards with corrections for the bends.

Returns: Returns the value of BarLength attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ getBarRole()

IfcReinforcingBarRoleEnum OdIfc2x3::IfcReinforcingBar::getBarRole ( ) const

Returns the value of BarRole attribute. This attribute represents the role, purpose or usage of the bar, i.e. the kind of loads and stresses it is intended to carry.

Returns: Returns the value of BarRole attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ getBarSurface()

IfcReinforcingBarSurfaceEnum OdIfc2x3::IfcReinforcingBar::getBarSurface ( ) const

Returns the value of BarSurface attribute. This attribute represents indicator for whether the bar surface is plain or textured.

Returns: Returns the value of BarSurface attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ getCrossSectionArea()

double OdIfc2x3::IfcReinforcingBar::getCrossSectionArea ( ) const

Returns the value of CrossSectionArea attribute. This attribute represents the effective cross-section area of the reinforcing bar or group of bars.

Returns: Returns the value of CrossSectionArea attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcReinforcingBar::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ getNominalDiameter()

double OdIfc2x3::IfcReinforcingBar::getNominalDiameter ( ) const

Returns the value of NominalDiameter attribute. This attribute represents the nominal diameter defining the cross-section size of the reinforcing bar.

Returns: Returns the value of NominalDiameter attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ inFields()

virtual OdResult OdIfc2x3::IfcReinforcingBar::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ isKindOf()

virtual bool OdIfc2x3::IfcReinforcingBar::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ outFields()

virtual OdResult OdIfc2x3::IfcReinforcingBar::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcReinforcingBar::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcReinforcingBar::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ setBarLength()

void OdIfc2x3::IfcReinforcingBar::setBarLength ( double BarLength )

Sets the value of BarLength attribute. This attribute represents the total length of the reinforcing bar. The total length of bended bars are calculated according to local standards with corrections for the bends.

Parameters

BarLength [in] Bar length to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ setBarRole()

void OdIfc2x3::IfcReinforcingBar::setBarRole ( IfcReinforcingBarRoleEnum BarRole )

Sets the value of BarRole attribute. This attribute represents the role, purpose or usage of the bar, i.e. the kind of loads and stresses it is intended to carry.

Parameters

BarRole [in] Bar role to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ setBarSurface()

void OdIfc2x3::IfcReinforcingBar::setBarSurface ( IfcReinforcingBarSurfaceEnum BarSurface )

Sets the value of BarSurface attribute. This attribute represents indicator for whether the bar surface is plain or textured.

Parameters

BarSurface [in] Bar surface to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ setCrossSectionArea()

void OdIfc2x3::IfcReinforcingBar::setCrossSectionArea ( double CrossSectionArea )

Sets the value of CrossSectionArea attribute. This attribute represents the effective cross-section area of the reinforcing bar or group of bars.

Parameters

CrossSectionArea [in] Cross-section area to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ setNominalDiameter()

void OdIfc2x3::IfcReinforcingBar::setNominalDiameter ( double NominalDiameter )

Sets the value of NominalDiameter attribute. This attribute represents the nominal diameter defining the cross-section size of the reinforcing bar.

Parameters

NominalDiameter [in] Nominal diameter to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcReinforcingBar::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcReinforcingBar::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcReinforcingBar::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcReinforcingBar::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcReinforcingBar::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcReinforcingElement.

Member Data Documentation

◆ m_BarLength

IfcPositiveLengthMeasure OdIfc2x3::IfcReinforcingBar::m_BarLength

protected

Definition at line 298 of file Ifc2x3/IfcReinforcingBarAutoImpl.h.

◆ m_BarRole

OdDAI::Enum OdIfc2x3::IfcReinforcingBar::m_BarRole

protected

Definition at line 299 of file Ifc2x3/IfcReinforcingBarAutoImpl.h.

◆ m_BarSurface

OdDAI::Enum OdIfc2x3::IfcReinforcingBar::m_BarSurface

protected

Definition at line 300 of file Ifc2x3/IfcReinforcingBarAutoImpl.h.

◆ m_CrossSectionArea

double OdIfc2x3::IfcReinforcingBar::m_CrossSectionArea

protected

Definition at line 297 of file Ifc2x3/IfcReinforcingBarAutoImpl.h.

◆ m_NominalDiameter

IfcPositiveLengthMeasure OdIfc2x3::IfcReinforcingBar::m_NominalDiameter

protected

Definition at line 296 of file Ifc2x3/IfcReinforcingBarAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcReinforcingBarAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcReinforcingBar()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getBarLength()

◆ getBarRole()

◆ getBarSurface()

◆ getCrossSectionArea()

◆ getInstanceType()

◆ getNominalDiameter()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setBarLength()

◆ setBarRole()

◆ setBarSurface()

◆ setCrossSectionArea()

◆ setNominalDiameter()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_BarLength

◆ m_BarRole

◆ m_BarSurface

◆ m_CrossSectionArea

◆ m_NominalDiameter
