Public Member Functions | List of all members
OdIfc2x3::IfcSolidModel Class Reference

#include <IfcSolidModelAutoImpl.h>

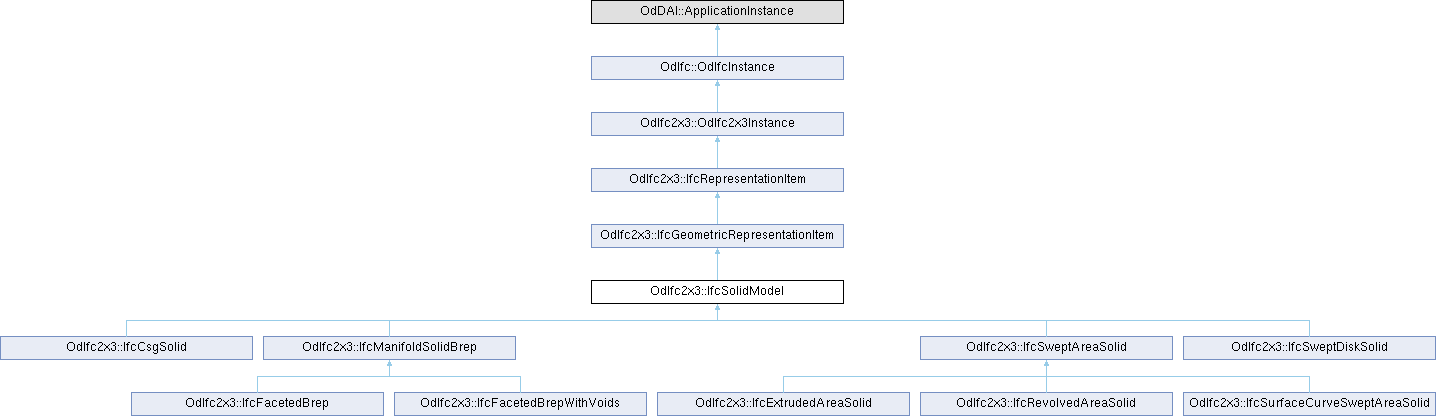

Inheritance diagram for OdIfc2x3::IfcSolidModel:
OdIfc2x3::IfcGeometricRepresentationItem OdIfc2x3::IfcRepresentationItem OdIfc2x3::OdIfc2x3Instance OdIfc::OdIfcInstance OdIfc2x3::IfcCsgSolid OdIfc2x3::IfcManifoldSolidBrep OdIfc2x3::IfcSweptAreaSolid OdIfc2x3::IfcSweptDiskSolid OdIfc2x3::IfcFacetedBrep OdIfc2x3::IfcFacetedBrepWithVoids OdIfc2x3::IfcExtrudedAreaSolid OdIfc2x3::IfcRevolvedAreaSolid OdIfc2x3::IfcSurfaceCurveSweptAreaSolid

Public Member Functions

virtual OdDAI::Entity * getInstanceType () const override

virtual bool comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType type () const override

- Public Member Functions inherited from OdIfc2x3::IfcRepresentationItem
void getInvLayerAssignments (OdDAIObjectIds &LayerAssignments) const

void getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

virtual OdResult inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void unsetAttr (const char *explicitAttrName) override

virtual bool testAttr (const char *explicitAttrName) const override

virtual OdRxValue getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

- Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void setInverseCounterParts () override

- Public Member Functions inherited from OdIfc::OdIfcInstance
 ODRX_DECLARE_MEMBERS (OdIfcInstance)

 OdIfcInstance ()

 ~OdIfcInstance ()

bool isInstanceOf (OdIfcEntityType entityType) const

virtual bool putAttr (const char *explicitAttrName, const OdRxValue &val)

IfcOpResult resolved ()

void resolve (IfcOpResult resolved, void *resPtr)

void unresolve ()

virtual void setGsNode (OdGsCache *pGsNode)

virtual OdGsCache * gsNode () const

virtual OdUInt32 subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub * ownerId () const


Additional Inherited Members

- Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d * asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d * asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d * asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d * asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d * asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d * asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor * asRgbColor (const OdIfcInstance *inst)

- Protected Attributes inherited from OdIfc::OdIfcInstance
void * m_resPtr

IfcOpResult m_resolved


Detailed Description

An IfcSolidModel represents the 3D shape by different types of solid model representations. It is the common abstract supertype of Boundary representation, CSG representation, Sweeping representation and other suitable solid representation schemes.

Remarks
This definition may not be instantiated.

Definition at line 45 of file Ifc2x3/IfcSolidModelAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcSolidModel::comparedToEarlyImpl ( const OdDAI::ApplicationInstance * pOther,
OdRx::Ordering & ordering ) const
overridevirtual

Early-bound version of instances comparison.

Parameters
pOther[in] Other application instance.
ordering[out] Receives the ordering (comparison) status.
Returns
true if comparison was performed, false if method has no implementation, so late-bound version could be applied.
Remarks
If the method returns true, the ordering parameter can receive one of the following statuses:
Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcGeometricRepresentationItem.

Reimplemented in OdIfc2x3::IfcCsgSolid, OdIfc2x3::IfcExtrudedAreaSolid, OdIfc2x3::IfcFacetedBrep, OdIfc2x3::IfcFacetedBrepWithVoids, OdIfc2x3::IfcManifoldSolidBrep, OdIfc2x3::IfcRevolvedAreaSolid, OdIfc2x3::IfcSurfaceCurveSweptAreaSolid, OdIfc2x3::IfcSweptAreaSolid, and OdIfc2x3::IfcSweptDiskSolid.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcSolidModel::getInstanceType ( ) const
overridevirtual

Returns a type of a class instance.

Returns
Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcGeometricRepresentationItem.

Reimplemented in OdIfc2x3::IfcCsgSolid, OdIfc2x3::IfcExtrudedAreaSolid, OdIfc2x3::IfcFacetedBrep, OdIfc2x3::IfcFacetedBrepWithVoids, OdIfc2x3::IfcManifoldSolidBrep, OdIfc2x3::IfcRevolvedAreaSolid, OdIfc2x3::IfcSurfaceCurveSweptAreaSolid, OdIfc2x3::IfcSweptAreaSolid, and OdIfc2x3::IfcSweptDiskSolid.

◆ isKindOf()

virtual bool OdIfc2x3::IfcSolidModel::isKindOf ( OdIfc::OdIfcEntityType entityType) const
overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters
entityType[in] Entity to check.
Returns
true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcGeometricRepresentationItem.

Reimplemented in OdIfc2x3::IfcCsgSolid, OdIfc2x3::IfcExtrudedAreaSolid, OdIfc2x3::IfcFacetedBrep, OdIfc2x3::IfcFacetedBrepWithVoids, OdIfc2x3::IfcManifoldSolidBrep, OdIfc2x3::IfcRevolvedAreaSolid, OdIfc2x3::IfcSurfaceCurveSweptAreaSolid, OdIfc2x3::IfcSweptAreaSolid, and OdIfc2x3::IfcSweptDiskSolid.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcSolidModel::type ( ) const
overridevirtual

Returns the type of this entity.

Returns
A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcGeometricRepresentationItem.

Reimplemented in OdIfc2x3::IfcCsgSolid, OdIfc2x3::IfcExtrudedAreaSolid, OdIfc2x3::IfcFacetedBrep, OdIfc2x3::IfcFacetedBrepWithVoids, OdIfc2x3::IfcManifoldSolidBrep, OdIfc2x3::IfcRevolvedAreaSolid, OdIfc2x3::IfcSurfaceCurveSweptAreaSolid, OdIfc2x3::IfcSweptAreaSolid, and OdIfc2x3::IfcSweptDiskSolid.

The documentation for this class was generated from the following file:
