#include <IfcExtrudedAreaSolidAutoImpl.h>

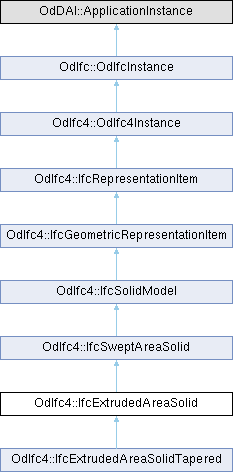

Inheritance diagram for OdIfc4::IfcExtrudedAreaSolid:

Public Member Functions
const OdDAIObjectId &	getExtrudedDirection () const

void	setExtrudedDirection (const OdDAIObjectId &ExtrudedDirection)

double	getDepth () const

void	setDepth (double Depth)

	IfcExtrudedAreaSolid ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcSweptAreaSolid
const OdDAIObjectId &	getSweptArea () const

void	setSweptArea (const OdDAIObjectId &SweptArea)

const OdDAIObjectId &	getPosition () const

void	setPosition (const OdDAIObjectId &Position)

Public Member Functions inherited from OdIfc4::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_ExtrudedDirection

IfcPositiveLengthMeasure	m_Depth

Protected Attributes inherited from OdIfc4::IfcSweptAreaSolid
OdDAIObjectId	m_SweptArea

OdDAIObjectId	m_Position

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcExtrudedAreaSolid is defined by sweeping a cross section provided by a profile definition.

Details - The direction of the extrusion is given by the ExtrudedDirection attribute and the length of the extrusion is given by the Depth attribute. If the planar area has inner boundaries (holes defined), then those holes are swept into holes of the solid. The image below illustrates geometric parameters of the extruded area solid. The extruded area solid defines the extrusion of a 2D area by an direction and depth. The result is a solid.

The image below illustrates geometric parameters and additional positioning parameters of the extruded area solid. The extruded area solid defines the extrusion of a 2D area by an direction and depth. The 2D area, provided by a parameterized profile definition, can be positioned relative to the object coordinate system (other then by default at 0.,0. with no rotation). The result is a solid that can be repositioned within the object coordinate system.

Texture Use Definition - For side faces, textures are aligned facing upright continuously along the sides with origin at the first point of an arbitrary profile, and following the outer bound of the profile counter-clockwise (as seen from above). For parameterized profiles, the origin is defined at the +Y extent for rounded profiles (having no sharp edge) and the first sharp edge counter-clockwise from the +Y extent for all other profiles. Textures are stretched or repeated on each side along the outer boundary of the profile according to RepeatS. Textures are stretched or repeated on each side along the extrusion axis according to RepeatT.

For top and bottom caps, textures are aligned facing front-to-back, with the origin at the minimum X and Y extent. Textures are stretched or repeated on the top and bottom to the extent of each face according to RepeatS and RepeatT.

The image below illustrates default texture mapping with a repeated texture (RepeatS=True and RepeatT=True). The image on the left shows the texture where the S axis points to the right and the T axis points up. The image on the right shows the texture applied to the geometry where the X axis points back to the right, the Y axis points back to the left, and the Z axis points up.

Definition at line 73 of file Ifc4/IfcExtrudedAreaSolidAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcExtrudedAreaSolid()

OdIfc4::IfcExtrudedAreaSolid::IfcExtrudedAreaSolid ( )

Default constructor for the IfcExtrudedAreaSolid class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcExtrudedAreaSolid::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcExtrudedAreaSolid::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcExtrudedAreaSolid::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.

◆ getDepth()

double OdIfc4::IfcExtrudedAreaSolid::getDepth ( ) const

Returns the value of Depth attribute. This attribute represents the distance the surface is to be swept along the ExtrudedDirection.

Returns: Returns the value of Depth attribute.

◆ getExtrudedDirection()

const OdDAIObjectId & OdIfc4::IfcExtrudedAreaSolid::getExtrudedDirection ( ) const

Returns the value of ExtrudedDirection attribute. This attribute represents the direction in which the surface, provided by SweptArea is to be swept.

Returns: Returns the value of ExtrudedDirection attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcExtrudedAreaSolid::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.

◆ inFields()

virtual OdResult OdIfc4::IfcExtrudedAreaSolid::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.

◆ isKindOf()

virtual bool OdIfc4::IfcExtrudedAreaSolid::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.

◆ outFields()

virtual OdResult OdIfc4::IfcExtrudedAreaSolid::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcExtrudedAreaSolid::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcExtrudedAreaSolid::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.

◆ setDepth()

void OdIfc4::IfcExtrudedAreaSolid::setDepth ( double Depth )

Sets the value of Depth attribute. This attribute represents the distance the surface is to be swept along the ExtrudedDirection.

Parameters

Depth [in] Depth to set.

◆ setExtrudedDirection()

void OdIfc4::IfcExtrudedAreaSolid::setExtrudedDirection ( const OdDAIObjectId & ExtrudedDirection )

Sets the value of ExtrudedDirection attribute. This attribute represents the direction in which the surface, provided by SweptArea is to be swept.

Parameters

ExtrudedDirection [in] Extruded direction to set.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcExtrudedAreaSolid::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcExtrudedAreaSolid::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcExtrudedAreaSolid::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcSweptAreaSolid.

Reimplemented in OdIfc4::IfcExtrudedAreaSolidTapered.
